Products Description
Sewer pipe cleaning operations are carried out throughout the year, though they are more frequently done in summer and fall. These are times when the rain tends to cause dirt and debris which clogs up the sewage systems. Professionals use two systems of cleaning – jetting and vacuuming. Jetting is a process in which a high-pressure water hose with a sewer-jetting nozzle is pushed into the dirty pipeline. High-pressure water is released from the sewer jet truck to dislodge all of the dirt and flush it away into a gully hole. As the dirt is removed, the nozzle continues to move deeper into the sewer.
Combination Sewer cleaner also use vacuuming through which all of the dirt is extracted with a vacuuming system. All the solids and water removed this way are then disposed into a sludge tank. Jetting and vacuuming may also be performed simultaneously for more effective cleaning. Two people are required to handle the entire process in such cases. Combination sewer cleaning trucks make provision for one person to operate the jetter and vacuum hose, while another worker will stand further upstream of the manhole being cleaned to ensure that the hose is moving forward as it should. He will also indicate when it has reached the end of the manhole.
Products Parameters
| Combined Sewage Suction Jetting Truck Specification | ||
| Sewer Vacuum Truck Model | CSC5250GXW | |
| Cab | FAW one and a half row seats, with power steering | |
| Driving Type | 6x4 Left hand driving | |
| Max Speed (km/h) | 80 | |
| Overall Dimension (mm) | Appro. 11000*2600*4000 | |
| Max Loading Weight (kg) | Appro. 25000 | |
| Curb Weight( kg) | Appro. 16000 | |
| Wheelbase (mm) | 4600+1350 | |
| F/R Track Base (mm) | 2022/1830 | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Tire | Type | 295/80R22.5 |
| Nos | Total 11 pieces, including 1 spare tire | |
| Gear box | Brand | FAST |
| Model | 9-shift | |
| Type | Manual | |
| Forward Speeds | 9 | |
| Rear Speeds | 1 | |
| Max Input Torque | 1900N.m | |
| Rated Speed | 2600rpm | |
| Synchronizer | With Synchronizer | |
| Forward Speeds Ratios | 14.36; 10.66; 7.88; 5.82; 4.38; 3.28; 2.44; 1.8; 1.33; 1 | |
| Reverse Speeds Ratios | 14.01; 3.2 | |
| Oil Tank Capacity | 15L | |
| Operating System | Single H operation | |
| Bridge | Axle Nos | 3 |
| Front Axle Model | HF7 drum type | |
| Rear Axle Model | 435 model | |
| Front axle loading capacity (kg) | 7000 | |
| Rear axles loading capacity (kg) | 18000 | |
| Engine | Brand | XICHAI |
| Model | CA6DL1-31 | |
| Emission Standard | EURO 3 | |
| Fuel Type | Diesel fuel | |
| Air Intake Form | In-line 6 cylinders, water cooling, turbocharging and intercooling | |
| Cylinder Nos | 6 | |
| Exhaust (ml) | 7700 | |
| Max. Output Power (kw) | 228 | |
| Max output power/rotate speed (hp /rpm ) | 310/2300 | |
| Max torque/rotate speed (N.m/rpm) | 1100/1400 | |
| Braking System | Service Brake | Compressed air brake |
| Park Brake | Spring energy | |
| Auxiliary brake | Engine exhaust brake | |
| Electric System | 24V | |
| Oil Tank Volume | 300L | |
| Combination Sewer Cleaner Upper Body Specification | ||
| Sewer Tank | ||
| Dirty Tank Volume | 9000L | |
| Cleaning Water Tank | 7000L | |
| Material | Carbon Steel (With anti-corrosion paint) | |
| Thickness | Tank 6mm / Head 8mm | |
| Color | According to your demands | |
| Vacuum Pump | Model | SK42 water recycle pump |
| Suction Rate | 42 m3 / min | |
| Suction Flow | 2520 m3/h | |
| Suction Height | 8m | |
| Motor Power | 75 | |
| Inlet and Outlet Pipe Diameter | 150mm | |
| Pump Speed | 740r/min | |
| Function Introduction |
10 meters suction hose 80 meters Subhigh pressure water pipe One rear artesian flow hose Anti-spill valve Overflow valve Pressure gage 10 sets nozzles Rear door hydraulic opening LED light One manhole |
|
Vacuum System
WEICHAI 380HP diesel engine with SK42 vacuum pump, pump rate 42m3/min, super powerful and long life service

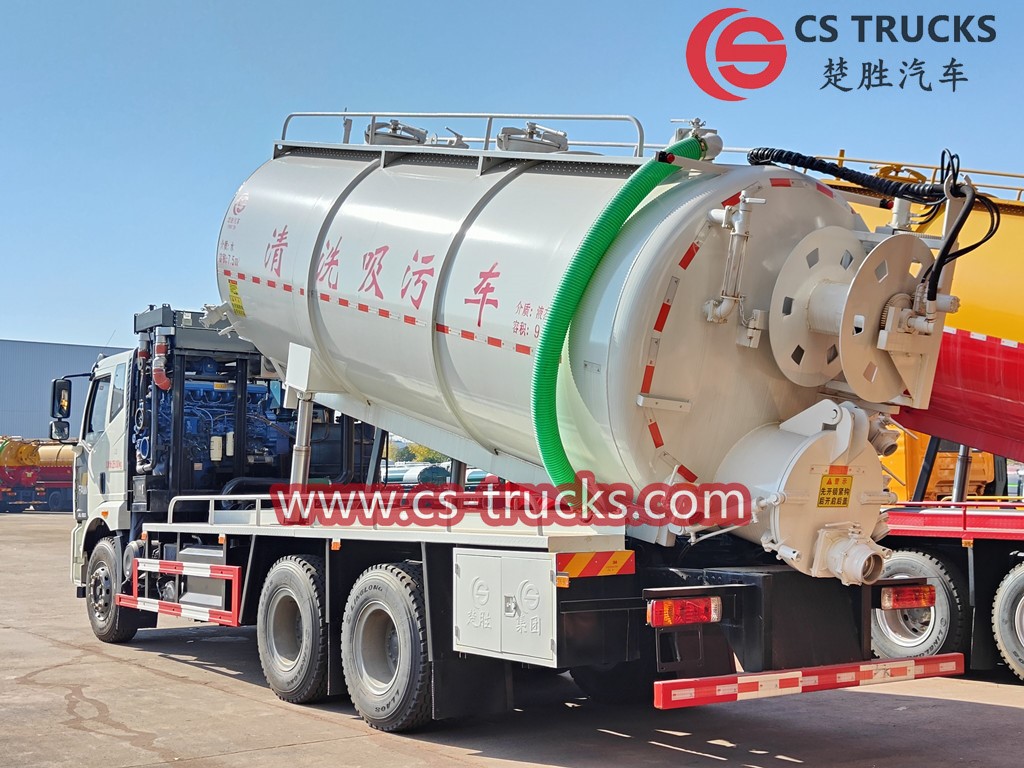

Rear Suction and Jetting Device
Standard 60m hose reel with 10 sets different size water jetting nozzles, service for drainage cleaning and sewage water suction discharge

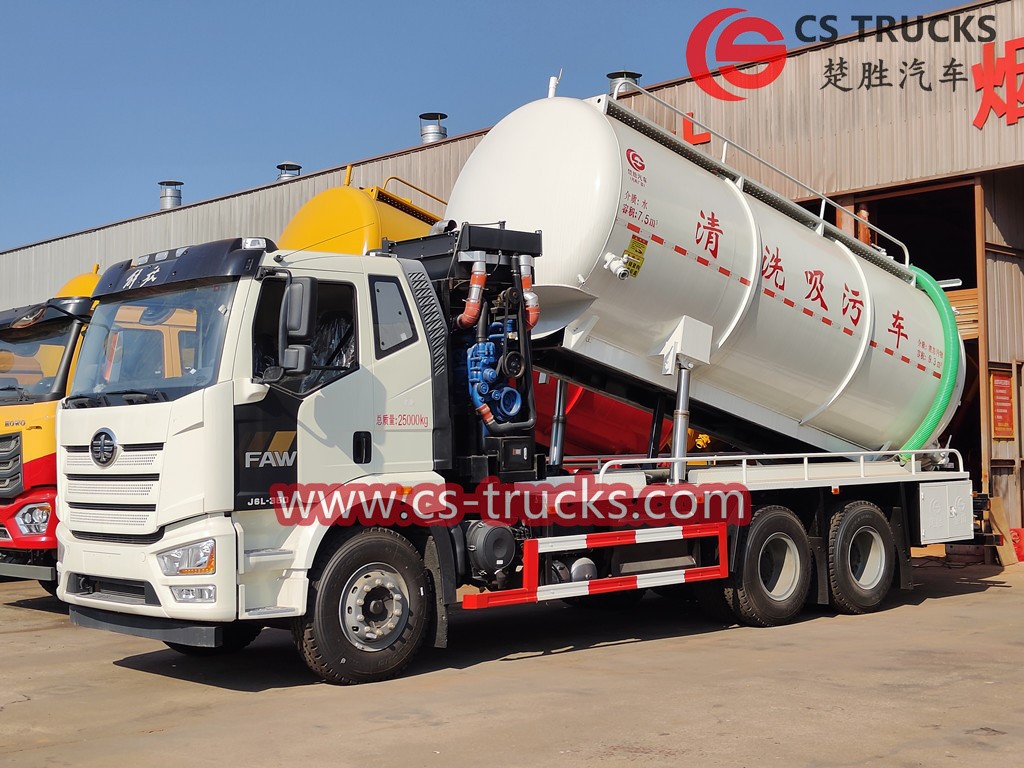

Hydraulic Cylinder Device
Hydraulic cyliner to be lifting the heavy tanker device, also with support for safety when maintenance
Products features
CS TRUCKS produced FAW combination sewer cleaner provide contractors and governments with excellent jetting action and superior vacuum power to efficiently open clogged sewer lines and perform needed maintenance.
POWER MODULE:
- Range of power module packages based on customer need
- Positive displacement blowers from 16 inches to 27 inches Hg of vacuum power
- Jetting systems complement the cleaning power with capacity ranges from 50 to 120 gpm and pressures to 3000 psi
- AllSmartFlow CANbus smart controls system standard
- Single engine operation reduces fuel consumption emissions, noise and maintenance
HOSE REEL:
- Axial pivoting hose reel is easily fixed into multiple positions for efficient operation
- Unique, heavy-duty direct reel drive system consists of a rugged planetary gear box, driven by a hydraulic motor incorporating a crossport relief valve to cushion the system
- Dual latching system means there are no pin alignment problems common to other machines
- Models are available with the operator station at the front or rear of the chassis
- Popular options include auto level wind, Lexan® shields and hose tensioner
HIGH PRESSURE WATER PUMP:
- Germany PINFL Plunger-style triplex pump delivers a smooth, continuous flow of water without the need for an accumulator
- Pump is capable of flows from 50 to 120 gpm
- Features run-dry prevention technology
