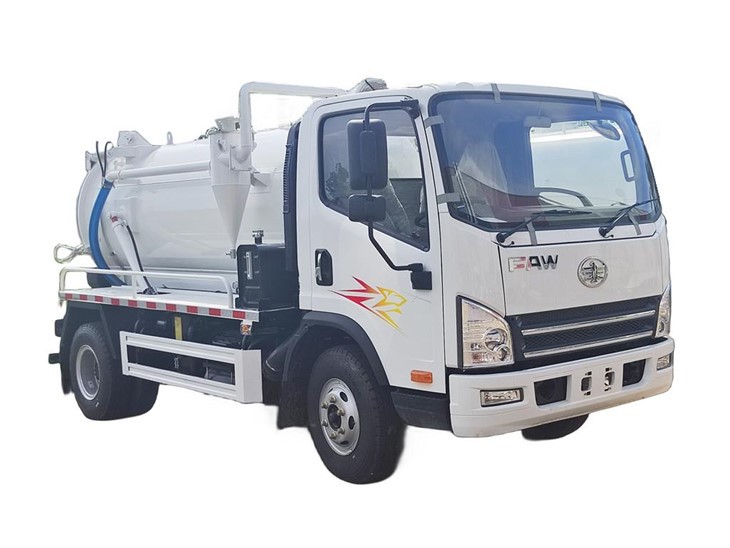

Sewage Pumping Truck Faw RHD
video
Sewage Pumping Truck Faw RHD

Sewage Pumping Truck Faw RHD

6CBM Faw RHD septic pump tank truck service near me
Africa Kenya Mombasa customer buy FAW rhd 6 cubic meter vacuum truck tanker, FAW 4x2 truck model chassis CA1110P40K2LEYA84, right hand drive truck chassis mounted with YUCHAI diesel engine, YC4D130-33 model 130HP, 6-shift manual gearbox with 6 forward and 1 reverse, 8.25R16 tires with 6+1 spare tire, customized 6000liters sewage water tanker, thickness 6mm with round shape, multi overflow valve equipped on top of the sewage tanker, full air brake suitable for mountain road. mounted with italy brand BP vacuum pump system, Battioni Pagani system, electrophoretic painting for long life service.

Model: CSC5110GXW
Capacity: 6,000 Liters
Drive: 4×2
Engine power: 130 HP
Engine type: YC4D130-33
Send Inquiry
Description
Products Description

Septic pump truck is called Faw vacuum sewage truck, sewage suction truck, Sewage Pumping Truck Faw RHD, sewage vacuum truck ,waste vacuum truck ,sewer truck ,cesspit emptier, gully emptier,etc. Which is used to collect, transport and discharge liquid such as dirty water,sludge,septic,crude oil and solid stuff such as small stones,bricks as well.It is suitable for cleaning the sewer,cesspit,gully ,etc. It is widely used in environment and sanitation field.

New FAW 4x2 RHD sewage suction truck export to Kenya Mombasa, equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

FAW sewer cleaning truck

Technical Specification for FAW vacuum truck

a.FAW Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.

b.Adopt EU vacuum pump (Italy brand MORO, Battioni Pagani, JUROP) or equivalent China top brand double vacuum pumps,super powerful,highly efficient.

c.Pump can be operated by a hydraulic motor or by an auxiliary engine, muitiple optional.

d.Overflow system with music horn is equipped ,preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.

e.Nice round shape, rational structure, durable and long service life.

f. Painting and logos 100% customized.

Vehicle Description CSC5110GXW model Sewage Pumping Truck Faw RHD 6cbm Vacuum Sewage Cleaning Fecal Tanker Special Suction Pump Truck price
Overall dimensions 6200*2100*2600mm
GVW 11000kg
Mass in working order 4800kg
Chassis brand FAW
Traction type 4*2
Tanker Description
Tanker Capacity 6cbm
Material 6mm thickness, high quality carbon steel
Structure Welding, vacuum tank, Cylindrical
Pump Type Original Italy brand BP Vacuum pump (Battioni Pagani) MEC6500 model
Flux 7000(L/min)
Rating speed 1400(r/min)
Shaft power 12.5(kw)
Features Low speed, low fuel consumption, low noise, high vacuum, high efficiency
Manufacture Battioni Pagani
Pipe Suction and discharge pipe
Special function Suction time ≤ 5min,
Effective suction range ≥ 8,
Max vacuum degree ≤ 15 Kpa,
dump angle ≥ 45
Standard configuration Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc.
Cylinder vacuum tank can be lifted hydraulically to
40-45 degree. Rear door can be opened and closed hydraulically.
Optional configuration Tanker material: stainless steel or carbon steel
Vacuum pump : Italy or Spain vacuum pumps.
Anti-rust coating inside tank

FAW vacuum suction truck 6cbm



septic truck pump FAW



FAW cesspit emptier truck export Africa Kenya

The FAW right-hand drive sewage suction truck is of great significance and value to Kenya’s national health. The following is a detailed summary of its significance and value to Kenya’s national health:



  1. Efficient sewage cleaning: Kenya faces the problem of inadequate sewage treatment and sanitation facilities. The FAW sewage tank truck can clean sewage, sludge and silt efficiently and quickly, effectively preventing sewage retention and blockage. Cleaning up sewage can reduce the environment for germs to breed, prevent the spread of diseases, and improve Kenya's hygiene standards.
  2. Prevent water pollution: Kenya’s water resources are threatened by sewage pollution. FAW RHD vacuum tank trucks can help clean sewage and wastewater and reduce the risk of water pollution. It can collect and transport wastewater, ensure proper treatment of wastewater, and protect the safety and sustainable use of water resources.
  3. Improve the efficiency of sanitary facility maintenance: FAW truck mounted sewage tanker can efficiently clean and maintain sanitary facilities such as septic tanks, public toilets and sewers. It can quickly clean up garbage and sewage, keep sanitary facilities clean and smooth, and provide a better user experience. This helps improve public health and improves the quality of life of Kenyans.
  4. Effective control of odor and garbage accumulation: The FAW RHD sewage pumping truck is equipped with suitable dustbins and waste water containers, which can effectively control odor and garbage accumulation. This helps improve residents’ living environment, reduce hygiene problems caused by garbage, and keep the city clean and livable.
  5. Improve environmental sanitation awareness: During the cleaning process, the FAW right-hand drive cesspit emptier often attracts the attention of surrounding residents and enhances attention and awareness of environmental sanitation. This helps promote environmental sanitation education and action in Kenyan communities and form good environmental protection habits.
  6. Create employment opportunities: Using FAW septic tank trucks for cleanup work can create employment opportunities and promote economic growth and social development. The operation and maintenance of sewage suction trucks require human participation, which provides job opportunities and reduces employment pressure and poverty problems.
  7. Preventing the spread of disease: Inadequate sanitation facilities and polluted sewage are one of the important reasons why many Kenyan residents are sick. The application of FAW RHD vacuum sewage trucks can effectively reduce sewage retention and blockage, prevent the breeding and spread of germs, help control and prevent the spread of diseases, and improve Kenya's public health level.
  8. Promote sustainable development: The application of FAW sewer tank trucks can promote sustainable development in Kenya. They can collect and transport sewage and wastewater to designated treatment facilities for treatment, reducing the consumption of natural resources and negative impacts on the environment. By employing efficient clean technologies, they can save energy and reduce carbon emissions, promoting environmentally friendly development.



The FAW RHD septic pump truck is of great significance and value to Kenya’s national health. They can efficiently clean sewage, prevent water source pollution, improve the efficiency of maintenance of sanitary facilities, control garbage and odor, and improve the living environment and sanitary conditions of residents. In addition, they can promote environmental hygiene awareness, create jobs, prevent the spread of disease, and promote sustainable development.

Septic vacuum pump truck

What is BP vacuum pump

More than 500.000 MEC pumps have been put in operation to empty cesspits and transport slurry in agricultural and industrial applications. The reliability and strength of the MEC is the result of continuous design and manufacturing improvements accomplished during 40 years of deployments.

Product Geometrical capacity Max rpm

Max abs
pressure
Bar (PSI)

Max
vacuum %
(inHg)
Max
continuous
vacuum %
(inHg)
Power
at max
vacuum kW
(HP)
Weight kg
m³/h l/min cfm M P D H HM M P D H HM
MEC 1000 75,6 1260 45 600 1400 - 1400 - 2,5 (36) 89% (26,3”) 60% (18”) 3,5 (4,7) 40 34 - 48 -
MEC 1600 118,8 1980 70 600 1400 - 1400 - 2,5 (36) 89% (26,3”) 60% (18”) 4,5 (6) 48 42 - 56 -
MEC 2000 165 2750 97 600 1400 1400 1400 1400 2,5 (36) 91% (27,0”) 60% (18”) 5,5 (7,3) 75 65 65 81 77
MEC 3000 216 3600 127 600 1400 1400 1400 1400 2,5 (36) 92% (27,2”) 60% (18”) 7 (9,4) 86 75 77 92 89
MEC 4000 261 4350 154 600 1400 1400 1400 1400 2,5 (36) 94% (28,0”) 60% (18”) 9 (12,6) 97 85 90 116 102
MEC 5000 369 6150 217 600 1400 1400 1400 1400 2,5 (36) 94% (28,0”) 60% (18”) 11 (14,7) 127 120 121 136 132
MEC 6500 420 7000 247 600 1400 1400 1400 1400 2,5 (36) 94% (28,0”) 60% (18”) 12,5 (16,7) 142 129 130 154 150
MEC 8000 486 8100 286 600 1400 1400 1400 1400 2,5 (36) 94% (28,0”) 60% (18”) 16 (21,4) 157 140 141 174 162

MEC vacuum pump system

BP vacuum pump component
