Products Description
Faw fresh water tanker truck, also world famous used as water trucks. The Faw water tank lorry truck is used to clean roads and squares or water the greenery on the roadsides. It cleans the dirt formed both on the road and on the roadsides by irrigation method. Soil is also used to prevent dust formation on damaged and stabilized roads. Water tanker trucks are also used to provide water supply to vehicles working in building constructions and especially road constructions.
Here are the three main components of Faw water trucks:
- The water tank is the component of the faw water tank lorry truck that holds the water. The tank is typically placed on the chassis of the vehicle to create a water truck. Tank sizes vary depending on the intended purpose of the truck.
- The rig is the part in which the driver sits while operating the water truck. It houses different types of controls that enable the driver to steer the vehicle and control the disbursement of water.
- Pumping and spraying equipment is used to direct the water from the tank and disperse it to where it needs to go. The spray nozzles can be located on different parts of the truck, including the front, the back, and the side of the tank, as well as the hose reels, gravity dumps, or water cannons.

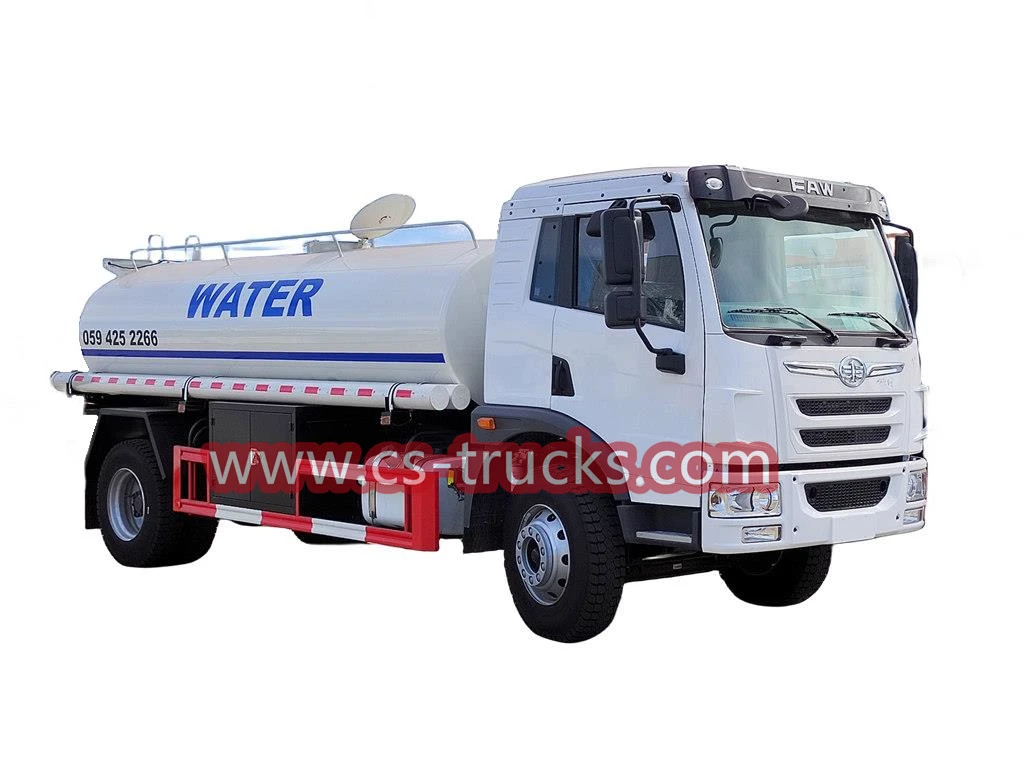

FAW water hauler

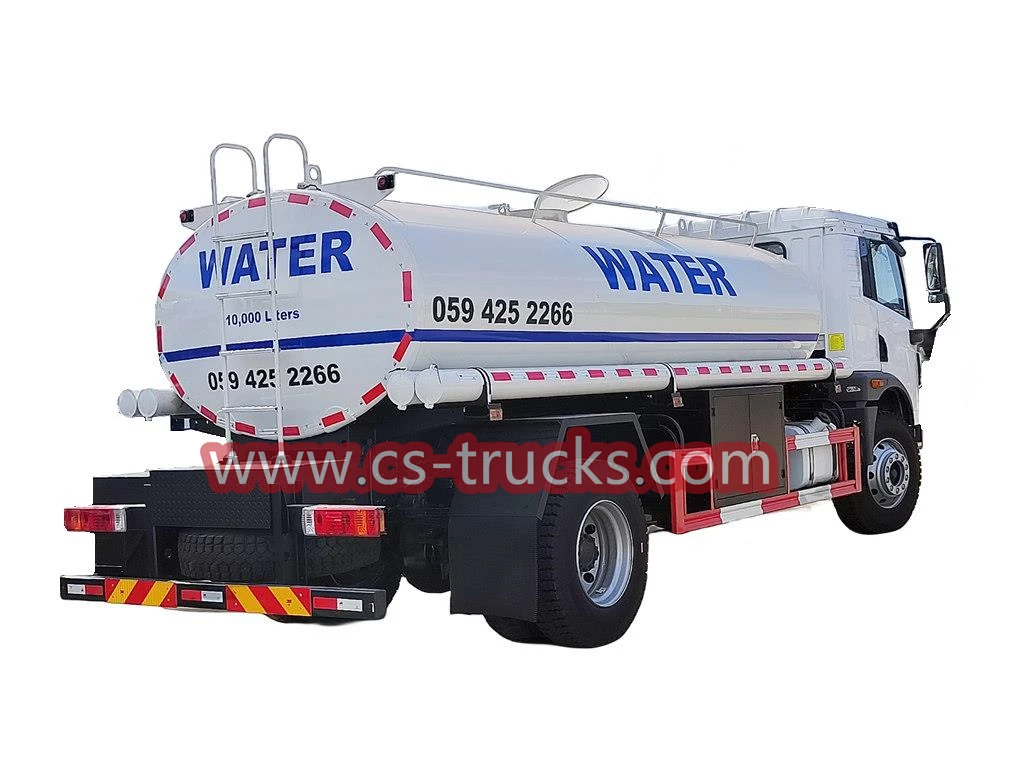

water bowser for sale 10000liters
Technical parameters for faw water Tank Lorry
| Truck Specification for FAW brand water tank lorry | ||||
| Chassis model | FAW 4x2 model | |||
| Cab | FAW one and half row cab, with power steering,with a/c | |||
| Driving Type | 4*2 Left hand driving | |||
| Max Speed (km/h) | 95 | |||
| Overall dimension(mm) | 8110x2500x3160 | |||
| GVW( kg) | 18000 | |||
| Mass in working order ( kg) | 7004 | |||
| Wheelbase(mm) | 4600 | |||
| F/R track base (mm) | 2010/1865 | |||
| F/R overhang (mm) | / | |||
| Approach/Departure Angel | / | |||
| Tire | 6+1 / 10.00R20 | |||
| Clutch | Single-plate dry diaphragm spring clutch φ430 | |||
| Steering | Hydraulic steering with power assistance AM75L | |||
| Gear box | 8JS85TE model 8-speed | |||
| Bridge | Front axle | / | ||
| Rear axle | 13T | |||
| Engine | Model | XICHAI 220HP | ||
| Fuel Type | Diesel fuel | |||
| Type | Water-cooled, four-stroke, with exhaust valve brake, direct injection, supercharged and inter-cooled | |||
| Exhaust(ml) | 6557 | |||
| Max output power/rotate speed (hp /rpm ) | 220/2300 | |||
| Max torque/rotate speed(N.m/rpm) | 780/1400 | |||
| Braking system | Service Brake | Double loop pneumatic drum | ||
| Park Brake | Energy storage spring cut-off brake | |||
| Auxiliary brake | Engine exhaust brake | |||
| Eletric system | 24v | |||
| Upper-Body specification | ||||
| A.TANK BARREL | |
| 1. Tank Profile | Oval shape |
| 2. Test pressure | Hydrostatic test to 5 psi (35 Kpa) on each compartment. 5 psi (35Kpa) |
| 3. Working pressure | Atmospheric. |
| 4. Capacity | 10000L plus 3~5% ullage. 10000L+3-5% |
| 5. Compartments | Single compartment. |
| 6. Interior weld finish | Not polished or grinded (W-0). , |
| 7. Exterior weld finish | Not polished or grinded (W-0). , |
| 8. Shell material | Carbon Steel |
| a) Top | 3.7mm nominal. 3.7mm |
| b) Sides | 3.7mm nominal. 3.7mm |
| c) Bottom | 3.7mm nominal. 3.7mm |
| 9. End Plate | Carbon steel, 3.7mm nominal. 3.7mm |
| All single heads dished and flanged. | |
| 10. Bulkhead | Nil. |
| 11. Baffle / Surge Heads | Carbon steel, 3.7mm nominal. 3.7mm |
| Dished with flap. | |
| 1 pcs.1 | |
| 12. Spill molding and rollover protection | Carbon steel around the dome with drain hose. |
| 13. Spill molding lids | Nil. |
| 14. Outer rings | Carbon steel, 60mm height, 3mm nominal, continuously welded 60mm,3mm, |
| 15. Frame | Carbon steel independent. |
| 16. Loaders and brackets | Carbon steel. |
| 15. Isolation | Nil. |
| 16. Exterior lining | Nil. |
| B. TANK FITTINGS AND PIPING | |
| 1. Manholes | 20" diameter with 6 carbon steel wing nuts, located at the top center |
| 1 pc. 2061 | |
| 2. Pressure Vacuum Vent | Two per compartment. 6~12 kPa pressure, 2~4 kPa vacuum. |
| 2,6~12 kPa , 2~4 kPa | |
| Chinese Brand | |
| 6.Foot valve | Nil. |
| 7. Discharge system | 3" diameter discharge with 3" diameter butterfly valve, 3" stainless steel male camlock coupling and quick cap, located at the back of the tank. , |
| 8. Piping | Nil. |
| 9. Thermometer | Nil. |
| 10. Steam trace | Nil. |
| 11. Overfill Prevention | Nil. |
| 12. Tow Hook | Nil. |
| 13. Product Indicators | Nil. |
| C. ACCESSORIES | |
| 1. Ladder | Carbon steel, 400mm wide, with non skid rungs and lateral handles, mounted at right middle of tanker. ,400mm, |
| 2. Walkway | Extruded aluminium around dome. |
| 3. Hose Carries | 1 no, hose carrier (round tubes) to fit Ø159 x 6meter (236") hose close type complete with brackets to be installed at the right side. |
| 4. Hose | Firemen type flexible discharge hoses, 30m 3" for discharge. and flexible plastics suction hoses, 5.9m 3"for suction, 3" female camlock coupling at both ends. 3,30 |
| 5. Motor Pump | BRIGGS & STRATTON Gasoline motor , 4 stroke motor, fuel tank capacity 4.0 liters of gasoline, WB30 pump with a 3" input and outlet diameter, 7m suction head, discharge capacity 900L/min (238Gal/min) pump head pressure 33 m, weight 30kg. +WB 30 |
| 6. Toolbox | Nil. |
| 7. Rear Bumper | Aluminium member to accommodate light assembly and number plate to cover full width of the tank. ,. |
| Steel bumper with ground clearance 500mm approx. | |
| 500mm | |
| 9. Hazchem Plate | Nil. |
| 10. Mudguard | Aluminum over suspension and the upper coupler. |
| Mud flaps rigid plastic at the rear. | |
| 11. Lights & Wiring | 24V. ISO 1185 7 pin socket. 24,ISO 1185 |
| Harness: oil and vapour proof cable. | |
| Front: nil.: | |
| Side: | |
| Mark lamp 3Pcs/side, LED.3LED | |
| Reflector 3Pcs/side 3 | |
| Turning lamp 1Pcs/side, LED.1 | |
| Rear Bump: | |
| Reverse lamp R-L 2Pcs. 2 | |
| Turning lamp R-L 2Pcs. 2 | |
| Brake lamp R-L 2Pcs. 2 | |
| Register plate light | |
| Rear top: YES. : | |
| Brand of Wiring: Phillips | |
| 12. Reverse alarm | Nil. |
| 13. Connector Box | At the center in the front dishend |
| 14. Sticker | 50mm wide red-white reflective sticker, mounted at both sides and rear bump. 50mm |
| 15. Hand rail | Nil. |
| 16. Fire Extinguisher | 8kg , 2Pcs. 8 |
| Carbon steel extinguisher holder located on the landing gear on the curb side. | |
| 17. Drains hose | water drains hose 2", installed at the back of spill molding2 |
| 18. Wheel chocks | Nil. |
| 19. Traffic cone | Nil. |
| 21. Spare wheel bracket | 1set, |
| Carbon steel, basket type, located behind the landing gear. | |
| 21. Painting | Polyurethane medium Aluminium gray, applied over epoxy primer on carbon steel elements, |
Water FAW water tank lorry can do
FAW Water Tank Lorry truck for transporting trailers or shipping materials it differs from other “heavy-duty” trucks used. The typical water truck that houses pumping equipment contains specially designed tanks to store large volumes of liquid. The job of water trucks is to carry water to industrial workplaces and spray water to add moisture to the soil. Water trucks also serve as preventative equipment to increase construction site safety where the risk of fire is common.
We carry out extensive maintenance to keep the rental water tankers in our fleet performing under the most intense working conditions. You can safely rent the water trucks in our inventory for use for a day, a few weeks or longer, depending on your needs.
The quantity of water a water truck tank can hold will depend on its intended purpose. While there is no set amount a water tank should hold, most water trucks are equipped with tanks that can carry between 500 and 4,000 gallons. However, you can find water truck tanks designed to hold as much as 10,000 gallons, or even 70,000 in the case of some off-road models available on the market.
Some manufacturers even offer tank kits for easy DIY installation, which enables the customer to tailor their truck to their off-road or on-road needs, however specific. These tank kits usually come in a variety of sizes, equipped with user-friendly mounting systems, additional components, and pre-installed hydraulics, wiring, and lighting. You may also be able to have your truck tank primed and painted in a color of your choice.
