Products Description
Fuel bowser, called as fuel tank truck is a special vehicle mainly used to transport and store various liquid petroleum products, such as gasoline, diesel, natural gas, etc. It has a special design and structure that can transport large quantities of liquid petroleum products under safe and reliable conditions. The oil tank truck can be equipped with a mobile refueling dispenser and 22m hose for distributing fuel to oil receiving equipment, such as vehicles, agricultural machinery, boilers, construction machinery and hotels.
Key Features
----► SHACMAN F3000 model 3-axle chassis
----► 12.00R20 tires, durable service
----► EURO standard accessories for high safety
----► Customizable configurations
----► Painting and logos as required
----► Pneumatic valve for emergency stop
----► Pump in and pump out function
Technical Specification
SHACMAN 20000 liters fuel tank truck is a special vehicle capable of safely transporting liquid petroleum products. equipped fuel pump for pump in and pump out function, equipment fuel dispenser for refueling process. Through reasonable design and equipment, it can ensure the safety of oil storage and transportation, protect the environment and personnel safety, and play an important role in social and economic development.
|
Manufacturer |
CS TRUCKS |
|
|
Item |
SHACMAN 6x4 refueling truck |
|
|
Brand |
SHACMAN F3000 SX5255GYYMN434 |
|
|
Model |
CSC5250GYY |
|
|
Production Time |
25 days |
|
Truck chassis |
||
|
Specification |
Overall dimensions |
9800*2500*3150 mm |
|
Gross weight |
25,000 kg |
|
|
Kerb weight |
10,800 kg |
|
|
Wheelbase |
4375+1400 mm |
|
|
Driving type |
6*4 |
|
|
Chassis model |
SHACMAN truck chassis |
|
|
Tire size |
12.00R20 |
|
|
Passengers in cab |
2 |
|
|
Engine |
Engine model |
WEICHAI WP10.300E22 |
|
Type of fuel |
Diesel |
|
|
Power |
300 HP |
|
|
Gearbox |
FAST 9-shift gearbox |
|
Upper body |
||
|
Water Tanker performance |
Tank Capacity |
20,000L |
|
Tank Material |
5mm carbon steel with antistatic treatment |
|
|
Fuel Pump |
China Famous Brand |
|
|
Optional Euro brand |
||
|
Compartment |
2 |
|
|
Fuel dispenser |
China famous brand with large flow |
|
|
Self-suction height |
5 m |
|
|
Suction hose |
7 m length with DN 100 mm |
|
|
Manhole |
European standard aluminum alloy cover |
|
|
Control Panel |
English |
|
|
Discharging system |
Gravity discharge or pump out from tank body. |
|
|
Painting |
Two primers, and one final paint coating |
|
|
Color & LOGO |
According to wish |
|
|
Factory standard |
“U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Stainless steel tank, Aluminum alloy tank 2, Compartments 3, Aluminum alloy folding guardrail |
|
Truck details
SHACMAN fuel tank truck
20cbm fuel bowser
Fuel discharging valves
EURO manhole for safety
Pump in and Pump out valves
Refueling Hose equipment
What is a fuel tank truck
A fuel tank truck is a special vehicle mainly used to transport and store various liquid petroleum products, such as gasoline, diesel, natural gas, etc. It has a special design and structure that can transport large quantities of liquid petroleum products under safe and reliable conditions.
Oil Tank trucks usually consist of the following main parts:
- Oil tank: The oil tank is the core part of the oil tanker truck and is used to store liquid petroleum products. It is made of corrosion-resistant materials, such as steel plates or steel tanks, and has certain compression and earthquake resistance.
- Refueling system: The tank truck is equipped with a refueling system, including an oil inlet, an oil outlet and a liquid circulation system. Through pipes and valves, liquid petroleum products can be drawn from storage tanks and refueled through a pump system.
- Control system: The tanker truck is equipped with a control system, including a steering wheel, braking system, acceleration system, etc., allowing the driver to safely operate and control the tanker truck. In addition, there are other auxiliary systems, such as explosion-proof system, anti-overturning system, etc.
- Electronic control system: The tank truck is equipped with an electronic control system for monitoring and controlling the operating status of the tank truck, including monitoring and alarming of oil volume, temperature, pressure and other parameters.
- Safety facilities: In order to ensure the safety of the transportation process, tank trucks are also equipped with various safety facilities, such as leakage alarms, anti-static devices, emergency parking devices, etc. These facilities can promptly detect and respond to potential hazards.
In general, the fuel bowser tank truck is a special vehicle capable of safely transporting liquid petroleum products. Through reasonable design and equipment, it can ensure the safety of oil storage and transportation, protect the environment and personnel safety, and play an important role in social and economic development.
How to build the fuel bowser tanker truck
Producing fuel tank trucks is a complex process involving multiple steps and links. Here is a five-point summary of how to produce oil tank trucks:
- Design and Planning: The first step in producing fuel tank truck is designing and planning according to customer needs and market requirements. This includes determining aspects such as the tank truck's capacity, dimensions, materials, structure, as well as the tank truck's functions and special requirements.
- Material selection and procurement: According to design requirements, select appropriate materials and components for procurement. These materials include steel plates, pipes, welding rods, etc. It is necessary to ensure that they comply with national standards and quality requirements.
- Processing and manufacturing: Use laser cutting, welding, stamping and other processing techniques to process and manufacture materials. According to the design drawings, the steel plates are welded into the main structure of the tank truck, and accessories such as liquid circulation systems, valves, and measuring instruments are installed.
- Assembly and testing: Assemble the manufactured components and conduct testing and inspection. Ensure the normal operation of various systems and devices of the oil tanker truck, such as pump systems, heating systems, explosion-proof systems, etc.
- Painting and Quality Control: After completing the assembly of the tanker truck, it is painted and painted. Spray painting must comply with national requirements and ensure the anti-corrosion and anti-rust properties of the car body. Finally, comprehensive quality control and testing are carried out to ensure that the quality of the tank truck meets standards.
In short, producing a tank truck requires multiple steps such as design and planning, material selection and procurement, processing and manufacturing, assembly and testing, painting and quality control. These steps need to be carried out in strict accordance with national standards and quality requirements to ensure the final production of high-quality, safe and reliable tank trucks.

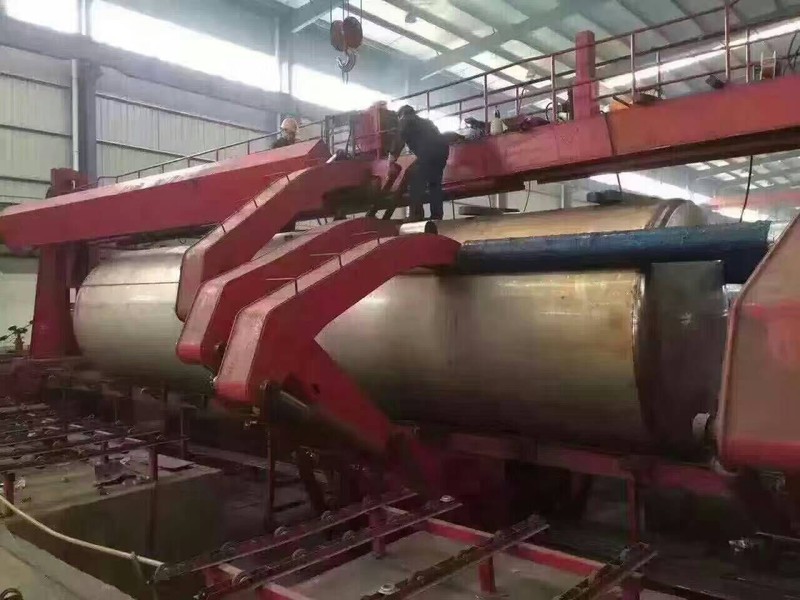

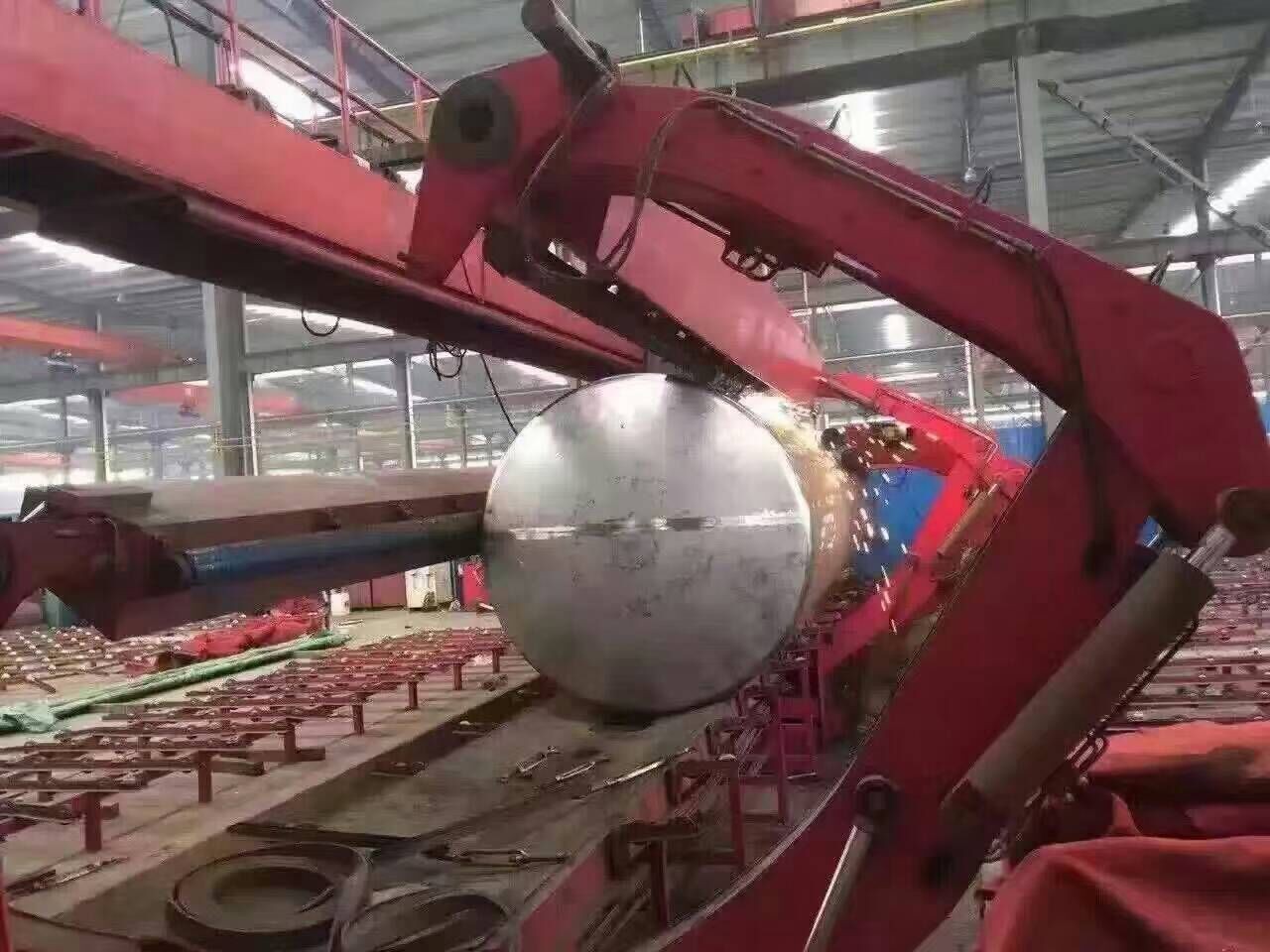

Fuel tanker welding
Fuel tanker under preparing
Fuel tank testing
Why choose fuel tanker from cS TRUCKS
CS TRUCKS produced and export fuel tanker have below classifications:
|
Model |
CS20 |
CS40 |
CS60 |
CS80 |
CS100 |
CS120 |
CS140 |
CS160 |
|
Tank capacity |
2,000L |
4,000L |
6,000L |
8,000L |
10,000L |
12,000L |
14,000L |
16,000L |
|
Pump type |
Vane |
Gear |
||||||
|
Pump capacity |
300L /min at 500rpm |
600L /min at 600rpm |
||||||
|
Piping diameter |
50mm |
63mm |
76mm |
|||||
|
Hose |
Diameter 50mm 2,000mm 2pcs. |
Diameter 63mm 3,000mm 2pcs. |
Diameter 76mm 3,000mm 2pcs. |
|||||
|
Manhole |
Diameter 400mm (Filling port diameter 235mm) |
|||||||
|
GVW(kg) |
5,000～6,000 |
8,500～9,000 |
13,500～15,000 |
14,500～16,000 |
20,000～26,000 |
24,000～26,000 |
26,000～29,000 |
|
|
Recommendable wheelbase |
2,500mm |
3,200mm |
3,700mm |
4,300mm |
4,500mm |
5,300mm |
||
CS TRUCKS fuel tanker standard equipment:
CS TRUCKS fuel bowser structure and component:
