Products Description
Diesel delivery trucks play a crucial role in ensuring the smooth transportation of goods and products. These trucks are specifically designed to transport diesel fuel to various locations, such as gas stations, construction sites, and industrial facilities. They are instrumental in supplying diesel fuel to power generators, heavy machinery, and vehicles that rely on diesel engines.
One of the key advantages of diesel delivery trucks is their capacity to transport large quantities of diesel fuel. These trucks are equipped with specialized tanks that can hold a significant amount of diesel, ensuring that they can cater to the demands of various industries. This allows for efficient and timely delivery of diesel fuel, minimizing disruptions in operations and ensuring that businesses can continue to function without interruptions.
Key Features
----► China premium HOWO chassis with high cost performance
----► With different compartment can transport different kinds of liquid
----► Tank volume designed to meet the customer's specific requirements
----► Equipped with aluminum alloy European standard manhole cover to ensure the safety
----► Designed with bottom loading system
Technical Specification
HOWO fuel truck has a 10,000 liter fuel tank and are made of durable high-grade carbon steel. It has full-width bumpers and fenders and comes with two hoses with male/female adapters. There is a spare wheel and carrier mounted on the rear of the fuel tank, as well as a ladder for reaching the manhole.
II. Technical data of HOWO 4X2 5CBM 8M3 Oil Refilling Tank Fuel Bowser Truck with Front Dispenser
| HOWO 80,000L Fuel Tanker Truck | ||||||
| Chassis | ||||||
| Chassis model | ZZ1127G4715C1 | |||||
| Overall dimensions | 8445×2400×2650mm | |||||
| Wheel base | 4700mm | |||||
| Driving type | 4×2 | |||||
| Approach/departure angle | 27/16(°) | |||||
| Front /rear overhang(mm) | 1240/2505 | |||||
| Wheel track(front/rear)(mm) | 1798/1764 | |||||
| Engine model | YC4E160-33 | |||||
| Engine manufacturer | Yuchai | |||||
| Engine power | 160HP | |||||
| Engine Cylinder number | 4 cylinders in-line, 4-strokes, water-cooled | |||||
| Emission standard | Euro 3 | |||||
| Displacement | 4260 ml | |||||
| Steering | Left drive hand | |||||
| Transmission | DC6J65TC,Manual, 6 Forwards and 1 Reverse | |||||
| Tyre size | 8.25R20 | |||||
| Tyre number | (6+1)one spare tire | |||||
| Axle (front/rear) | 3.2t/8t | |||||
| Max driving speed(km/h) | 95 | |||||
| Cabin | ||||||
| Capcity | 8,000 liters | |||||
| Material | Q235B carbon steel,epoxy paint 3 layer inner surface for anti-corrosion | |||||
| Shape of tank | Elliptic | |||||
| Manhole cover | European standard manhole with breather valve | |||||
| Outlet and inlet | 1 pcs outlet and 1 pcs inlet | |||||
| Tank Thickness(mm) | 5mm | |||||
| Compartment | Single Compartment (several compartments in optional) | |||||
| Safety Valve | European Standard, 1pcs | |||||
| Discharge Valve | Aluminium Alloy Ball Valve type (stainless steel ball valve is optional) | |||||
| Emergency Cutoff Device | Equipped, 1pcs | |||||
| Oil Pump | Equipped, 1pcs | |||||
| Flow Meter | Equipped, 1pcs | |||||
| Dispenser | CENSTAR (most famous Chinese brand) with 15M rotary filling gun | |||||
| Standard | tool box,climbing ladder, handrail, fire extinguisher, oil hose etc are included | |||||
| Ladder | At rear of tank | |||||
| Painting | Color and design as customer's requirement | |||||
Truck details

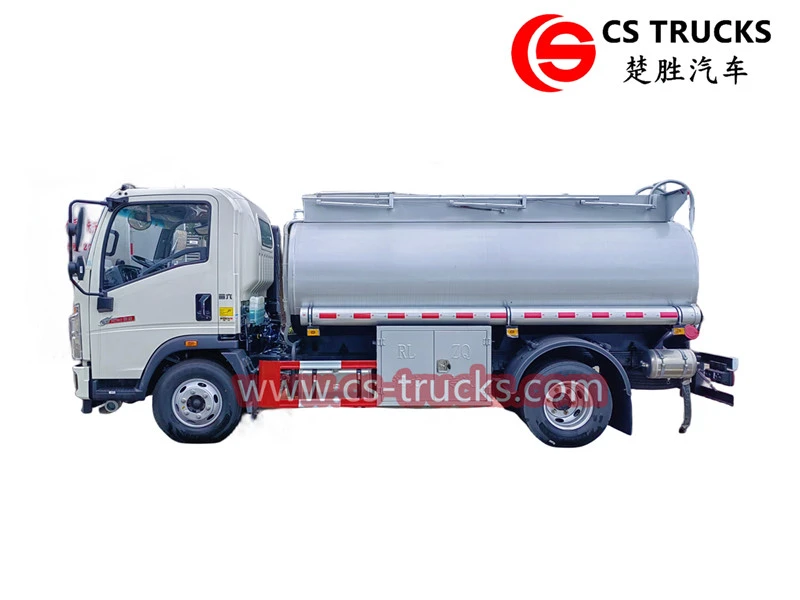

10m3 fuel tanker truck HOWO
HOWO fuel filling truck
HOWO oil tanker truck
HOWO diesel bowser
Baffle plate in the fuel tank
The baffle plate is an important part in the tank design of the liquid transport vehicle. Whether it is an oil tanker or a chemical liquid transport tanker, there is an baffle plate inside. The manufacturing materials of the baffle plate are usually stainless steel, carbon steel, aluminum alloy, etc. Its main function is to slow down the fluctuation and impact of the liquid inside the tank, reduce the long-distance direct and violent impact of the liquid on the head or compartment plate and cause the tank to break and fail, thereby improving the stability and safety of the tanker.
Typical structure of fule tanker truck
The structure of a typical fuel truck mainly consists of the following parts:
① Oil storage tank: The main part of the fuel truck is the oil storage tank, which is usually made of carbon steel, stainless steel or aluminum alloy. The capacity of the oil storage tank can be customized according to customer needs, and generally has different specifications from 1,000 liters to 30,000 liters. Oil storage tanks are usually divided into multiple independent compartments, which can store different types of fuel at the same time, such as gasoline, diesel and lubricating oil.
② Pump system: The fuel truck is equipped with a pump system for pumping oil from the storage tank to the vehicle or machinery that needs to be refueled. Pump systems typically include one or more electric, hydraulic, or pneumatic pumps. The pump system is also equipped with components such as filters and flow meters to ensure purification and accurate metering of fuel.
③ Flow meters and metering systems: Fuel trucks are equipped with flow meters and metering systems to accurately measure the amount of oil being refueled. Flow meters are usually electronic or mechanical and can record the amount of refueling and output corresponding data. The metering system also includes metering sensors and control panels for display and management of refueling operations.
④ Oil gun and oil pipe: The oil gun is a tool that connects the refueling truck and the vehicle being refueled. It is used to inject fuel into the vehicle's fuel tank or tank. Oil guns are generally equipped with anti-leak devices and automatic stop functions to ensure the safety and accuracy of refueling. The oil pipe enables flexible connection between the oil gun and the oil storage tank, making the refueling operation convenient.
⑤ Control System: The refueling truck is equipped with a control system to control and monitor the refueling operation. The control system usually integrates metering and flow control, pump system control, safety protection and other functions. Some high-end fuel trucks may also have remote monitoring and automated control functions.
Fuel tanker truck maintenance
Maintenance of fuel tank trucks is very important to ensure safe and efficient operations. Regular maintenance not only prolongs the life of your vehicle, but also helps prevent accidents and costly repairs. The following items should be paid attention to when carrying out the maintenance of the fuel tanker:
1. Perform regular visual inspections
Visually inspect tanks, chassis, and associated components for signs of corrosion, leaks, or damage. Check all fittings, valves and hoses for wear or damage. Make sure safety features such as reflectors, lights and signage are in place and functioning.
2. Keep the tank clean
Keep fuel trucks clean inside and out. Carefully clean tanks after each delivery to remove any residue, debris or impurities. Regularly inspect and clean tank vents and vents to prevent contamination. Change filters as recommended to ensure clean fuel delivery.
3. Check electrical system and lighting
Check electrical systems regularly to make sure lights, alarms and control panels are functioning properly. Check all wiring and repair any damage or corrosion. Regularly test all lighting components, including brake lights, turn signals, and hazard lights, to ensure they are functioning properly. Replace faulty light bulbs or damaged electrical components immediately.
4. Inspect fuel filling and discharging equipment
Regularly check fueling and unloading equipment, such as pumps, pipes, valves, instruments, etc., to ensure their normal operation and tight connection to prevent fuel leakage during loading and unloading.
