Products Description

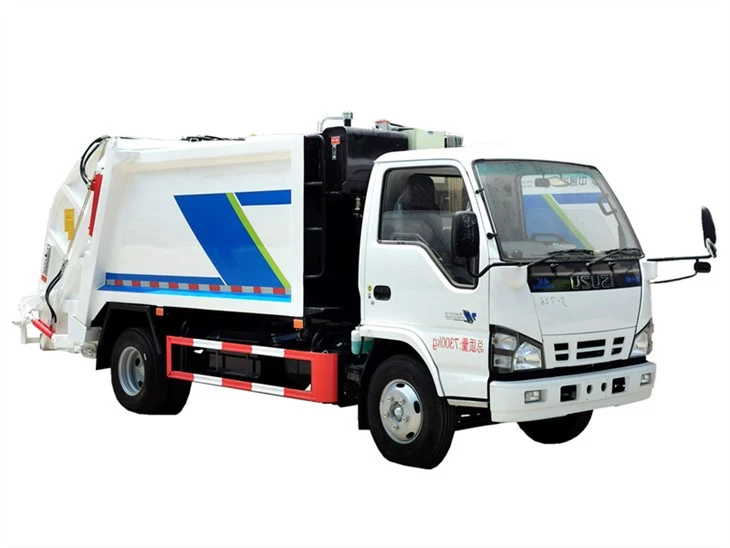

Isuzu vehicle mounted garbage compactor is an essential piece of equipment for efficiently managing waste collection. This type of garbage compactor is mounted on isuzu truck chassis, allowing waste to be collected and compacted while on the move.
vehicle mounted garbage compactor is its ability to reduce the volume of waste, allowing for more efficient transportation and disposal. By compacting the waste, the compactor can significantly increase the amount of garbage that can be transported in a single trip. This can lead to cost savings and a reduction in the number of trips required for waste collection.

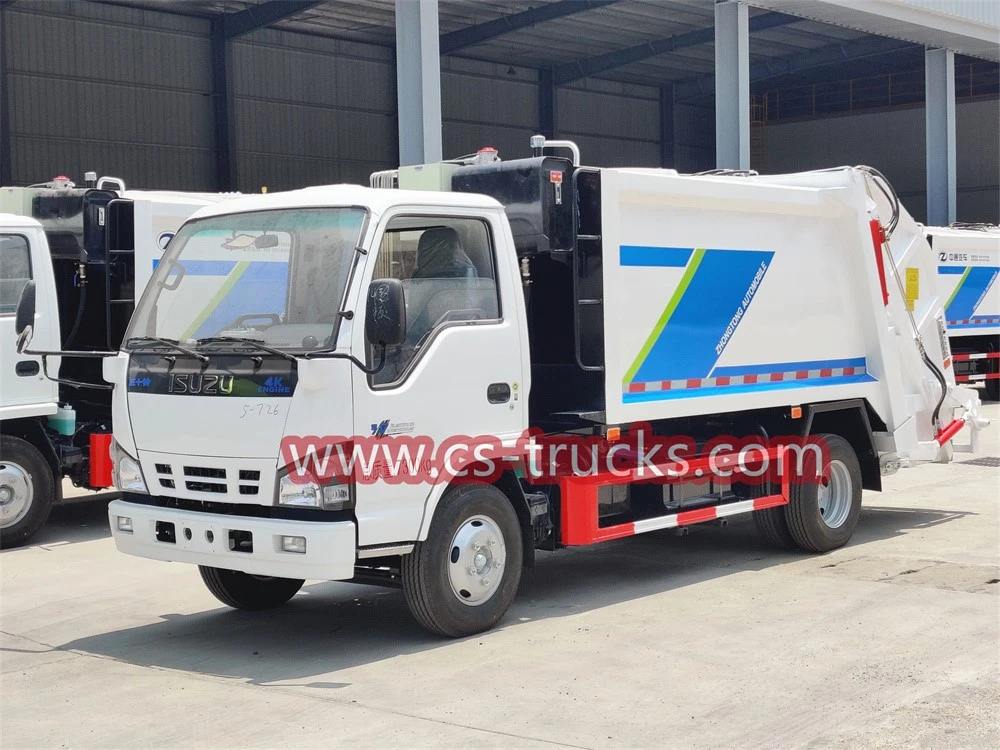

Isuzu 600P Compressed Sanitation Rubbish Collector Dust Cart Roll Off Waste Compactor Garbage Truck
Technical Description
| Mian Technology Parameter | |
| Model Name | Isuzu 600p garbage compactor truck |
| Driving Type | 4×2,left hand drive |
| Color | White,yellow,box can choose |
| Weights | |
| Rated payload weight(kg) | 6000 |
| Curb weight(kg) | 4550 |
| Dimensions | |
| Wheelbase(mm) | 3815(also can choose 3360mm wheelbase) |
| Overall Dimension(mm) | 6710×1880×2600 |
| Box dimension | 6 m3 |
| Max speed(km/h) | 98 |
| Engine | |
| Engine model | 4KH1-TCG6O(120HP) |
| Engine type | 4 stroke water-cooled,inter-cooling |
| No. of cylinders | straight-4 cylinders |
| Displacement(L) | 2.999L |
| Max. output (kw) | 88kw |
| Emissions standard | Euro 5 |
| Drive Line | |
| Transmission | MSB 5 speeds ,5 forwards,1 reverse gear,manual operation |
| Steering | Power steering |
| Brake | Oil brake with vacuum pump |
| Cab | |
| Air container | Have |
| Standard configuration | Sound,,parking sensors |
| Axle | |
| Front axle | 2.5tons |
| Rear axle | 4.8 tons |
| Tire specification | |
| Tire specification | 7.00-16 standard tire,6 tires+1 spare tire |
| 6m3 garbage compactor truck | |
| Box valume | 6m3 |
| Box material | Side 4mm,bottom 5mm |
| Sewage tanker | 200L |
| Fill volume | 1.2cbm |
| Loading time | 8-10S |
| The cycle time of the loading | 50-60S/per turn |
| Unloading model | Dump |
| Unloading time | 30-40S |
| Hydraulic system pressure | 16Mpa |
Pressure of garabge compactor vehicle compactor body
Isuzu garbage compression truck is a vehicle specially used for garbage collection and processing. It is usually equipped with a garbage bin body to store garbage. The pressure of the garbage bin body is very important. It directly affects the garbage processing efficiency and the working effect of the garbage compression truck. The pressure of the garbage bin body refers to the pressure inside the garbage bin body after the garbage is filled.
The compression truck compresses the garbage in the garbage bin through the compressor to reduce the volume of garbage and improve transportation efficiency. Therefore, the pressure of the garbage bin body must be large enough to withstand the huge pressure generated by the compressor, while maintaining structural stability to avoid deformation or rupture due to excessive garbage pressure.
Generally speaking, the design and manufacture of the garbage bin body have undergone strict calculations and tests to ensure that it can withstand pressure within a certain range. Usually made of high-strength steel plates or other alloy materials, they have excellent pressure resistance and corrosion resistance. In addition, reinforcement structures, such as thickened support columns and beams, will be installed inside the garbage bin body to enhance the overall strength and stability.
The pressure of the garbage bin body not only directly affects the compression effect of the garbage, but also affects the safe operation of the garbage compression truck. If the pressure of the garbage bin body is insufficient, it will affect the compression effect of the garbage, reduce the loading capacity of the garbage, increase the number of transportation times, and increase the transportation cost. If the pressure on the garbage bin body is too high, it may cause structural damage or leakage, causing environmental pollution and safety hazards.
