The Dubai HOWO 460HP heavy rescue fire truck is equipped with an MC11.46-61 460 hp engine and an 8x4 drive configuration, it boasts a massive 25000 liters water tank capacity and is positioned as a primary vehicle for long distance water supply and firefighting in urban and large scale industrial fire scenarios. Combining large capacity with high mobility, this vehicle is suitable for long distance water supply in water scarce areas and for continuous water supply during large fires.
Model: CSC5430XF
Capacity: 25000 L
Drive: 8×4
Engine power: 460 HP
Engine type: MC11.46-61
Send Inquiry
Description
ThisDubai HOWO 25000L fire command vehicle is a large capacity water tanker fire truck designed for heavy duty fire rescue needs, which is equipped with MC11.46-61 diesel engine with a maximum power of 460HP and a mature and reliable power chain. Utilizing an 8×4 drive configuration and a dual circuit air pressure braking system + EBS, it boasts excellent power response and driving stability.
The 25000 liters ultra large tank capacity is the core advantage of this truck, combined with a rear mounted CB10/100-TB fire pump (priming time ≤ 50s) and a PS8/80W fire monitor (flow rate 80L/s, range ≥ 85m), it can achieve continuous high flow water output and long range fire suppression coverage. The vehicle is suitable for primary rescue and water supply missions in urban areas, industrial zones, and remote fire scenes, making it ideal equipment for handling large scale fire scenarios.
*Dubai HOWO 25000L tanker fire truck*
Product Specifications
Dubai HOWO 8x4 Heavy Fire Department Rescue Truck
Vehicle Model
CSC5430XF
Drive Type
8×4
Capacity
25000 L
Gross Vehicle Weight
42680 kg
Curb Weight
17030 kg
Overall Dimensions L*W*H
12000*2540*3750 mm
Maximum Speed
95 km/h
Engine Parameters
Engine Model
MC11.46-61
Fuel Type
Diesel
Power
460 HP(338kW)
Emission Standard
Euro 6
Displacement
10518 ml
Engine Type
6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling
✦ Stable Chassis: Adopting the HOWO TX series 8×4 chassis with a wheelbase of 1950+4600+1400mm, the chassis is robust and stable when fully loaded with a 25000 liters water tank, adapting to complex road conditions.
✦ Reliable Powertrain: Equipped with an MC11.46-61 inline six cylinder water cooled turbocharged diesel engine with a rated power of 460HP, meeting Euro 6 emission standards, providing strong power output and environmental compliance, and adapting to the emission requirements of overseas markets.
Vehicle Configuration
✦ Vehicle Specifications: With overall dimensions of 12000×2540×3750mm, a curb weight of 17030kg, and a top speed is 95km/h, this vehicle successfully combines large capacity water storage with maneuverability. It features left hand drive and fully complies with road regulations in the Middle East and other regions.
✦ Safety and Reliability: Equipped with a dual circuit air pressure braking system + EBS, this vehicle delivers rapid braking response and high driving safety,while core components such as the engine and pump unit utilize mature technologies that facilitating maintenance and adapt to long term, high intensity operation requirements.
Fire Pump System
This CB10/100-TB pump is a low pressure vehicle mounted fire pump specifically designed for high flow firefighting operations. It complies with national standards GB6245-2006 and GB7956-2014 and has national 3C certification, which is suitable for high rise building firefighting, long distance water supply, riot control vehicles, marine firefighting, and high flow fire suppression applications.
Structural Features:
✔ Corrosion resistant high strength stainless steel pump shaft.
✔ Anticavitation inducer design, adaptable to high altitude, low pressure environments.
✔ Maintenance free, dry run resistant mechanical seal.
✔ Optional full flow Class B foam proportioning system.
Item
Operation I
Operation II
Flow
100 L/s
70 L/s
Discharge Pressure Mpa
1.0 Mpa
1.3 Mpa
Speed rpm
3280 rpm
3410 rpm
Power Kw
135 kW
131 kW
Note:In actual use, the pump can achieve a maximum flow rate of 110L/s and a maximum suction depth of 8m.
fire monitor System
The PS8/80W fire monitor features both direct current and spray modes, with the direct currentmode offering long range and strong impact for direct fire suppression from a distance, while the spray mode covers a large area for cooling the fire scene. The entire monitor is made of corrosion resistant materials, ensuring stable and reliable performance.
Model
Rated Working Pressure
Working Pressure Range
Flow
Maximum Working Pressure
Range
Horizontal Rotation Angle
Pitch Angle
Maximum Spray Angle
Connecting Flange
PS8/80W
0.8 MPa
0.8～1.6 MPa
80 L/s
1.2 MPa
≥85 m
360°
-85°～+90°
≥90°
DN100 PN16
Products Details
Battery Compartment
Equipment Room
Operating System
Operation Panel
Inlet and Outlet Valves
Driver's Cab
Gear Box
Hydraulic Oil Tank
Application Scenarios
Dubai HOWO 25000L Tanker Fire Truck for Firefighting in Residential Areas
Dubai HOWO 460HP Heavy Rescue Fire Truck for Roadside Assistance
Dubai HOWO 8x4 Rescue Trucks for Sale for Forest Fire Fighting
Exterior Views

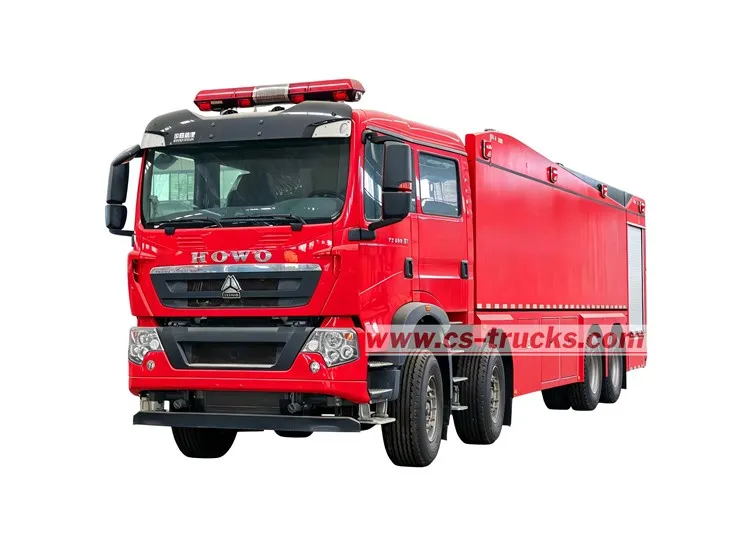

Front Right View of Dubai HOWO 8x4 Rescue Trucks for Sale

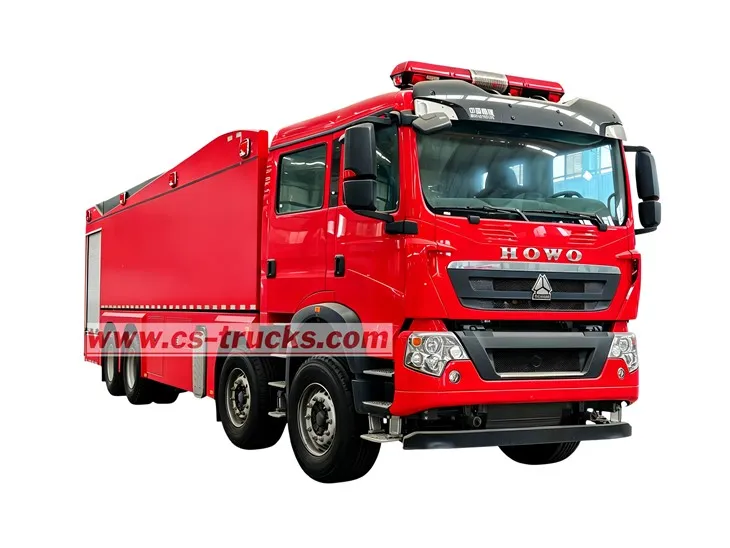

Front Left View of Dubai HOWO 8x4 Heavy Fire Department Rescue Truck

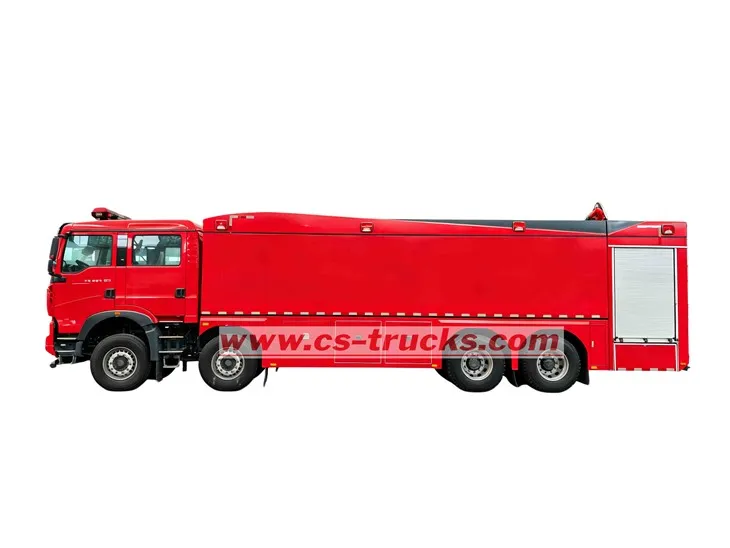

Left View of Dubai HOWO 460HP Heavy Rescue Fire Truck

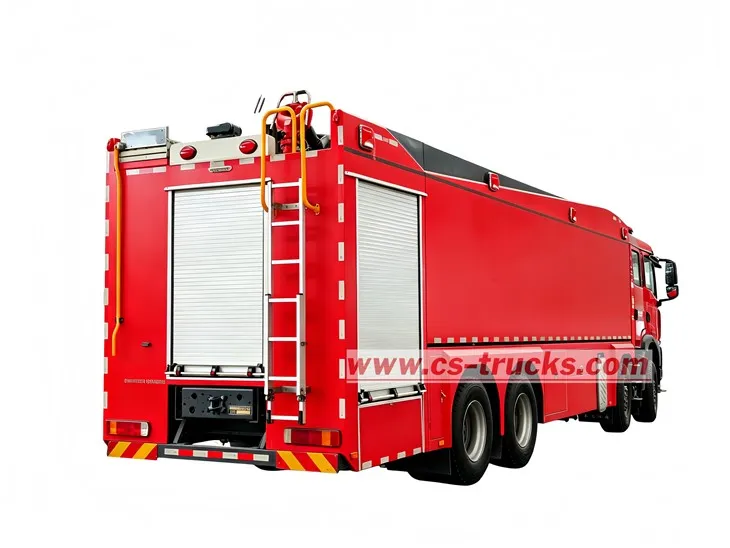

Rear Right View of Dubai HOWO 460HP Aircraft Rescue and Firefighting

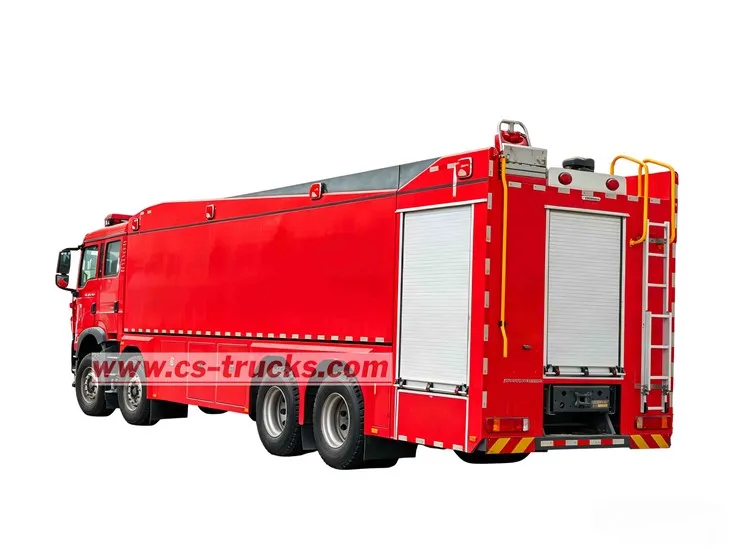

Rear Left View of Dubai HOWO 25000L Tanker Fire Truck

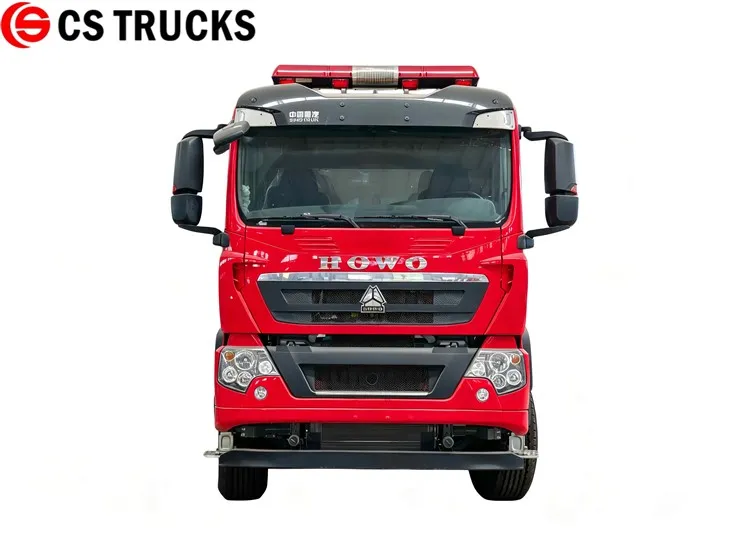

Front View of Dubai HOWO 25000L Fire Command Vehicle
