The Airport Chemical Rescue Fire Truck Apparatus HOWO features a 4×2 drive system and is equipped with an MC07H.35-60 350HP engine, ensuring stability, reliability, and powerful performance. It is equipped with an 8CBM large capacity water tank, suitable for urban main roads, industrial parks, and rural areas. With its flexible mobility and continuous water supply capabilities, it is an efficient, economical, and practical firefighting equipment that is essential for firefighters and businesses.
Model: CSC5200XF
Capacity: 8 CBM
Drive: 4×2
Engine power: 350 HP
Engine type: MC07H.35-60
Send Inquiry
Description
What Is A Fire Fighting Vehicle
This HOWO 4×2 drive fire fighting vehicle(also known as the HOWO 4×2 drive heavy rescue truck or HOWO 8CBM airport fire engine) is equipped with an MC07H.35-60 inline six cylinder diesel engine that meets Euro VI emission standards, delivering a powerful 350HP. Its reliable power and compliant emissions make it suitable for rescue needs in special scenarios such as airports and chemical industrial parks.
The vehicle is equipped with an 8000 liter carbon steel water tank, a CB10/60-RS fire pump, and a PS60 fire monitor, enabling a high flow rate water supply of 60L/s and the fire monitor has a range of over 65 meters, allowing for efficient coverage of large fire sources, which is a reliable fire fighting equipment for chemical plants, airports, and other similar environments.
Product Specifications
Airport Chemical Rescue Fire Truck Apparatus HOWO
Chassis Brand
HOWO
Approach/Departure Angle (°)
19/10
Vehicle Model
CSC5200XF
Maximum Speed
100 km/h
Chassis Model
ZZ5207TXFV471GF5
Front/Rear Overhang(mm)
1430/2470
Drive Type
4×2
Emission Standard
Euro VI
Gross Vehicle Weight
20100 kg
Tank Capacity
8000 Litres
Curb Weight
6600 kg
Tank Material
Carbon Steel
Overall Dimensions L*W*H(mm)
7770*2500*3550 mm
Number of People in the Driver's Cab
2+4
Engine Parameters
Engine Model
MC07H.35-60
Fuel Type
Diesel
Power
350 HP(257kW)
Displacement
7360 ml
Engine Type
Inline 6-cylinder, water-cooled, high-pressure common rail diesel engine
Chassis Parameters
Tire No.
6
Wheelbase
4600 mm
Tire Specification
315/80R22.5
Gear Box
AMT
Front Axle
6.5 tons
Steering Wheel
Left hand drive
Rear Axle
11.5 tons
Brake
Air brake+ABS
Product Performance and Design
Powertrain and Chassis
✶ Powerful Performance: Equipped with a 350 horsepower Euro VI engine, the vehicle boasts a top speed of 100 km/h, ensuring rapid arrival at accident scenes in large area environments such as airports and chemical industrial zones.
✶ High Load Capacity: Utilizing an AMT transmission and ABS air brakes, combined with a 6.5 tons front axle and an 11.5 tons rear axle, it remains stable and safe even when fully loaded with 8 tons of fire extinguishing agent, adapting to various complex road conditions.
Firefighting Capabilities
✶ Large Capacity Water Storage: Equipped with an 8000 liter carbon steel water tank, it provides ample water for prolonged firefighting operations, reducing the frequency of water replenishment and significantly enhancing continuous firefighting capabilities.
✶ High Efficiency Sprinkler System: Utilizing a CB10/60-RS fire pump and PS60 fire monitor, the system boasts a water flow rate of up to 60 L/s, a monitor range exceeding 65m, and supports 360° rotation, effectively covering various complex fire sources for rapid fire suppression.
Reliability and Practicality
✶ Robust and Durable Structure: The carbon steel tank is corrosion resistant and high strength, equipped with a rapid water suction system (≤50 seconds), making it suitable for demanding environments such as airports and chemical industrial parks.
✶ Practical and Convenient Configuration: Standard configuration includes warning lights, fire fighting equipment and tools. The double row cab can accommodate 2+4 firefighters, allowing for immediate deployment and reducing user preparation costs.
Fire pump and fire monitor
⮕Fire Pump:
The CB10/60-RS is a low pressure vehicle mounted fire pump designed specifically for medium and heavy duty water tank foam fire trucks, its core function is to provide a stable, high flow rate water supply for fire monitors and hoses.
Fire Pump Parameters
Model
CB10/60-RS
Pressure
1.0 MPa
Maximum Flow
60 L/s
Maximum Suction Height
7 m
Rated Speed
4300 RPM
Water Collection Time
≤50 s
Model
Operating Conditions
Flow Rate (L/s)
Outlet Pressure (MPa)
Rated Speed (rpm)
Shaft Power (kW)
Suction Depth (m)
CB10/60-RS
1
60
1.0
3200±50
99.71
3
2
42
1.3
3258±50
109.18
3
30
1.0
3326±50
7
⮕ Fire Monitor:
Manual fire monitors are characterized by high flow rate, long range, and ease of operation. They can be installed in flammable and explosive locations such as petrochemical plants, oil tank areas, oil terminals, and ships, serving as effective equipment for long-distance extinguishing of oil fires and fire cooling.
Fire Monitor Parameters
Fire Monitor Model
PS60
Flow
60 L/s
Range
≥65 m
Rotation Angle
360°
Use and Maintenance:
➊ Manual fire monitors should be used within their operating pressure range.
➋ Regularly check the integrity and operational flexibility of the manual fire monitor. Tighten any loose fasteners promptly to ensure the monitor is always in good working order.
➌ After each use, drain all water and foam from the monitor. In cold regions, pay extra attention during winter to ensure no residual water or foam remains inside the monitor to prevent freezing damage.
➍ Regularly lubricate rotating parts of the manual fire monitor to ensure smooth operation. When spraying, ensure no one stands near the nozzle.
➎ Manual fire monitors should not be used to extinguish fires involving electrical equipment to avoid electric shock.
➏ If abnormal flow rate or range is detected, promptly remove any obstructions from the monitor, nozzle, or orifice plate.
➐ Normally, use a removable protective cover to secure the manual fire monitor.
Product Details
Equipment Box
Electrical and Braking Systems
Water Intake
Control Panel
Driver's Cab
Gear Box
Application scenarios
Firefighting in the Factory Area of HOWO 350HP Airport Fire Truck
Roadside Assistance of HOWO 4×2 Drive Fire Fighting Vehicle
Firefighting in Residential Areas of HOWO 4×2 Drive Heavy Rescue Truck
Forest Fire Fighting of HOWO 8CBM Airport Fire Engine
Exterior Views

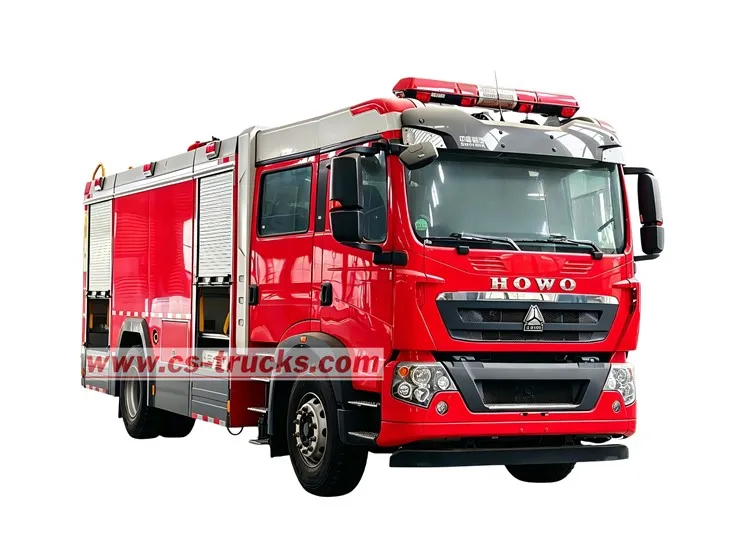

Front Right View of Airport Chemical Rescue Fire Truck Apparatus HOWO

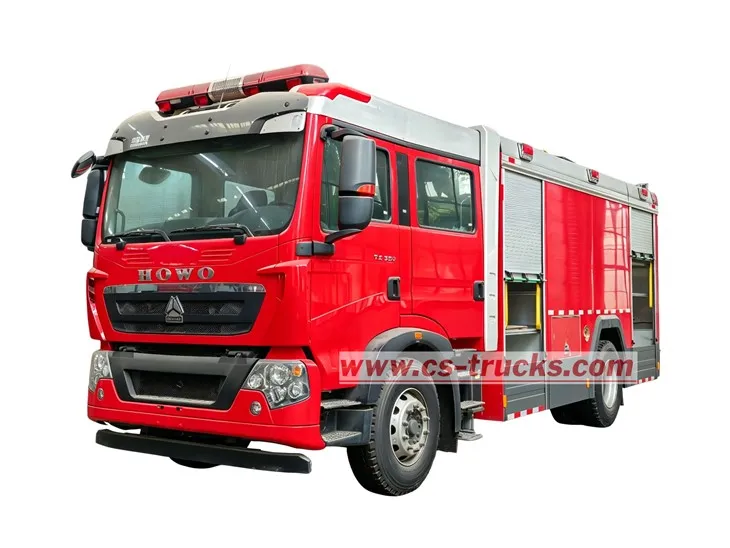

Front Left View of HOWO 350HP Fire Engine for Sale

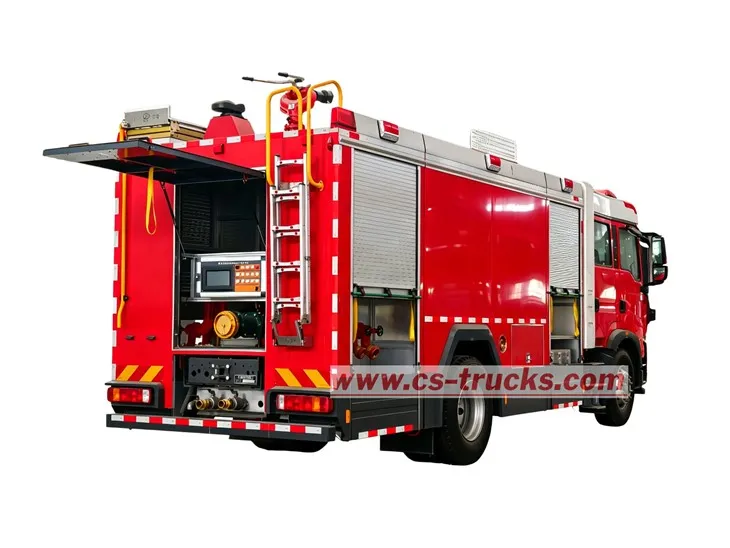

Rear Right View of HOWO 350HP Airport Fire Truck

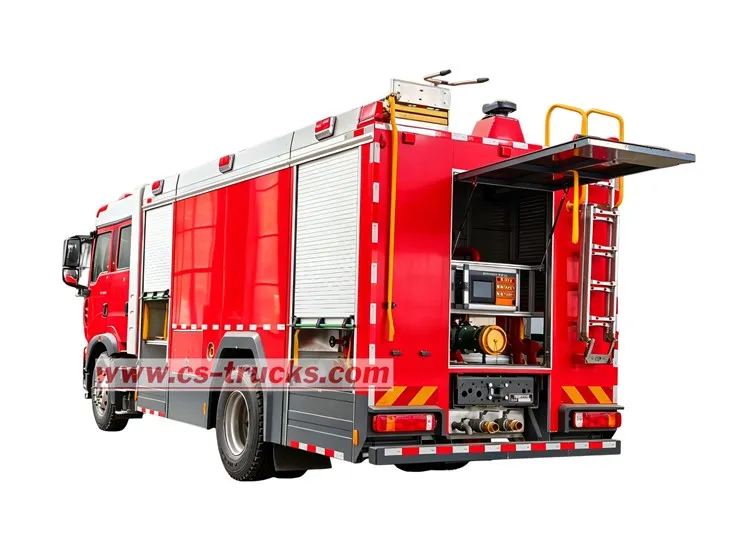

Rear Left View of HOWO 4×2 Drive Fire Fighting Vehicle

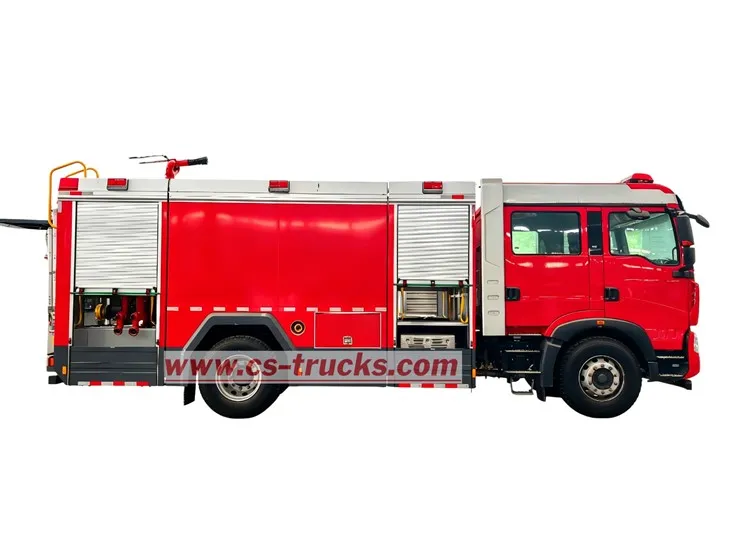

Right View of HOWO 4×2 Drive Heavy Rescue Truck

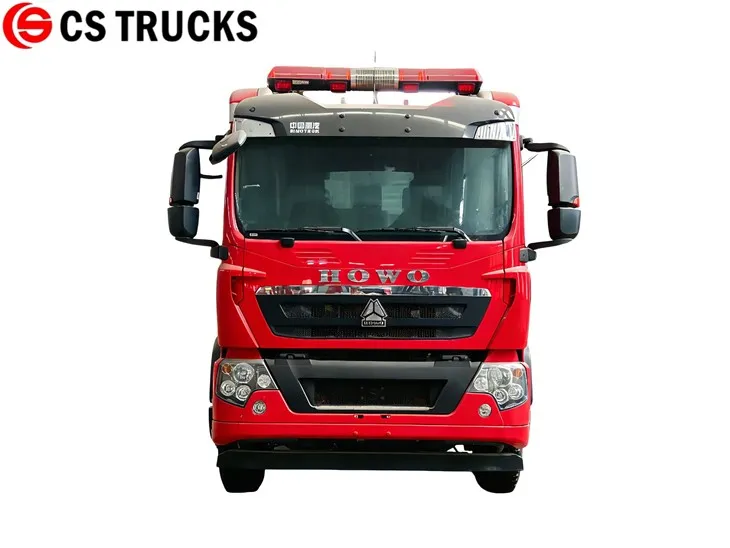

Front View of HOWO 8CBM Airport Fire Engine

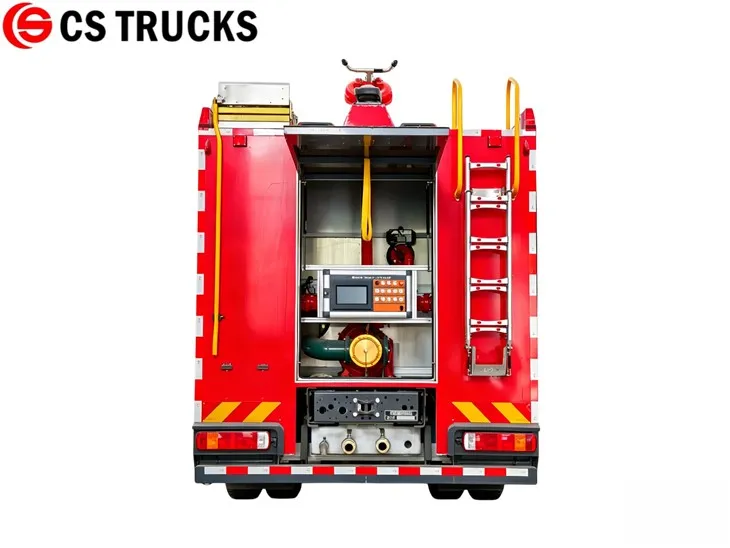

Rear View of HOWO 8CBM Aircraft Rescue and Firefighting
FAQ
01.What is the water tank capacity of this fire truck? How long can it support firefighting efforts?
The water tank has a capacity of 8000 liters, and based on the maximum flow rate of the fire monitor, it can continuously spray for approximately 2 minutes, meeting the needs of initial fire suppression.
02.What is the range of a fire monitor? Can it rotate 360 degrees?
With a range of ≥65 meters, it supports 360° horizontal rotation and can cover the entire surrounding area without moving after parking.
03.What is the engine's power output? Is it sufficient for rapid response to emergency calls?
Equipped with a 350 horsepower engine and a top speed of 100 km/h, it boasts ample power and a rapid response from start to finish, meeting the rapid dispatch requirements of urban areas and surrounding regions.
04.What scenarios is this car suitable for use?
Suitable for urban fire fighting, township professional fire brigades, factories and mines, petrochemical units and airports, etc. It can extinguish fires independently or supply water to the main fire truck.
