This Honduras ISUZU 4×2 diesel fire pump is equipped with a powerful 190HP 4HK1-TCG61 engine and has a tank capacity of 3500 liters, the vehicle is positioned for emergency fire fighting in towns, industrial and mining enterprises, and communities. With the excellent reliability of the Qingling chassis, it achieves the dual functions of fire fighting and daily watering and dust suppression, making it a high performance, multifunctional special vehicle.
Model: CSC5100XF
Capacity: 3500 L
Drive: 4×2
Engine power: 190 HP
Engine type: 4HK1-TCG61
Send Inquiry
Description
■ Product Introduction ■
This Honduras ISUZU 190HP fire engine truck( also known as the ISUZU 4×2 fire pump truck or ISUZU Single Cab Rescue Fire Truck) is built on the Isuzu 700P chassis, equipped with a 4HK1-TCG61 190HP diesel engine, a CB10/30 fire pump, and a PS30W fire monitor, enabling rapid response and effective extinguishing of initial fires.
The equipment compartments on both sides of the vehicle are rationally laid out, capable of storing a full set of firefighting equipment such as hoses and nozzles, while retaining routine water spraying functions such as front and rear spraying. The vehicle is highly maneuverable and has strong passability, making it suitable for various mission scenarios such as fire fighting, emergency water supply, and dust suppression in urban streets, factories, mines, and communities.
190HP
4×2 Drive
4HK1-TCG61
CB10/30
1
Product Specifications
Product Name
Honduras ISUZU Single Cab Rescue Fire Truck
Overall
Vehicle Model
CSC5100XF
Drive Type
4×2
Gross Vehicle Weight
10200 kg
Curb Weight
6200 kg
Maximum Speed
100 km/h
Overall Dimensions L*W*H(mm)
6985*2200*2950 mm
Engine
Engine Model
4HK1-TCG61
Fuel Type
Diesel
Power
190 HP(139KW)
Emission Standard
Euro VI
Displacement
5193 ml
Engine Type
Water-cooled, inline four-cylinder, four-stroke, high-pressure common rail diesel engine
Chassis
Tire No.
6+1
Tire Specification
235/75R17.5
Front Axle
4 tons
Rear Axle
7 tons
Wheelbase
3815 mm
Gear Box
ISUZU MLD 6-speed, with reverse
Steering Wheel
Left hand drive
Brake
Air brake+ABS
Superstructure
Water Tank Capacity
3000 Litres
Foam Tank Capacity
0.5 Litres
Tank Material
Carbon Steel
Fire Pump
Model
CB10/30-RS
Pressure
1.0&1.3
Maximum Flow
30 L/s
Maximum Suction Height
7 m
Rated Speed
2600 RPM
Water Collection Time
≤45 s
Fire Monitor
Model
PS30
Flow
30 L/s
Range
≥55 m
Rotation Angle
360°
All standard accessories: The cab is equipped with a rotating alarm light on the roof, fire fighting equipment, and on board tools.
2
Performance and Advantages
01
Chassis
◆ Reliable Load Capacity: Utilizing the mature Isuzu 700P chassis, the front axle has a load capacity of 4 tons and the rear axle 7 tons, its robust structure makes it suitable for long term, high load operations.
◆ Agile Maneuverability: With a wheelbase of 3815mm and overall dimensions of 6985×2200×2950mm, coupled with 235/75R17.5 tires, this vehicle has a small turning radius, making it suitable for navigating narrow sections of rural roads and factory lanes.
02
Powertrain
◆ Ample Power: Equipped with a 4HK1-TCG61 190HP diesel engine and meeting Euro VI emission standards, it offers rapid start up and hill climbing response, meeting the timeliness requirements of emergency response.
◆ Smooth Handling: This vehicle is equipped with an Isuzu MLD six speed transmission with reverse gear, offering smooth shifting; left hand drive with air brakes and ABS, a top speed of 100km/h, and stable driving safety.
03
Firefighting Capabilities
◆Rapid Water Supply: Equipped with a CB10/30-RS fire pump with a maximum flow rate of 30 L/s, a suction depth of 7m, and a suction time of no more than 45s, enabling rapid establishment of fire water supply pipelines.
◆Remote Firefighting: A PS30 fire monitor is mounted on the roof, with a flow rate of 30 L/s and an effective range of no less than 55 meters, this fire monitor supports 360° rotation, allowing for flexible responses to fires from different directions.
04
Overall vehicle design
◆ Tank Configuration: Equipped with a 3000 liter carbon steel water tank and a 0.5 liter foam tank, it's made of durable materials to meet the needs of initial fire fighting and foam extinguishing.
◆ Vehicle Equipment: A rotating warning light is installed on the top of the cab, the vehicle is equipped with a full set of fire fighting equipment and tools for immediate use, reducing the cost of later installation.
3
Fire Pump Operating Principle
The CB10/30 low pressure vehicle mounted fire pump uses a single stage centrifugal pump with a dual plunger priming device. The pump's rotation drives the priming device, which automatically disengages once the required pressure is reached.
Model
Operating Conditions
Flow Rate (L/s)
Outlet Pressure (MPa)
Rated Speed (rpm)
Shaft Power (kW)
Suction Depth (m)
CB10/30-RS
1
30
1.0
3746±50
53.1
3
2
21
1.3
4116±50
58.3
3
15
1.0
7
4
Product Details
Equipment Compartment
Fire Pump Control Panel
Water Pump Suction Interface Compartment
Gear Box
Cab of ISUZU Fire Engine
Fire Monitor
5
Application scenarios
Firefighting in The Factory Area of Honduras ISUZU 4×2 Diesel Fire Pump
Green Belt Irrigation of Honduras ISUZU 190HP Tanker Fire Truck
Forest Fire Fighting of Honduras ISUZU 190HP Fire Engine Truck
Community Rescue of Honduras ISUZU 3500 Liters Fire Fighting Truck
6
Exterior Views

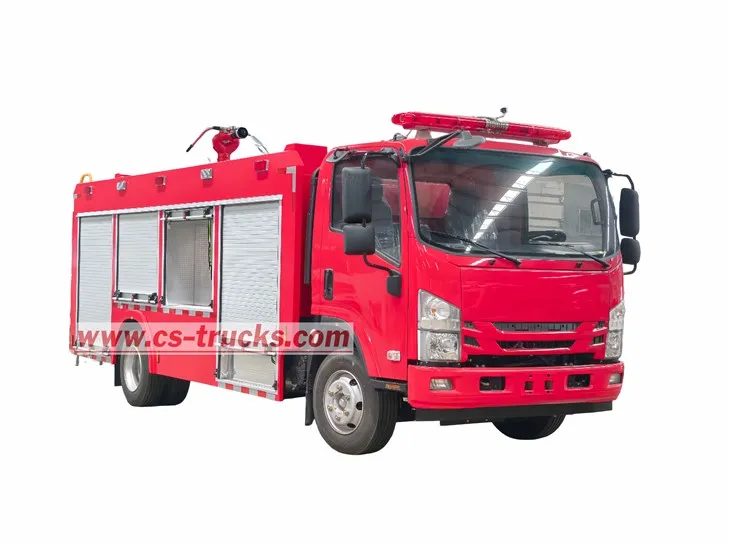

Front Right View of Honduras ISUZU Single Cab Rescue Fire Truck

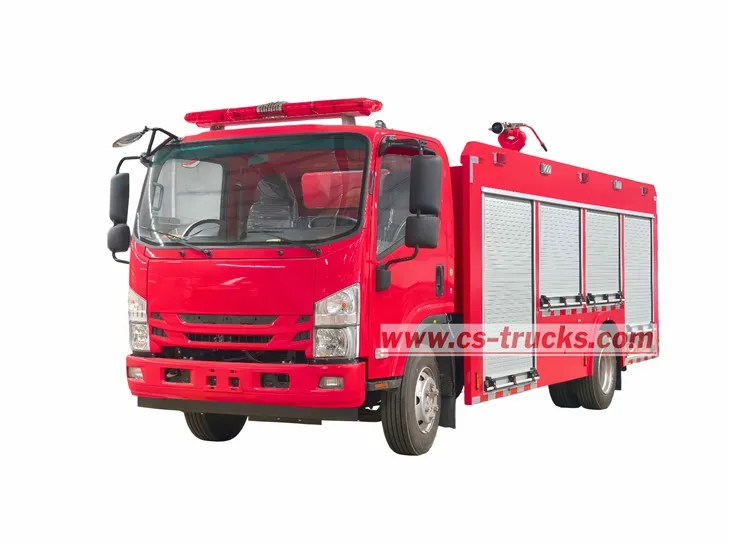

Front Left View of Honduras ISUZU 3500 Liters Fire Fighting Truck

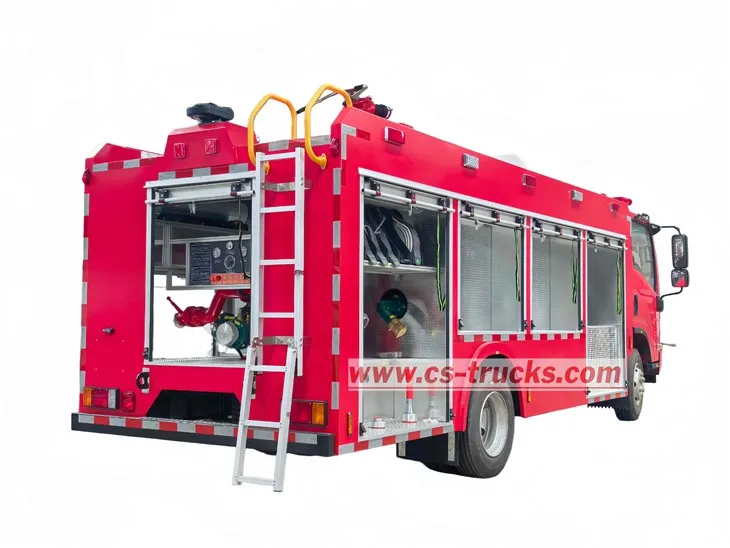

Rear Right View of Honduras ISUZU 3500 Liters Fire Engine for Sale

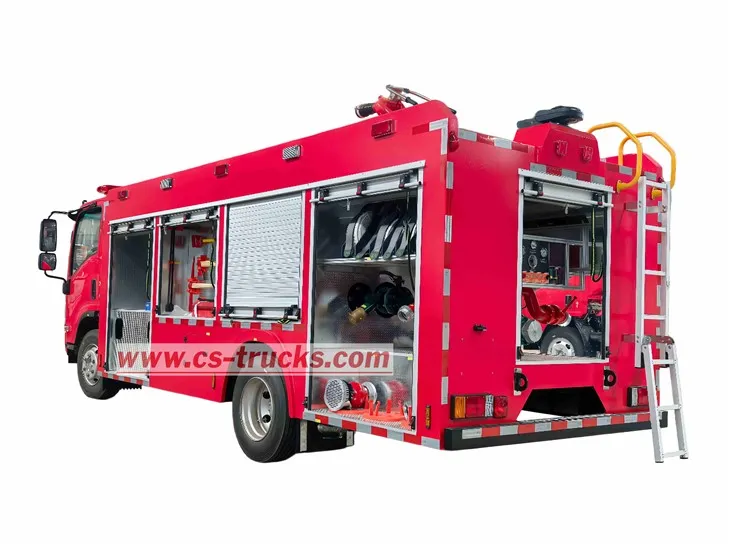

Rear Left View of Honduras ISUZU 190HP Fire Engine Truck

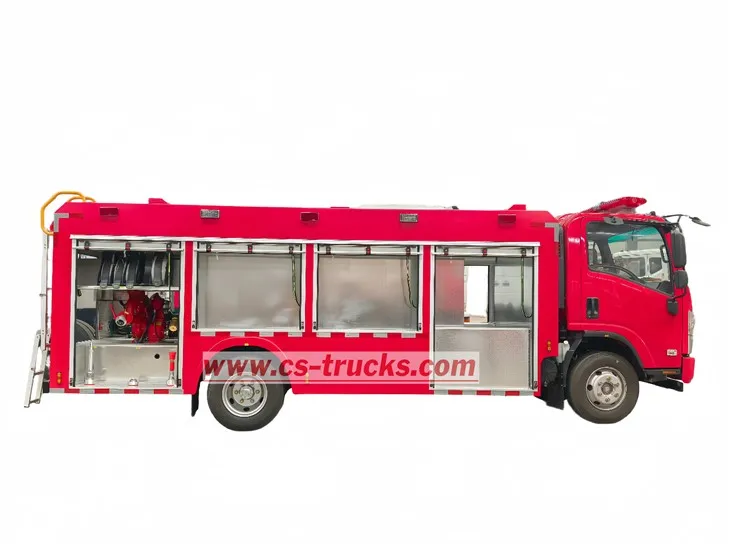

Right View of Honduras ISUZU 190HP Tanker Fire Truck
Front View of Honduras ISUZU 4×2 Diesel Fire Pump

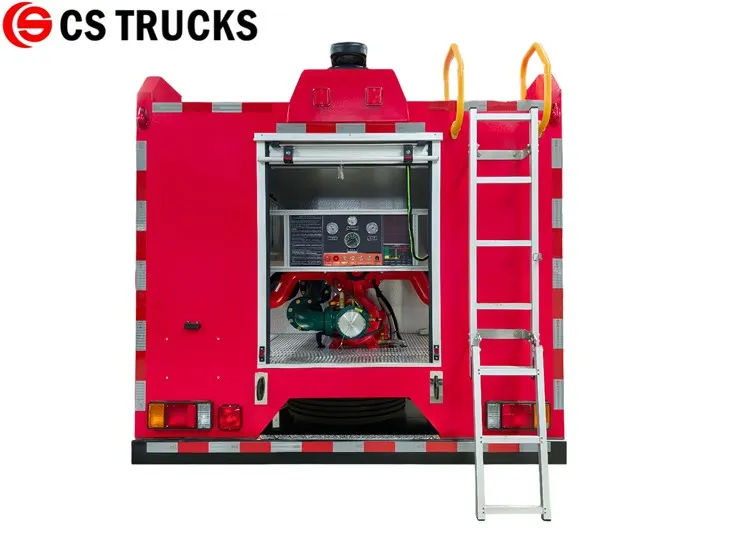

Rear View of Honduras ISUZU 4×2 Pumper Fire Truck
Equipment List
Product drawing
NO.
Name
Quantity
1
Fire Hose
10
2
Fire Shovel
1
3
Fire Axe
1
4
Ground Wrench
1
5
Fire Extinguisher
1
6
Fire Pick
1
7
Crowbar
1
8
Firefighting rubber hammer
1
9
Mini Fire Axe/waist Axe
1
10
Water Collector
1
11
Water Filter
1
12
Water Hose Wrapping Cloth
4
13
Switch on DC Water Gun
1
14
DC Spray Water Gun
1
15
Suction Pipe Wrench
1
16
Water Distributor
1
