This HOWO 5000 Liters fire fighting vehicle features a 4x2 drive configuration and is equipped with a powerful WD615.87 engine producing 290HP, which boasts strong load bearing capacity and wide adaptability to various road conditions. The vehicle is highly maneuverable and versatile, primarily designed for use in townships, industrial parks, mines, urban and rural sanitation, and grassroots emergency firefighting scenarios, it is an economical emergency sanitation vehicle suitable for both overseas export and domestic grassroots use.
Model: CSC5180XF
Capacity: 5000 Liters
Drive: 4×2
Engine power: 290 HP
Engine type: WD615.87
Send Inquiry
Description
■ Product Introduction ■
This HOWO 4×2 drive fire fighting truck features a powerful WD615.87 Euro III 290HP inline six-cylinder turbocharged diesel engine, paired with a 10 speed manual transmission, allowing for flexible left hand/right hand drive switching. With its stable 4×2 chassis layout, reliable air brakes and ABS safety system, it perfectly suits rapid emergency fire dispatch and daily municipal operations.
The truck is equipped with a 5000L carbon steel water tank and a 1000L special foam liquid tank, and is matched with a high performance CB10/40 fire pump,which achieves a powerful flow rate of 40L/s, a working pressure of 1.0MPa, a spray height of 19m, and strong water suction capacity, integrating professional fire rescue, road dust suppression, and greening sprinkler functions.
All standard accessories: Typical modern firefighting equipment includes gear for a variety of firefighting and rescue missions. These include shovels, spear shafts, axes and cutting tools, and haligan poles.
II.Performance and advantages
01
Vehicle architecture
➤ Stable Load: The front and rear axle load distribution has been scientifically optimized, and combined with large diameter heavy duty tires, it ensures stable vehicle load bearing and prevents slippage or deviation in complex road conditions.
➤ High Efficiency Protection: Standard air brakes and ABS antilock braking system, the balanced body size and wheelbase layout provide powerful emergency braking and obstacle avoidance capabilities, maximizing all weather driving safety.
02
Chassis and powertrain
➤ Powerful Performance: Equipped with a WD615.87 inline six cylinder turbocharged intercooled diesel engine, it delivers up to 290HP and meeting Euro III emission standards, which provides ample and sustained power to handle complex overseas road conditions.
➤Reliable Chassis: It features a 4×2 drive configuration with a 10 speed manual transmission, customizable left hand or right hand drive, and a top speed of 95 km/h, suitable for fire emergency response and daily sanitation commuting.
03
Fire pump operation performance
➤ Water Output Efficiency: Equipped with a CB10/40 fire pump, with a flow rate of 40L/s and a pressure of 1.0MPa, the water output efficiency is stable and can effectively respond to initial fire fighting.
➤ Water Intake Capacity: The pump has a suction depth of up to 8m, a head of 19m, and a flow rate of 45m³/h, providing excellent water source acquisition and long distance water delivery capabilities.
04
Multi-purpose vehicle
➤ Multifunctional: Equipped with an electric start + manual dual-mode water pump, it can handle multiple municipal functions including high pressure fire extinguishing, road dust suppression, green space irrigation, and road washing.
➤ Complete Rescue Tools: This vehicle comes standard with a full set of demolition, rescue, and firefighting tools, covering all emergency scenarios, it's a versatile vehicle suitable for urban firefighting and sanitation work, offering excellent overall value.
III.Fire Pump Operating Principle
The working principle of a fire pump is to first draw out the air inside the pump through the priming device to create a vacuum, and then draw water into the pump body; then the engine drives the impeller to rotate at high speed, and the centrifugal force is used to pressurize the water and spray it out at high speed from the outlet to achieve continuous water supply.
Model
Operating Conditions
Flow Rate (L/s)
Outlet Pressure (MPa)
Rated Speed (rpm)
Shaft Power (kW)
Suction Depth (m)
CB10/40-XZ
1
40
1.0
3135±50
60.2
3
2
28
1.3
3390±50
60.7
3
3
20
1.0
3010±50
39.0
7
Ⅳ.Product Details
Diesel Water Pump System
High Pressure Water Cannon
Rear Water Intake Port
Front Flush Sprinkler Head
HOWO Fire Truck Cab
HOWO Fire Engine Gear Box
Alarm Light Electronic Control Panel
Side Access Panel
v.Application scenarios
Factory Emergency Fire Fighting of HOWO 4×2 Drive Fire Fighting Truck
Pesticide Spraying in Green Belts of HOWO 290HP Tanker Fire Truck
Community Emergency Fire Fighting of HOWO 5000 Liters Fire Truck
Forest Fire Fighting of HOWO 5000 Liters Fire Fighting Vehicle
Ⅵ.exterior Views
Front Right View of HOWO 5000 Liters Water Fire Fighting Tanker
Front Left View of HOWO 5000 Liters Fire Fighting Vehicle
Rear Right View of HOWO 4×2 Drive Fire Fighting Truck
Rear Left View of HOWO 4×2 Drive Fire Trucks for Sale
Left View of HOWO 290HP Fire Engine for Sale
Right View of HOWO 290HP Tanker Fire Truck
Front View of HOWO 5000 Liters Fire Truck Price Fire Truck Price

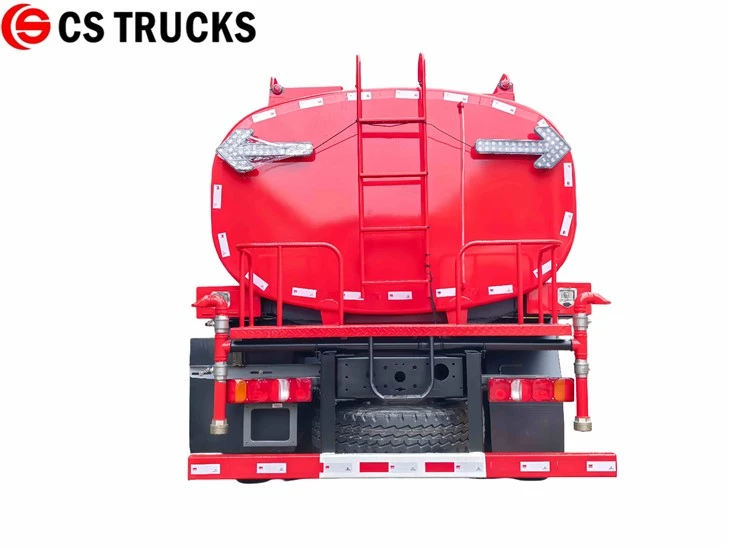

Rear View of HOWO 4×2 Drive Fire Truck Cost Fire Truck Cost
Product Comparison
Comparison Dimensions
Standard water sprinkler truck
Standard fire truck
Similar fire sprinkler trucks
HOWO 5000 Liters Water Fire Fighting Tanker
Engine Power
120-180HP
240-340HP
160-220HP
290HP
Displacement (mL)
3000-5900
6000-9700
4500-6700
9726
Water Pump Pressure (MPa)
0.4-0.6
1.0-1.6
0.8-1.0
1.0
Water Pump Flow Rate
40-60 m³/h
40-60 L/s
20-30 l/s
40 L/s
Suction Depth (m)
5-6
7-8
6-7
8
Water Tank Capacity (m³)
8-12
3-6
4-8
5
Foam Tank (m³)
NA
0.5-2
Optional
1
Tank Material
Carbon steel
stainless steel / carbon steel
Carbon steel
Carbon steel
Wheelbase (mM)
3800-4500
4200-5200
4500-5000
5100
Maximum Speed (kM/h)
90
95
90
95
Transmission
5-6 speed manual
6-10 speed manual
6-speed manual
10-speed manual
Vehicle tools
Basic water pipes
Complete set of fire fighting equipment
Basic fire fighting tools
Fire shovel, axe, crowbar, etc.
Advantages of Our HOWO Fire Truck：
⚑VS Standard Water Sprinkler Truck: Fire pump pressure doubled (1.0 vs 0.5MPa), range increased by 30-37m, providing professional firefighting capabilities.
⚑VS Standard Fire Truck: Procurement cost reduced by 40-60%, narrower body for better maneuverability, can perform daily watering operations without being idle.
⚑ VS Similar Products: Leading power with 70-130HP, longer wheelbase (5100mm) for more stable driving, standard foam tank + double row cab.
