New HOWO High Pressure Fire Fighter



 Key Feature

Manufacture: CS TRUCKS

Key Features:

✅Large Capacity Water Tank: The water tank has a volume of 7.49 cubic meters and dimensions of 2090×2450×1530mm. Its large water storage capacity allows for continuous firefighting operations for extended periods, reducing the frequency of water replenishment and improving firefighting efficiency.

✅Powerful Chassis: Utilizing a Sinotruk HOWO 4×2 chassis, equipped with an MC07H.33-60 engine, it boasts a maximum power of 240kW, providing strong power to adapt to complex road conditions and quickly reach the fire scene.

✅Reliable Firefighting System: Equipped with a fire pump and fire monitor. The fire pump is driven by a power take off, ensuring stable performance. The fire monitor offers adjustable flow rate and range to meet the needs of different fire scenarios.

✅Safety Protection Design: An integrated side protection structure and a rear protective device made of Q235A material with a cross sectional dimension of 120×120mm, bolted connection, and a ground clearance of 496mm, enhancing operational safety.





 Technical Parameters

New HOWO High Pressure Fire Fighter
Overall	Vehicle Model	CSC51800XF
	Drive Type	4×2
	Capacity	7.5 CBM
	Gross Vehicle Weight	17300 kg
	Curb Weight	9360 kg
	Overall Dimensions L*W*H	8450×2510×3560 mm
	Maximum Speed	95 km/h
Engine	Engine Model	MC07H.33-60
	Fuel Type	Diesel
	Power	326HP/240kW
	Emission Standard	Euro 6
	Displacement	7360 ml
	Engine Type	Inline 6 cylinder, water cooled, four stroke, turbocharged intercooled, BOSCH high pressure common rail
Chassis	Brand	SINOTRUK
	Wheelbase	4500 mm
	Tire Specification	295/80R22.5 18PR
	Tire No.	6+1
	Axle Load	6100/11200 kg
	Approach angle/Departure angle	19/13 °
	Front Wheel Track	1950 mm
	Rear Wheel Track	1848 mm
	Number of Axes	2
	Gear Box	9-speed manual
	Steering Wheel	LHD
	Brake	Air
Cab	Allowed 2+4 people
Fire Pump	Model	CB10/60-RS
	Max Working Pressure	1.0 Mpa
	Maximum Allowable Import Pressure	0.4 Mpa
	Flow Rate	60 L/s
	Max Suction Height	7 m
	Rated Speed	3200±50
	Water Diversion Time	≤60 s
	Speed Ratio	1:1.5
Fire Monitor	Model	PS8/60W
	Flow	60 L/s
	Rated working pressure	0.8 Mpa
	Max working pressure	1.6 Mpa
	Range	≥75 m
	Horizontal Rotation	0~360°
	Pitch Angle	-30°~60°



 Performance And Advantages



 HOWO Fire Pump System

1️⃣Equipped with a CB10/60-RS fire pump, rated flow rate 60L/s, maximum working pressure 1.0MPa, and maximum suction depth 7 meters.

2️⃣Priming time ≤60s, rapidly establishing water supply; water can be quickly drawn from outdoor water sources.

3️⃣Stable operating conditions, continuously outputting a large flow of water, ensuring prolonged firefighting operations.

Operating Conditions	Flow Rate(L/s)	Pressure(Mpa)	Shaft Speed(r/min)	Power(kw)	Deep Suction(m)
1	60	1.0	3200±50	99.71	3
2	42	1.3	3528±50	109.18
3	30	1.0	3326±50		7

How to Maintain:

❶Weekly Visual Inspection
Check pump casing, piping, and fittings for leaks,corrosion, or physical damage.

➋Test Run

Start the pump weekly and verify pressure, flow rate,and controller signals under no load conditions.
➌Lubrication
Grease bearings and inspect the gear box oil level.Top up or replace per manufacturer schedule.

➍Cooling System Check
Ensure cooling tubes are unobstructed.Confirm coolant circulation during operation.

➎Primer Device Inspection

Test the reciprocating primer for propervacuum build up. Check seals and valves.

➏Pump Room Conditions

Maintain ambient temperature above 4°C (40°F).Keep the area dry, ventilated, and free of debris.
➐Maintenance Log
Record every inspection and test result.Track trends to spot issues before they escalate.



 HOWO Fire Monitor System

1️⃣PS8/60W fire monitor, flow rate 60L/s, effective range ≥75m, for long distance fire suppression.

2️⃣Can rotate 360° horizontally, pitch angle -30°~60°, flexible spray angle adjustment, wide coverage.

3️⃣Rated working pressure 0.8MPa, maximum pressure up to 1.6MPa, suitable for various firefighting scenarios, ideal for fighting solid fires in urban parks, mines, and towns.

Model	Flow Rate	Range	Horizontal Rotation Angle	Pitch Angle	Control Method
PL8/24	24L/s	Water≥55m Foam≥42m	0°~360°	-30°~60°	Manual
PS8/30	30L/s	Wate≥60m		-18°~66°
PL8/32	32L/s	Wate≥60m Foam≥48m		-30°~60°
PS8/40W	40L/s	Water≥65m		-18°~66°
PL8/48	48L/s	Water≥70m Foam≥60m		-18°~67°
PS8/50W	50L/s	Water≥70m		-18°~66°
PS8/60W	60L/s	Water≥75m		-30°~60°
PL8/64	64L/s	Water≥75m Foam≥70m		-30°~60°
PL8/80	80L/s	Water≥85m Foam≥80m		-30°~60°
PS8/80W	80L/s	Water≥85m		-18°~66°

How to Maintain:

➊After Each Use

Rinse the gun body and flow channels with clean water, draining any internal water; check the muzzle and shaft for any mud or sand obstruction, and dry the exterior.

➋Daily Inspection

Test the horizontal 360° rotation and elevation -30°~60° movements; rotation should be smooth and without jamming; check the connecting flanges and seals for any water leakage.

➌Regular Lubrication

Add grease to the slewing bearing and elevation shaft monthly to ensure smooth rotation.

➍Fastener Inspection

Check all fixing bolts quarterly, tightening any loose ones promptly; apply rust proofing to rusted areas.

➎Storage and Freeze Protection

Keep the gun dry during long term non use; drain the gun thoroughly in winter to prevent freezing and cracking.

➏Annual Maintenance

Check the aging of the seals and gaskets, replacing them if necessary; perform a test spray to verify the range and flow rate.



 HOWO Fire Truck Equipment Room

The equipment compartments are located on both sides of the vehicle and feature aluminum alloy roller shutter doors. The compartments are equipped with adjustable supports and door controlled lighting, and include drainage holes for rain protection and drainage. They are used to centrally store various firefighting and rescue equipment. The main storage items include: fire hoses, nozzles, suction pipes, water distributors, fire hose connections, breaching tools, personal protective equipment, and fire hydrant wrenches.



 How Do Water Tanker Fire Trucks Work?

✅Power Transmission: The chassis engine drives the fire pump via a power take off (PTO), or a separate diesel generator set directly drives the pump.

✅Water Source Switching: When supplying water from the tank, the tank valve is opened, allowing water to flow directly into the pump inlet; external water sources are connected via a suction pipe, and water is drawn in after priming and venting.

✅Pressure Output: The fire pump pressurizes the water, delivering one stream to the roof mounted fire monitor for long

distance suppression, and another stream to the vehicle's water outlet for use with the fire hoses; the pump speed is controlled by adjusting the throttle, thus changing the water pressure and flow rate.



 Application Scenarios

 Exterior Views

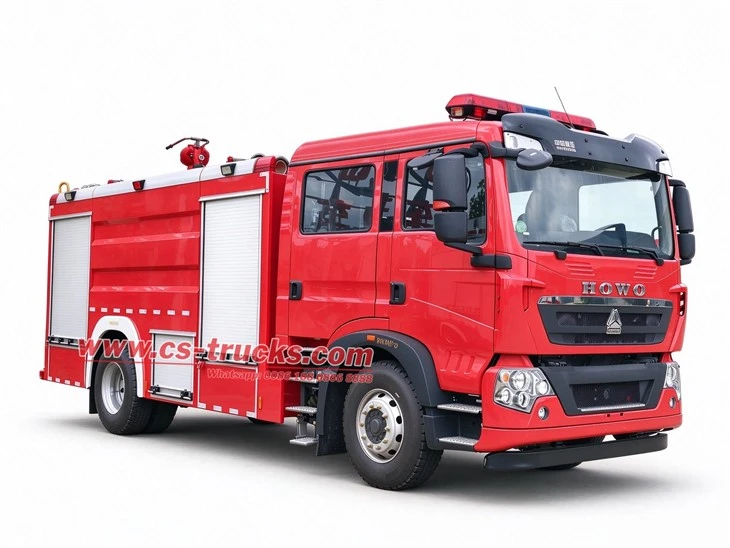

Front Right View of HOWO 4×2 Fire Department Rescue Truck

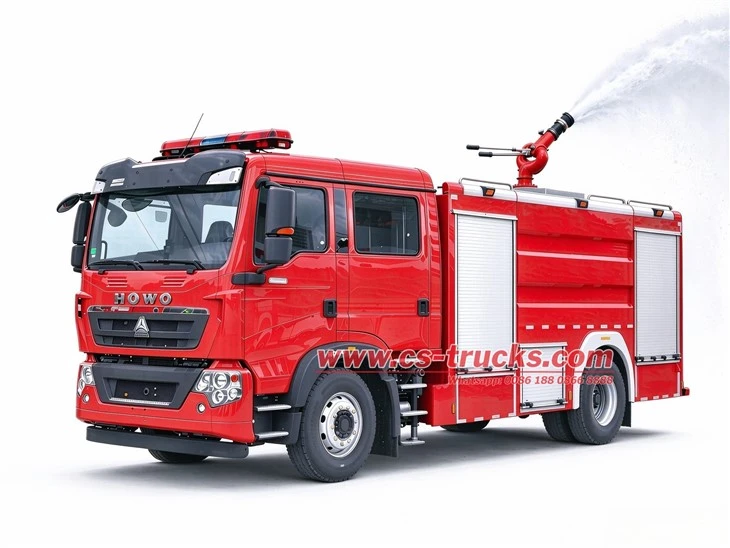

Front Left View of HOWO 4×2 Fire Heavy Rescue Truck for Sale

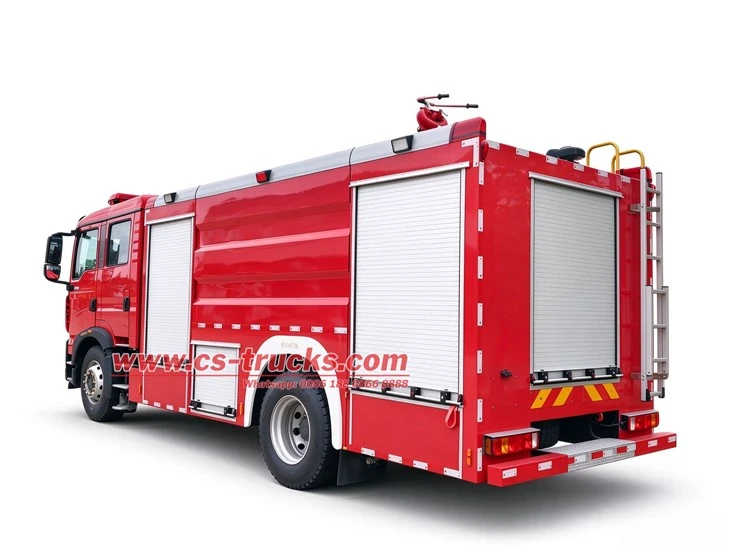

Rear Left View of HOWO 7500L Airport Fire Truck for Sale

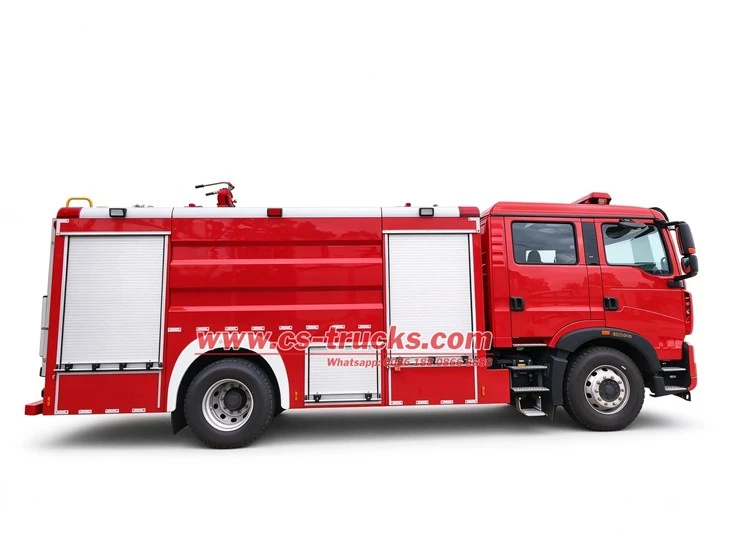

Right View of HOWO 7500L New Fire Truck Water Tank

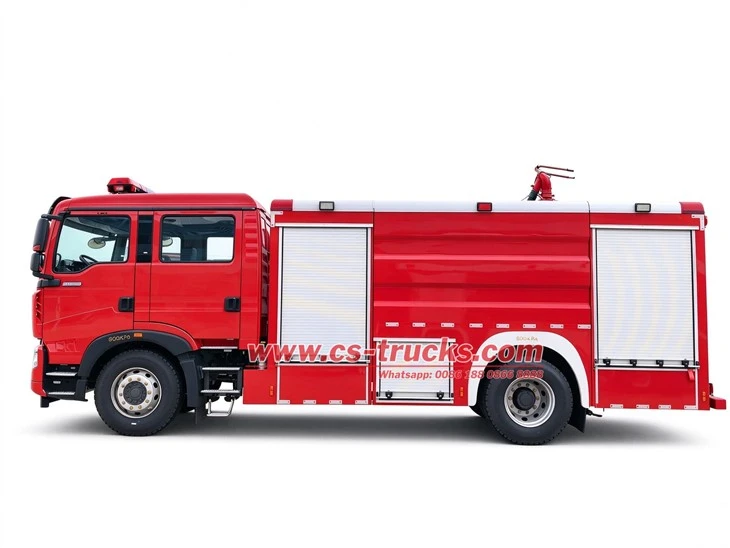

Left View of HOWO 326HP Fire Truck Price Philippines

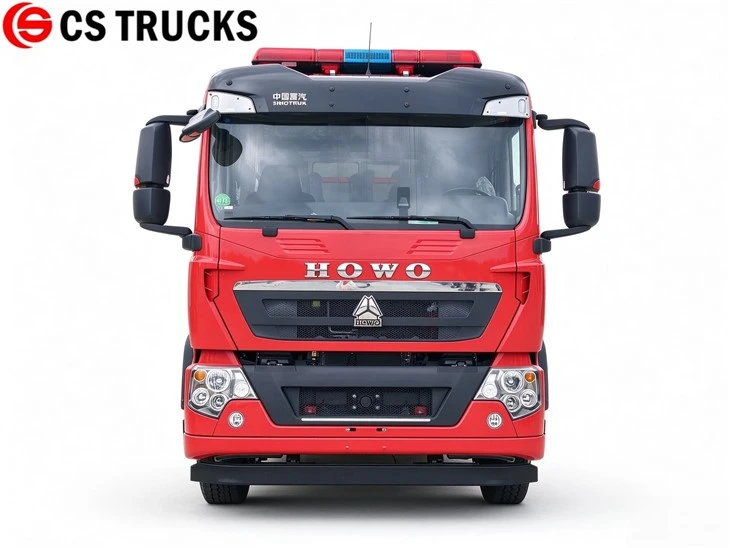

Front View of HOWO 326HP Rosenbauer Fire Truck Price

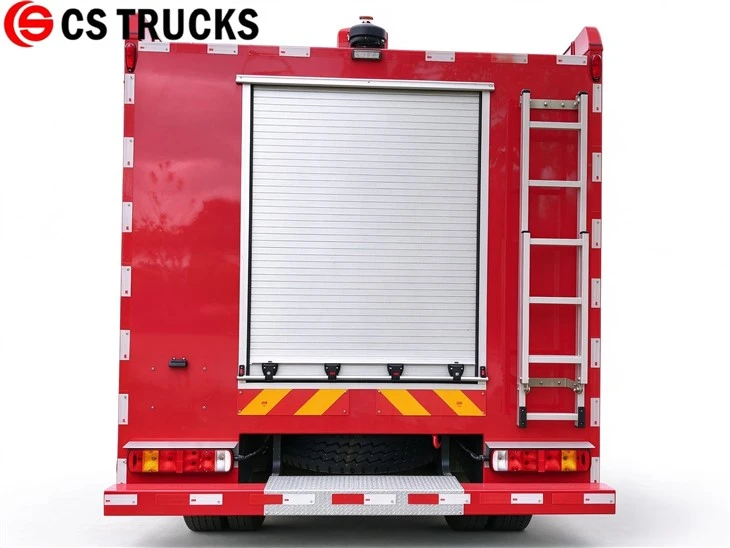

Rear View of HOWO 7500L Fire Trucks for Sale Near Me
