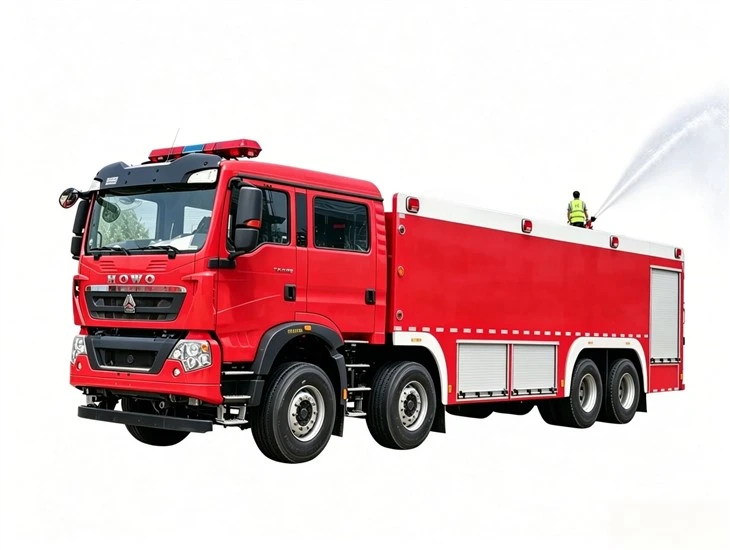

HOWO Heavy Fire Fighting Truck For Municipal Government
HOWO 18000L Off Road Fire Fighting Vehicles
The HOWO 8x4 fire brigade truck features an 8x4 four axle drive chassis and an MC11H.46-61 460 HP engine for powerful performance. With a 18000 L liquid capacity, it ensures long lasting continuous foam spray, making it highly effective against high speed tanker rollover fires and large Class B fires in oil depots and petrochemical plants. It also suppresses deflagration by isolating oxygen on the oil surface. As a professional firefighting vehicle, it is a key heavy duty unit for large industrial and mining enterprises.
Model: CSC5310XF
Capacity: 18000L
Drive: 8×4
Engine Power: 460 HP
Engine Type: MC11H.46-61
Send Inquiry
Description
This HOWO heavy duty foam fire truck uses an 8×4 four axle drive chassis and is equipped with an MC11H.46-61 inline six cylinder water cooled turbocharged diesel engine. With 460 horsepower and high torque output, it can quickly respond to complex road conditions even when fully loaded with 31 tons. The truck has a tank volume of 18000L, with sufficient liquid storage, and can continuously spray foam for a long time.
The vehicle complies with Euro VI emission standards, is equipped with 12.00R20 heavy duty tires and a 12 speed manual transmission, and adopts a left hand drive air brake design, ensuring stable driving and safe braking. The vehicle is equipped with multiple equipment compartments and a vehicle mounted fire monitor, taking into account both long distance rescue range and on site operational convenience, and is suitable for various emergency rescue scenarios such as highway accidents and factory storage tank fires.
Key Features of HOWO Fire Engine
Manufacturer: CS TRUCKS
Features:
✅️ Sinotruck chassis, perfect performance ✅️ Optional water tank and foam tank capacities ✅️ Simple to operate and easy to maintain ✅️ A variety of fire fighting equipment is available
Technical Parameters
HOWO Heavy Fire Fighting Truck for Municipal Government
Overall
Vehicle Model
CSC5310XF
Drive Type
8×4
Capacity
Water
15000L
Foam
3000L
Gross Vehicle Weight
31000 kg
Curb Weight
15200 kg
Overall Dimensions L*W*H
10700×2550×3640 mm
Maximum Speed
90 km/h
Engine
Engine Model
MC11H.46-61
Fuel Type
Diesel
Power
460HP/338kW
Emission Standard
Euro 6
Displacement
11050 ml
Engine Type
Inline 6-cylinder, water-cooled, four-stroke, turbocharged and intercooled
The CB10/100 vehicle mounted centrifugal fire pump has a rated pressure of 1.0MPa and a flow rate of 100L/s. It is equipped with an integrated system including a double piston primer, water cooled gearbox, and check valve. It boasts strong suction capacity, can continuously transport water and foam mixtures for extended periods, and features excellent performance, high efficiency, compact structure, and simple operation.
Model
Optional
Flow(L/s)
Pressure(MPa)
Pump Shaft Speed(r/min)
Power(kw)
Suction Depth(m)
CB10/100
Optional I
100
1.0
2270±50
164
3
Optional II
70
1.3
2375±50
162
Optional III
50
1.0
-
-
7
Fire Monitor System
The PL80 fire monitor boasts an ultra long range and high flow rate, with a maximum range of 70m and a flow rate of up to 80 L/s, enabling it to strike fires from a safe distance and effectively protect the lives of firefighters. It features multiple spray modes that can be flexibly switched according to different fire types and situations, when spraying a water jet, it can extinguish solid fires; when spraying a spray mist, it can be used for cooling and firefighting operations. It has a novel structure, stable and reliable performance, flexible operation, and convenient maintenance.
Model
Flow
Range
Pressure
Pitch Rotation
Horizontal Rotation Angle
Water
Foam
PL80
80L/s
≥70 m
≥65 m
1.0 MPa
-30°~70°
360°
Intelligent Control Panel
This panel is an integrated control panel for fire pumps, installed in the rear pump room of foam fire trucks. It integrates five major functional areas: status monitoring, data instruments, control switches, operation instructions, and working principle diagrams. It is the core operation terminal of the entire vehicle's water/foam fire extinguishing system.
Panel Functional Advantages：
1️⃣Integrated Design: Pressure, vacuum, liquid level, and speed are all centrally displayed, eliminating the need for firefighters to check multiple instruments.
2️⃣Safety Warning System: Real time alarms for liquid level and vacuum status prevent damage to the equipment due to dry pumping or insufficient foam operation.
3️⃣Strong Environmental Adaptability: Suitable for temperatures from -20℃ to +40℃, allowing for stable operation in both high and low temperature regions.
4️⃣Convenient Maintenance: An hourly speed meter records equipment operating time, facilitating regular maintenance, lubrication oil replacement, and seal replacement.
Performance of HOWO Fire Fighter Truck
Chassis and powertrain
🔹Ample Power: Equipped with an MC11H.46-61 inline six cylinder engine, delivering a robust 460HP output, meeting Euro 6 emission standards, and suitable for all terrain driving without restrictions.
🔹Stable Driving: The 8×4 four axle configuration, paired with a 12 speed transmission, heavy duty tires, and air brakes, ensures balanced load bearing capacity in complex road conditions, significantly reducing the risk of loss of control for heavy vehicles.
Firefighting capabilities
🔹Sustained Fire Control Capability: A large capacity tank with 15000L water and 3000L foam extends the continuous foam spray time, reducing the need for repeated replenishment when dealing with large area oil fires and firmly controlling the extinguishing window.
🔹Modular Equipment Layout: Segmented independent equipment compartments for zoned equipment storage, and an isolated pump compartment design, allow for more organized access to pipelines and tools on site, improving the efficiency of firefighting operations.
Application Scenarios
With its targeted oil fire suppression capabilities and multifunctional operational advantages, foam fire trucks are widely applicable to key fire prevention units such as petrochemical plants, refined oil depots, gas stations, ports, airports, logistics and warehousing parks, industrial parks, professional fire and rescue teams, and township emergency fire stations. They are standard emergency equipment in high risk fire scenarios.
Firefighting in Residential Areas
Forest Fire Fighting
Exterior Views
Front Left View of HOWO 18000L Aircraft Rescue and Firefighting
Rear Left View of HOWO 8×4 Fire Brigade Truck

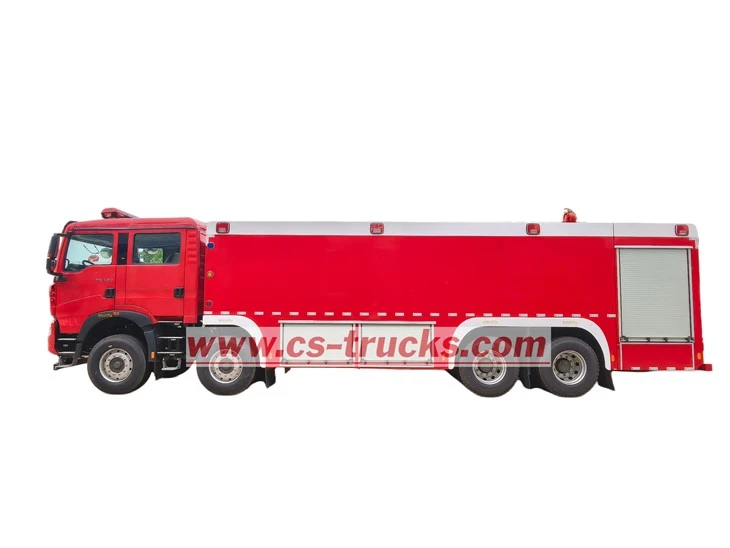

Left View of HOWO 460HP Fire Trucks for Sale Near Me

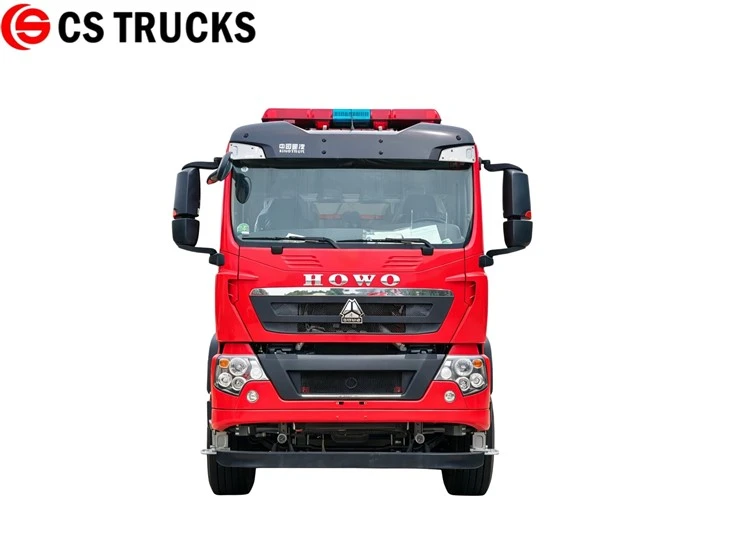

Front View of HOWO 18000L Off Road Fire Fighting Vehicles

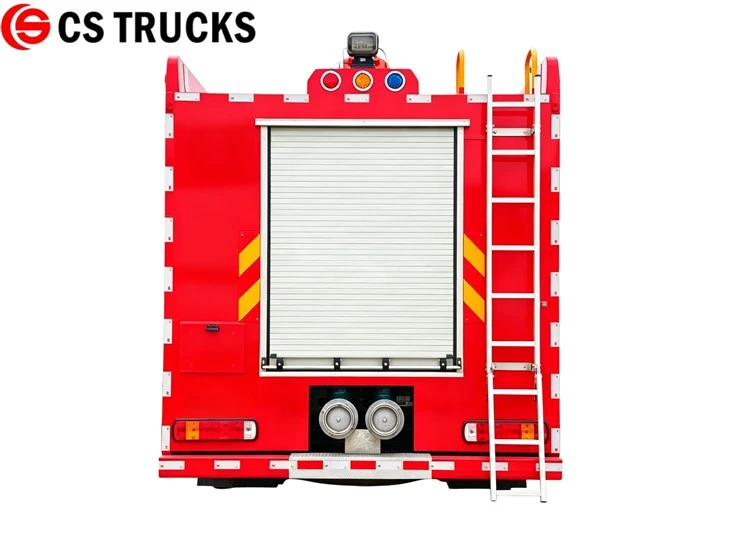

Rear View of HOWO 8×4 Rosenbauer Fire Truck
FAQ
Q:What are the key differences between foam fire trucks and regular water tanker fire trucks?
A:Foam fire trucks can extinguish oil and solid fires and prevent reignition, while water tankers can only extinguish solid fires.
Q:Can the foam mixing ratio of a foam fire truck be adjusted? What is the commonly used ratio?
A:The intelligent proportioning system supports a standard 3% or 6% mixing ratio and can be automatically or manually fine tuned according to the fire situation and foam type, achieving precise and efficient fire suppression.
Q:Can foam fire trucks be used for routine inspections?
A:Foam fire trucks have the dual functions of routine water operations and emergency foam fire extinguishing. One truck can meet a variety of needs, including inspection, initial fire suppression, and large-scale fire suppression, making it highly practical.
Q:Do foam fire truck tanks and equipment require regular maintenance?
A:Foam fire trucks are easy to maintain and have low costs. Regularly inspecting the tank, pipelines, and key components, and draining them to prevent corrosion, ensures long term stable use.
