This Honduras ISUZU 4×2 pumper fire truck uses an 4×2 chassis and is equipped with a 4HK1-TCG61 190 horsepower engine, offering strong mobility; with a total liquid capacity of 4000L, it possesses powerful initial fire control capabilities. Its compact design makes it particularly suitable for foam mixing firefighting operations in narrow urban roads, large factory areas, and logistics warehouses, making it an ideal medium sized main battle fire truck for urban professional fire brigades and corporate emergency response forces.
Model: CSC5100XF
Capacity: 4000L
Drive: 4×2
Engine Power: 190HP
Engine Type: 4HK1-TCG61
Send Inquiry
Description
This Honduras ISUZU 190HP fire truck water tank is built on Qingling's mature chassis and equipped with a 4HK1-TCG61 Euro 6 diesel engine, providing ample power reserves. It features a six speed manual transmission and air brake system, ensuring stable and reliable operation even under full load transport and prolonged operation with equipment.
The vehicle is equipped with a 3000L water tank and a 1000L foam tank; the composite tank body is corrosion resistant and leak proof. It features a CB10/40 fire pump and a PL8/32 fire monitor, offering rapid water intake, flexible handling angles, and ample water and foam spray range. Capable of extinguishing both conventional fires and flammable liquid fires, it boasts comprehensive multiscenario firefighting capabilities, adaptable to the practical needs of firefighting operations in various overseas locations.
Product features
Manufacturer: CS TRUCKS
Main Features:
Liquid Carrying Capacity: 4000L liquid carrying capacity, meeting the continuous combat needs of medium-sized fires.
Optimal Power: 190HP ISUZU engine, powerful and reliable.
Mobility and Flexibility: Compact 4×2 body, suitable for narrow roads in towns and factories.
Dedicated Chassis: Based on the mature Isuzu 700P chassis, stable load bearing capacity and convenient maintenance.
Scenario Adaptability: Suitable for foam fire extinguishing scenarios such as urban fire stations, petrochemical areas, large warehouses, and airport auxiliary areas.
Technical parameters of ISUZU fire fighting vehicle
Product Name
Honduras 4000L Pumper Tanker Fire Truck ISUZU
Overall
Vehicle Model
CSC5100XF
Drive Type
4×2
Gross Vehicle Weight
9700 Kg
Maximum Speed
90 km/h
Overall Dimensions L*W*H(mm)
7125×2200×3120 mm
Engine
Engine Model
4HK1-TCG61
Fuel Type
Diesel
Power
190HP/139kW
Emission Standard
Euro 6
Displacement
5193 ml
Engine Type
Inline 4-cylinder, four-stroke, water-cooled
Chassis
Chassis Brand
Qingling
Tire No.
6
Tire Specification
235/75R17.5
Wheelbase
3815 mm
Gear Box
6-speed Manual Transmission
Steering Wheel
LHD
Brake
Air
Superstructure
Water Tank Capacity
3000 L
Foam Tank Capacity
1000 L
Tank Material
Carbon Steel + Stainless Steel
Fire Pump
Model
CB10/40
Flow Rate
40L/s
Pressure
1.0Mpa
Maximum Suction Depth
7 m
Priming Time
≤50 s
Vacuum Pump Type
Piston Type
Fire Monitor
Model
PL8/32
Flow Rate
32L/s
Range
≥60 m(water)
≥48 m(foam)
Pressure
0.8MPa
Rotation Angle
Horizontal 360°, Pitch -15° to 45°
Performance of ISUZU brush fire truck
01.
Chassis and powertrain
▶ Reliable Powertrain: Equipped with a 4HK1-TCG61 diesel engine, it delivers a robust 190 horsepower. This engine meets the Euro 6 emission standards required for export and maintains stable power output during extended water pump operation.
▶ Vehicle Stability: The vehicle features a 4x2 drive configuration, a six speed manual transmission, and an air braking system, giving it a high load bearing capacity. It also boasts a top speed of 90 km/h and excellent mobility for relocation.
02.
tank
▶ Dual Tank Configuration: Equipped with a 3 000 liters water tank and a 1000 liters foam tank, the total 4000 liters extinguishing agent capacity can simultaneously handle both ordinary fires and oil fires.
▶ Corrosion Resistant Tank Body: The tank is constructed from a composite of carbon steel and stainless steel, providing excellent sealing. This design ensures that the extinguishing agent remains leak-free and uncorroded during long term storage.
fire pump
The CB10/40 fire pump is a low pressure vehicle mounted fire pump with a rated flow rate of 40 L/s and a rated pressure of 1.0 MPa. It adopts a single stage centrifugal structure and is equipped with an automatic priming device; the priming time is ≤50 seconds at a suction depth of 7m. The pump body is made of high strength aluminum alloy, making it lightweight and compact, and widely applicable to various medium sized main battle fire trucks.
Model
Operating conditions
Flow Rate(L/s)
Pressure(Mpa)
Rotational Speed(r/min)
Shaft Power(kW)
Suction Depth(m)
CB10/40-XZ
1
40
1.0
3135±50
60
3
2
28
1.3
3390±50
60
3
20
1.0
3010±50
39
7
fire monitor
The PL8/32 dual purpose fire monitor has a rated working pressure of 0.8 MPa and a rated flow rate of 32 L/s. It features 360° horizontal rotation and a large angle elevation adjustment, and can spray water or foam. With its long range and flexible operation, it enables safe long distance fire suppression.
Model
Flow Rate(L/s)
Range(m)
Pressure(Mpa)
Pitch Angle (°)
Rotation Angle (°)
Water
Foam
PS8/20W
20
≥50
/
0.8
-15°-45°
0~360°
PL8/24
24
≥55
≥42
0.8
PS8/30W
30
≥60
/
0.8
PL8/32
32
≥60
≥48
0.8
PS8/40W
40
≥65
/
0.8
PL8/48
48
≥70
≥60
1.0
Features：
Flexible Angle Adjustment: The angle can be flexibly adjusted horizontally and vertically, easily handling various fire sources from ground level to higher altitudes; operators can precisely control the fire according to actual conditions.
Sturdy Structure and High Durability: The cannon body is constructed with a robust structure and metal materials, and the base is firmly installed on the ground; the surface of the cannon body is made of corrosion resistant and wear resistant materials.
Powerful Jet Force: It can spray the extinguishing agent at high speed and over a long range, achieving efficient fire suppression.
Simple and Convenient Maintenance: The manual fire monitor has a relatively simple structure, making troubleshooting easy.
Intelligent control system
The intelligent integrated control system of this fire truck integrates real time monitoring of operating conditions, power start stop control, lighting assistance, emergency stop, bilingual operation guidance and pipeline diagram visualization, realizing integrated centralized control of water pump and foam system, which is safe and reliable, suitable for foreign trade export, and greatly simplifies the whole vehicle fire fighting operation process.
Equipment Room
This equipment room serves as a "mobile equipment warehouse" for foam fire truck operations, it features standardized partitions for storing accessories such as hoses, water collectors, crowbars, and fire extinguishers. It caters to multiple needs, including equipment storage and protection, rapid retrieval, vehicle transport, and on site maintenance, enabling comprehensive firefighting operations across all scenarios, including conventional solid fires and flammable liquid fires.
Application scenarios
Honduras ISUZU 4000L Fire Fighting Vehicle for Forest Fire Fighting
Honduras ISUZU 4×2 Pumper Fire Truck for Firefighting in Residential Areas
Honduras ISUZU 190HP Fire Truck Water Tank for Garden Irrigation
Honduras ISUZU 4×2 Brush Fire Truck for Roadside Assistance
exterior views

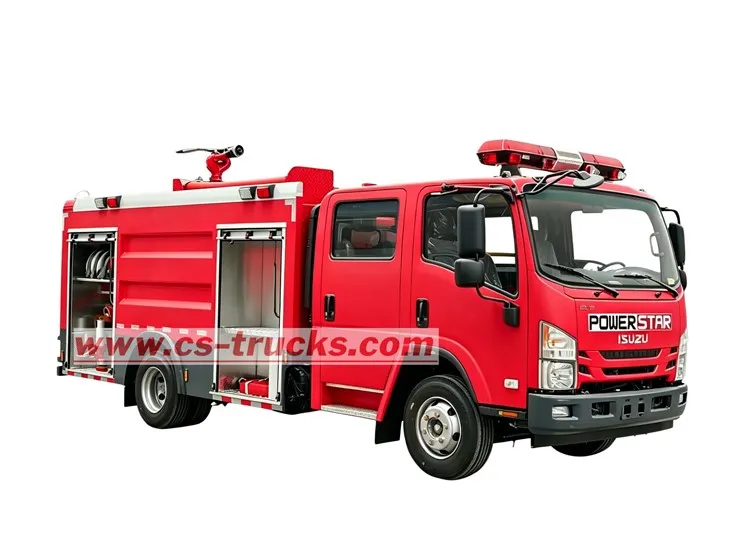

Front Right View of Honduras ISUZU 4000L Fire Fighting Vehicle

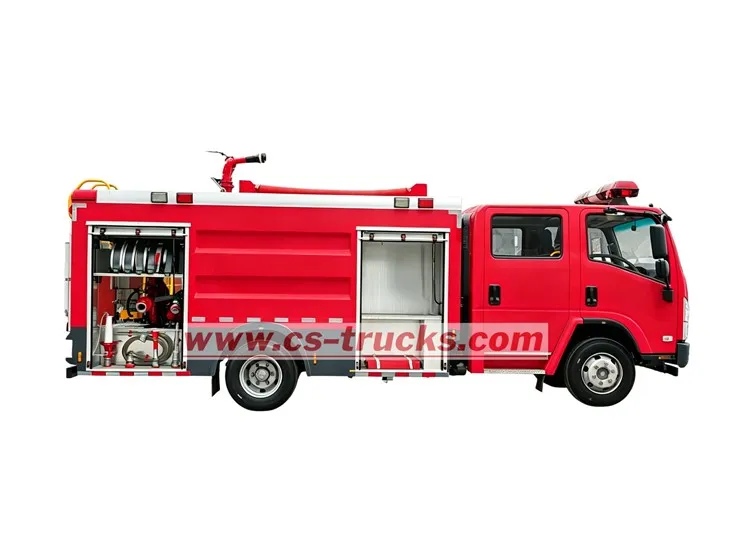

Right View of Honduras ISUZU 4×2 Pumper Fire Truck

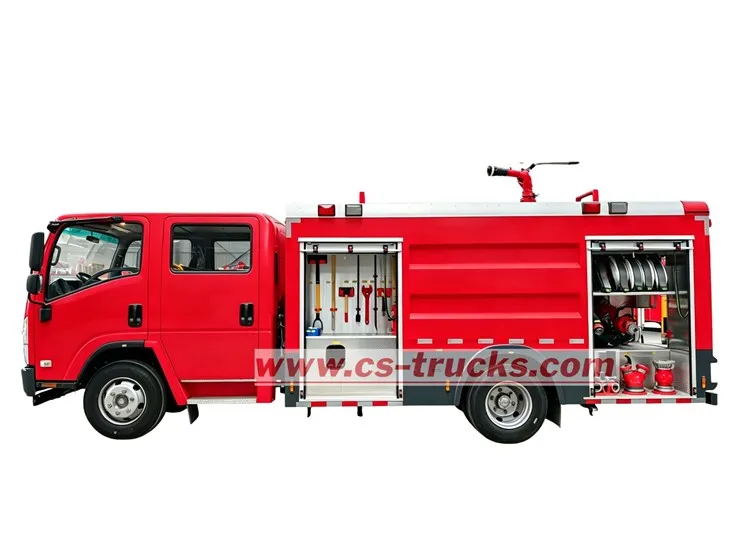

Left View of Honduras ISUZU 190HP Fire Truck Water Tank

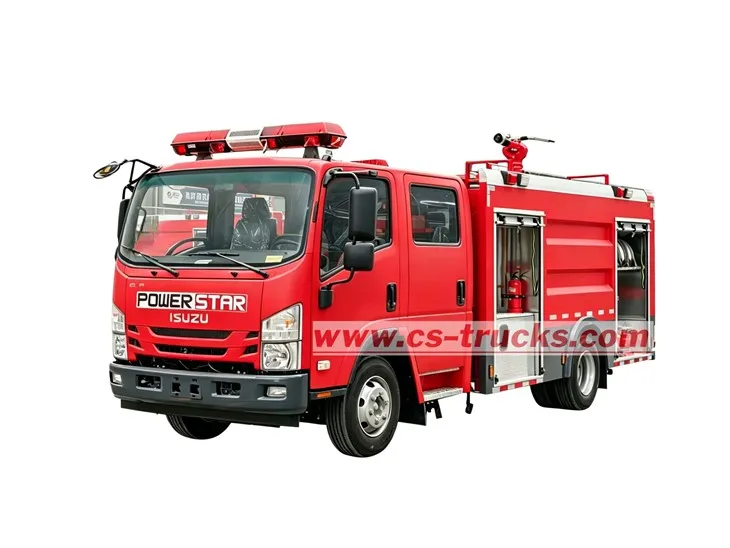

Front Left View of Honduras ISUZU 4000L Heavy Rescue Truck

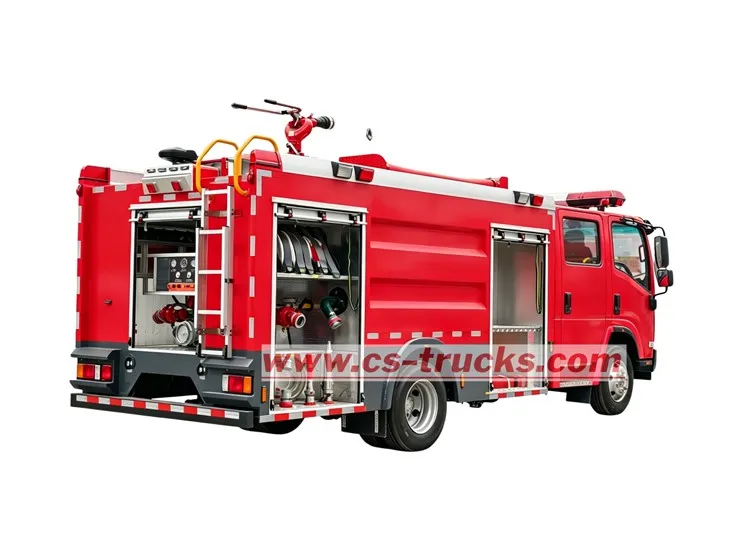

Rear Right View of Honduras ISUZU 4×2 Brush Fire Truck

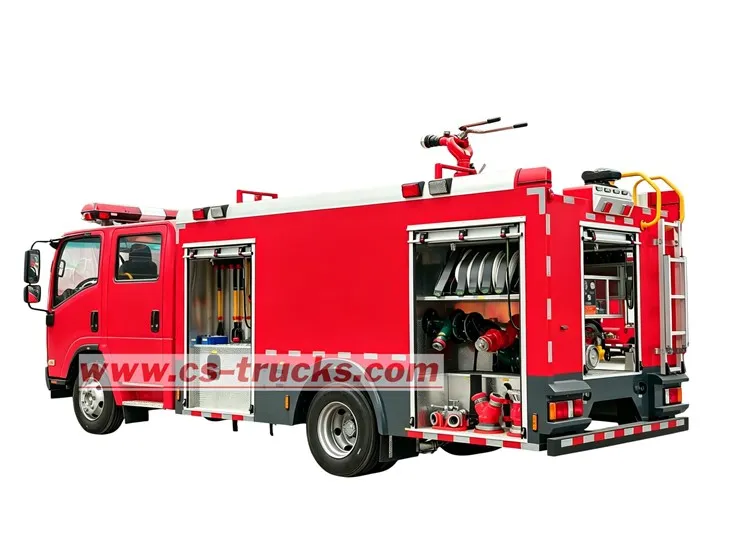

Rear Left View of Honduras ISUZU 190HP Fire Rescue Truck for Sale

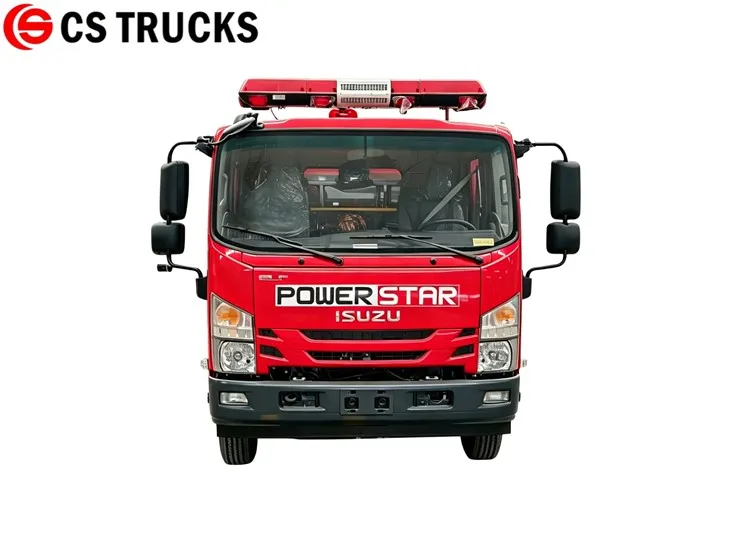

Front View of Honduras ISUZU 4000L Tanker Fire Truck
