The Philippines ISUZU 190HP Foam Fire Truck is built on an Isuzu 4x2 chassis and powered by a 190HP 4HK1-TCG61 engine. With a total tank capacity of 2500 liters, the vehicle offers excellent mobility and features an integrated water and foam fire suppression system.Designed primarily for small to medium scale firefighting operations, it is well suited for use in industrial parks, towns, mining areas, and similar environments. The truck is capable of extinguishing bothordinary fires and flammable liquid fires, and can also be used foremergency water supply, garden irrigation, and other multipurpose tasks.
Model: CSC5100XF
Capacity: 2500 Liters
Drive: 4×2
Engine Power: 190 HP
Engine Type: 4HK1-TCG61
Send Inquiry
Description
The Philippines ISUZU 4x2 utility fire truck features a 190HP Euro VI diesel engine, AMT automatic transmission, and left hand drive layout suited for local roads. It integrates a 2000L water tank and 500L foam tank in a compact design with compliant weight, mature steering and braking systems, and excellent maneuverability, making it ideal for short distance emergency responses in towns, industrial parks, and communities.
Equipped with a CB10/40 fire pump and a PL8/32 water foam dual purpose fire monitor, the vehicle features a stable hydraulic system that allows the monitor to be adjusted in all directions and at multiple angles, enabling it to spray foam for extinguishing flammable liquid fires, clean water for treating conventional fires, and also deliver a large flow of water for garden irrigation, road dust suppression, and emergency drought relief.
Product features
Manufacturer: CS TRUCKS
Main Features:
▶High mobility.
▶ Full featured and with ample capacity.
▶Suitable for various roads and complex terrains; also suitable for landscaping, road spraying, etc.
▶Can be used as a main fire truck in urban areas.
Technical parameters of ISUZU Utility Fire Truck
Product Name
2500L AMT ISUZU Fire Truck Philippines
Overall
Vehicle Model
CSC5100XF
Drive Type
4×2
Gross Vehicle Weight
10550 kg
Capacity
2000L Water+500L Foam
Maximum Speed
95 km/h
Overall Dimensions(L*W*H)
6500×2450×2800 mm
Engine
Engine Model
4HK1-TCG61
Fuel Type
Diesel
Power
190HP/139kW
Emission Standard
Euro VI
Displacement
5193 ml
Engine Type
Inline 4 cylinder turbocharged diesel engine
Chassis
Chassis Brand
Qingling
Tire No.
235/75R17.5
Tire Specification
6
Wheelbase (mm)
3815 mm
Gear Box
AMT
Steering Wheel
LHD
Brake
Air+ABS
Fire Pump
Model
CB10/40-XZ
Flow Rate
40 L/s
Pressure
1.0Mpa
Maximum Suction Depth
7 m
Priming Time
≤35 s
Fire Monitor
Model
PL8/32
Flow Rate
32 L/s
Range
Water
≥55 m
Foam
≥45 m
Pressure
0.8 Mpa
Rotation Angle
Horizontal 360°, Pitch 45°～90°
Performance and advantages
Chassis and Power
⏭︎ Stable Power Output: The vehicle is equipped with a 4HK1-TCG61 diesel engine with a rated horsepower of 190HP, providing ample power reserves to easily adapt to various urban and rural road conditions in the Philippines.
⏭︎ Safe Driving Handling: It features an AMT automatic transmission and an air brake + ABS braking system, and adopts a left hand drive layout that conforms to local driving habits, thereby ensuring smooth and reliable driving and braking processes.
Driver's Cab
⏭︎Comfortable Seating Layout: This vehicle features a 2+3 double row 5 seat cabin, with rear seats equipped with air cushioned backrests and a recessed seat design to prevent passengers from bumping their heads.
⏭︎Practical Structural Design: Equipped with an electrically tilting cab, the roof seams have been optimized to prevent water leakage.
Tank
⏭︎ Capacity: With a total tank capacity of 2500L, including 2000L of clean water and 500L of foam stored separately, the vehicle can respond flexibly to different types of fires.
⏭︎ Vehicle Structure: The vehicle measures 6500×2450×2800 mm and has a compact and flexible structure, allowing it to easily navigate park roads and narrow streets in towns and villages.
intelligent Control Panel
The vehicle's intelligent control panel integrates control buttons for the water pump, foam valve, and fire monitor, allowing for one button switching between water and foam operation modes. Its digital display panel can also monitor water pressure, tank level, and pump operating status in real time, automatically alerting users when equipment malfunctions, making on site operation convenient and intuitive.
Button Introduction:
● E-STOP Emergency Stop Button: One button shutdown in emergency situations to ensure equipment safety.
● Water Diversion Button: Controls water flow direction switching.
● Throttle Knob: Steplessly adjusts engine speed for precise control of water pressure.
Fire pump
This vehicle is equipped with a CB10/40 vehicle mounted fire pump with a rated flow of 40L/s, a rated working pressure of 1.0MPa, a maximum selfpriming depth of 7 meters, and a priming time of ≤35 seconds. It can quickly draw water from rivers, ponds, and ditches on site, with high water intake efficiency and stable water supply for the entire vehicle's firefighting operations.
CB10/40-XZ
Flow(L/s)
Pressure(MPa)
Rotational Speed(r/min)
Shaft Power(KW)
Suction Depth(m)
1
40
1.0
3135±50
60.0
3
2
28
1.3
3390±50
60.0
3
3
20
1.0
3010±50
39.0
7
Notice: ➊When the pump stops running, open all the remained water draining switches to drain all the water in the pump, then dose all switches to prevent the pump from freezing.
➋ After using seawater, sewage, mordant water and foam, it must make the pump running for more than 1 minutes with clean water in order to wash down the sewage in the pump.
➌ Check whether the pump in winter, please make the piston pump run for a while to drain the remained water to prevent the pump from freezing.
➍ After stopping the pump in winter, please make the piston pump run for a while to drain the remained water toprevent the pump from freezing.
➎ Do not make the pump run without water for more than 1 minute.
fire monitor
Features of Fire Monitor:
➤Aluminum alloy monitor body and barrel
➤Stainless steel double handles
➤ Monitor head flow rate 32L/s
➤Double bearing rotating mechanism
Model
Flow(L/s)
Pressure(MPa)
Range(m)
Rotation Angle
Pitch Angle
Inlet Size
Water
Foam
PL8/32
32
0.8~1.0
≥55
≥45
360°
45°~90°
DN100
Equipment Room
Equipment Room Introduction:
➊ Room Structure: The equipment compartment of this vehicle features a multi compartment, roller door design with an internal stainless steel lining for moisture and corrosion resistance.
➋ Zoned Storage: The left compartment houses breaching tools and fire hose connections; the middle compartment stores high pressure water hoses; and the right compartment contains pumps, valves, and water intake accessories, resulting in a well organized layout.
➌ Usage Advantages: Equipment is strategically positioned for quick access, making it suitable for storing firefighting and rescue equipment.
Application scenarios
Philippines ISUZU 2500L Fire Truck Fire Engine for Firefighting in Residential Areas
Philippines ISUZU 190HP Foam Fire Truck for Garden Irrigation
Philippines ISUZU 4×2 Utility Fire Truck for Forest Fire Fighting
exterior views

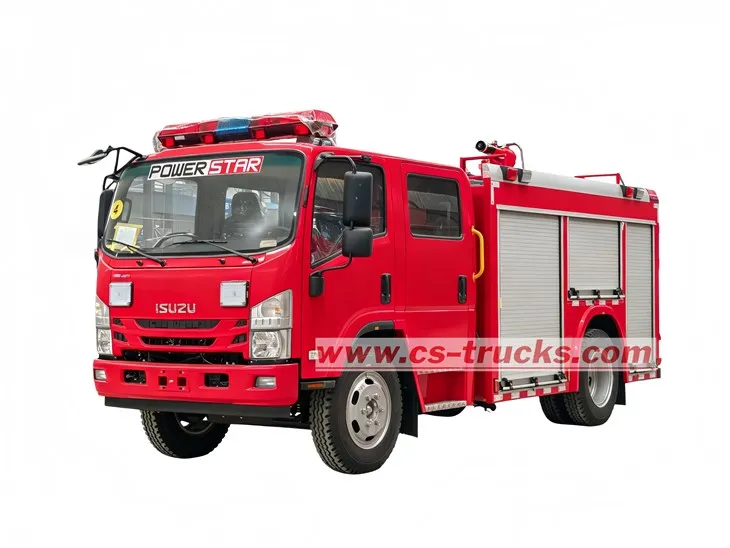

Front Right View of Philippines ISUZU 2500L Fire Truck Fire Engine

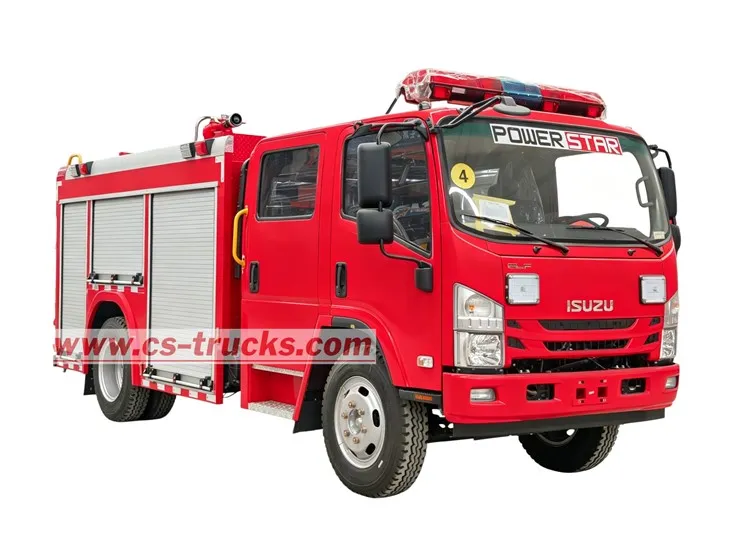

Front Left View of Philippines ISUZU 2500L Firefighter Truck for Sale

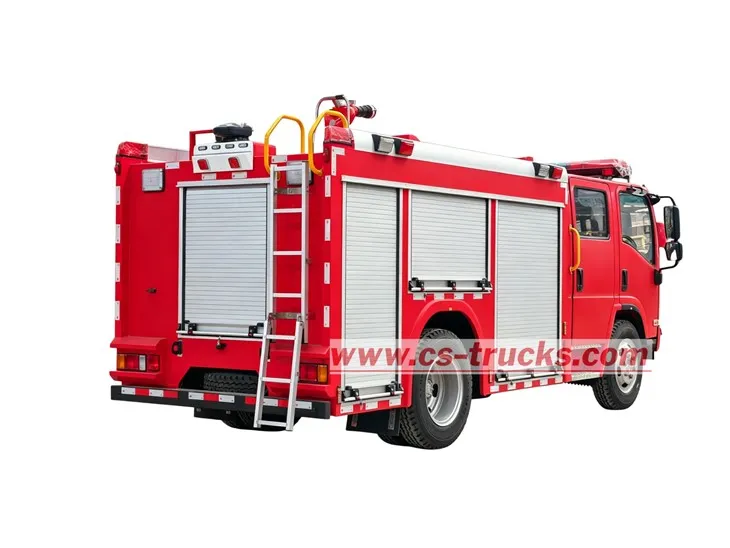

Rear Right View of Philippines ISUZU 190HP Heavy Rescue Truck

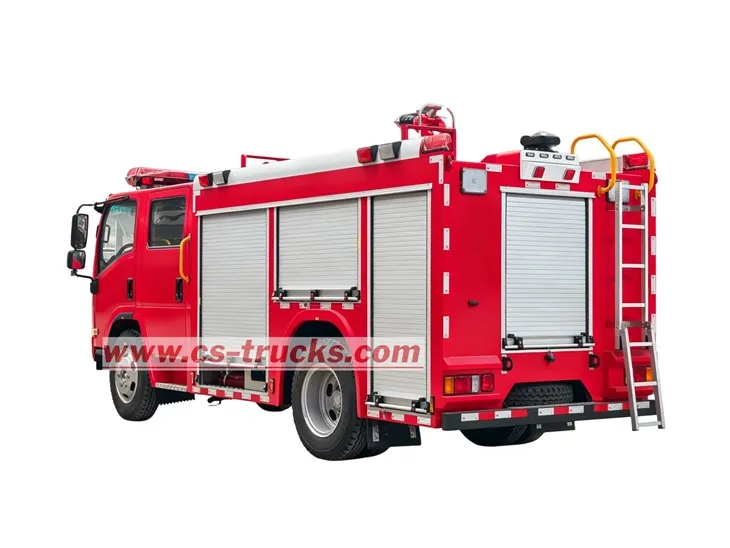

Rear Left View of Philippines ISUZU 190HP Foam Fire Truck

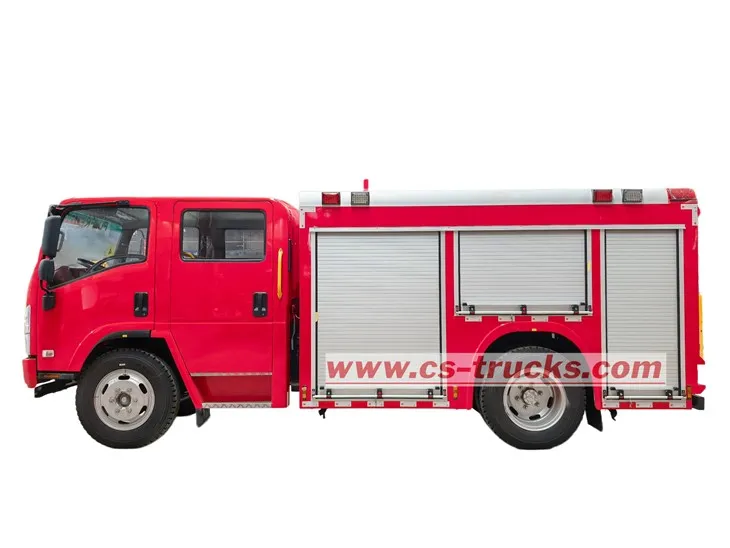

Right View of Philippines ISUZU 4×2 Water Tender Fire Truck

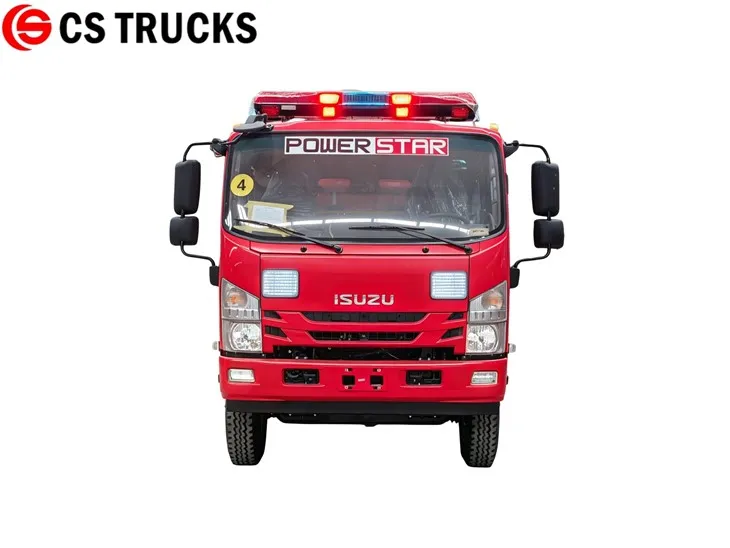

Front View of Philippines ISUZU 4×2 Utility Fire Truck

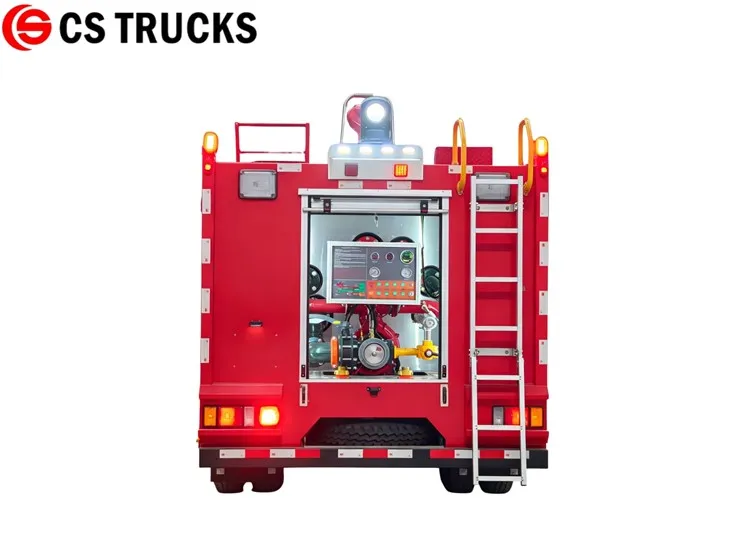

Rear View of Philippines ISUZU 190HP Fire Rescue Truck for Sale
Common Faults and Troubleshooting Solutions for ISUZU Foam Fire Trucks
01/
Fault: AMT transmission shifting jerks, difficulty shifting gears Solution: Check the transmission fluid level, add genuine transmission fluid if low; clean dust from the gear position sensor, replace the sensor if faulty.
02/
Fault: Water pump cannot prime or draw water
Solution: Check for air leakage and damage to the suction pipe seal; replace the seal; purge air from the pump chamber; inspect the priming device; after priming for an extended period, clean debris from the foot valve.
03/
Fault: Fire monitor is stuck rotating and cannot pitch
Solution: Clean the monitor's rotating shaft of mud, sand, and rust, and add lubricating grease; check the water circuit oil pressure, and adjust the pump output pressure to 0.8MPa if the pressure is insufficient.
04/
Fault: No foam, only clear water comes out
Solution: Check if the foam tank outlet ball valve is open; clean the clogged filter screen of the proportioning mixer; check for air leaks in the foam liquid suction pipe.
05/
Fault: Abnormal foam mixing ratio
Solution: Fine tune the ring pump proportioner regulating valve, check the foam liquid level, and replenish with the same specification foam concentrate if insufficient.
06/
Fault: Leakage in water/foam tank Solution: Repair weld leaks with anti corrosion welding; replace sealing gaskets for leaks at joints.
