ISUZU 25 Tons GIGA Jetting Vacuum Truck (also known as sewer truck, septic tank truck, or sewage suction truck) is specifically engineered for heavy-duty drainage and cleaning operations, including municipal pipeline maintenance, large-scale industrial sludge removal, and emergency environmental response. Featuring a 17 CBM dual-compartment tank and 380HP power output, its 6×4 heavy-duty chassis delivers exceptional performance across complex urban and industrial terrains, providing robust drainage solutions for demanding municipal infrastructure and industrial applications.
*25 Tons GIGA ISUZU Truck Mounted Jetting Vacuum*
-----------------------------------------------------------------
CS factory is a professional manufacturer in the truck area,
guaranteeing all products are Brand-New and High-Quality.
» I. Product Definition and Introduction:
Manufacturer: CS TRUCKS
Features:
▶ Chassis: ISUZU 6×4 heavy-duty chassis equipped with 380HP Euro 6 diesel engine
▶ Tank Volume: Total capacity 17 CBM (7 CBM clean water + 10 CBM sewage)
▶ Tank construction: 6mm high-grade steel plate, stainless steel inner liner, asphalt anti-corrosion coating, and internal baffles for stability
▶ Jetting & Vacuum System: 180 MPa high-pressure jetting (350 L/min) + JUROP PVT 400 roots vacuum pump (2470 m³/h suction rate)
▶ Operation Scope: Designed for municipal sewer maintenance, industrial sludge extraction, and emergency environmental response
» II. Product Parameters for ISUZU 17 CBM Sewer Pump Truck:
| Product Name | 25 Tons GIGA ISUZU Truck Mounted Jetting Vacuum | ||
| Overall | Vehicle Model | CS5250GXW | |
| Drive Type | 6*4 | ||
| Gross Vehicle Weight | 25000 kg | ||
| Curb Weight | 11360 kg | ||
| Maximum Speed | 100 km/h | ||
| Overall Dimensions L*W*H | 10350*2550*3550 mm | ||
| Engine | Engine Model | 6UZ1-TCG61 | |
| Fuel Type | Diesel | ||
| Power | 380 HP(279KW) | ||
| Emission Standard | Euro 6 | ||
| Displacement | 9839 ml | ||
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | ISUZU | |
| Tire No. | 10+1 | ||
| Tire Specification | 12R22.5 18PR | ||
| Wheelbase | 4600+1370 mm | ||
| Gear Box | 10 forward & 2 reverse, with PTO | ||
| Cab | Tilting cab | ||
| Chassis Configuration | Air conditioning | ||
| Steering assist | |||
| Central lock | |||
| Electric glass | |||
| Multi-function steering wheel | |||
| ABS(Anti-lock Braking System) | |||
| Air brake | |||
| High-Pressure Jetting System | Clean Water Tank Capacity | 7 CBM | |
| Tank Construction | Butt-joint welding | ||
| 6mm premium steel plate(WISCO) | |||
| High-pressure Pump | Power | 126 Kw | |
| Rotational speed | 1500 rpm | ||
| pressure | 180 Mpa | ||
| Flow rate | 350 L/min | ||
| Drive System | Driven by the power take-off (PTO), operable simultaneously. | ||
| Accessories | 10 specialized nozzles for different scenarios | ||
| 100mφ22PVC high-pressure hose 100mφ22PVC | |||
| Remote control operation | |||
| Sewage Vacuum System | Sewage Tank Capacity | 10 CBM | |
| Tank | 6mm premium steel plate(WISCO) | ||
| Fully sealed pressure tank | |||
| Stainless steel lining | |||
| Electrostatic powder painting | |||
| Asphalt coating inside | |||
| Vacuum Pump | JUROP PVT 400 Roots Pump | ||
| Rotational speed | 2500-3300 rpm | ||
| Pumping speed | 2470 m³/h | ||
| Power | 50 Kw | ||
| Max. vertical suction depth | 10-12m | ||
| Max. horizontal suction reach | 50-100m | ||
| Self-priming & self-discharging | |||
| Hydraulic System | The tank can be hydraulically lifted and tilted for rear-dump discharge, with 75° rear-door opening angle. | ||
| The rear head features hydraulic opening/closing and integrated hydraulic locking | |||
| Discharge Components | Outlet: Stainless steel pneumatic ball valve (100N+150N) | ||
| Accessories: 10 specialized nozzles for different scenarios; 100mφ22PVC high-pressure hose; Remote control operation | |||
| Safety Features | Full-tank alarm | ||
| Auto pressure relief | |||
| Secondary anti-overflow | |||
| Additional Equipment | 2x transparent suction hoses,φ102mm x 10m | ||
| Stainless steel toolbox | |||
| Coil hose reel | |||
| Clean water tank with heater & digital display | |||
| Special Functions | Cement filler port on top | ||
| Internal supports | |||
| Washing machine integrated | |||
» III. Product Description:
1. Powertrain System
♦ Powered by the 6UZ1-TCG61 inline 6-cylinder turbocharged inter-cooled diesel engine, generating 380 HP (279 kW) with a displacement of 9,839 ml, fully compliant with Euro 6 emission standards for clean and efficient operation.
♦ A 10-speed manual transmission (10F+2R) paired with a 6×4 drive system and 4,600+1,370 mm wheelbase ensures reliable power delivery for high-pressure jetting and vacuum suction operations under various conditions.

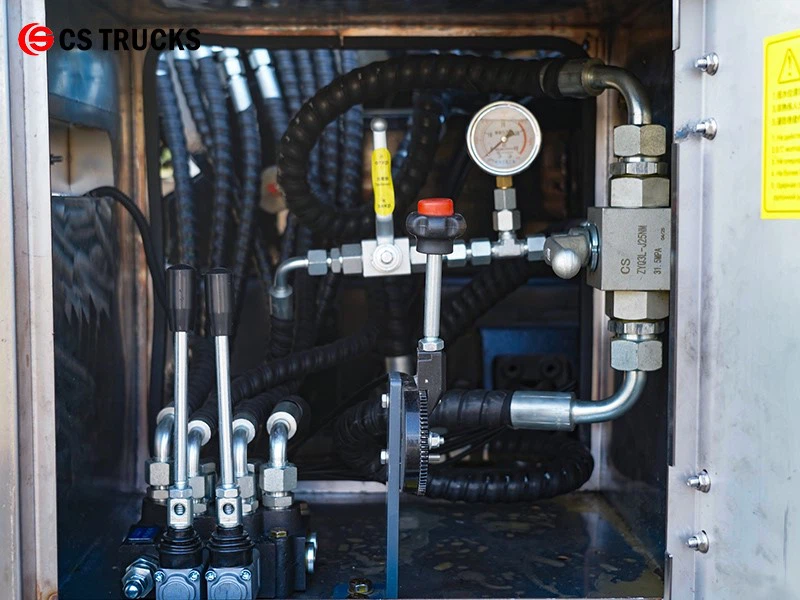

2. Hydraulic Operation Panel
♦ Provides real-time monitoring of system pressure and centralized control over tank tilting, rear door opening/closing, and suction/discharge operations through integrated levers and gauges.
♦ Manages hydraulic flow distribution via precision valve assembly, enabling coordinated actuator movements and consistent performance throughout extended cleaning and drainage cycles.
3. High‑Pressure Hose Reel System
♦ Stores and deploys 100 meters of φ22 high-pressure hose with remote-controlled operation, enabling flexible cleaning at distances up to 50-100m horizontal reach.
♦Integrated with the 180 MPa jetting system, delivers consistent water flow at 350 L/min for effective pipe flushing and surface cleaning during continuous drainage operations.
» IV. ISUZU Sewer Suction Truck Operating Principle:
♦ Hydraulic Reservoir: 150L high‑grade steel hydraulic reservoir, serves as the primary fluid storage and distribution unit for the drainage truck's jetting, lifting, and suction hydraulic functions.
♦ Oil Level Monitoring: Fitted with a transparent level indicator, allowing clear real‑time observation of fluid volume, with recommended operating range between 60%–85% of total capacity.
♦ System Protection: Integrated 10μm return‑line filter minimizes oil contamination, extends service life of hydraulic pumps and cylinders, and reduces overall maintenance frequency.
♦ Operational Adaptability: Designed for high‑frequency drainage and suction cycles, ensures a consistent oil supply during continuous high‑pressure jetting and vacuum operations.
Product Details
» V.ISUZU Sewage Suction Truck Solutions:
ISUZU Sewer Pump Truck For Residential Communities
ISUZU Jetting Tanker For Municipal Streets
ISUZU Septic Tank Cleaning Truck For Construction Sites
ISUZU Vacuum Septic Tank Truck For Industrial Parks
» VI. ISUZU Sewer Cleaning Truck Exterior Views:
Front Right View of ISUZU Combined Sewer Jetting and Vacuum Truck
Front Left View of Africa ISUZU 17 CBM Septic Tank Cleaning Truck
Right View of ISUZU 17 CBM Super Sucker Vacuum Truck
Left View of ISUZU 25-ton Cesspool Truck For Sale
Rear Right View of ISUZU Sewage Disposal Trucks For Sale
Rear Left View of ISUZU 25 Tons Sewage Vacuum Tanker
Front View of ISUZU 17 CBM Septic Service Truck
Rear View of ISUZU 25 Tons Sewer Jetter Truck
Products--100% China ISUZU factory trucks!
Shipping - 100% fast, Convenient, Efficient!
Guarantee - 7 days + 24 hours Safety Service!
1. ISUZU 25-ton GIGA Jetting Vacuum Truck Chassis:Developed on the ISUZU 6×4 heavy-duty platform, powered by the 6UZ1-TCG61 diesel engine delivering 380HP, mated to a 10-speed manual transmission (10F+2R), purpose-built for high-capacity municipal sewer maintenance and industrial waste handling.
2. Dual-Compartment Tank Configuration: Fabricated from 6mm high-grade steel plate with stainless steel internal lining, featuring a partitioned design with a 7 CBM fresh water tank and a 10 CBM waste tank (total 17 CBM), treated with asphalt anti-corrosion coating and reinforced with anti-surge baffles for enhanced stability.
3. Integrated Jetting & Vacuum System: Combines a 180 MPa high-pressure pump (350 L/min flow rate) with a JUROP PVT 400 roots vacuum pump (2470 m³/h suction capacity), engineered for simultaneous cleaning and extraction operations, delivering efficient pipeline flushing and rapid sludge removal with precise discharge control.
4 . Advanced Control & Safety Systems:Features dual-mode operation (remote + manual) with a centralized control panel, complemented by ABS braking, a tropical climate cooling package, and a multifunctional hydraulic valve assembly, ensuring operational flexibility and reliability in diverse drainage and emergency scenarios.
