The Qingling ISUZU QL1180JQFRCY Truck Mounted Boom Crane is equipped with a powerful 250HP engine, providing ample power; combined with a reliable 4x2 chassis and a rated lifting capacity of 8,000 kg, it not only boasts stable load-bearing capacity and excellent maneuverability but also outstanding lifting capacity and operational flexibility. This crane is perfectly suited for various operating scenarios, making it a high-performance, cost-effective specialized piece of equipment.
Model: CSC5180JSQ
Rated Load Capacity: 8000kg
Drive: 4x2
Engine power: 250HP
Engine type: 4HK1-TCG62
Send Inquiry
Description
Product Introduction
The Qingling ISUZU QL1180JQFRCY Truck Mounted Boom Crane is equipped with an Isuzu 250HP Euro VI diesel engine and a robust 4×2 chassis, offering stable power output and reliable operation,this vehicle features a three-section telescopic boom that supports 360° continuous rotation, providing a wide working range and high flexibility.
This ISUZU crane truck utilizes outriggers that can be extended individually or simultaneously, coupled with a 20-25MPa high-pressure hydraulic system. It supports cab, ground, and wireless remote control operation, and is equipped with multiple safety devices including a torque limiter and overload protection. With stable load-bearing capacity and high operational efficiency, it is an ideal work vehicle for municipal, logistics, and engineering lifting operations.
※Performance & Load Capacity: This Isuzu truck-mounted crane has a gross weight of 18,000 kg, front axle load of 6.5 tons, rear axle load of 11.5 tons, and a top speed of 89 km/h, balancing strong load capacity and efficient road performance.
※Cab: The vehicle has a compact overall size and strong passability. It adopts the Isuzu GIGA series wide-body cab, which can accommodate 3 people, with a wide field of vision and ample space to meet the needs of operators.
02
Powerful powertrain
※Power System: This truck-mounted crane is powered by a 250HP Qingling diesel engine with advanced fuel injection and turbocharging. It has a displacement of 5193ml and complies with Euro VI emissions, delivering strong power and low emissions.
※Transmission & Handling: It uses an Isuzu MLD 6-speed gearbox and hydraulic clutch, providing smooth and reliable shifting and the whole vehicle is responsive and easy to operate in various working conditions.
03
Chassis structure configuration
※Chassis Off-Road Capability: This Isuzu truck bed crane has a 5550mm wheelbase, it features an approach angle of 15°, a departure angle of 12°, and a minimum ground clearance of approximately 240mm,which makes it suitable for various road conditions.
※Suspension and Tire Configuration: Our Isuzu hydraulic crane truck utilizes multi-leaf springs at both the front and rear, combined with hydraulic shock absorbers, providing excellent load-bearing capacity and stability. It is equipped with six 275/80R22.5 tires, offering strong grip and superior durability.
04
Upper structure lifting performance
※Operational Performance: This Isuzu boom crane truck is equipped with a three-section telescopic boom with a maximum lifting height of 16–18 meters and a working radius of 12–14 meters, and it can rotate 360° to provide a wide working range while the outriggers can extend or retract individually or simultaneously for stable and reliable support.
※Operation and Safety: The Isuzu truck mounted crane's hydraulic system supports three operation modes: cab, ground, and remote control, adapting to various operating scenarios. It is also equipped with multiple safety devices to comprehensively ensure lifting safety.
product details of Isuzu boom crane truck
Outrigger Hydraulic Manual Multi-way Valve
Boom End Lifting Mechanism
Planetary Gear Reducer
8-ton Truck Crane Lifting Cylinder
Application scenarios for Isuzu truck bed crane
Factory Equipment Loading and Unloading
Construction Material Transfer at Construction Sites
Urban Municipal Operations
Exterior Views of ISUZU crane truck

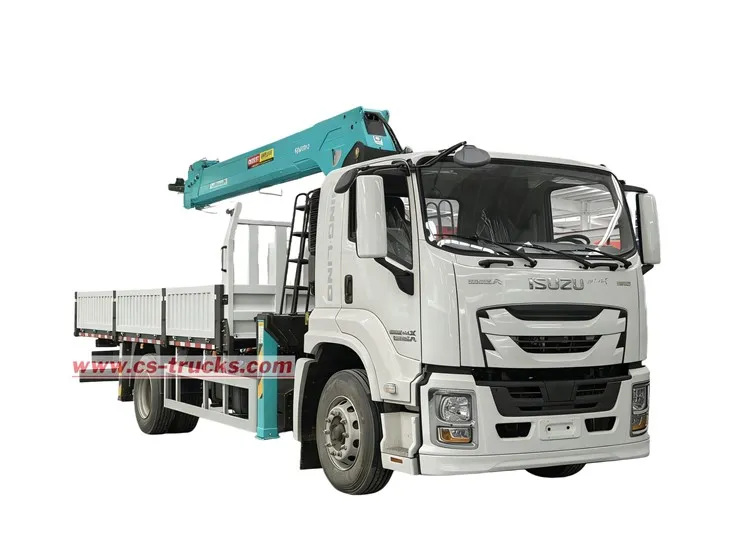

Front Right View of ISUZU Truck Mounted Boom Crane

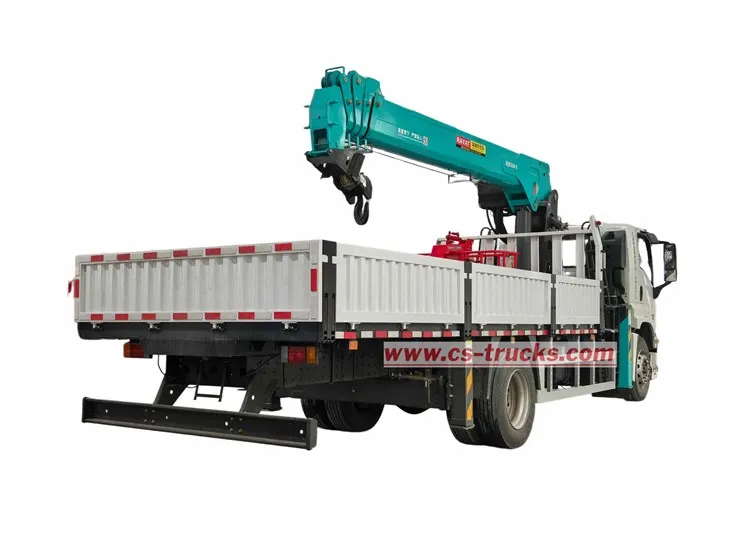

Rear Right View of ISUZU Truck Mounted Boom Crane

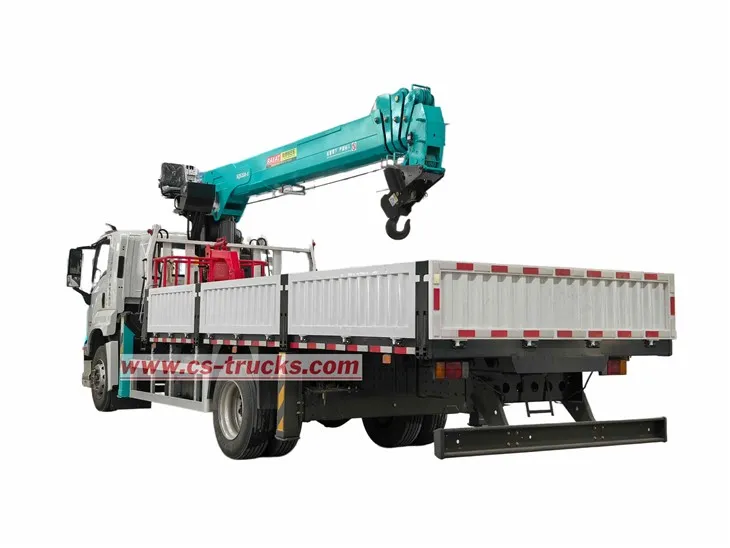

Rear Left View of ISUZU Truck Mounted Boom Crane

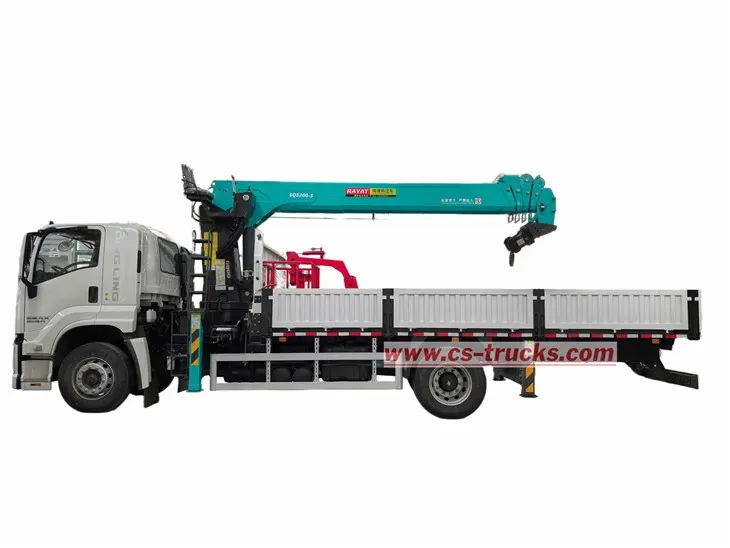

Left View of ISUZU Truck Mounted Boom Crane

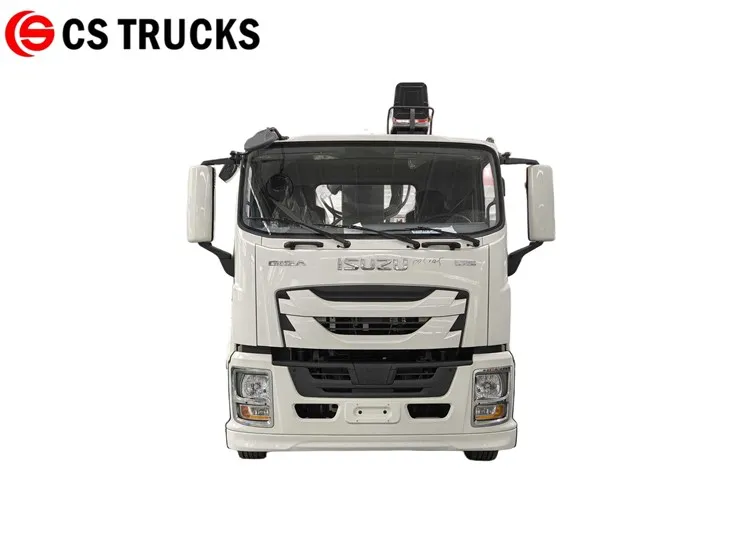

Front View of ISUZU Truck Mounted Boom Crane

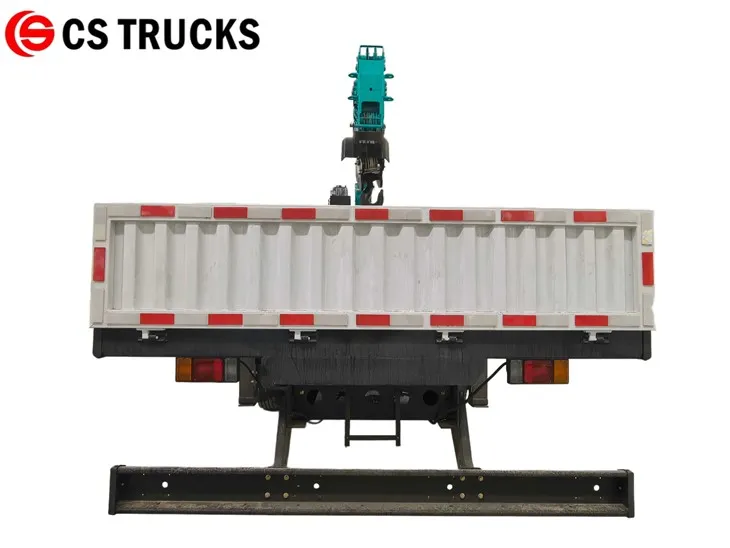

Rear View of ISUZU Truck Mounted Boom Crane
Advantages of ISUZU Crane Truck
Chassis reliability advantages
The chassis of this vehicle is manufactured with precision, resulting in a low failure rate for core components; the mean time between failures (MTBF) is 30% longer than that of similar models, and maintenance is convenient, which can effectively reduce the cost of maintenance in the later stages.
Power and economic advantages
The vehicle is equipped with a 250HP engine, which provides ample power and low fuel consumption, which can save 20,000 to 30,000 yuan in fuel costs when operating for 100,000 kilometers per year. Its emissions meet Euro VI standards, eliminating concerns about unlimited travel.
Advantages of operational stability
The crane is well-matched with the chassis, the outriggers spread out evenly, the hydraulic system is precisely controlled, the positioning error is small, it is suitable for a variety of lifting scenarios, and the work efficiency is improved by more than 15%.
