Products Description

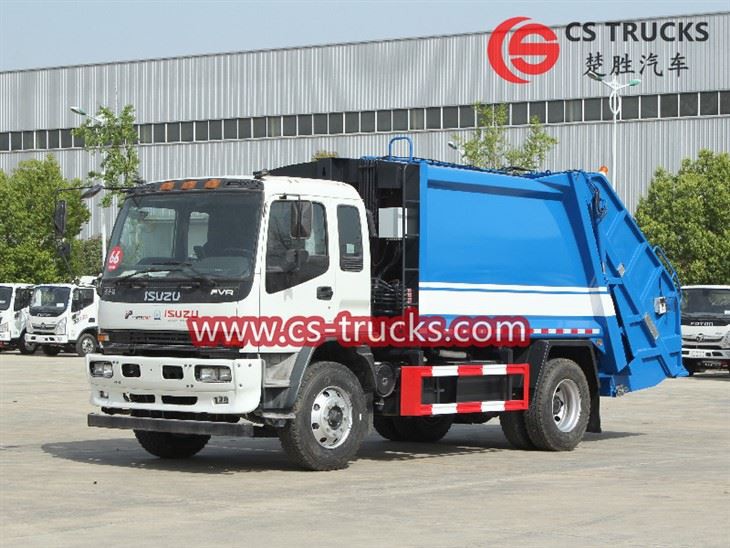

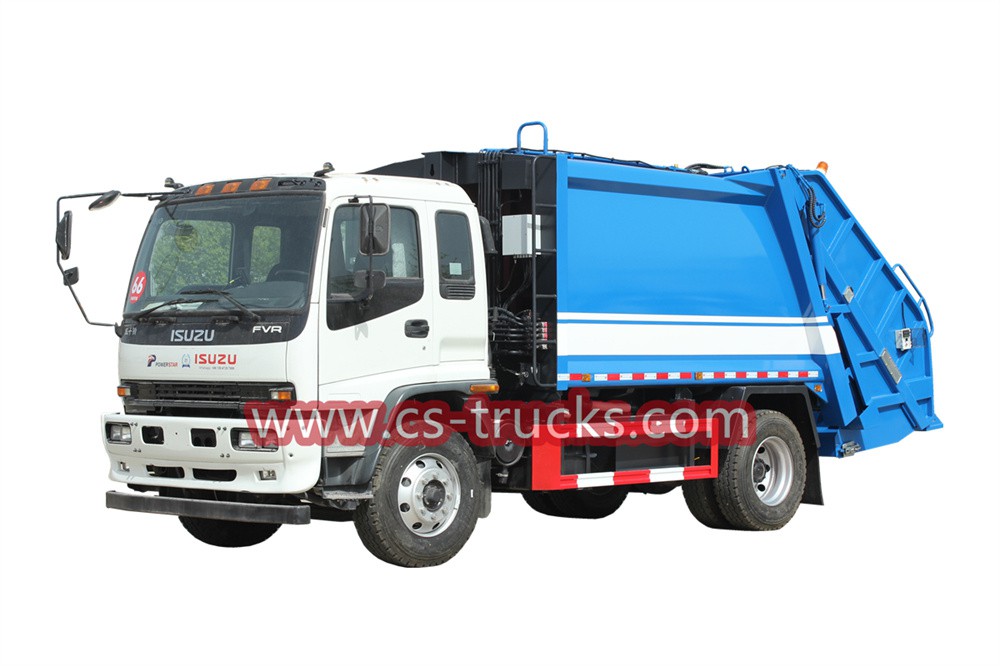

The Dumpster Compactor Garbage Truck is a highly efficient and necessary machine used for waste management and disposal. It plays a crucial role in keeping our streets clean and sanitary.
The Dumpster Compactor Garbage Truck is specifically designed to collect, compact, and transport large quantities of waste material. It is typically seen in residential areas, commercial complexes, and industrial sites where there is a high volume of garbage generation. This type of garbage truck is equipped with a compactor mechanism, which allows for maximum waste compression and increased storage capacity.
Key Features
----► Isuzu FVR 4x2 / 4x4 chassis
----► 6 cylinder 6HK1 diesel engine 240HP
----► Electric CAN control system
----► Rear loading device for 240L and 1100L bins
----► 7days+24hours service, always on line
Technical Specification
| Chassis parameters | ||||
| Chassis model | QL1180XMFRY | Chassis brand | ISUZU | |
| Overall dimensions | 8500X2500X2920mm | Wheel base | 4500mm or 4700mm | |
| Front/rear wheel track | 1504/1425mm | Front/rear suspension | 1335/2450mm | |
| Approach/departure angle | 24/14° | Maximum speed | 95km/h | |
| Cab | Configuration | FVR single cab,hydraulic mechanical flip,channel type instrument panel,air conditioner,allowable 3 passengers | ||
| Color | white,other color is optional | |||
| Engine | Model | 6HK1-TCL | ||
| Emission | Euro 5 | |||
| Type | 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,4- valve,diesel engine | |||
| Rated power | 240hp | |||
| Displacement | 7780ml | |||
| Max.torque | 760N·m | |||
| Bore x stroke | 115*125mm | |||
| Manufacturer | Isuzu Engine (Chongqing) Co., Ltd. | |||
| Tire | Size | 295/80R22.5 Tire, With one spare tyre | ||
| Number | 6+1 nos | |||
| Front axle | 6.3 tons | |||
| Rear axle | 13 tons | |||
| Drive form | 4*2 | |||
| Rated voltage | 24V,DC | |||
| Transmissions | MLD six speed transmission, 6 speed forward 1 reverse. | |||
| Steering device | Power assisted steering | |||
| Steering wheel | Left hand drive | |||
| Refuse compactor structure parameters | ||||
| Equipment | ||||
| Loading capacity | 10m3-12m3 | |||

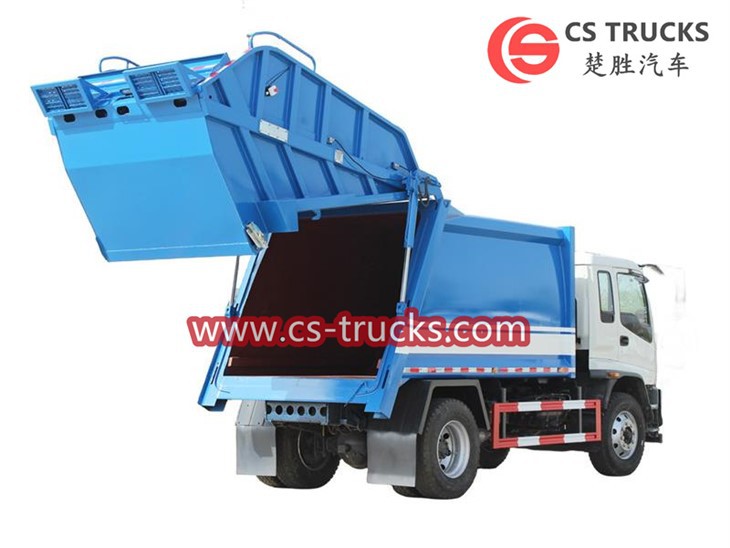

| System of loading | Mechanized, rear loading | |||
| Modes of the pressing | Manual,semi-automatic,automatic,lifting rear part operation manual,loading,pushing,pressing, pushing out automatic | |||
| Body | ||||
| Version | All-metal | |||
| Sidewalls | Sheet carbon steel (thickness: 4 mm) | |||
| Bottom | Sheet carbon steel (thickness: 5 mm) | |||
(1) More than 12 years professional manufacturer experience.
(2) CCC ISO9001 agreement
(3) Be designed according to your requirements
(4) Small order can be accepted
(5) We accept 100% inspection, welcome to our factory at any time
(6) 12 month quality guarantee term
Operation method
What prefer to buy ISUZU Garbage compactor truck from CS TRUCKS?
The ISUZU garbage compactor truck is refitted based on the ISUZU FVR 4x2/4x4 truck chassis. which mainly separated as two parts: Chassis parts and Upper body parts.
Chassis Parts:
Which use original Japanese technology FVR truck chassis, can be customized as 4x2 model or offroad 4x4 model, 6HK1 diesel engine with 240HP, MLD 6 shift manual gearbox with 6 forward and 1 reverse. Reinforced front axle and ultra-high strength rear axle, designed loading capacity can be up to 10tons.
Upper Body Parts:
Garbage collection assembly: High Strength steel material T420 tanker body for garbage storage, with tailgate, slide plate, scraper, push plate and tilting device, also matched with suitable hydraulic cylinder to realize garbage loading and unloading working.

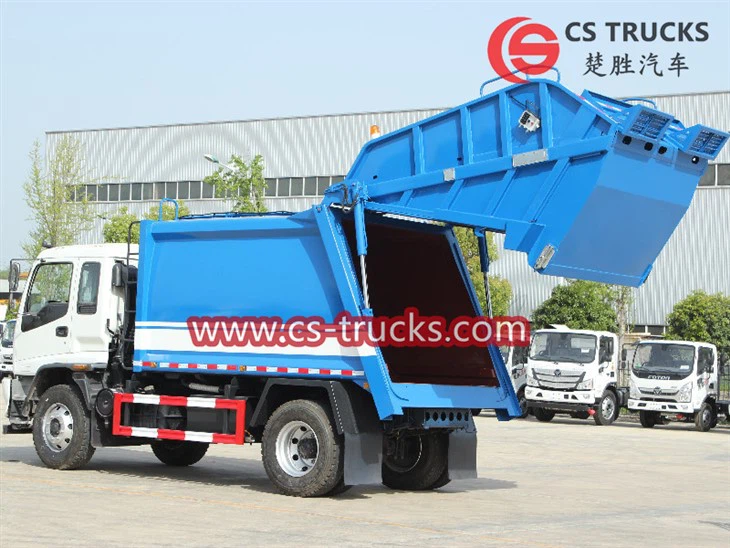

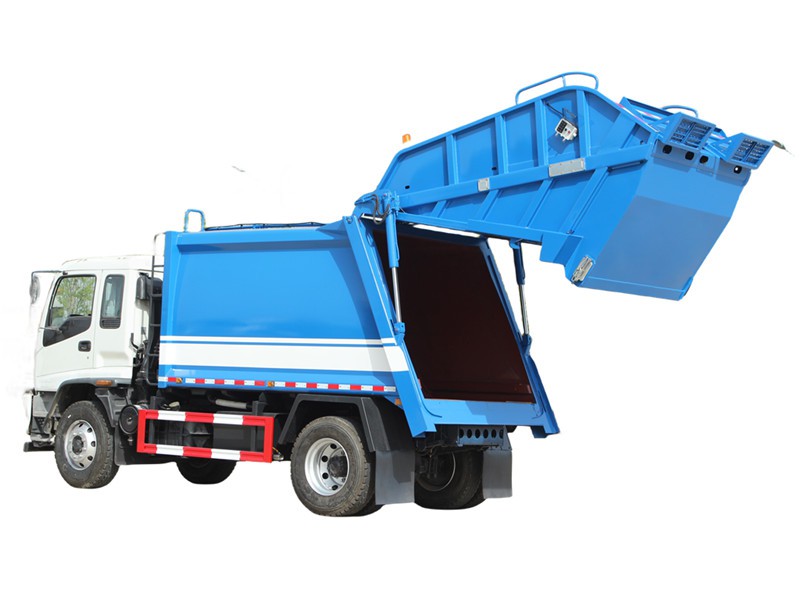

Rear Hopper--2 hydraulic cylinders
Slide Plate--2 hydraulic cylinders
Scraper--2 hydraulic cylinders
Tilting Device--2 hydraulic cylinders
Push Plate--1 hydraulic cylinder
Operate & produce
Customize your own truck
compression garbage truck is a vehicle specially designed to collect and compress garbage, and the filler is an important part of it. The filler is mainly responsible for compressing the collected garbage quickly and efficiently, thereby reducing the space occupied.
First, the garbage is collected into the storage room of the garbage truck. The collected waste is usually loose and messy items that cannot be transported and processed directly. A storage chamber is usually a large container that can hold larger quantities of waste. Then, the filler starts working.
Typically, the filler passes through a complex system that includes one or more hydraulic cylinders, augers, and pressure controllers. These components work together to maximize waste compression. First, the hydraulic cylinder is activated. The piston in the hydraulic cylinder begins to rise, a process assisted by a screw propulsion device, until the cylinder reaches its maximum elevation.
Then, the propeller begins to rotate. The auger propeller device is composed of a spiral conveyor belt that can push garbage from the front to the rear. During the operation of the filler, the screw propelling device continuously pushes the garbage to the rear. At the same time, the hydraulic cylinder continues to rise, exerting pressure on the garbage, and continues to exert pressure on the garbage until the garbage is compressed to the minimum size.
The pressure controller ensures that the movement of the hydraulic cylinder is stopped after the waste reaches the required compression level. Eventually, when the garbage reaches a certain level of compression, the filler completes its job. At this point, the garbage truck can continue its next collection while the filler waits for the next batch of garbage to arrive.
