The Isuzu 10 cbm diesel tank truck has complete internal facilities, including standard accessories such as manholes, ladders, anti-static belts, anti-skid walking paths, handrails, fire extinguishers, etc. Flow meters, oil dispensers, hose reels and nozzles can also be optionally installed according to customer needs. equipment. In addition, Isuzu NPR oil tank truck can also be equipped with optional insulation heating system, bottom loading system, etc. to meet the needs of different customers. In short, the Isuzu NPR oil tank truck is a fuel transport truck with stable performance, complete functions, safety and reliability, and is suitable for various fuel transportation scenarios.
Products Description

|
ISUZU Fuel Tanker Truck (8,000 liters) |
||
|
General |
Vehicle Brand |
CS TRUCKS |
|
Chassis Brand |
ISUZU |
|
|
Overall Dimension |
6800 * 2300 * 2650 mm |
|
|
GVW / Kerb Weight |
11,000kg / 4,800kg |
|
|
Cab |
Cab Capacity |
2 people allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
ISUZU 4HK1 |
|
|
Power |
190 HP |
|
|
Displacement |
2990 ml |
|
|
Emission Standard |
Euro 5 or 6 |
|
|
Chassis |
Drive Type |
4X2 (left/right hand drive) |
|
Transmission |
Manual 6 speed levers with 1 reverse |
|
|
Wheelbase/No. of axle |
3815 mm / 2 |
|
|
Tire Specification |
235/75R17.5 |
|
|
Tire Number |
6 tires and 1 spare tire |
|
|
Max Speed |
95 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |
Body capacity |
8,000 Litres |
|
Tanker Material |
Carbon Steel |
|
|
Pump |
Fuel pump equipped for overhead delivery |
|
|
Suction head |
6 m |
|
|
Hose |
High quality, wire strengthened hose, with cooper wire, anti-static |
|
|
Refueling Machine |
Equipped based on customer requirement |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers... |
||
|
Optional |
** Tank material could be carbon steel, stainless steel, aluminum (Aluminum tanker). ** It can be divided into many compartments. ** Imported American pump as optional. ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge, etc ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|

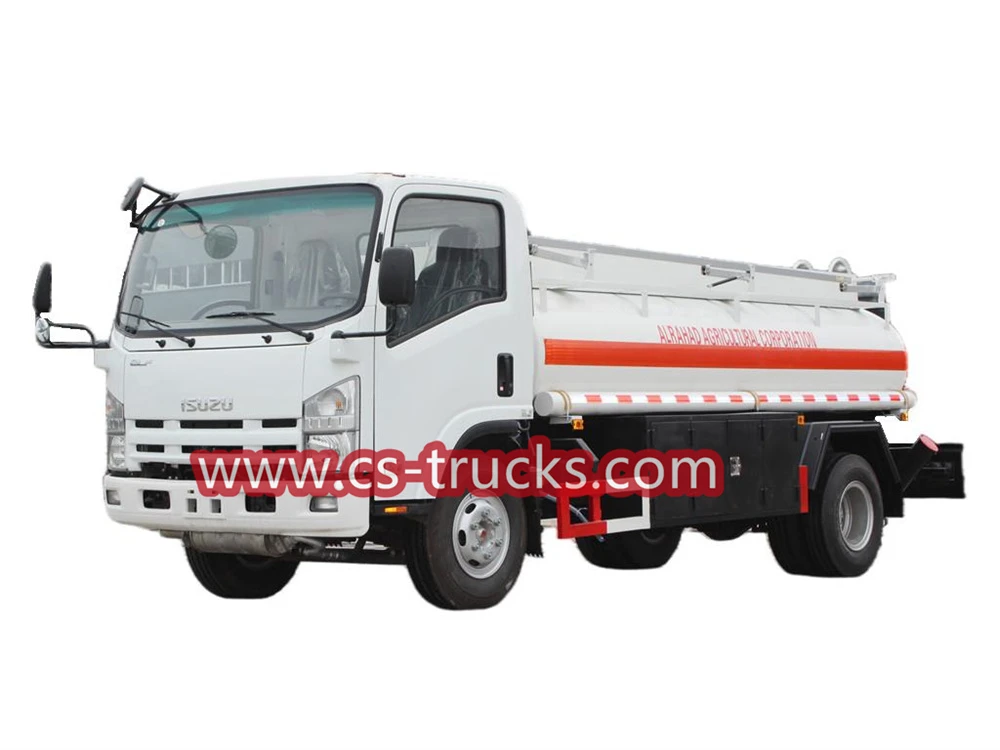

Isuzu NPR 10 cbm diesel tank truck




Isuzu engine is well-known in the field of fuel transport vehicles for its excellent performance. The Isuzu engine uses advanced VGS variable section turbocharging technology, which allows the engine to explode with powerful torque at a lower speed, providing sufficient power for the Isuzu 10 cbm diesel tank truck, especially when climbing hills and Under heavy load conditions, the power performance is particularly excellent. At the same time, the Ddi overpressure common rail technology it adopts allows the fuel injection pressure to be as high as 180 MPa, which results in better fuel atomization and more complete combustion, effectively reducing fuel consumption and bringing higher fuel efficiency to the Isuzu diesel transfer truck.
The Isuzu NPR 10 cbm diesel tank truck adopts a six-airbag air suspension system, which can be adjusted according to the driving status of the truck and the weight of the vehicle to ensure the stability and comfort of the vehicle body. Both the front and rear axles are equipped with balance bar assemblies, which can effectively ensure the stability of the Isuzu NPR diesel tank truck when driving or making sharp turns and prevent the body from shaking left and right. At the same time, the chassis also strengthens the front and rear tensile resistance and compression resistance, allowing the Isuzu NPR 10 cbm diesel tank truck to better absorb and buffer road impacts during driving, further improving driving stability and comfort.
These advantages of Isuzu's engine and chassis have significantly promoted the improvement of Isuzu 10 cbm diesel tank truck. First of all, strong power and excellent fuel economy can improve the working efficiency of oil tanker trucks and reduce operating costs. Secondly, excellent chassis design can ensure that the tanker truck remains stable under complex and changeable road conditions, reducing potential safety hazards caused by bumps and shaking. Finally, these advanced technologies can also bring a better driving experience to the Isuzu 10 cbm diesel tank truck, reduce the driver's work intensity and improve their work efficiency.
