Products Description
water carrier truck is a specialized vehicle designed specifically for transporting and delivering water to various locations. It is commonly used in areas where there is limited or no access to a reliable water supply, such as remote construction sites, rural areas, and disaster-stricken regions.
The main purpose of a water carrier truck is to supply clean and safe water for drinking, irrigation, or firefighting purposes. It typically consists of a large tank mounted on a chassis, with a pump and delivery system to distribute the water.
Water carrier trucks are available in different sizes and capacities to suit various requirements. The capacity of the tank can range from a few thousand liters to tens of thousands of liters, depending on the specific application and the distance that needs to be covered.
Key Features
----► Water tanker with increased safety and visibility
----► Tank body made of high quality 304 stainless steel
----► Equipped with self-priming pump with suction and discharge functions
----► Different spray heads, nozzles and spray bar nozzles for option
----► Baffles inside the tanker to prevent sloshing
Technical Specification
water carrier trucks play a vital role in providing a reliable water supply in areas where it is scarce or inaccessible. Their versatility and adaptability make them an indispensable asset in various industries, including construction, agriculture, and emergency management. With their ability to transport and deliver water efficiently, these trucks enable communities to meet their water needs and improve the quality of life for their residents.
| Mian Technology Parameter | |
| Model Name | Isuzu water tanker truck 5000L |
| Driving Type | 4×2,left hand drive |
| Color | White,yellow,box can choose |
| Weights | |
| Rated payload weight(kg) | 10000 |
| Curb weight(kg) | 4500 |
| Dimensions | |
| Wheelbase(mm) | 3360 |
| Overall Dimension(mm) | 5900*2000*2550 mm |
| Box dimension | 6000L(2700 gallon) |
| Max speed(km/h) | 110 |
| Engine | |
| Engine model | 4KH1-TCG40(130HP) |
| Engine type | 4 stroke water-cooled,inter-cooling |
| No. of cylinders | straight-6 cylinders |
| Displacement(L) | 5.193L |
| Max. output (kw) | 139kw |
| Drive Line | |
| Transmission | MLD 6 speeds ,6 forwards,1 reverse gear,manual operation |
| Steering | Power steering |
| Brake | Oil brake OR air brake |
| Cab | |
| Cabin | Isuzu 700p |
| Standard configuration | with A/C,oil brake with vacuum booster pump,power steering |
| Axle | |
| Front axle | 4tons |
| Rear axle | 7 tons |
| Tire specification | |
| Tire specification | 8 .25R16 ,8.25-16 standard tire,6 tires+1 spare tire |
| Water truck | |
| Water tanker material | Of high quality carbon steel (Q235). |
| Introduction | 1. Suction≥7m Sprinkler width≥14m Range≥28m |
| 2. with front spout, back spill and side spout function | |
| 3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.) | |
| 4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function. | |
| Manhole | Man way access hole on top of tank;1 units DN500mm manhole |
| Horse reels | Two hose reels at each side of the truck |
| Water pump | Water pump model: 80QZF-60/90N (N/S) |
| Water pump flow rate(L/m): 60m3/h | |
| Head of delivery(m): 90m | |
| Self-priming function(min/4m):1.5 | |
| Efficiency(%):95% | |
| Related rotate speed(r/min)1180 | |
| matched power(kw):22 | |
Truck detail
ISUZU cabin with AC
Stainless steel pipeline
Standard water cannon
Side nozzles
Front spray
Stainless steel manhole
Self-priming centrifugal water pump
Factory Production
Stainless steel tank welded

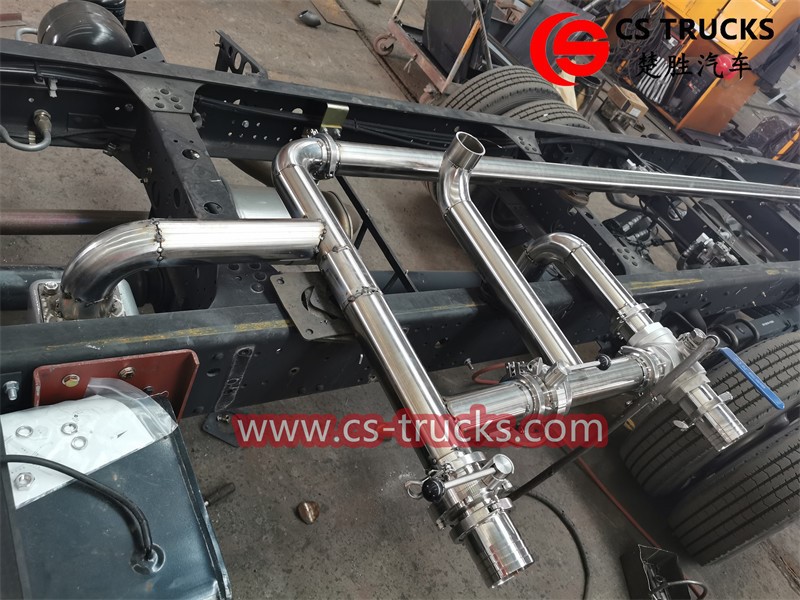

Stainless steel pipeline setting
Tank body waiting for painting
Water tanker testing
Water truck customer case
ISUZU water bowser trucks exported
ISUZU NPR water transport trucks exported
HOWO water tanker lorries
Middle East customer visit factory
advantage of Isuzu drinking water truck
Drinking water transport truck is a vehicle specially used to transport drinking water. Its advantages are as follows: First, drinking water transport trucks ensure people have access to clean, safe drinking water. As water sources are threatened by pollution, people are increasingly concerned about the quality of drinking water.
Drinking water transport trucks can safely transport treated and filtered drinking water to users through professional devices and technology. This direct transportation method reduces possible secondary pollution in the water supply chain and ensures the purity and safety of water quality. Secondly, drinking water transport trucks can meet the needs of emergencies or emergency disaster relief. During natural disasters or other emergencies, water supply networks can be damaged, resulting in shortages of drinking water.
Drinking water transport trucks can quickly transport large amounts of drinking water to meet the basic needs of the masses and ensure people's life and health and the normal operation of daily life. Additionally, drinking water transport trucks are flexible and adaptable. Drinking water transport trucks can adjust the water quality and quantity as needed to meet the needs of different regions or special environments.
