Products Description
The FOTON 16CBM Rear Load Garbage Compactor Truck is a high-efficiency solution specifically engineered for modern urban waste management. It features an advanced compaction system that significantly reduces waste volume, thereby enhancing transportation efficiency, reducing the frequency of trips, and lowering overall operational costs. Built on the reliable FOTON 1086VLPHK-0FDA01 4x2 chassis, this compactor is powered by a 270HP CUMMINS ISDe270 30 engine and matched with a ZF 8-speed manual transmission, ensuring powerful performance and dependable operation. With its robust body design and user-friendly CAN-BUS control system, the FOTON 16CBM garbage compactor is ideally suited for waste collection and transportation in diverse environments, from bustling city centers to residential townships.

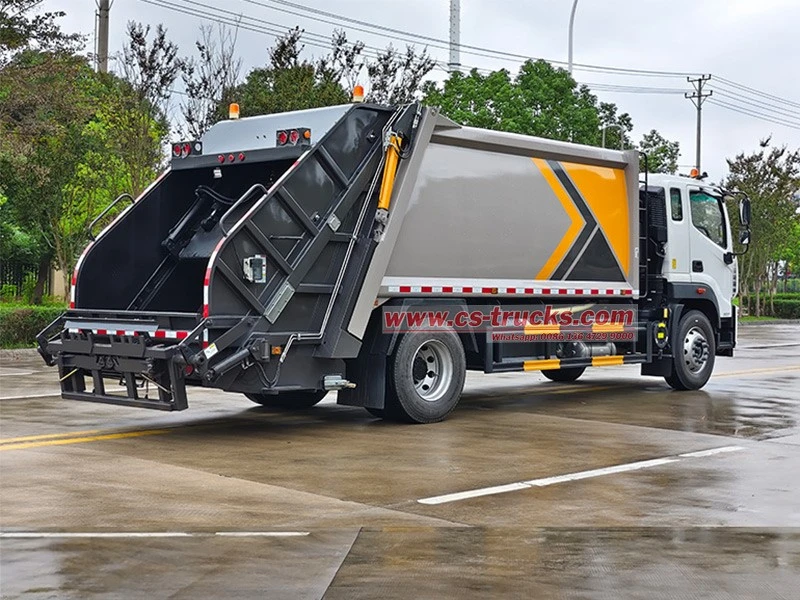

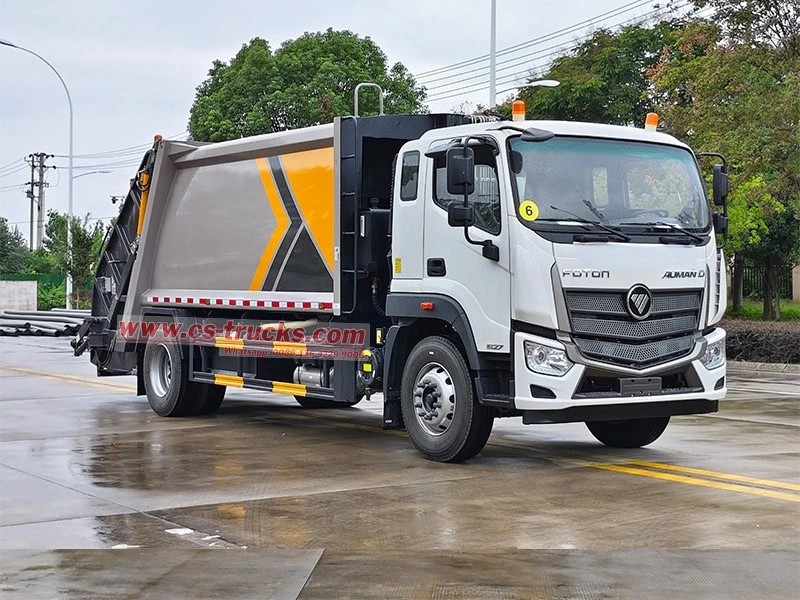

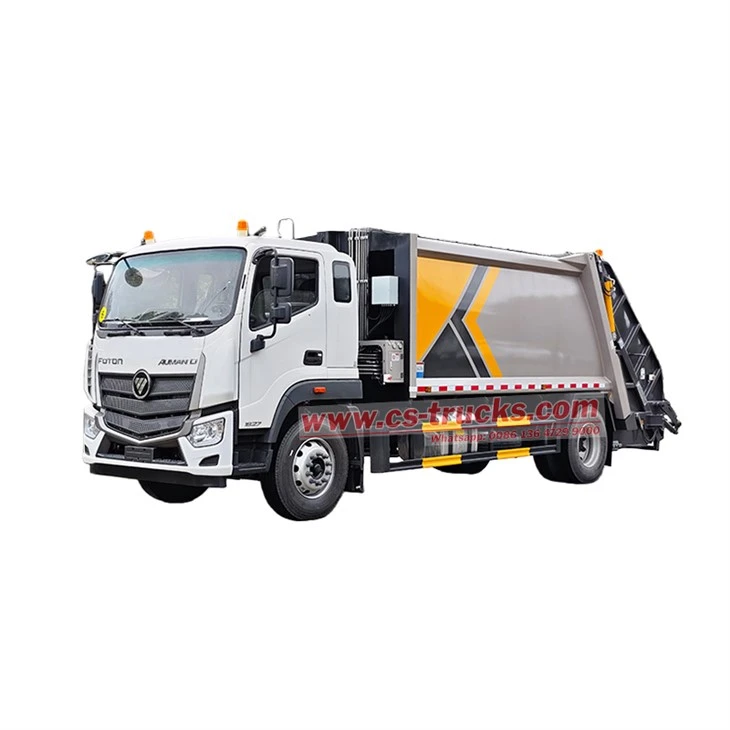

*FOTON 16CBM Rear Load
Garbage Compactor Truck*
-----------------------------------------------------------------
CS factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Feature
1.Efficient Compression: Features curved body design and bidirectional compression technology with a compression ratio of 1:0.8, increasing loading capacity by approximately 40% compared to conventional garbage trucks.
2.Convenient Operation: Supports three control points (cab, left side, rear) with dual CAN-BUS electronic and manual hydraulic control systems, adapting to complex operational scenarios.
3.Enhanced Durability: T420 high-strength carbon steel body (4mm side panels/5mm floor) with anti-corrosion treatment, resistant to corrosive waste and high-humidity environments.
4.Fuel Efficiency: Cummins 270HP engine paired with ZF 8-speed transmission, featuring turbocharging and intercooling technology, delivering approximately 15% lower fuel consumption than comparable models.
5.Safety Assurance: Hydraulic system equipped with bidirectional balance valves and photoelectric sensors, effectively preventing overload and operational errors.
|
FOTON 16CBM Rear Load Truck Specification |
||
|
Chassis Model |
FOTON 1086VLPHK-0FDA01 270hp | |
|
Engine |
Make: FOTON |
|
|
Diesel 4-stroke direct injection diesel engine |
||
|
Engine model:ISDe270 30, Euro 3 emission standard |
||
|
4-cylinder in-line with water cooled, turbocharged and intercooler |
||
|
Maximum output: 270HP/198KW |
||
|
Maximum torque: 970 Nm |
||
|
Displacement: 6.7 L |
||
|
Transmission |
FOTON, ZF 7 forwards and 1 reverse, manual |
|
|
Drive system |
Left hand drive |
|
|
Chassis |
Frame: U-profile parallel ladder frame and reinforced subframe |
|
|
Front suspension:8 pcs semi-elliptic leaf spring |
||
|
Rear suspension:10+6 pcs semi-elliptic lea spring |
||
|
Fuel tank: 200 L capacity with locking fuel cap |
||
|
Steering |
Power steering, hydraulic steering with power assitance |
|
|
Brakes |
Service brake: dual circuit compressed air brake |
|
|
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels |
||
|
ABS |
||
|
Wheels & Tyres |
Tire: 295/80R22.5 |
|
|
Driver's Cab |
3 Passengers Allowed, with Air Conditioner, Radio |
|
|
Overall Dimension mm |
Overall length |
8500 MM |
|
Overall width |
2550 MM |
|
|
Overall height |
3250 MM |
|
|
Weight kg |
Curb weight |
11000KG |
| Gross vehicle weight(GVW) | 18000 KG | |
|
Front axle loading capacity |
4200 KG |
|
|
Rear axle loading capacity |
9000 KG |
|
|
Compactor Body |
Volume of body(m3) |
15 |
|
Volume of filler(m3) |
2 |
|
|
Time of one filling cycle(s) |
≤35 |
|
|
Lifting time of filler (s) |
8-10 |
|
|
Time of discharge (s) |
≤40 |
|
|
Pressure of hydraulic system (Mpa) |
18 |
|
|
Front/rear sewage capacity (L) |
250+150 |
|
|
Control system |
CAN-bus (electrical) and manual (hydraulic) |
|
Product Advantage
1.Maximize the Utilization of Compression Stroke and Box Volume:
The core of the rear-loading garbage truck lies in its compression mechanism (including components such as the scraper and slide plate), which compacts loose garbage into a dense state. The FOTON 16CBM garbage compactor truck typically employs a reciprocating compression method, where the mechanism moves from the rear to the front of the box.
CS truck engineers have taken into consideration that if the rear loading hopper and the box entrance are designed too low, the garbage initially loaded will accumulate at a lower position in the rear of the box. During the first compression cycle, the mechanism would only push the garbage accumulated at the bottom, leaving the upper space underutilized. This results in low compression efficiency and reduced single-trip loading capacity.
After in-depth technical communication with municipal operators , CS truck engineers optimized the geometric design of the loading hopper and container entrance. This innovation enables the FOTON 16CBM compactor truck to initially deposit waste at an elevated position in the mid-rear section of the container. When the compression mechanism advances, it not only propels the waste horizontally but also generates downward compaction force, fully utilizing the vertical space of the entire container. This three-dimensional compaction methodology significantly enhances loading efficiency and compression density compared to conventional designs.
2.Preventing garbage spillage and improving sanitation:
The FOTON rear loader features a uniquely designed high rear hopper edge that creates an effective containment barrier. When the lifting mechanism raises and empties garbage bins, this design significantly prevents lightweight waste materials such as paper scraps and plastic bags from being dispersed by wind or falling outside the vehicle. The garbage falls from the elevated hopper directly into the deep interior of the compression chamber, minimizing rebound and splash-back at the loading entrance. This engineering solution effectively maintains cleanliness in the working environment, supporting higher sanitation standards for urban waste collection operations.
Cab electrical control System
Manual hydraulic operating lever on
Tailgate electrical control box
Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!
1.we can do the designs according to the your requirement
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome
We CS trucks group also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
High quality testing
100% customized appearance, design the compactor bin capacity, operation methods and location, also the whole truck size can be customized.

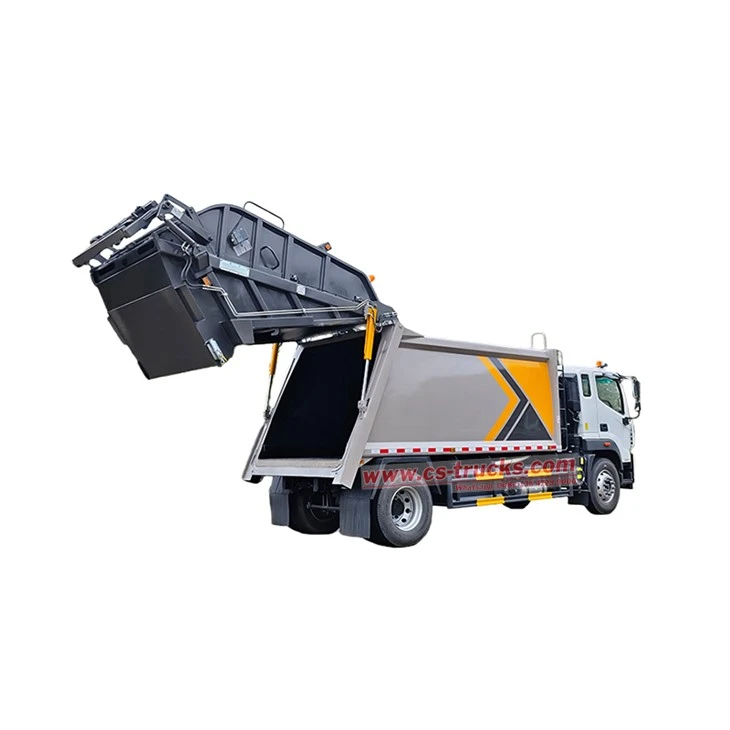

►Loading mechanism :No-load cycle time ≤35 seconds, accurate positioning of the garbage bin, and no residue when dumping garbage. It can be started and stopped at any position under load conditions, and it runs smoothly without jamming.
►Compactor mechanism:Cycle time ≤30 seconds, no shaking or abnormal noise during compression, and no permanent deformation of the mechanism. Passed 12,000 compression cycle tests to ensure long-term stable operation.
►Unloading mechanism :The unloading cycle is completed within 60 seconds, and there is no residue in the garbage bin. The unloading door is reliably locked, and there is no risk of opening it automatically during driving.
►Zero leakage of sewage :The garbage bin is filled with 30-50mm of water and there is no leakage after standing for 60 minutes. Anti-corrosion treatment: The inner wall of the box is made of anti-corrosion material to extend the service life.
►Hydraulic system
No leakage verification: No oil leakage in hydraulic pipelines and joints under rated pressure.
Cleanliness control: The solid contamination of hydraulic oil meets the standard limit to ensure long-term operation of the system.
►Ultra-long durability test：12,000 cycles for the feeding and compression mechanisms and 1,000 cycles for the unloading mechanism to simulate a high-intensity working environment. Reliability ≥ 80%, the failure rate is extremely low, and the average trouble-free working time is leading in the industry.
►Fault classification management：Adopt four-level fault classification (fatal/serious/general/minor), strictly record and optimize the design to ensure worry-free use for users.
