ISUZU Rear Compactor Truck For Municipal Government
ISUZU 4×2 Garbage Truck Trash Compactor
This ISUZU 14CBM garbage compactor truck is equipped with a 6HK1-TCG61 238 horsepower engine, providing ample power. Its 14CBM large capacity container, combined with a 4×2 drive configuration, balances efficient transport with flexible maneuverability. Specifically designed for urban main roads and rural garbage stations, it efficiently compresses and reduces volume while ensuring a leak proof seal, making it a reliable mainstay vehicle for sanitation operations.
Model: CSC5180ZYS
Capacity: 14 CBM
Drive: 4×2
Engine Power: 238 HP
Engine Type: 6HK1-TCG61
Send Inquiry
Description
The ISUZU 238HP refuse compactor vehicle is equipped with a Euro VI engine that delivers reliable power, enabling it to handle high intensity operations with ease. Its 14CBM high capacity body, combined with a highly efficient compaction mechanism, significantly reduces waste volume, decreases the frequency of waste transfers, and lowers both operating costs and carbon emissions.
This vehicle is designed for versatility across various environments while prioritizing environmental protection and safety.The fully enclosed body prevents leaks, spillage, and odors, eliminating secondary pollution. The air brake system combined with ABS provides reliable safety assurance during operations on complex road conditions, making it the preferred choice for sanitation services that balance efficiency, environmental responsibility, and safety.
Product Features
Manufacturer:CS TRUCKS
Features:
▶ Powerful and Compliant: Equipped with a 238HP Euro VI engine, it delivers ample power while meeting emissions standards. ▶ High Efficiency Compaction: A 14CBM body combined with a 1:3 compression ratio ensures high efficiency per collection cycle. ▶ Reliable Safety Features: Air brakes and ABS provide stable braking under heavy loads and ensure safe operation. ▶ Intelligent Operation: Dual control mode and PLC electronic control make operations efficient and easy to master.
Garbage Compactor Truck Specification
Product Name
ISUZU Rear Compactor Truck for Municipal Government
Vehicle Model
CSC5180ZYS
Drive Type
4×2
Gross Vehicle Weight
18000 kg
CurbWeight
11380 kg
Capacity
14 CBM
Maximum Speed
95 km/h
Overall Dimensions
9020×2550×3220 mm
Engine Model
6HK1-TCG61
Fuel Type
Diesel
Power
238HP/175kW
Emission Standard
Euro VI
Displacement
7790 ml
Engine Type
6 cylinder in line with water cooled, turbocharged and intercooler
Chassis Brand
Qingling
Tire No.
6+1
Tire Specification
295/80R22.5
Wheelbase (mm)
4250 mm
Front Axle Load
6.5 ton
Rear Axle Load
11.5 ton
Gear Box
Fast 8 forwards and 1 reverse, manual
Steering Wheel
Left hand drive
Brake
Air+ABS
Compactor Body of ISUZU garbage compactor truck
Capacity
14 CBM
Thickness
side 4mm;bottom 5mm
Compression Ratio
1:3
Loading Cycle Time
≤25 s
Discharge Time
≤45 s
Hydraulic Control
Manual + Electric Control
Operating Mode
Cab control+ Rear control
Cylinder Type
Double acting hydraulic cylinders
Hydraulic Pump
High pressure gear pump
Loading Type
Rear Loader
Loading Method
Manual/Bin Lifter
Bin Lifter Type
Hydraulic Automatic
Control Mode
Siemens PLC intelligent electrical control
Performance and advantages
01
Vehicle Structure
◆ Durable and Robust Body: Constructed with 4mm thick side panels and a 5mm thick floor made of reinforced steel, the body is wear resistant and built to last, making it ideal for long term heavy duty operations and ensuring a long service life.
◆ Reliable Braking System: Equipped as standard with air brakes and an ABS anti lock braking system, the vehicle provides smooth braking during heavy load operation and ensures a high level of safety when working on challenging road conditions.
02
Operating System
◆ High Efficiency Compaction: A 14CBM high capacity body combined with a 1:3 compaction ratio significantly increases the load capacity per trip, reduces the frequency of round trips, and substantially lowers operating costs.
◆ Rapid Cycle Operation: Loading in ≤25 seconds and unloading in ≤45 seconds ensure a smooth and efficient workflow, making it ideal for high frequency, high volume waste collection scenarios.
03
Powertrain
◆ Powerful Performance: It is equipped with a 238HP Euro VI diesel engine, which delivers ample power reserves, making it ideal for demanding sanitation operations while balancing fuel efficiency with operational reliability.
◆ High Compliance and Adaptability: It meets international environmental standards and features a left hand drive design, ensuring compliance with road regulations and municipal procurement requirements in most regions worldwide.
04
Controls and Smart Features
◆ Dual Control Convenience: Supports a dual control mode, combining manual and electro hydraulic controls, making it easy for beginners to operate and reducing physical strain.
◆ Smart Electronic Control: Equipped with a Siemens PLC smart control system, paired with double acting hydraulic cylinders and a high pressure gear pump, ensuring stable operation and responsive performance.
Product details
Hydraulic Oil Tank
Multi-way Valve
Sewage Tank
Driver's Cab
Gear Box
Emergency Stop Switch
How does a garbage truck work?
A compactor truck is a vehicle specifically designed to collect household waste and transport it to a processing facility. Equipped with powerful mechanical systems, these trucks can lift trash bins, compact the waste, and hold large volumes of waste for transport. The specific workflow is as follows:
01⭢Loading
The rear mechanism automatically tips the contents of the trash bin into the hopper.
02⭢Compaction
A hydraulic push plate repeatedly compresses the waste to reduce its volume and increase loading capacity.
03⭢Transportation
The fully enclosed body seals off the waste and leachate, preventing secondary contamination.
04⭢Unloading
Upon arrival at the processing station, the push plate discharges the waste in a single operation, completing the cycle.
Application scenarios
ISUZU 14CBM Back Loader Garbage Truck for Street Waste Management
ISUZU 4×2 Rubbish Compactor Truck for Park Waste Management
ISUZU 238HP Refuse Compactor Vehicle for Waste Management in Rural Areas
exterior views

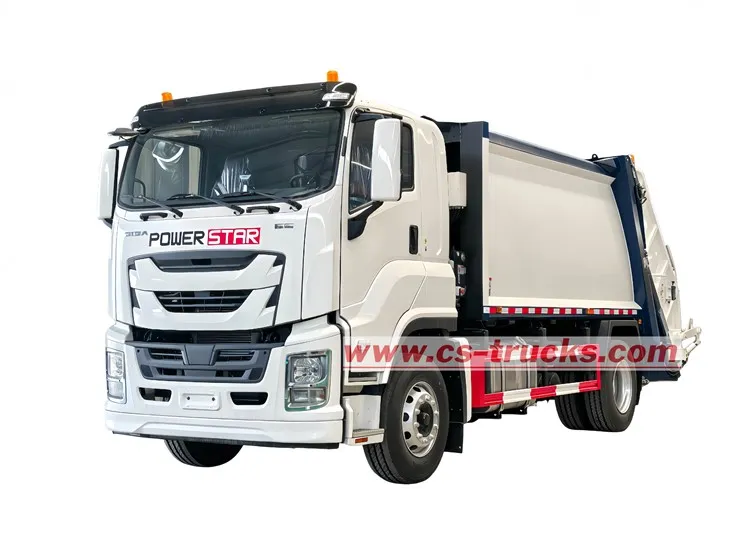

Front Right View of ISUZU 14CBM Back Loader Garbage Truck

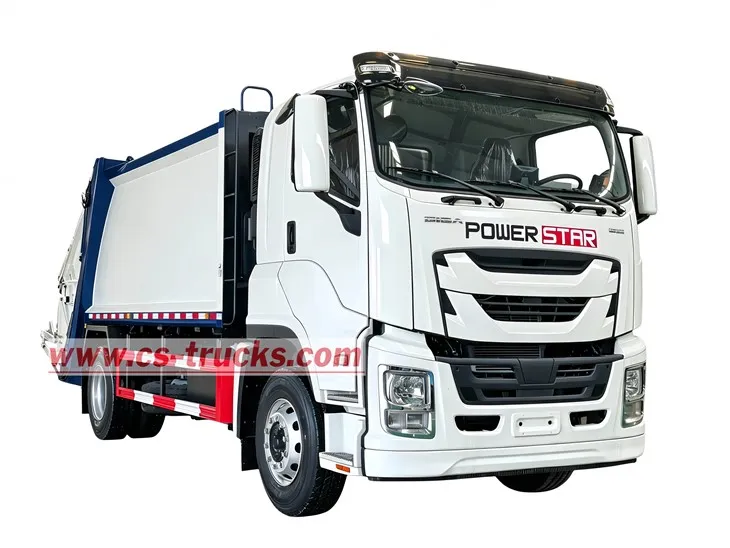

Front Left View of ISUZU 14CBM Garbage Compactor Truck

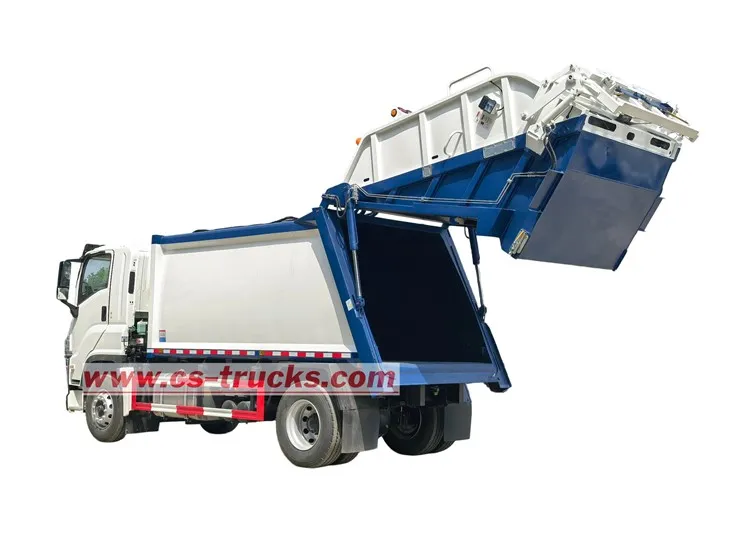

Rear Right View of ISUZU 4×2 Garbage Truck Trash Compactor
Rear Left View of ISUZU 4×2 Rubbish Compactor Truck

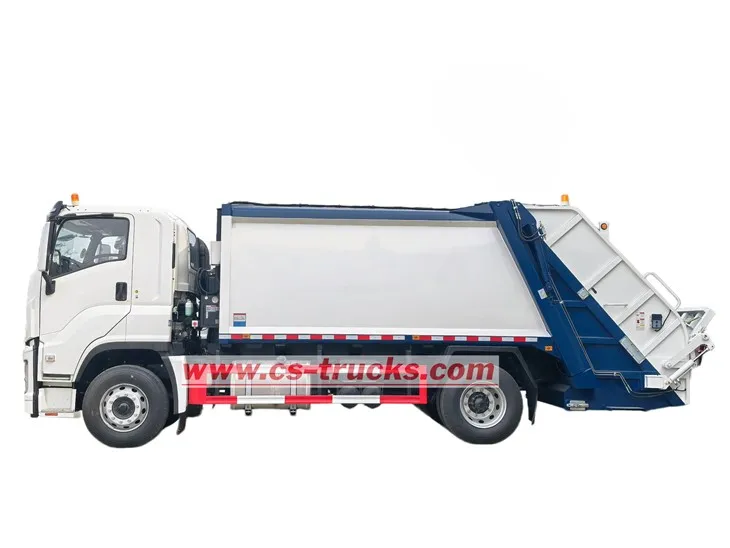

Right View of ISUZU 238HP Refuse Compactor Vehicle

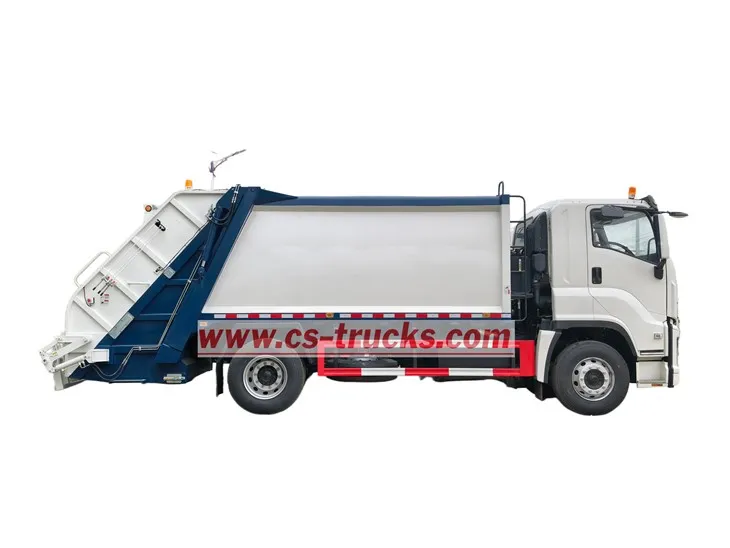

Left View of ISUZU 238HP Rear Loader Garbage Truck

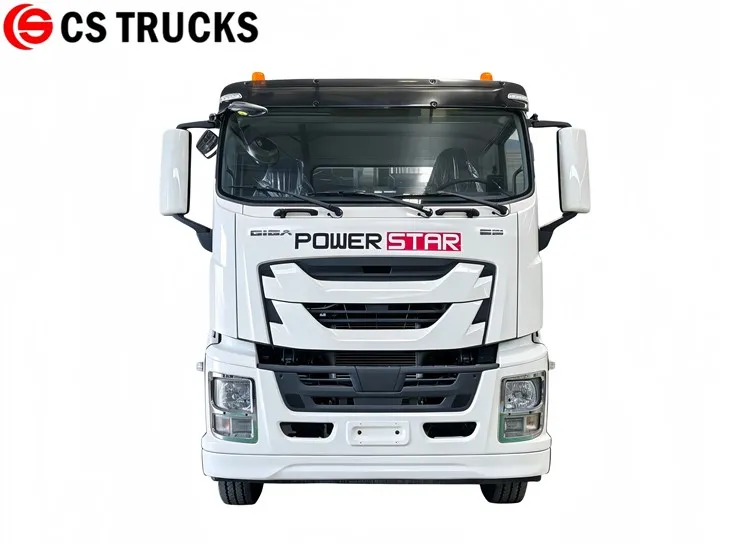

Front View of ISUZU 14CBM Trash Compactor Truck
Rear View of ISUZU Rear Compactor Truck for Municipal Government
FAQ
Q: What is the Waste Compression Ratio, and How Much Household Waste Can It Actually Hold?
A: The standard compression ratio is 1:3. The 14CBM body can hold approximately 40 tons of loose household waste, significantly reducing the number of transport trips.
Q: How is Leakage of Wastewater and Odors From the Body Handled?
A: The vehicle features a fully enclosed structure and an integrated wastewater tank. Wastewater is stored centrally, ensuring no leakage during transport and eliminating secondary pollution at the source.
Q: Does the Engine Meet Emission Standards for Export?
A: Equipped with a Euro VI diesel engine, it complies with environmental regulations in most countries and meets municipal procurement standards in many nations.
