The HOWO 400HP refuse compactor truck is equipped with a Weichai 400HP engine and 6×4 drive, providing strong power and a large 18CBM container to meet efficient transportation needs. The vehicle features a sealed container and a well known brand hydraulic system, combining aesthetics with leak proof performance. Its high load bearing chassis and reliable compression mechanism ensure stable and efficient operation even under heavy workloads, making it suitable for various urban and intercity waste collection and transportation.
Model: CSC5250ZYS
Capacity: 18 CBM
Drive: 6×4
Engine Power: 400 HP
Engine Type: WP12.400E201
Send Inquiry
Description
Product Overview
This HOWO 6X4 rear load trash trucks for sale is a heavy duty, high efficiency waste collection vehicle designed for sanitation operations in medium to large cities and towns. Built on 6×4 chassis platform, its powerful 400HP engine easily handles complex road conditions and meets the demands of high frequency, long distance waste collection.
It features a large capacity, wear resistant body and a high efficiency compression mechanism, which can significantly increase the loading capacity and reduce the frequency of collection in a single operation. The rear loading design makes it easy to operate and ensures thorough unloading, while also ensuring sealing and leak proof performance to effectively avoid secondary pollution. It is a reliable partner for urban and rural sanitation operations.
Technical Specifications
Product Name
HOWO NX Truck 18CBM Compression Refuse Collector
Overall
Vehicle Model
CSC5250ZYS
Drive Type
6×4
Gross Vehicle Weight
25000 kg
Curb Weight
14150 kg
Capacity
18 CBM
Maximum Speed
90 km/h
Overall Dimensions(L*W*H)
10390×2490×3197 mm
Engine
Engine Model
WP12.400E201
Fuel Type
Diesel
Power
400HP(294kW)
Emission Standard
Euro II
Displacement
9726 ml
Engine Type
6 cylinder in line with water cooling, turbo charging and inter cooling
Chassis
Tire No.
10+1
Tire Specification
12R22.5
Wheelbase (mm)
4650+1350 mm
Front Axle Load
7.5 tons
Rear Axle Load
13 tons
Gear Box
FAST 10-speed
Steering Wheel
Left Hand Drive
Brake
Air brake
Superstructure Parameters
Tank Material
High strength wear resistant steel plate
Compression Ratio
0.6-0.8
Loading Cycle Time
≤30 s
Unloading Time
≤60 s
Unloading Method
Rear Loading
Discharge Angle
≥45°
Products Description
High Operational Efficiency
◆ High Capacity Loading: The 18CBM high strength, wear resistant steel body, combined with a compression ratio of 0.6–0.8, significantly increases waste loading density, reduces the number of collection trips, and lowers operating costs.
◆ Fast Operation Cycle: Loading takes ≤30 seconds and unloading ≤60 seconds, ensuring a fast operational pace that enables efficient completion of multisite collection tasks and improves overall operational efficiency.
Power and Heavy Duty Performance
◆ Powerful Chassis: Equipped with a 400HP engine and a 6×4 drivetrain, the HOWO 18CBM compactor trash truck provides ample power reserves to easily handle slopes and challenging road conditions.
◆ Stable Transmission and Braking: Our vehicle is paired with a Fast 10 speed transmission for efficient power delivery and is equipped with an air brake system for reliable braking, ensuring safety during heavy load operations.
Sealed and Eco-Friendly Design
◆ Leak Proof Design: This vehicle features a retrofittable, fully sealed structure that effectively prevents the spillage of waste, leakage of waste water, and the spread of odors, thereby avoiding secondary pollution.
◆ Durable Construction: The body is constructed from high strength, wear resistant steel plates, offering excellent impact resistance and corrosion resistance. The hydraulic system is stable and reliable, with a low failure rate, ensuring efficient and stable performance even during long term operation.
driver's cab of HOWO refuse compactor truck
The cab comes standard with a 3 seat layout, featuring an adjustable, wraparound driver's seat and a 2 seat passenger seat to meet the operational needs of waste disposal teams.
A multifunction steering wheel and clear instrument cluster provide intuitive information reading and an integrated overhead control box allows for one button operation of the entire process loading, compressing, and unloading without requiring the driver to leave the vehicle, ensuring safety and convenience.
Products details
Multi-way Valve
Hydraulic Oil Tank
Control Panel
Gear Box
How do compactor garbage trucks work?
1
Loading
The rear loading mechanism receives waste, and the scraper and slide plate work in tandem to push the waste into the bin.
2
compaction
The hydraulic system powerfully compresses the waste, achieving a compression ratio of 0.6 to 0.8 for highly efficient compaction and increased capacity.
3
Storage
The fully sealed bin contains waste securely, preventing seepage and leaks while eliminating odor leakage.
4
Unloading
A built in push plate discharges the waste in one continuous motion,ensuring thorough unloading and efficient operation.
Application scenarios
HOWO 18CBM Compactor Trash Truck for Street Garbage Disposal
HOWO 400HP Refuse Compactor Truck for Waste Disposal in Scenic Areas
HOWO 6X4 Trash Compactor Truck for Sale for Township Waste Disposal
exterior Views

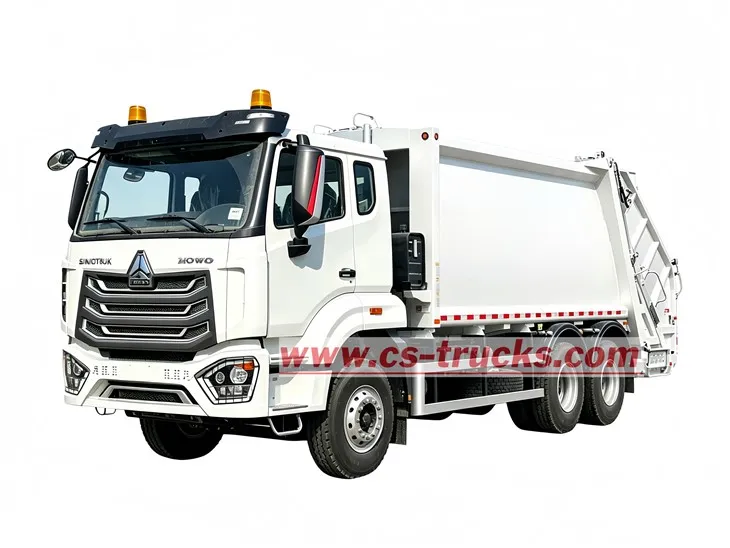

Front Left View of HOWO 18CBM Compactor Trash Truck

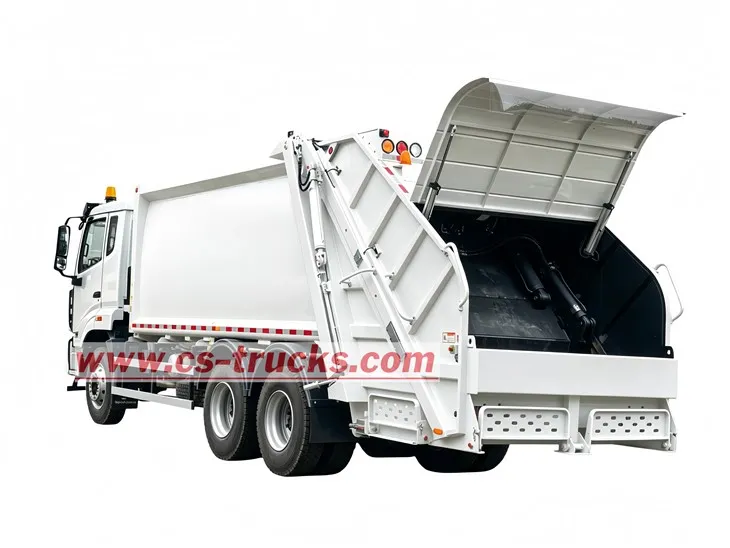

Rear Left View of HOWO 400HP Garbage Truck with Compactor

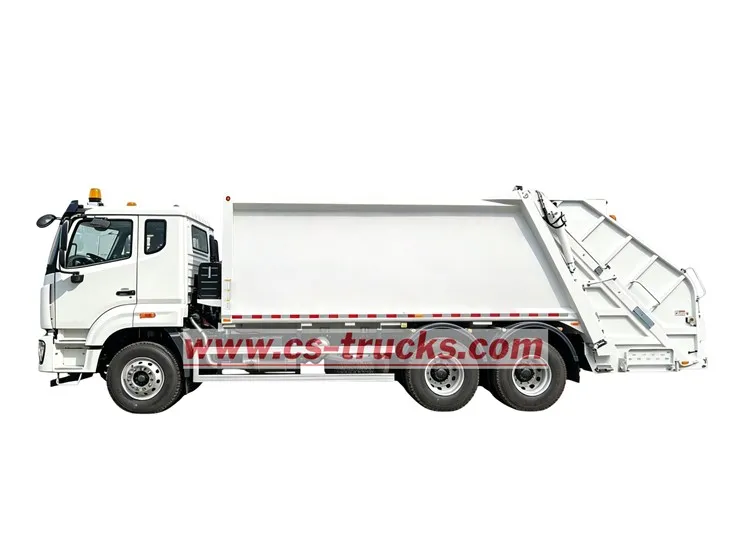

Left View of HOWO 6X4 Rear Load Trash Trucks for Sale

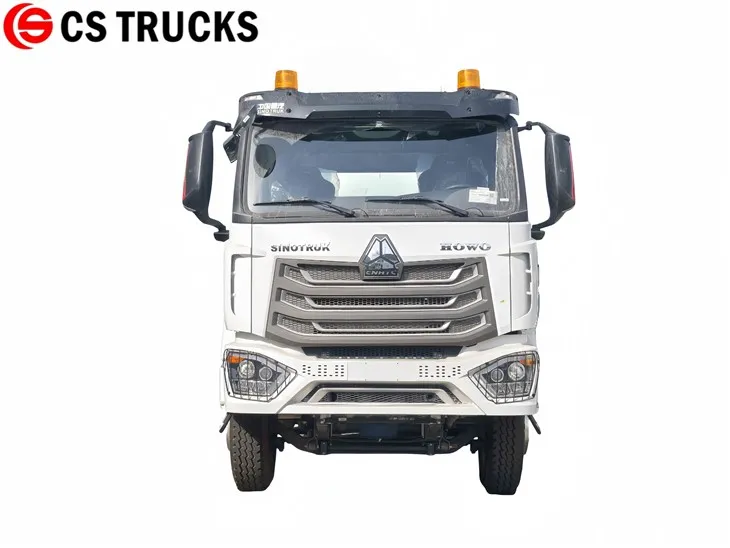

Front View of HOWO 18CBM Garbage Truck Trash Compactor

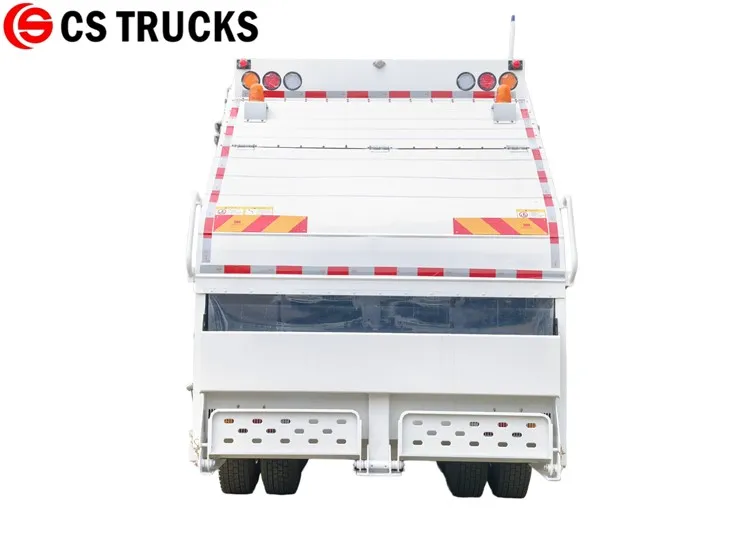

Rear View of HOWO 6X4 Trash Compactor Truck for Sale
