HOWO 7 CBM Rear Loader Garbage Compactor Truck (also known as rear loading refuse truck, rubbish compactor truck,waste compaction vehicle, municipal collection unit, or commercial garbage packer) is specifically engineered for systematic urban waste handling, with wide applications in residential collection, commercial zone cleaning, and municipal sanitation operations. Featuring 7m³ compaction capacity and 116HP power output, its 4×2 drive chassis ensures consistent performance under demanding urban conditions, delivering effective waste compaction and transportation solutions for modern municipal management requirements.
The compaction volume of the HOWO 7 CBM refuse compactor vehicle is 7 cubic meters, constructed with high-strength steel as the primary manufacturing material. The compactor body structure employs reinforced steel plates with optimized structural design in stress concentration areas. This compactor truck is equipped with professionally engineered hydraulic compaction systems, control valve assemblies, and lifting mechanisms, integrated with efficient waste handling components.
*Nigeria HOWO 7 CBM Rubbish Compactor Truck*
-----------------------------------------------------------------
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
I.Product Defination and Introduction
Manufacturer: CS TRUCKS
Features:
1.HOWO 7 CBM Rear End Loader Chassis: Powered by YN4102QBZL diesel engine with rated output of 116HP, paired with 5-speed manual transmission system, specifically calibrated for municipal sanitation and urban waste collection applications.
2.Compactor Body Structure: Manufactured from high-strength steel, featuring reinforced wall construction with optimized structural design, internal compaction mechanisms, and professionally applied protective coating treatment.
3.Hydraulic Compression System: Custom-configured heavy-duty hydraulic system designed for urban waste compaction, delivering efficient compression cycles with reliable operational performance.
4.Loading-Unloading Equipment: Standard rear-loading compaction system, with optional automated control kits, lifting mechanisms, and intelligent operation modules for diversified urban collection scenario adaptation.
5.Safety Control System:
- Integrated mechanical safety locks and overload protection devices ensuring operational safety.
- Configured with warning alarm system and emergency lighting components providing operational safety during collection activities.
II.Product Parameters for HOWO 7 CBM garbage collector truck
| Product Name | HOWO 7 CBM Dumpster Compactor Truck | ||
| Overall | Vehicle Model | CSC5050ZYS | |
| Drive Type | 4*2 | ||
| Gross Vehicle Weight | 7360 kg | ||
| Curb Weight | 4495 kg | ||
| Maximum Speed | 100 km/h | ||
| Overall Dimensions L*W*H(mm) | 6565*2080*2650 mm | ||
| Engine | Engine Model | YN4102QBZL | |
| Fuel Type | Diesel | ||
| Power | 116 HP(85KW) | ||
| Emission Standard | Euro II | ||
| Displacement | 3760 ml | ||
| Engine Type | 4 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | SINATRUK | |
| Tire No. | 6+1 | ||
| Tire Specification | 7.50R16LT | ||
| Wheelbase | 3280 mm | ||
| Gear Box | 5-speed forwards and 1 reverse | ||
| Steering Wheel | Left hand or right drive | ||
| Brake | Air brake | ||
| Radiator | Suitable for tropical climate | ||
| Clutch | Reinforced diaphragm clutch | ||
| Compactor Body | Volume of body | 7 | |
| Volume of filler | 2 | ||
| Time of one filling cycle | ≤35 | ||
| Time of discharge | ≤40 | ||
| Pressure of hydraulic system | 18 | ||
| Front/rear sewage capacity | 250+150 | ||
| Control system | CAN-bus (electrical) and manual (hydraulic) | ||
III.Product Details
1.Compactor Body
♦ The 7 cubic meter rear-loading compactor body is constructed with high-strength steel and designed for efficient compaction and transportation of municipal solid waste.
♦ The body top features standardized maintenance openings with integrated safety devices, and protective structures comply with operational safety standards.
♦ The bottom is equipped with an optimized drainage design, and the rear hydraulic discharge door system supports rapid and thorough emptying of waste.
2.Powertrain System
♦ YN4102QBZL in-line 4-cylinder water-cooled turbocharged intercooled diesel engine delivers 116HP (85KW) peak power, meeting Euro II emission standards with 3,760ml displacement.
♦ The 5-speed manual transmission combined with 3,280mm wheelbase chassis configuration provides agile maneuverability and stable operational performance for waste truck operations in urban road conditions.
3.Hydraulic Control System

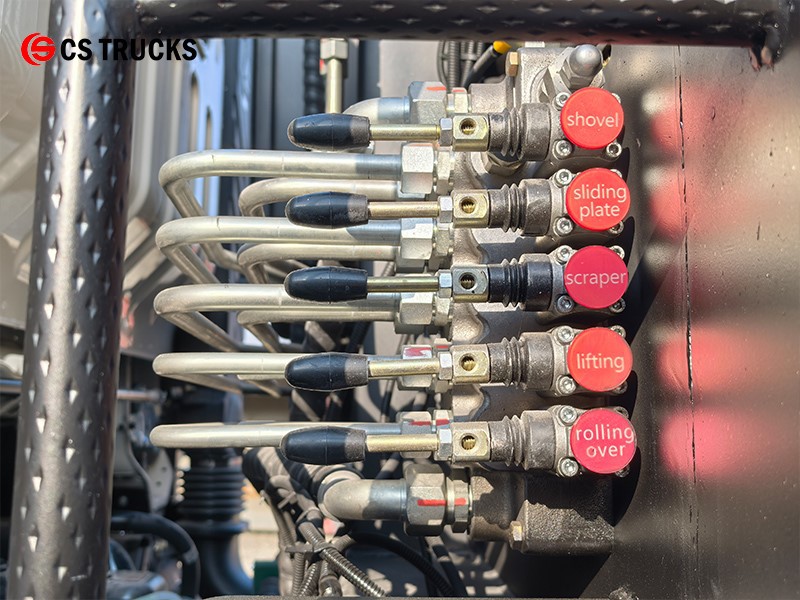

♦ Multi-function Hydraulic Control Valve Bank: Equipped with dual-lever multi-function hydraulic control valve enabling independent and precise operation of core functions including compactor body lifting and hydraulic rear door opening/closing.
♦ System Pressure Monitoring: Features a high-precision hydraulic pressure gauge for real-time display of system working pressure, providing operators with essential status indication and safety alerts.
4.External Operation Control System
♦ Main Function Control Box: Equipped with multi-function manual control panel, enabling direct operation of core processes including waste loading, compaction, and discharging through external control levers.
♦ Safety Assurance Design: The control unit features waterproof and dustproof construction with emergency stop device, ensuring operational safety and system stability in outdoor working environments.
IV.vacuum pump Operating Principle
Manufacturer: CS TRUCKS
This HOWO refuse compactor truck is integrated with a professional engineering hydraulic system, of which the hydraulic oil tank serves as the core fluid storage and cooling unit for the vehicle's hydraulic power system. It is designed to provide continuous and stable high-pressure power for key operations including waste compaction, body lifting, and discharge door actuation, supporting the handling of various municipal solid wastes such as bagged refuse, bulky waste, mixed domestic garbage, and garden trimmings. The optimized hydraulic circuit design effectively reduces energy loss and oil overheating risks during system operation.
Product Details
Hydraulic Line
Hydraulic Valve Block
Rear Hopper Guard
Piston Rod of Hydraulic Oil Tank
Pressure Gauge
Hopper Safety Lock
v.Application Scenarios & Solutions
Application in Residential Communities
Application in Industrial Parks
Application in Urban Street Operations
Application in Transfer Station Compaction
vI.Exterior Views

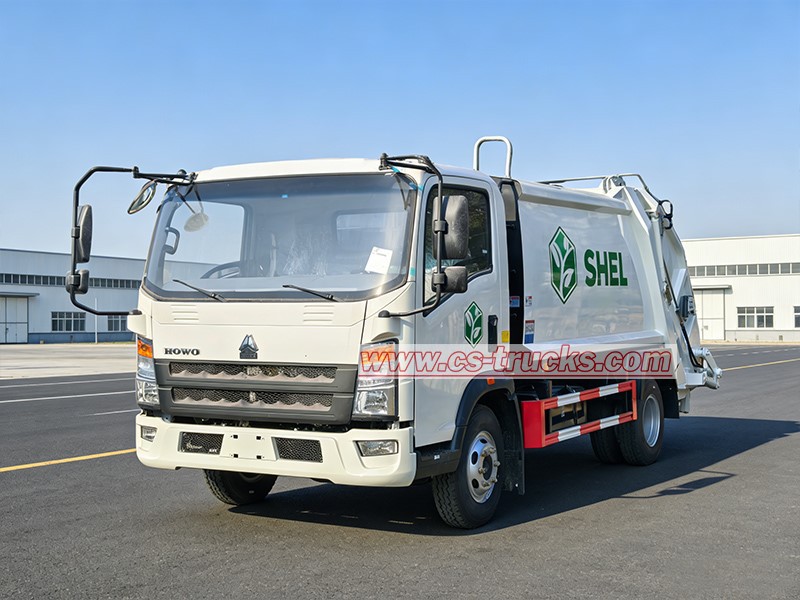

Front Right View of HOWO 7 CBM Rubbish Compactor Truck
Right View of HOWO 4x2 Rear Loader Garbage Compactor Truck
Front Left View of HOWO 7 CBM Rear Loader Garbage Truck
Left View of HOWO 7 CBM Waste Compactor Truck
Rear Left View of HOWO 7 CBM Trash Compactor Truck
Front View of HOWO 7 CBM Compactor Truck For Sale
