The Nigeria HOWO 371HP Waste Compactor Trucks is equipped with a powerful 371HP engine and a heavy duty 6×4 drivetrain, which makes it climbs steep slopes effortlessly and operates over long distances. With a load capacity of 20CBM, it can handle large volumes of waste in a single trip,significantly reducing the number of trips required. Designed specifically for urban waste management and community environmental improvement, this compactor truck offers an efficient and reliable solution for collecting and transporting high density waste.
This Nigeria HOWO 371HP Waste Compactor Trucks is equipped with a high-horsepower Weichai series diesel engine and a robust 6x4 drive chassis, offering high productivity and making it ideal for tropical climates.
Its 20CBM garbage bin is constructed from high strength carbon steel, and its sealed design facilitates loading, unloading, and compression of garbage. The control system uses a 16 MPa high-pressure hydraulic drive, supporting both electronic and manual modes for convenient loading and unloading, making it a primary vehicle model suitable for large-scale urban garbage collection.
Standardized Parts & Components
Flexible Transportation Options
Comprehensive Customs Clearance Services
Customization Supported
■ Products Specifications■
Product Name
Nigeria HOWO 371HP Waste Compactor Trucks
Overall
Vehicle Model
CSC5250ZYS
Drive Type
6*4
Gross Vehicle Weight
25000 kg
Curb Weight
12000 kg
Maximum Speed
89 km/h
Overall Dimensions L*W*H(mm)
7900×2550×3500mm
Engine
Engine Model
WP10.300E22
Engine Brand
WEICHAI
Fuel Type
Diesel
Power
371HP(273kW)
Emission Standard
Euro II
Displacement
19726 ml
Engine Type
6 cylinder inline four-stroke direct injection, turbocharged and intercooled
Chassis
Chassis Brand
SINOTRUK
Tire No.
10+1
Tire Specification
12.00R20
Wheelbase (mm)
4600 mm
Gear Box
10F&2R
Steering Wheel
Left hand drive
Brake
Air brake
Radiator
Suitable for tropical climate
Clutch
Reinforced diaphragm clutch
Cabin
Single cabin with sleeper, with Air conditioner.
Garbage Bin
Capacity: 20cbm
Thickness: side 4mm bottom 5mm
Material: high strength carbon steel (Q355/T420)
Design: whole unit with leakage proof design
Filling Time
8-10s
Compression cycling time
30s
Discharging type
push and self-discharging
Discharging time
≤25s
Hydraulic system pressure
16Mpa, 160Bar
Control type
electric control with manual control
Plat Form
2 side for 2 worker for foot transport
Ways of Loading
Rear loading with optional bucket lifting style
Lifting Capacity of Turnover Mechanism
≥800KG
Garbage Compact Ratio
1/3 - 1/4
Control System
One control Panel on the back, One Control system in back of Cabin
■ Product Details ■
Appearance And overall design
♦Cab: This waste compactor truck is equipped with a single-row cab with a sleeper berth and an air conditioning system, suitable for tropical climates, ensuring driver comfort during long working hours, and meeting local usage habits and safety requirements.
♦Vehicle Body Layout: It features a 20CBM large capacity garbage compartment with 4mm thick side panels and a 5mm thick floor plate. Constructed from high strength carbon steel and featuring a fully sealed leakproof design, it effectively prevents leachate leakage and avoids secondary pollution.
Powertrain and Chassis System
♦Engine: The vehicle is equipped with a Weichai inline six-cylinder four-stroke diesel engine, with a maximum power of 371HP and a displacement of 19726ml, meeting Euro II emission standards. The vehicle boasts strong power and stable reliability.
♦Chassis Performance: With a wheelbase of 4600mm and a 10+1 tire configuration, the vehicle offers outstanding load-bearing capacity and a top speed of 89km/h, balancing efficient waste collection with driving safety. It is suitable for various road operations in urban and suburban areas.
Upper compression system
♦Loading Capacity: Our garbage trucks boast a garbage compression ratio of 1/3-1/4, significantly reducing garbage volume and effectively increasing the amount collected per trip, thereby lowering overall transportation costs.
♦Operating Efficiency: Loading time is only 8-10 seconds, compression cycle time is 30 seconds, and unloading time is ≤25 seconds, resulting in a compact and efficient operating rhythm. It adopts a rear-loading method, and the tipping mechanism has a lifting capacity of ≥800KG, adaptable to different sizes of garbage bins.
Hydraulics and Control Systems
♦Control System and Hydraulic Configuration: This garbage compactor truck is equipped with a complete hydraulic system with a working pressure of up to 16 MPa,it adopts both electric and manual control modes, and features dual control panels at the rear of the vehicle and behind the cab for flexible and convenient operation.
♦Unloading Structure Design: The waste compactor truck employs a push-type self-unloading structure, ensuring a smooth and thorough unloading process that effectively avoids material residue and provides a clean and reliable unloading effect.
■ Other Detailed Images ■
Driver's cab of garbage compactor truck
Pressure gauge of garbage compactor truck
Control box of garbage compactor truck
Hydraulic oil tank of compactor truck
■Applicable Scenarios ■
Residential Areas
Vehicles park daily in designated areas near public trash cans to collect, compress, and load household waste, effectively completing daily waste collection.
Commercial Streets
After shops close, food scraps and various packaging waste are collected centrally to prevent garbage accumulation and maintain street cleanliness.
Scenic Areas and Parks
Vehicles patrol within parks, collecting litter left by visitors, promptly transporting and quickly compressing it to maintain the cleanliness and aesthetics of the scenic areas.
Waste Transfer Stations
After entering the transfer station, the highly compressed waste in the vehicle's compartment is unloaded into large transfer containers, completing a closed-loop transfer cycle.
■Product Exterior Views■

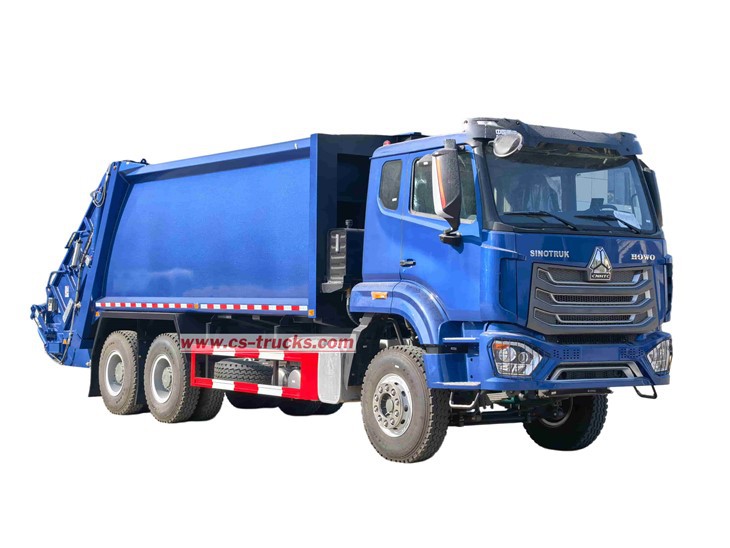

Front Right View of Nigeria HOWO 371HP Waste Compactor Trucks

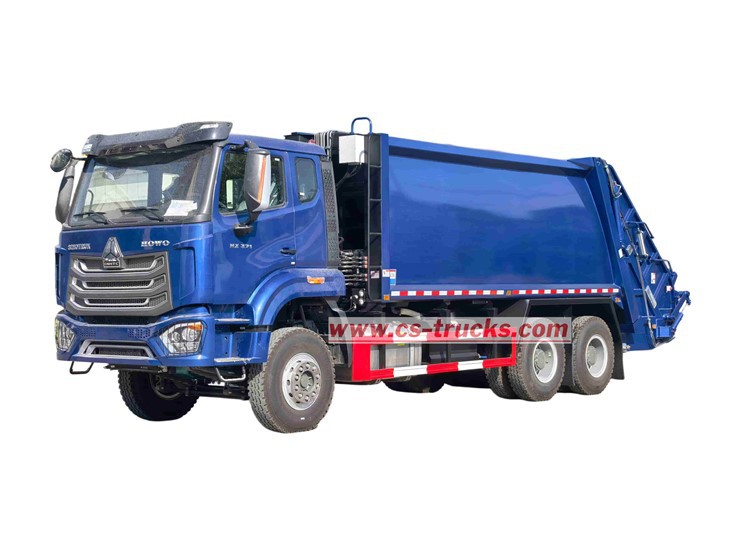

Front Left View of Nigeria HOWO 371HP Waste Compactor Trucks

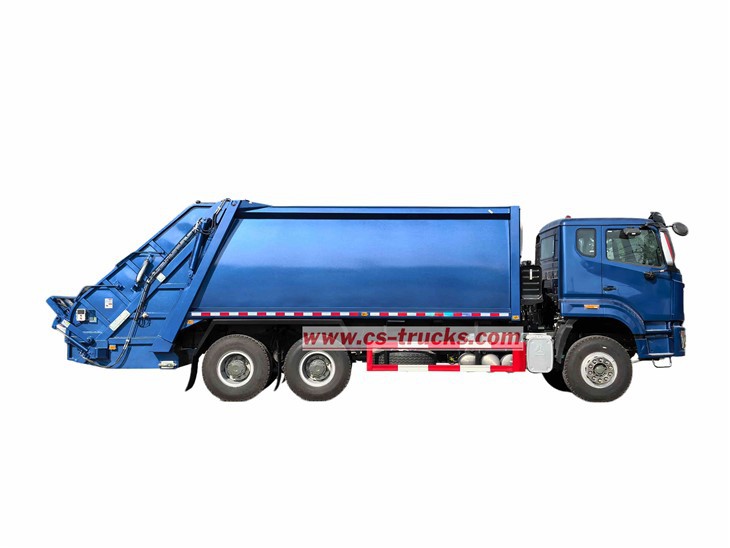

Right View of Nigeria HOWO 371HP Waste Compactor Trucks
Left View of Nigeria HOWO 371HP Waste Compactor Trucks

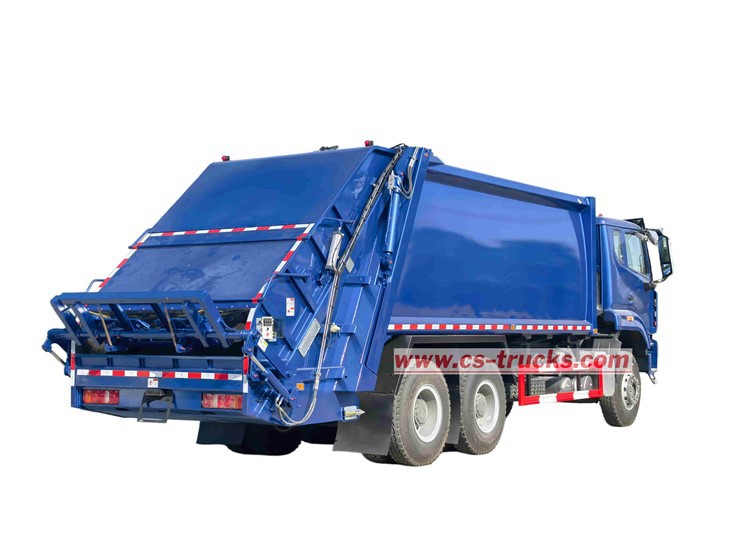

Rear Right View of Nigeria HOWO 371HP Waste Compactor Trucks
Rear Left View of Nigeria HOWO 371HP Waste Compactor Trucks

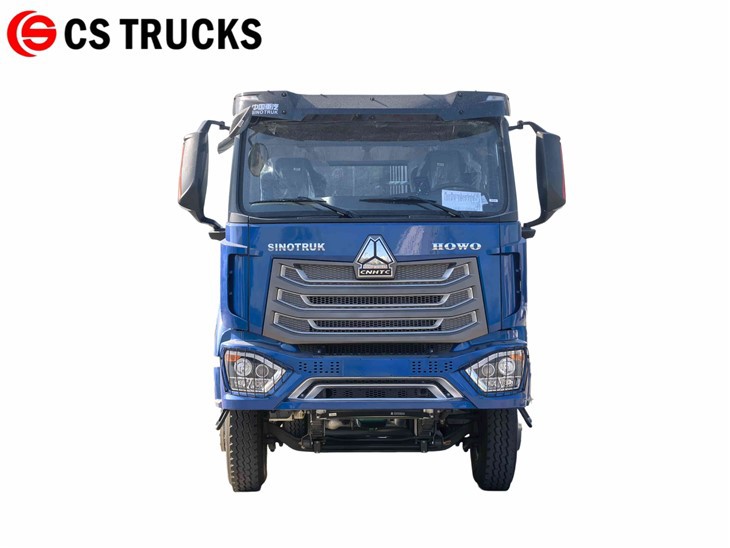

Front View of Nigeria HOWO 371HP Waste Compactor Trucks

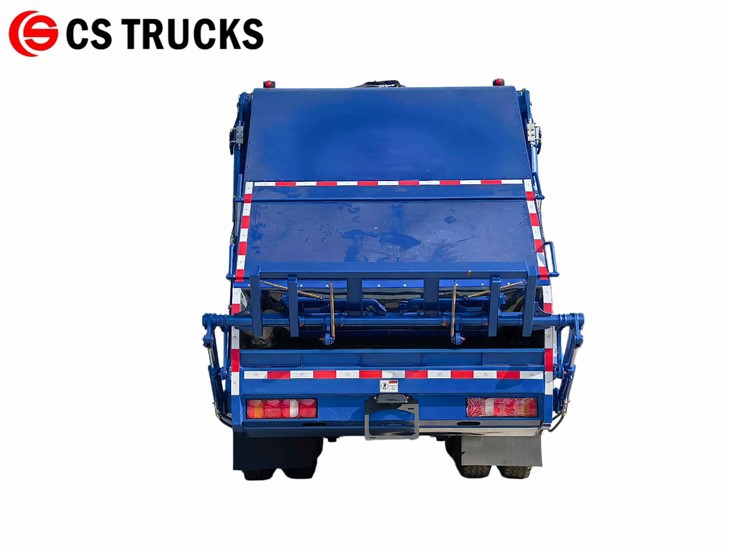

Rear View of Nigeria HOWO 371HP Waste Compactor Trucks
■Good service ■
We provide excellent after-sales service.
Product Guarantee
The entire vehicle uses a 100% original Sinotruk HOWO chassis and core assemblies, directly supplied from the factory, ensuring stable and reliable quality.
Transportation Service
We provide fast, convenient, and efficient end-to-end logistics solutions, delivering on time and worry-free.
After-Sales Warranty
We offer a 7-day rapid response + 24/7 safety service, safeguarding the stable operation of the vehicle throughout the entire process.
Customized services
We can customize the superstructure style, cab configuration, etc., according to customer needs to create a vehicle model that is more suitable for local operating scenarios.
