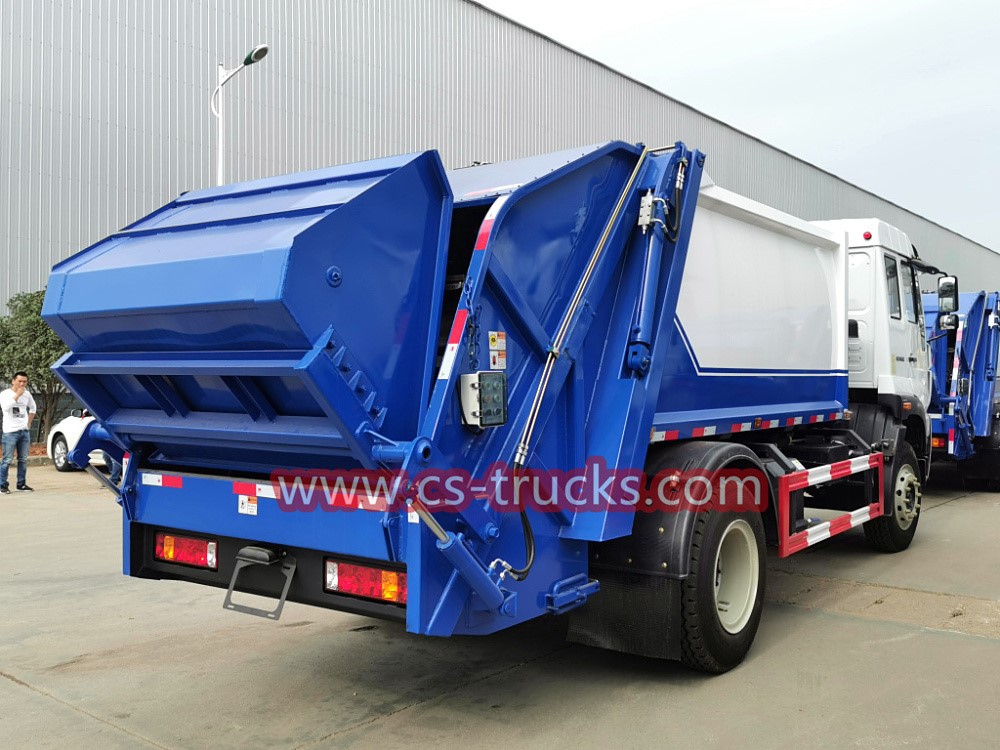

Rear Compactor Truck Sinotruk PowerTrac is a special Powertrac garbage truck for garbage collection and transfer developed by CS TRUCKS with the introduction of international advanced technology. It has the clear advantages of large garbage loading, no secondary pollution, reliability and durability.
Sinotruk Wet Waste Collection Truck for Powertrac
1. It adopts an overall frame structure, a large curved side arc tank, and a convex curved tailgate. The truck has a strong
resistance to deformation, long service life, and strong loading capacity.
2. The lifting and self-unloading method is adopted, and the push plate structure is eliminated, which can increase the
effective volume of the tank. The unloading speed is fast, and there is less garbage residue after unloading, which is
convenient for cleaning the inside of the tank. It has good maintainability and improves work efficiency.
3. Equipped with tires to prevent the vehicle from being unable to drive due to emergencies and improve maintenance.
4. The tailgate cylinder seat is arranged vertically, which is convenient for installation and maintenance. Besides, a sequence valve is used to realize the opening and closing sequence of the tailgate and the bolt, which is reliable in action and reduces the cost. (National patent technology)
5. Adopt a special tailgate rubber strip and rubber strip groove to extend the service life of the rubber strip and improve the sealing performance of the tailgate. Adopting a special tailgate anti-drip device to accept the swill leaking when the tailgate is not sealed, with a simple structure, environmental protection, and safety.
6. Equipped with a tailgate safety brace device, when the tailgate is opened for maintenance, the safety brace will be propped up to prevent the tailgate from accidentally falling and improve safety. (National patent technology)
7. The right side of the tank is equipped with the bin lifter, lifting frame main rail, and auxiliary rail, which can lift 120, 240 liters of standard trash cans, the friction is small during the rising process, and the lifting mechanism does not open
during the linear movement process, smooth movement, safe and reliable (national patent technology). The lifting mechanism and the upper cover form a linkage mechanism (national patent technology) through a connecting rod and a swing arm, which not only saves costs but also improves work efficiency.
8. The tilting angle of the trash can and the height of the bin hook from the ground can be adjusted by the angle adjustment mechanism (national patent technology) at the upper end of the lifting guide rail and the adjustable connecting rod, to avoid the trash can not dumping due to the insufficient tilting angle of the trash cans.
9. The use of a special lifting mechanism anti-drip device can effectively avoid the problem of sewage dripping during the lifting process, reduce secondary pollution, and environmental protection and safety (national patent technology).
10. Equipped with a feeding buffer device, the turning time of the barrel can be adjusted, the feeding is stable, splashing is avoided, and safety and environmental protection are improved.
resistance to deformation, long service life, and strong loading capacity.
2. The lifting and self-unloading method is adopted, and the push plate structure is eliminated, which can increase the
effective volume of the tank. The unloading speed is fast, and there is less garbage residue after unloading, which is
convenient for cleaning the inside of the tank. It has good maintainability and improves work efficiency.
3. Equipped with tires to prevent the vehicle from being unable to drive due to emergencies and improve maintenance.
4. The tailgate cylinder seat is arranged vertically, which is convenient for installation and maintenance. Besides, a sequence valve is used to realize the opening and closing sequence of the tailgate and the bolt, which is reliable in action and reduces the cost. (National patent technology)
5. Adopt a special tailgate rubber strip and rubber strip groove to extend the service life of the rubber strip and improve the sealing performance of the tailgate. Adopting a special tailgate anti-drip device to accept the swill leaking when the tailgate is not sealed, with a simple structure, environmental protection, and safety.
6. Equipped with a tailgate safety brace device, when the tailgate is opened for maintenance, the safety brace will be propped up to prevent the tailgate from accidentally falling and improve safety. (National patent technology)
7. The right side of the tank is equipped with the bin lifter, lifting frame main rail, and auxiliary rail, which can lift 120, 240 liters of standard trash cans, the friction is small during the rising process, and the lifting mechanism does not open
during the linear movement process, smooth movement, safe and reliable (national patent technology). The lifting mechanism and the upper cover form a linkage mechanism (national patent technology) through a connecting rod and a swing arm, which not only saves costs but also improves work efficiency.
8. The tilting angle of the trash can and the height of the bin hook from the ground can be adjusted by the angle adjustment mechanism (national patent technology) at the upper end of the lifting guide rail and the adjustable connecting rod, to avoid the trash can not dumping due to the insufficient tilting angle of the trash cans.
9. The use of a special lifting mechanism anti-drip device can effectively avoid the problem of sewage dripping during the lifting process, reduce secondary pollution, and environmental protection and safety (national patent technology).
10. Equipped with a feeding buffer device, the turning time of the barrel can be adjusted, the feeding is stable, splashing is avoided, and safety and environmental protection are improved.
Technical Specification
-
Detail specification for Rear Compactor Truck Sinotruk PowerTrac
-
Driving type 4x2
H5 Cabin with two seats, with A/C. Left or Right Hand Driven. 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions
Overall dimensions (L x W x H)mm
8000x2500x3500
Wheel base (mm)
4200
Wheel track (front/rear) (mm)
1980/1860
Approach/Departure angle(°)
24/15
Weight in KGS
Tare Weight
8000
Loading Capacity
10000
Front axles loading capacity
1×6000
Rear axles loading capacity
1x12000
Max. driving speed(km/h)
90
Engine
Brand
YUCHAI
Model
WP4.6NQ220
Type
4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP)
220 HP
Emission standard
Euro Ⅲ
Gearbox
DC6J65TC, 6 forwards &1 reverse
Clutch
Reinforced diaphragm clutch, diameter 430mm
Steering Gear
ZF steering, hydraulic steering with power assistance
Fuel tank (L)
200 L
Tire
10.00R20 tires with one spare, totally 7 pcs.
Swing arm system with cargo box
l Garbage cargo box :8~10CBM , Carbon steel material , underground type or aboveground type can be optional.
l PTO motivated hydraulic system, two hydraulic cylinders with lifting arm and two hydraulic cylinders with landing leg
l Swing arm maximum pivot angle 145 ; hoisting time 30s ; Unloading time 50s.
Detail pictures
China Manufacturer Sinotruk Powertrac Garbage Waste Compactor Trucks
1 .In the form of a rear loading garbage truck, equipped with scrapers for compression, the standard 240 liter hopper can hold 25-30 buckets. 2 .The bucket is made of 201 stainless steel sheet metal, self-unloading, and can be connected with large, medium and small garbage compression trucks to improve work efficiency. Fully enclosed design of garbage truck The whole vehicle is pure electric, economical and environmentally friendly, with a cruising range of more than 80 kilometers 3 .The vehicle is comfortable to drive, easy to operate, and provides operation videos. 4 .The chassis adopts high-quality manganese steel as the main longitudinal beam, which is connected by seamless steel beams, with high bearing performance and universal interchangeability of parts.
