ISUZU 5 ton hook lift garbage truck (also called arm roll truck, hook loader truck, or roll-on roll-off container truck) is built for waste collection and container transport. This ISUZU hook lift container truck handles typical tasks like collecting construction debris, hauling commercial refuse, or moving waste containers between transfer stations.
With a 5-ton hooklift system and 131 HP Euro 6 engine, this ISUZU hook lift garbage truck navigates narrow city streets and tight job sites with ease. It provides dependable performance for municipal sanitation departments, construction contractors, and industrial waste operators.

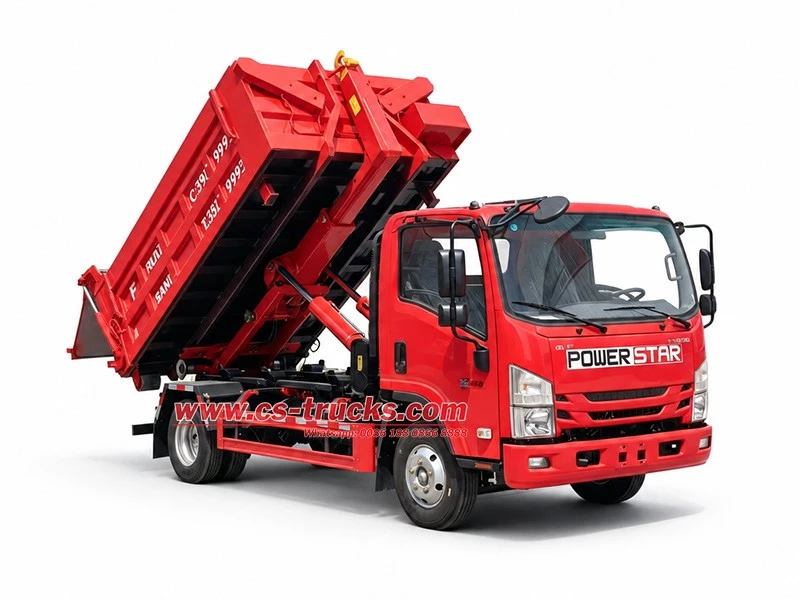

*ISUZU 5 Ton Hook Loader Dumpster Garbage Truck*
-----------------------------------------------------------------
CS Factory is a professional manufacturer in the truck area.
Guarantee all products are brand new and High-Quality.
» I. Product Definition and Introduction:
Manufacturer: CS TRUCKS
Features:
✧ Chassis: ISUZU 4×2 chassis with 131 HP 4KB1-TCG60 Euro 6 diesel engine
✧ Garbage Container: 5-ton capacity, Q235B carbon steel, side walls 4mm / floor 5mm, 3900×1700×800 mm
✧ Dual-Side Hydraulic Opening: Both sides open hydraulically for side loading/unloading in tight spaces
✧ Hooklift System: 5-ton lifting capacity, 52° tipping angle, 28 MPa hydraulic pressure, loading ≤60s, unloading ≤72s
✧ Control System: Manual operation + electric remote control for flexible and safe operation
» II. Product Parameters For ISUZU Hook Lift Garbage Truck:

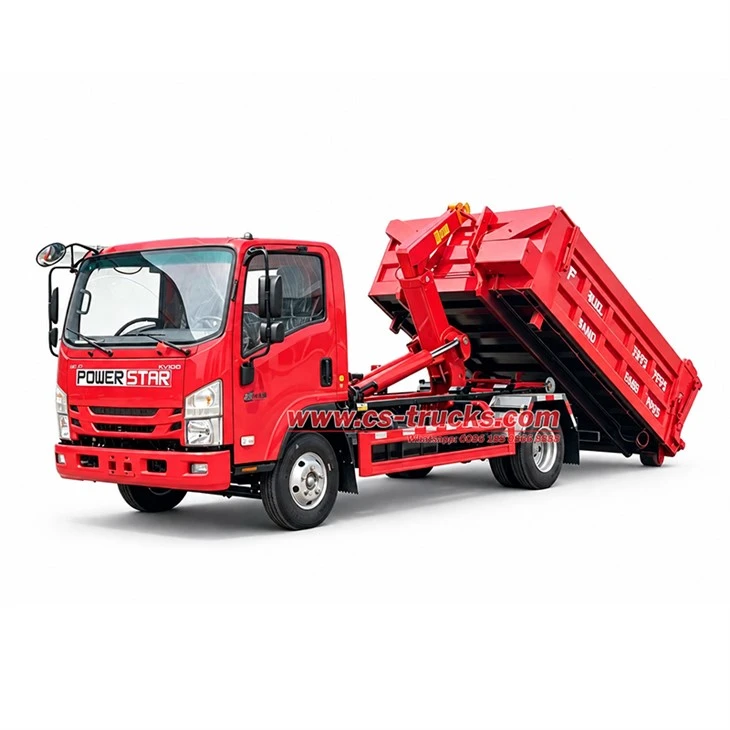

| Product Name | ISUZU 5 Ton Arm Roll Hook Lift Truck | ||
| Overall | Vehicle Model | CS5070GB | |
| Drive Type | 4*2 | ||
| Gross Vehicle Weight | 7300 kg | ||
| Curb Weight | 2300 kg | ||
| Maximum Speed | 100 km/h | ||
| Overall Dimensions L*W*H | 6150*2260*2340 mm | ||
| Engine | Engine Model | 4KB1-TCG60 | |
| Fuel Type | Diesel | ||
| Power | 131 HP(96KW) | ||
| Emission Standard | Euro 6 | ||
| Displacement | 2499 ml | ||
| Engine Type | 4 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | ISUZU | |
| Tire No. | 6+1 | ||
| Tire Specification | 7.00R16 | ||
| Wheelbase | 3365 mm | ||
| Gear Box | Manual 6-speed forwards and 1 reverse | ||
| Steering Wheel | Left hand drive | ||
| Front Axle Weight | 3 Tons | ||
| Rear Axle Weight | 5 Tons | ||
| Brake | Air brake | ||
| Radiator | Suitable for tropical climate | ||
| Garbage Container | Cargo Capacity | 5 tons | |
| Cargo Size | 3900*1700*800 mm | ||
| Cargo Material | Q235B Carbon Steel, side walls 4mm, floor 5mm | ||
| Dual-Side Hydraulic Opening | Both sides open hydraulically for side loading/unloading in tight spaces | ||
| Hooklift System | Lifting Capacity | 5 tons | |
| Hook Center Height | 1570 mm | ||
| Extension of Hook Arm | 1100 mm | ||
| Width of Guild Rail | 1060 mm | ||
| Tipping Angle | 52° | ||
| Hydraulic System Pressure | 28 Mpa | ||
| Loading Working Time | ≤60 S | ||
| Unloading Working Time | ≤72 S | ||
| Discharge Work Cycle Time | ≤110 S | ||
| Control System | Manual operation + electric remote control | ||
» III. Product Description:
ISUZU 5 Ton Hook Lift Garbage Truck Chassis
➤ Cabin：ISUZU 4×2 standard cab, single cabin, A/C and power steering
➤ Engine：4KB1-TCG60, 131 HP, inline 4-cylinder, 2.499 L displacement, Euro VI
➤Transmission: Manual 6-speed, 6 forward and 1 reverse
➤Tires: 7.00R16, 6 wheels plus 1 spare
➤Wheelbase：3365 mm
ISUZU 5 Ton Hook Lift – Container & Hooklift System
➤ Garbage Container: 5-ton capacity, Q235B carbon steel, side walls 4mm, floor 5mm, size 3900×1700×800 mm.
➤ Dual-Side Hydraulic Opening: Both sides open hydraulically for side loading/unloading in tight spaces.
➤ Hooklift System: 5-ton lifting capacity, 52° tipping angle, 28 MPa hydraulic pressure, loading ≤60s, unloading ≤72s.
➤ Hydraulic Lifting: 45° tank tilt angle with smooth and controlled hydraulic operation for efficient dumping.
➤ Control System: Manual operation + electric remote control for flexible and safe operation.
» IV. ISUZU Hook Lift Garbage Truck Operating Principle :
The ISUZU 5-ton hook lift garbage truck features a dual-side hydraulic opening container, allowing both sides of the body to open for side loading and unloading in narrow streets and confined job sites. The 5-ton Q235B carbon steel container (3900×1700×800 mm) with 4mm side walls and 5mm floor handles construction debris, commercial refuse, and bulky waste with ease. The hooklift system delivers 5-ton lifting capacity at 28 MPa hydraulic pressure, achieving a 52° tipping angle for complete discharge. Loading takes ≤60 seconds and unloading ≤72 seconds, ensuring fast cycle times and consistent daily performance. Manual and electric remote control provide flexible operation from inside or outside the cab, while the 131 HP Euro 6 engine and 3365 mm wheelbase keep the truck agile on tight urban routes.
Product Details

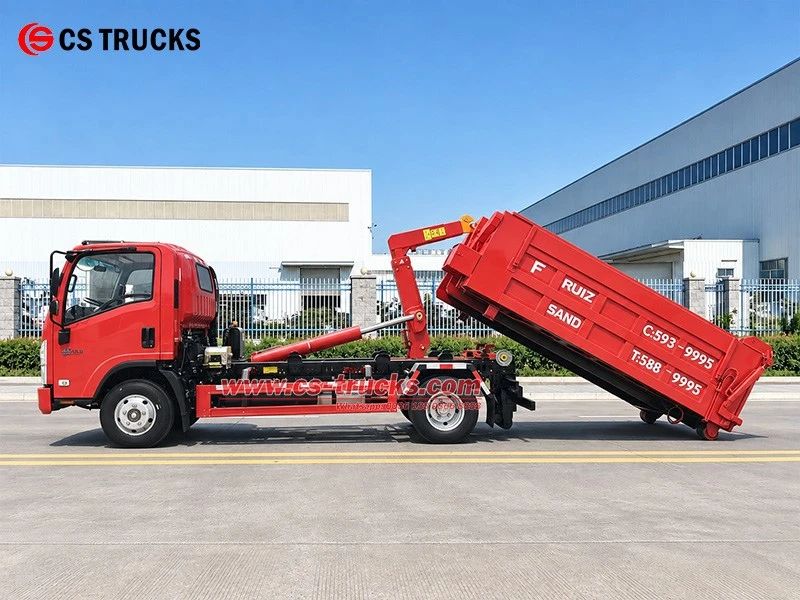

ISUZU hook lift truck container discharge opening

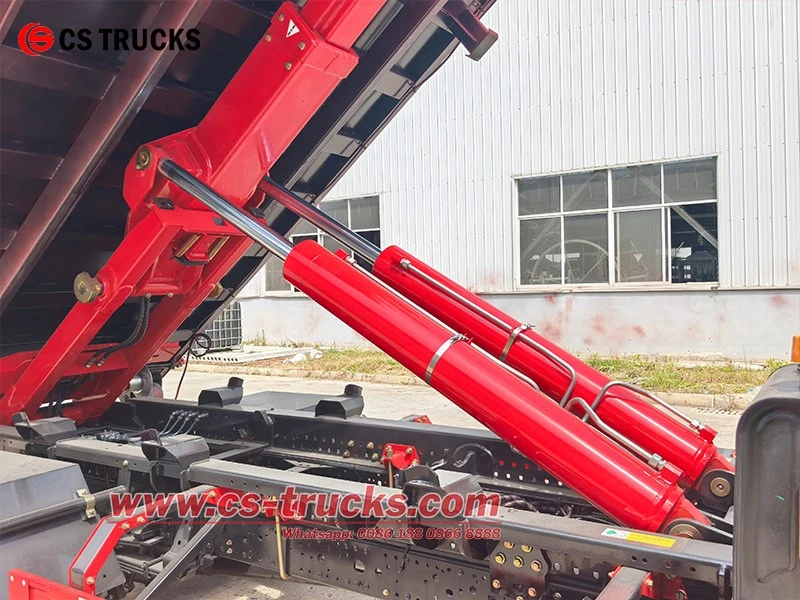

ISUZU hook lift truck hydraulic cylinder lifting system

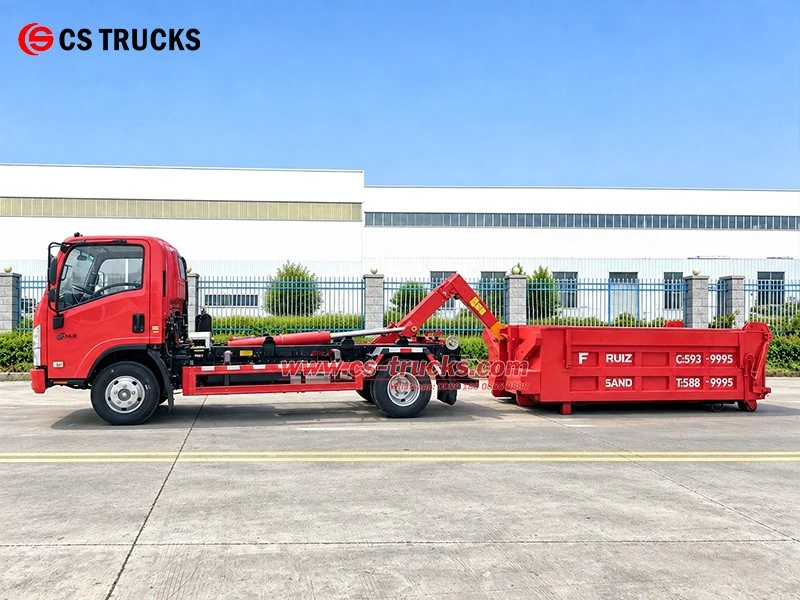

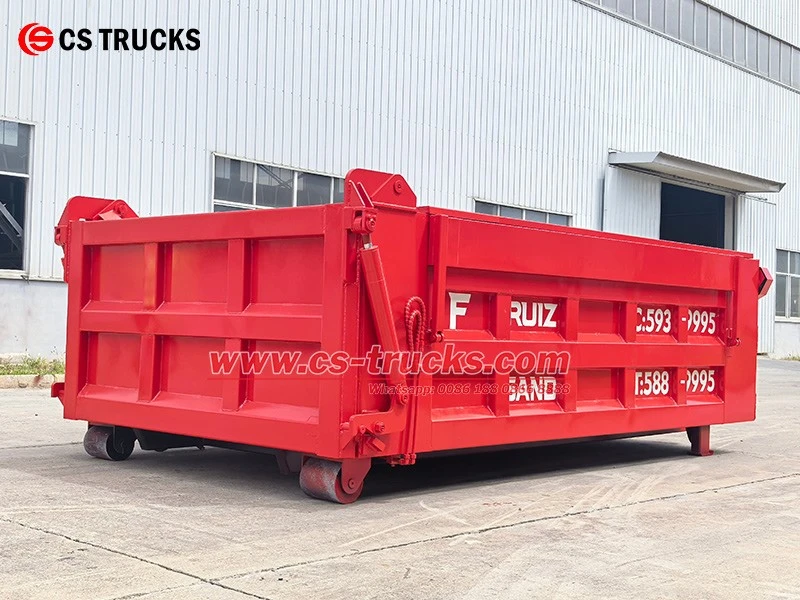

ISUZU hook lift truck roll-off container

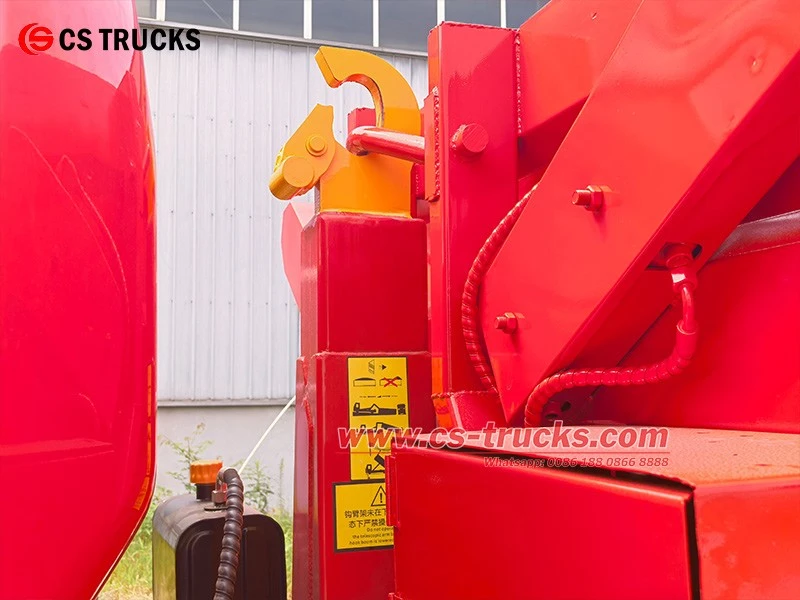

ISUZU hook lift truck hook assembly

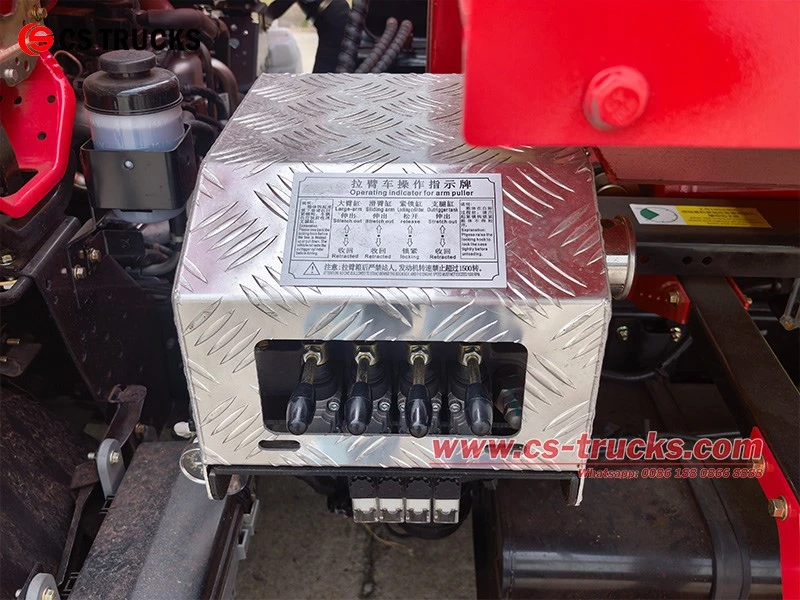

ISUZU hook lift truck hydraulic control valve

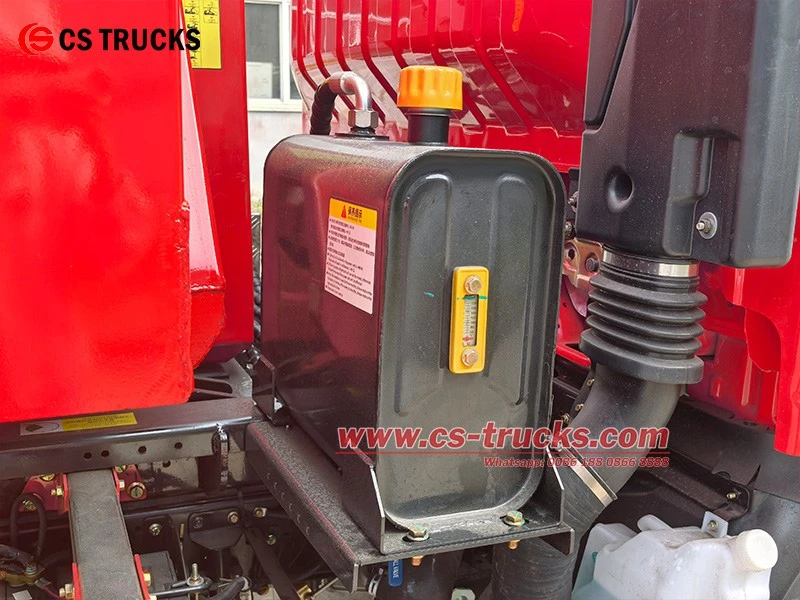

ISUZU hook lift truck hydraulic oil tank
» Ⅴ. ISUZU 5 Ton Hook Lift Garbage Truck Solutions:

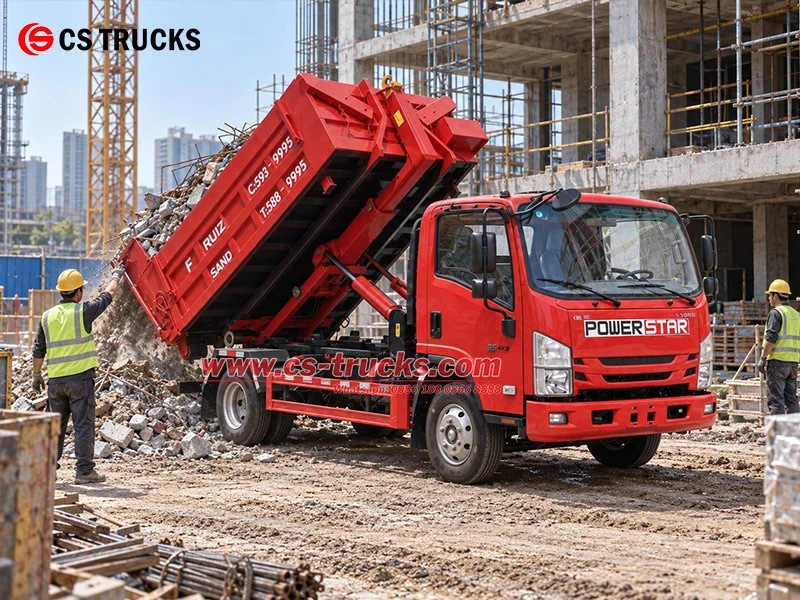

ISUZU 5 Ton Hook Lift Garbage Truck for Construction Debris Removal

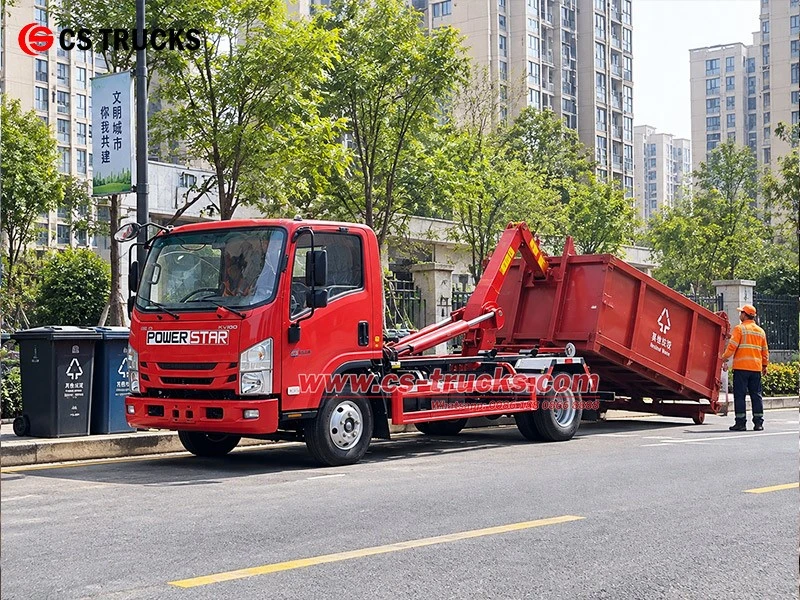

ISUZU 5 Ton Hook Lift Container Truck for Municipal Street Waste Collection

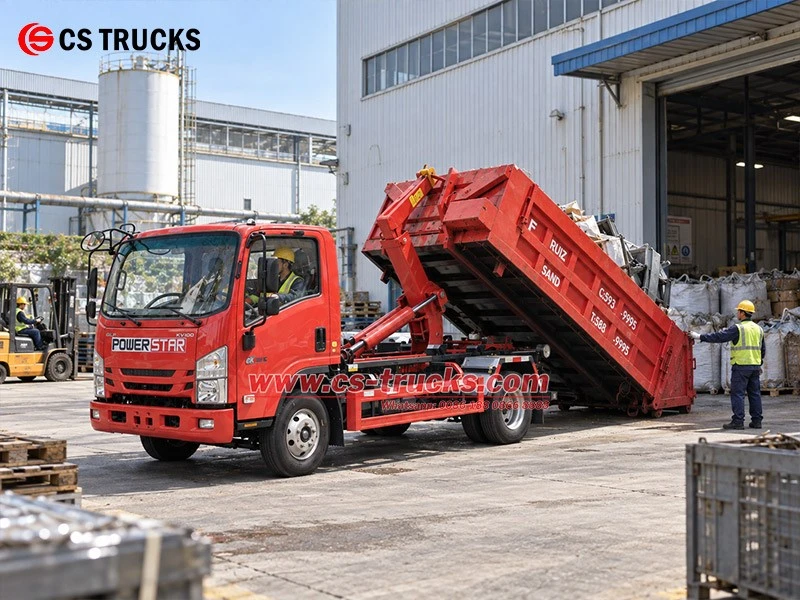

ISUZU 5 Ton Hook Lift Garbage Truck for Industrial Waste Handling

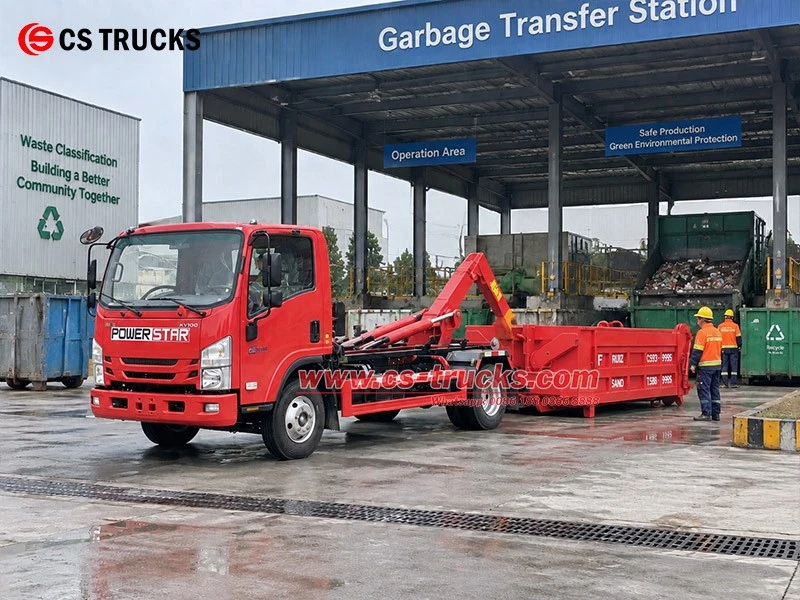

ISUZU 5 Ton Hook Lift Container Truck at Garbage Transfer Station

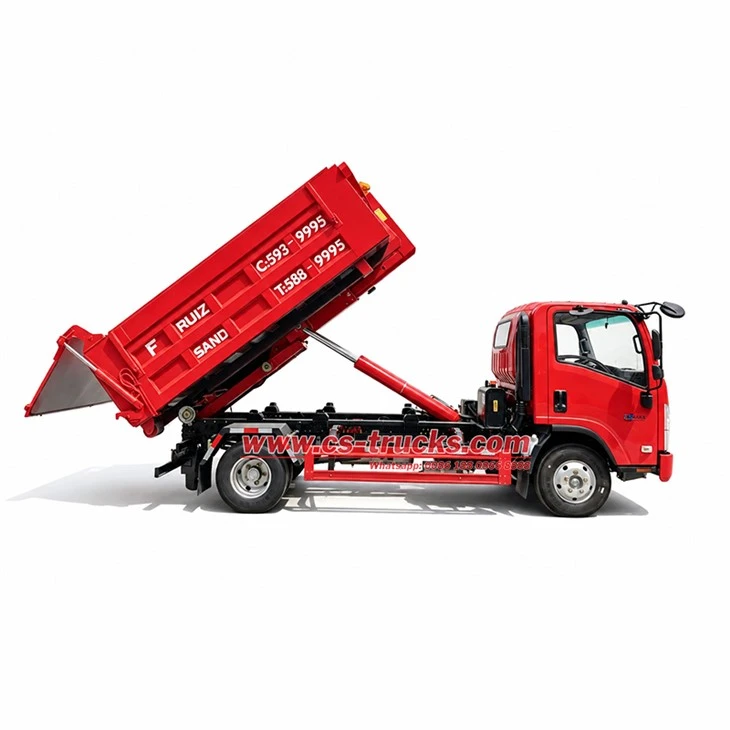

Ⅵ. ISUZU 5 Ton Hook Lift Container Tipping Operation:

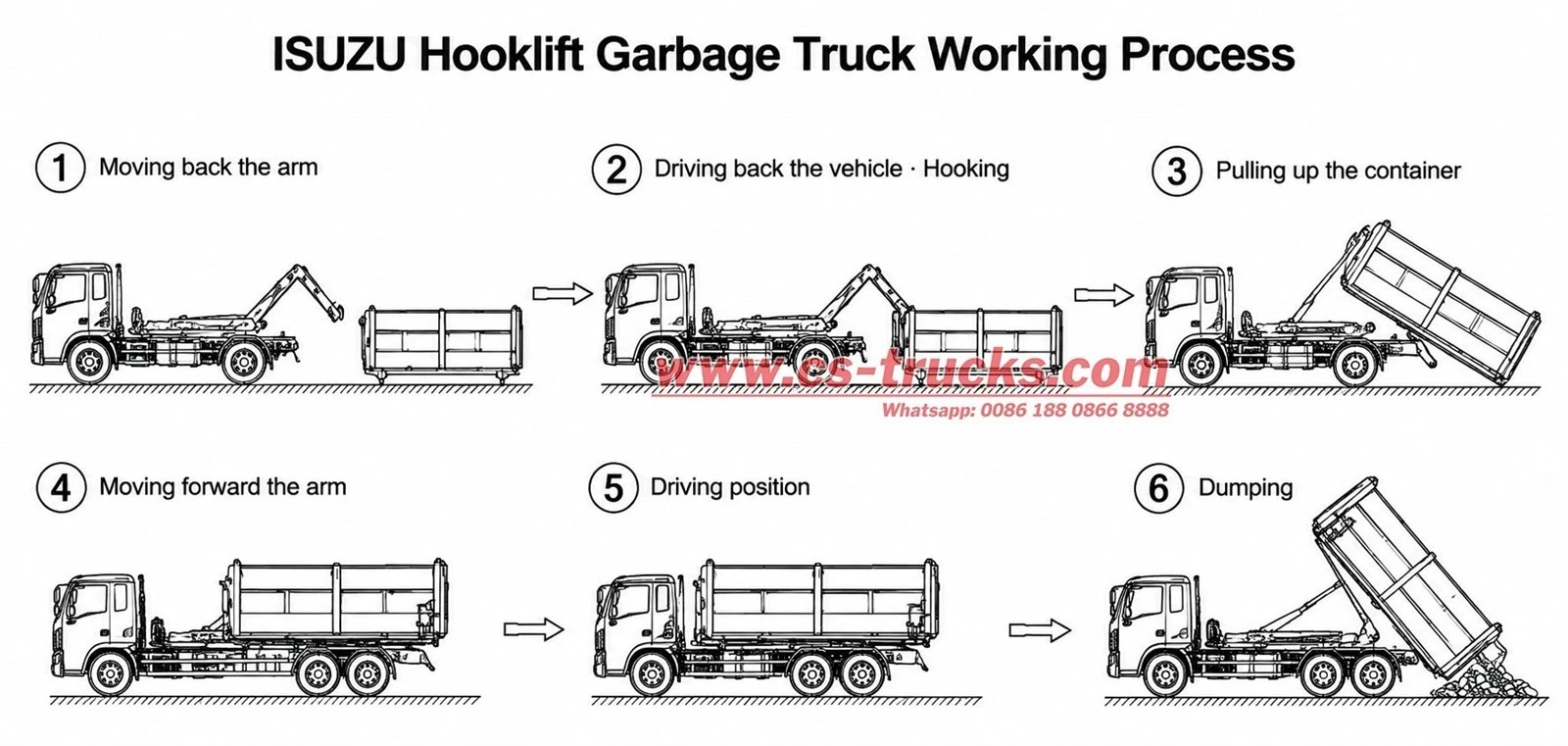

How Does a Hook Lift Garbage Truck Work? Step-by-Step Guide
1. Hook the Container
Reverse the vehicle to the container, lower the hook arm, and engage the connection point at the front end of the container.
2. Load the Container
Slowly retract the hook arm to smoothly pull the container onto the vehicle chassis and lock it securely.
3. Transport to Disposal Site
Transport the fully loaded container to a waste treatment station or landfill.
4. Lift and Dump the Waste
Upon arrival, unlock the container and use the hook arm to lift and tilt it, allowing the waste to be automatically discharged.
5. Reset the Container
After the container is emptied, slowly lower it back to a horizontal position and re-lock it.
6. Unload and Place the Container
Place the empty container back at the collection point, completing one working cycle.
Dual-Side Hydraulic Opening – Unique vs. Standard Hooklift Trucks：
♦ Dual-Side Hydraulic Opening: Both sides of the container open hydraulically, enabling side loading and unloading in narrow streets and tight job sites where rear access is impossible.
♦ 52° Tipping for Complete Discharge: The hooklift system raises the container to a 52° angle, ensuring construction debris, bulky waste, and mixed refuse slide out completely without residue.
♦ 5-Ton Heavy-Duty Lifting: Built with 28 MPa hydraulic pressure and a 5-ton lifting capacity, this hooklift handles fully loaded containers with stable, reliable performance.
♦ Fast Cycle Times for High Efficiency: Loading takes ≤60 seconds, unloading ≤72 seconds, and the full discharge cycle ≤110 seconds-reducing downtime and boosting daily productivity.
♦ Compact Body for Narrow Streets: With a 3365 mm wheelbase and 6150 mm overall length, this truck maneuvers through alleys, residential lanes, and confined industrial sites with ease.
Ⅶ. ISUZU 4X2 5 Ton Hook Lift Garbage Truck Views:

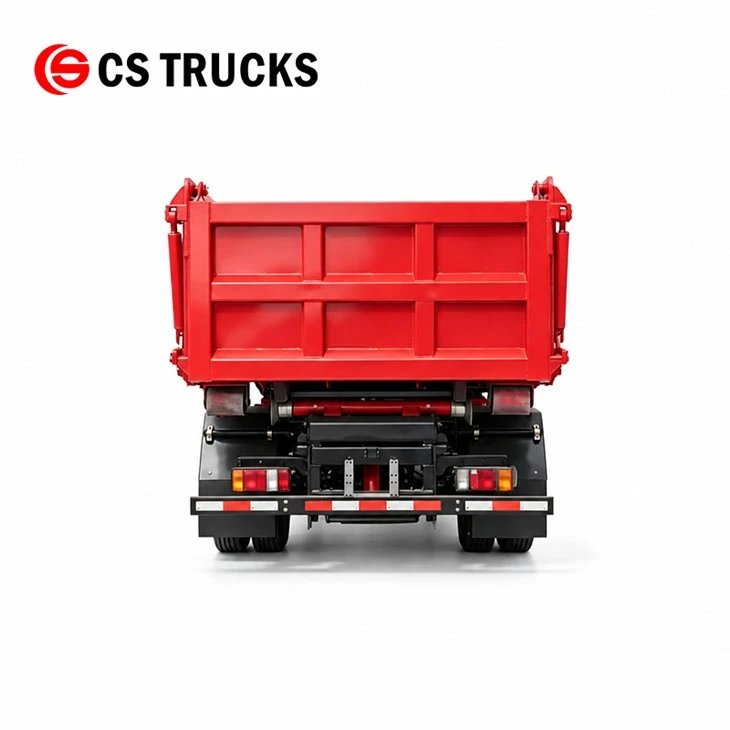

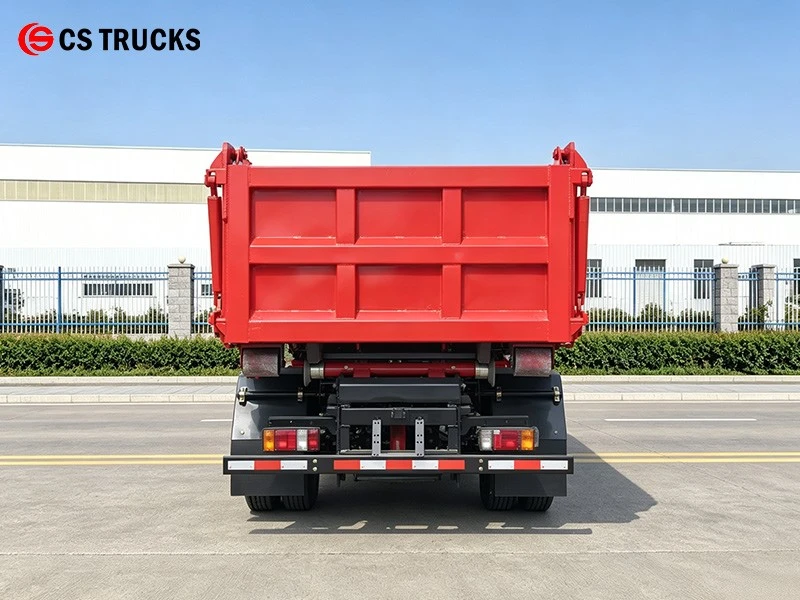

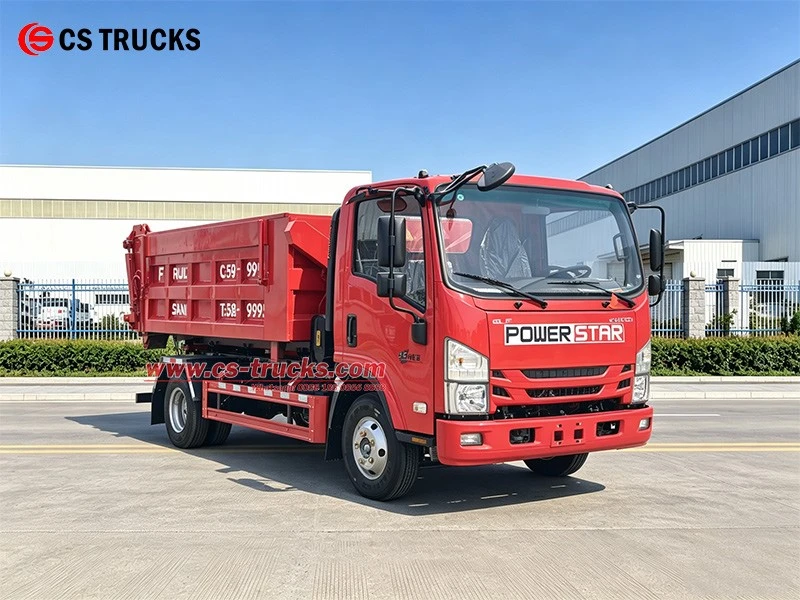

Rear View of ISUZU 4×2 Hook And Lift Truck

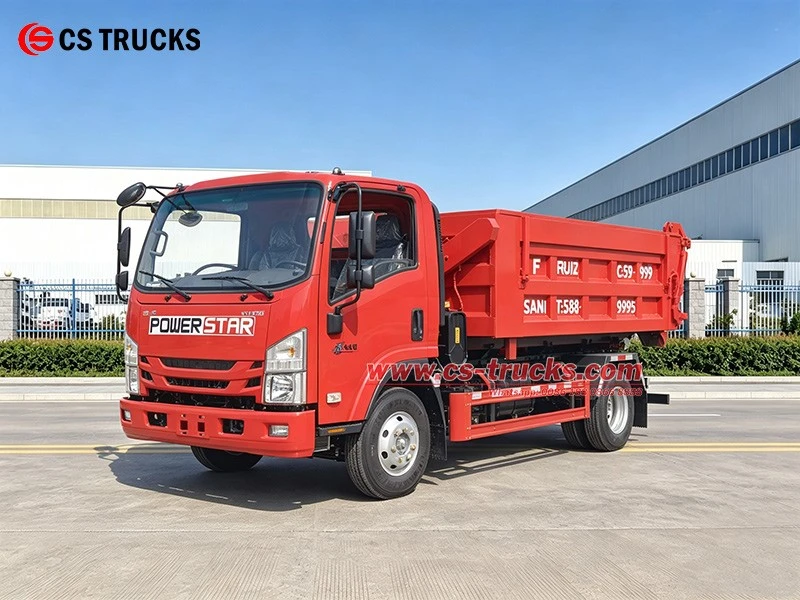

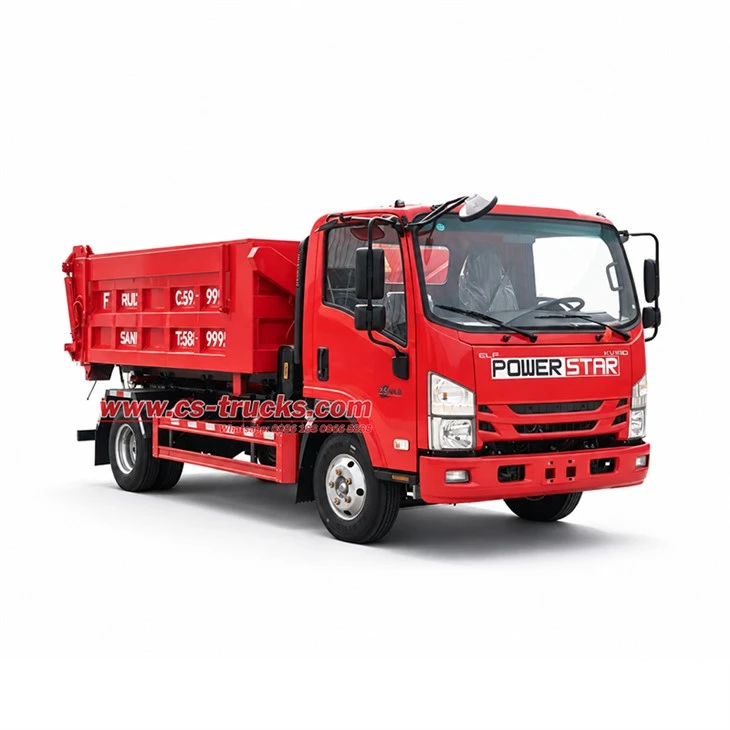

Front Left View of ISUZU 131HP Hook Loader Garbage Truck

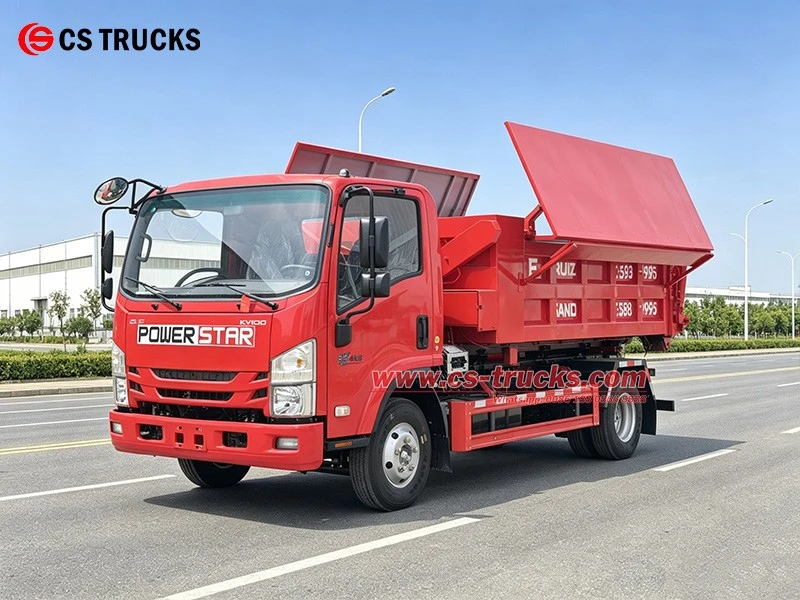

Right View of ISUZU 5 Ton Dual-Side Hydraulic Opening Truck

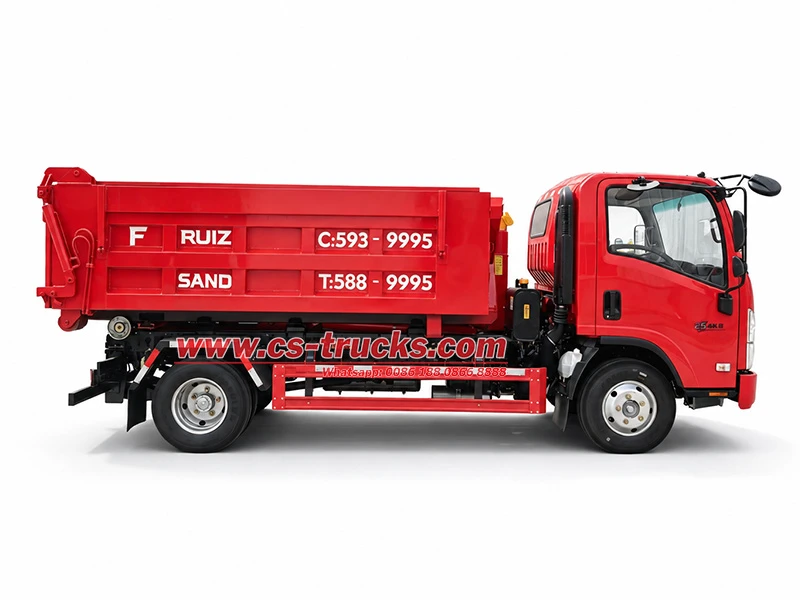

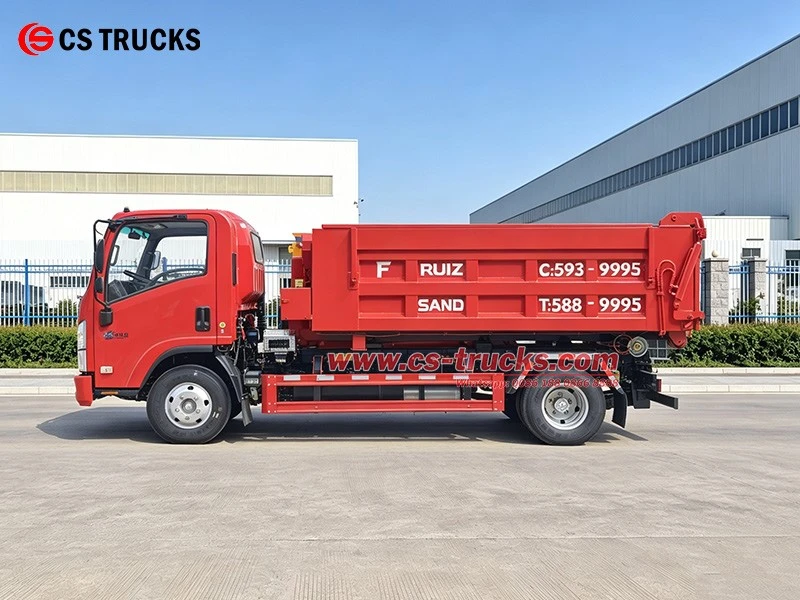

Left View of ISUZU 4×2 Roll On Roll Off Garbage Truck

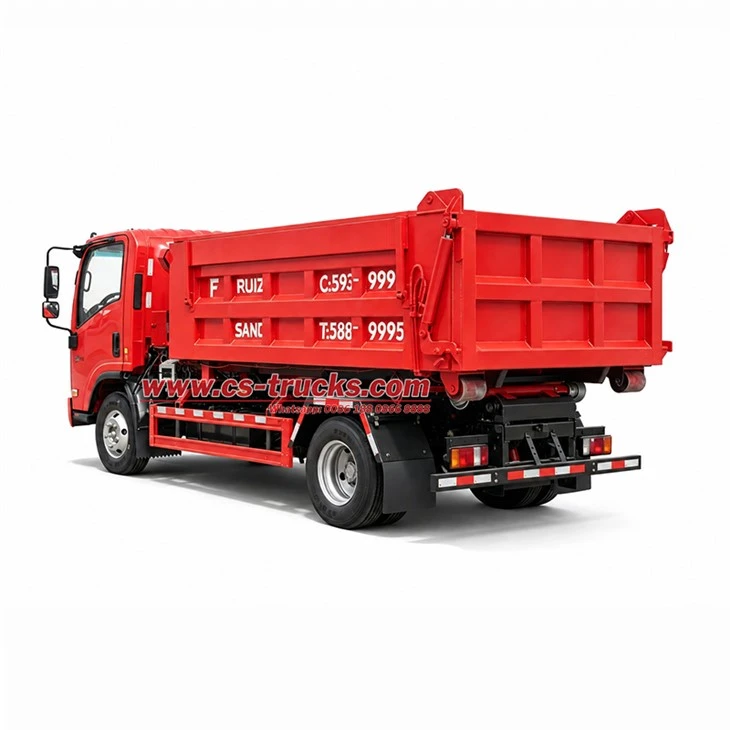

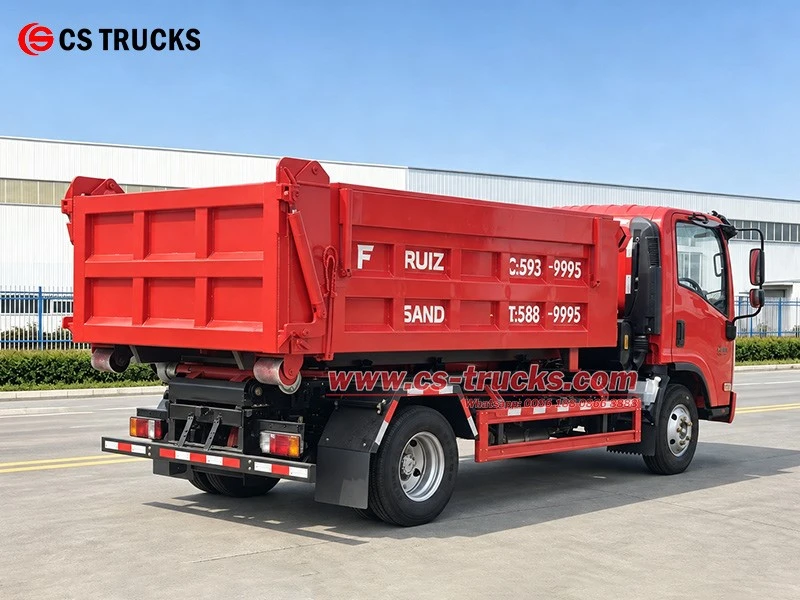

Rear Right View of ISUZU 5 Ton Hook Lift Dumpster Truck

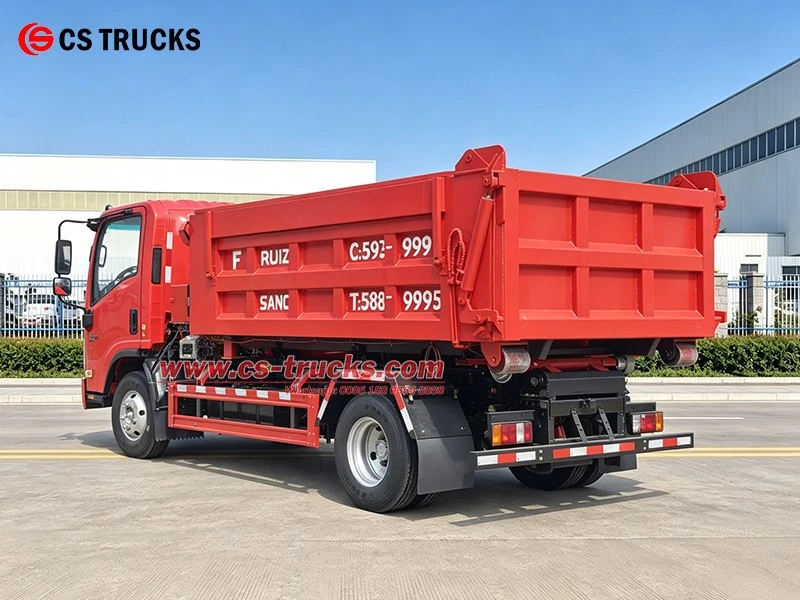

Rear Left View of ISUZU Hook Lift Container Truck

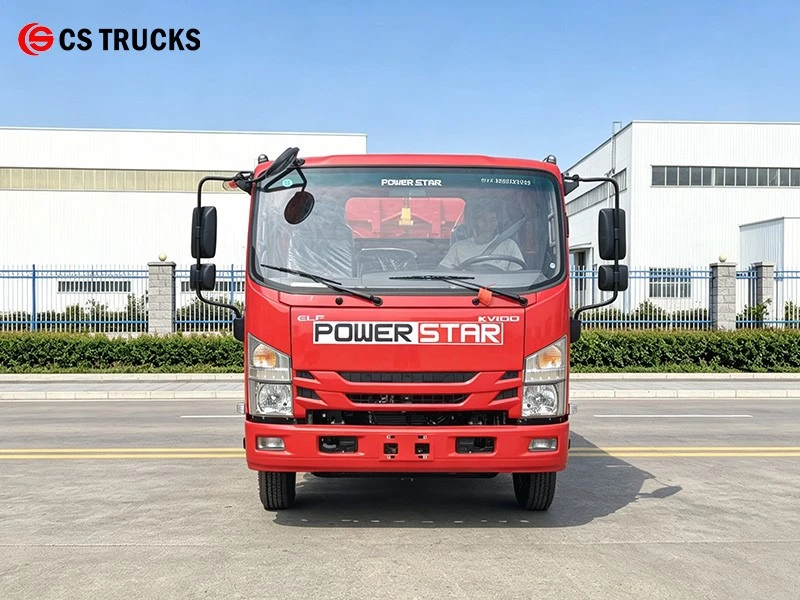

Front View of ISUZU 5 Ton Hook Lift Trucks For Sale
Rear View of ISUZU 4×2 Hook And Lift Truck
FAQ
Lorem ipsum dolor sit amet consectetur adipisicing elit.
Q:1. What is a hook lift garbage truck?
A: A hook lift garbage truck (also called hook loader truck, arm roll truck, or roll-on roll-off container truck) is a waste collection vehicle that uses a hydraulic hook arm to pull containers onto its chassis and tip them for discharge.
Q:2. What is the difference between hook lift and skip loader garbage trucks?
A: Hook lift trucks use a hydraulic hook arm to pull containers onto the chassis, handling 5–30 CBM containers. Skip loaders use side arms and chains to lift smaller containers vertically, typically 2–12 CBM.
Q:3. What is the loading and unloading cycle time?
A:The loading time is ≤60 seconds, unloading time is ≤72 seconds, and the full discharge cycle is ≤110 seconds. This fast cycle ensures high efficiency on daily collection routes.
Q:4. How is the hooklift system controlled?
A: The system supports both manual operation and electric remote control. Operators can manage loading, tipping, and unloading from inside or outside the cab, improving safety and convenience on site.
Q:5. What is the ISUZU 5 ton hook lift truck used for?
A: This truck is used for municipal waste collection, construction debris removal, commercial refuse transport, and industrial waste handling. The dual-side hydraulic opening enables side loading in narrow streets.
Q:6. What engine and emission standard does this hook lift truck meet?
A: It is powered by a 131 HP 4KB1-TCG60 diesel engine, meeting Euro 6 emission standards, paired with a 6-speed manual transmission for reliable daily operations.
Products - 100% China ISUZU factory trucks!
Shipping - 100% fast, Convenient, Efficient!
Guarantee - 7 days + 24 hours Safety Service!
1. ISUZU 5 Ton Hook Lift Chassis: The ISUZU 4×2 chassis carries a 131 HP 4KB1-TCG60 Euro 6 engine with a 6-speed manual gearbox. Designed for city waste collection routes, this setup handles narrow streets and tight access points with a 3365 mm wheelbase and 7.00R16 tires. Air brakes and power steering come standard.
2. High-Strength Garbage Container: The garbage box is fabricated from Q235B carbon steel-4mm side walls, 5mm floor-measuring 3900×1700×800 mm with a 5-ton payload. What sets it apart is the dual-side hydraulic opening: both sides swing open to allow side loading and unloading where rear access is limited.
3. Hooklift System & Hydraulic Control: A 5-ton hooklift system operates at 28 MPa, raising the container to a 52° tipping angle for complete discharge. Loading takes ≤60 seconds, unloading ≤72 seconds, with a full cycle ≤110 seconds. Manual and electric remote control give operators flexibility inside or outside the cab.
4. Safety & Urban Features: Euro 6 compliance means unrestricted access to low-emission zones. The tropical climate radiator, air-conditioned cab, and compact dimensions (6150×2260×2340 mm) make this truck well-suited for daily municipal sanitation work.
