The HOWO 350HP hooklift garbage truck is equipped with an MC07H.35P-61 350HP engine, a rated load of 30 tons, providing ample power and outstanding heavy duty capacity. The truck can be used with mobile garbage stations, enabling separate truck and container transport and multiple containers to be transported in rotation, eliminating the need for a civil engineering transfer station. Suitable for municipal sanitation, rural areas, and industrial and mining sites, it can efficiently transport domestic waste and construction solid waste.
Model: CSC5310GB
Capacity: 30 Ton
Drive: 8x4
Engine power: 350 HP
Engine type: MC07H.35P-61
Send Inquiry
Description
The HOWO 30Ton Hook Truck Dumpster (also known as a hooklift truck, roll on/roll off garbage truck) is equipped with an MC07H.35P-61 Euro VI engine, producing 350HP, paired with an HW15710 10-speed transmission. It has a gross vehicle weight of 31000 kg and a top speed of 89 km/h. The vehicle boasts powerful performance, high load bearing capacity, and excellent chassis clearance, making it suitable for long distance transport operations in complex road conditions.
This vehicle has a rated lifting capacity of 30 tons and is compatible with a 30m³ fully sealed mobile station. It features a separate vehicle and cargo box, allowing for multiple boxes to be placed on a single vehicle. The cargo box is made of Q345 high strength steel, leak proof and odor suppressing, and can be placed on site without civil engineering. It is suitable for municipal, township, and construction site use for transporting domestic waste, kitchen waste, and construction solid waste.
HOWO Hook and Lift Truck Key Features
Manufacture: CS TRUCKS
Key Features:
✅Superior Load Capacity: Rated load capacity of 30 tons, matched with an 8x4 drive configuration, ensuring stability and traction under heavy load conditions.
✅Power Redundancy: A 350HP MC07H.35P-61 engine provides ample power reserves to meet the robust demands of starting, climbing, and loading/unloading operations under full load.
✅Efficient Transfer: The hook arm system precisely adapts to the mobile station container, enabling rapid swapping of multiple containers per vehicle, significantly reducing waste collection and transfer time.
✅High Adaptability: Designed specifically for large transfer stations, it can achieve precise docking within limited spaces, reducing operational noise and improving sanitation efficiency.
Technical Parameters

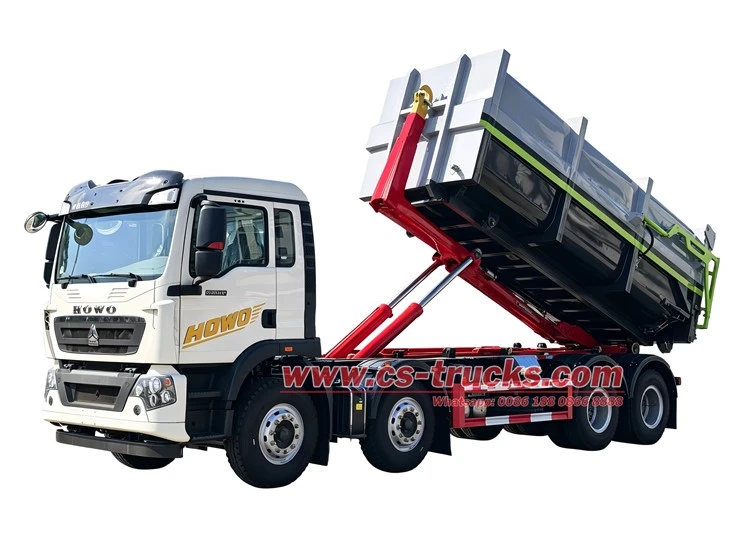

30tons Roll Off Dumpster Garbage Truck HOWO
Overall
Vehicle Model
CSC5310GB
Drive Type
8×4
Gross Vehicle Weight
31000 kg
Curb Weight
9850 kg
Maximum Speed
89 km/h
Maximum Gradeability (%)
＞35
Overall Dimensions
12000×2550×3370 mm
Engine
Engine Type
MC07H.35P-61
Fuel Type
Diesel
Power
350HP/258kW
Maximum torque (Nm) / speed (r/min)
1400/1200-1600
Emission Standard
Euro 6
Displacement
7360 ml
Engine Type
Inline 6-cylinder, high pressure common rail + turbocharged intercooler
Chassis
Chassis Brand
SINOTRUK
Tire No.
12
Tire Specification
11.00R20
Wheelbase (mm)
1800+3050+1350 mm
Minimum Ground Clearance (mm)
≥230
Minimum Turning Diameter (m)
≤24
Gear Box
HW15710
Steering Wheel
LHD
Brake
Air
Lifting System
Hook Lifting Rated Capacity
30 Ton
Working Pressure
32MPa
Operation Method
Cab electronic control operation
Container Loading and Unloading Time
≤3 min
Security Configuration
Rear outriggers, overload protection, limit lock
Core Functions
The system includes container hooking, lifting, selfunloading, and complete container separation, enabling multiple containers to be rotated on a single vehicle
Mobile Garbage Station
Adaptable Volume
30m³
Material
Q345 high strength steel plate, bottom 6mm, side 4mm
Box Structure
Fully sealed structure, leak proof and odor suppressing
Compatible Materials
Household waste, kitchen waste, construction waste, and general industrial solid waste
Use features
It can be placed independently without the need for a civil engineering transfer station
Performance And Advantages
Chassis and Powertrain
✅Features an 8×4 drivetrain, a gross vehicle weight of 31000 kg, and a maximum gradeability of >35%, delivering strong heavy load climbing capability
✅MC07H.35P‑61 Euro 6 engine, 350 horsepower, 1400 N·m of high torque, delivering ample power
✅HW15710 10-speed transmission, top speed of 89 km/h, balancing heavy load acceleration with highway driving efficiency
Hook Arm Operation System
✅Rated lifting capacity of 30 tons, electrically controlled operation from the cab, container loading and unloading time ≤3 minutes, high operational efficiency.
✅Equipped with rear outriggers, overload protection, and limit locks for multiple safety features, ensuring more reliable operation.
✅Supports complete separation of the truck and container, enabling one truck to handle multiple containers in rotation, eliminating the need for the vehicle to wait for loading.
Operating Condition Adaptability
✅Minimum ground clearance ≥230mm, turning diameter ≤24m, excellent site maneuverability.
✅Capable of transporting domestic waste, kitchen waste, construction waste, and general industrial solid waste; wide material compatibility.
✅Suitable for various operating scenarios including municipal sanitation, towns, construction sites, and industrial parks.
Explanation of the Hooklift System
Main Components Of Any Hooklift Equipment
Understanding the main components of any Hooklift equipment is important to better appreciate the functionality and operational requirements of the equipment.The main structures to note are as follows:
Hook Detail
10% wear is allowed before the hook requires maintenance.The 10% wear dimension is shown in brackets (MIN) alongside the startingdimension.
Working Principle
The hooklift garbage trucks rely on hydraulic hooklift mechanisms to complete hooking, lifting, loading and unloading, achieving rapid separation of garbage containers from the truck body, and enabling one truck to rotate multiple garbage containers for operation.
Mobile Garbage Station
This vehicle is equipped with a 30 m³ mobile waste container made of Q345 high strength steel. It is fully sealed to prevent leaks and contain odors, and can be placed independently on the ground without the need for a civil engineering transfer station. It is capable of loading household waste, food waste, construction waste, and general industrial solid waste, and works in conjunction with a hooklift truck to enable a "one truck, multiple containers" rotation system.
Product Details
Hydraulic Oil Tank
Diesel Fuel Tank
Hydraulic Cylinder
High Pressure Ball Valve
Hydraulic Operating Valve
Driver's Cab
Gear Box
Tire
Application Scenarios
HOWO 350HP Dumpster Hooklift Bin Container for Construction Site
HOWO 8×4 Hooklift Dumpster Container Trucks for Residential Area
HOWO 30Ton Hook Lift Truck Near Me for Townships
Exterior Views
Front Left View of HOWO 30Ton Hook Lift Garbage Truck
Rear Right View of HOWO 30Ton Hook Truck Dumpster
Rear Left View of HOWO 350HP Hook and Lift Truck

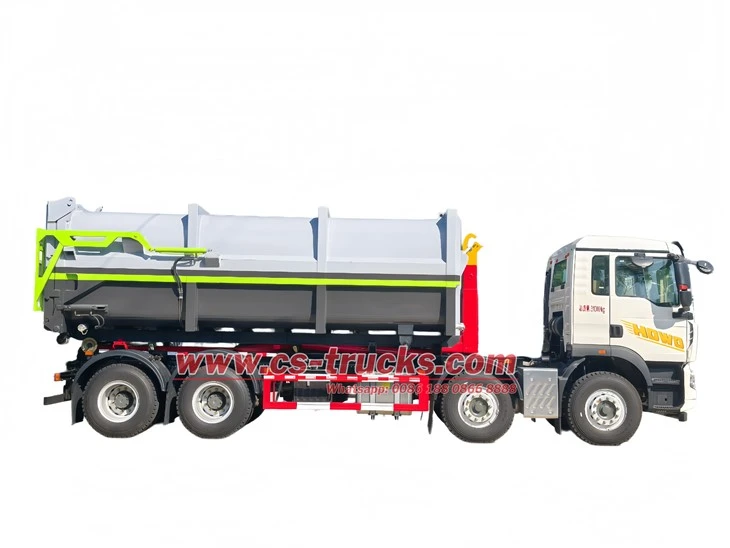

Left View of HOWO 350HP Hook Lift Dump Truck
Right View of HOWO 8×4 Hook Truck Dumpster for Sale
Front View of HOWO 30Ton Used Hooklift Truck for Sale

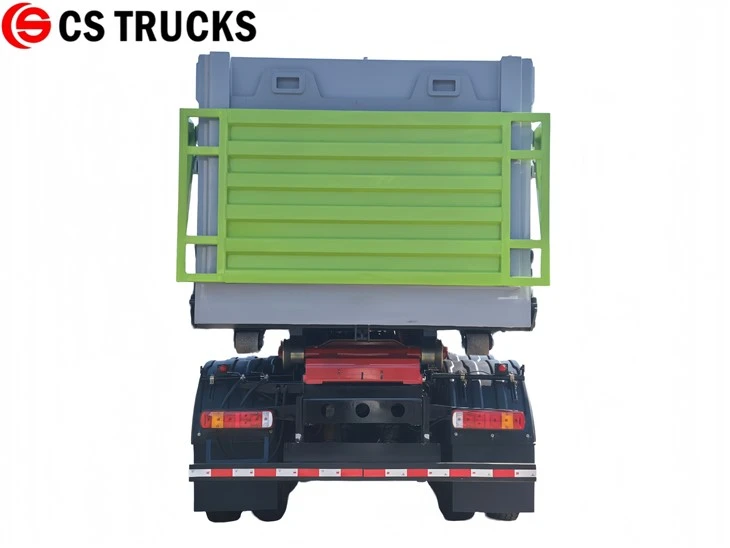

Rear View of HOWO 350HP Hooklift Dumpster Container Trucks
Hooklift Garbage Truck vs. Swing Arm Garbage Truck
products
Model Name
Hooklift Garbage Truck
Swing Arm Garbage Truck
Work Method
The hook arm catches the trash can, lifting/lowering the entire container
The swing arm moves left and right to place the container into and out of the carriage
trash Bin
It can be completely detached from the vehicle, with multiple boxes on one vehicle
The container is mostly equipped with a swing arm, and the container cannot be completely removed from the vehicle for operation
Applicable Scenarios
Township waste, construction waste, large transfer containers
Small garbage collection points in residential areas and factory areas, outdated sanitation practices
Transshipment capacity
It is powerful and can achieve "cargo-cargo separation", so the vehicle does not have to wait for unloading
Weak, the cargo box is basically a single piece, and the vehicle needs to wait for the cargo box to be unloaded
Loading and unloading efficiency
High, directly hoist the entire container
Slower, swings into position, long range of motion
Maintenance costs
The hydraulic mechanism is subjected to large forces and the cylinder load is high
Simple structure, inexpensive parts, and easy maintenance
Core advantages
One vehicle with multiple compartments for rotation, flexible and efficient, with good heavy duty capacity
Low price, simple structure, suitable for small tonnage and short distances
