The FOTON 2ton mini hooklift truck is equipped with a 102HP D19TCIE1 engine, providing ample and reliable power and its 4×2 drive configuration offers flexible and easy handling, making it suitable for operations in narrow areas such as residential communities and streets; with a standard 2CBM cargo box, it ensures both loading efficiency and vehicle maneuverability. The truck is economical, practical, and has low maintenance costs, making it an ideal vehicle for small scale waste and material transport.
Model: CSC5070GB
Capacity: 2 CBM
Drive: 4x2
Engine power: 102 HP
Engine type: D19TCIE1
Send Inquiry
Description
Product Overview
The FOTON 102HP hook lift garbage dump truck features a 4×2 drive configuration and is equipped with a 102HP D19TCIE1 diesel engine, meeting Euro II emission standards, which ensures stable power and suitability for overseas market demands. It features a 5 speed manual transmission and a dual circuit hydraulic braking system with ABS, providing flexible handling and reliable braking.
Its hooklift system can be fitted with a 2 cubic meter standard container, with a lifting capacity of ≥2 tons and a loading/unloading time of ≤45 seconds. Supporting both manual and electronic control modes, the truck is economical, practical, and has low maintenance costs, making it an ideal choice for short-distance transport of small-scale waste and materials.
FOTON
4x2 Drive
2CBM
102HP
I.Product Specifications
Product Name
FOTON 2Ton Mini Hooklift Loader
Overall
Vehicle Model
CSC5070GB
Drive Type
4*2
Gross Vehicle Weight
3390 kg
Curb Weight
1380 kg
Maximum Speed
90 km/h
Overall Dimensions L*W*H
4860×1910×2140 mm
Engine
Engine Model
D19TCIE1
Fuel Type
Diesel
Power
102HP(75KW)
Emission Standard
Euro II
Displacement
2300 ml
Engine Type
4-cylinder inline, 16-valve configuration
Chassis
Tire Specification
185R15LT
Tire No.
6
Wheelbase
2600 mm/2800 mm
Gear Box
5-speed manual
Steering Wheel
Left hand drive
Brake
Dual-circuit hydraulic braking + ABS
Cabin
1580 mm single-row forward-tilting cab
Hook Lift System
Container Bin
2CBM
Operation Method
Manual + Electric Control (Indoor/Tail-end)
Hydraulic System Pressure
16–18 MPa
Hook/Unloading Time
≤ 45 s
Self-Unloading Angle
≥ 45°
Hook Lifting Capacity
≥ 2 tons
II.Product Details
Chassis System
➥ Drive and Load Capacity: Utilizing a 4×2 drive layout and equipped with 185R15LT light truck specific tires, it boasts strong load bearing capacity and excellent road grip, easily handling complex operating conditions such as construction sites and rural towns.
➥ Handling and Safety: Matched with a 5-speed manual transmission, it offers smooth gear shifting; it also features a dual circuit hydraulic braking system + ABS, ensuring timely braking response and a high safety factor, guaranteeing stable and safe operation in narrow roads.
Powertrain
➥ Core Power Output: Equipped with a D19TCIE1 diesel engine, with a maximum power of 102HP, providing ample and stable power output, which can efficiently support hook arm loading and unloading operations and short distance transportation needs.
➥ Environmental and Economic Efficiency: This engine meets Euro II emission standards, catering to the demands of mainstream overseas markets; its 4 cylinder inline 16 valve design balances power performance with fuel economy, effectively reducing operating costs.
Cab Configuration
➥ Space and Practicality: Our vehicle features a 1580mm single row, forward tilting cab, offering a compact and flexible space suitable for operation in narrow areas such as city streets and residential communities and it allows for easy passage and convenient daily maintenance.
➥ Operation Ease: The cab is left hand drive, providing clear visibility and easy operation; it supports both indoor and rear mounted manual/electric dual mode operation, allowing for precise control of the hook arm loading and unloading process and improving operational efficiency.
III.Product Details
Multi-way Valve
Hydraulic Hook Loader Arm Device
Gear Box
Hook Lift Garbage Dump TruckTire
v.Application scenarios
Community Garbage Transfer for FOTON 2Ton Mini Hooklift Loader
Waste Disposal in Scenic Areas for FOTON 102HP Hook Loader Garbage Trucks
Unloading Operation for FOTON 4x2 Hook Loader Dumpster Garbage Trucks

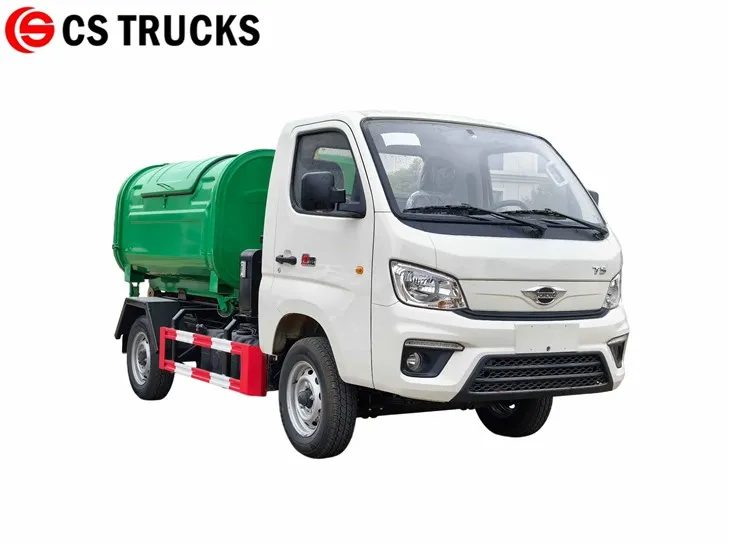

Front Right View of FOTON 2Ton Mini Hooklift Loader

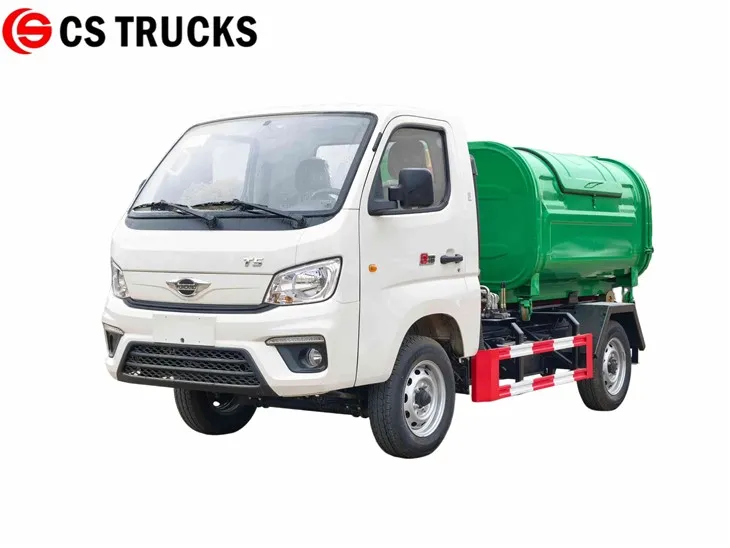

Front Left View of FOTON 2Ton Hook Lift Garbage Dump Trucks
Rear Right View of FOTON 102HP Hook Loader Garbage Trucks

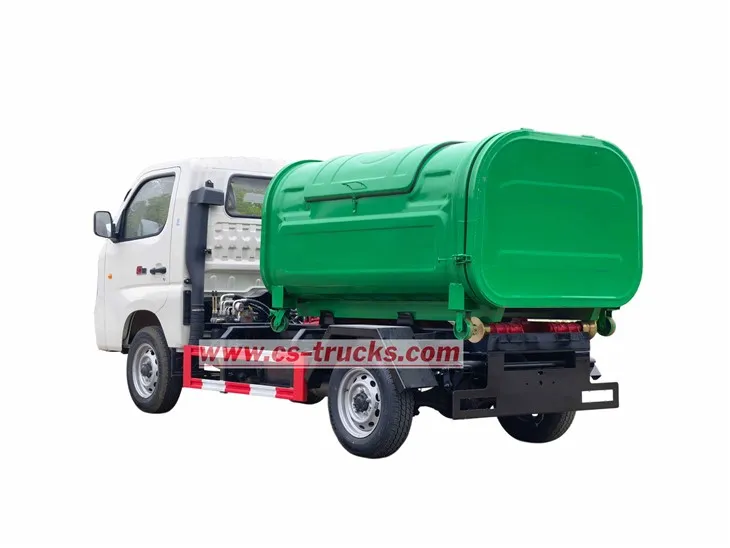

Rear Left View of FOTON 4x2 Hook Loader Dumpster Garbage Trucks
Left View of FOTON 102HP Hook and Lift Truck

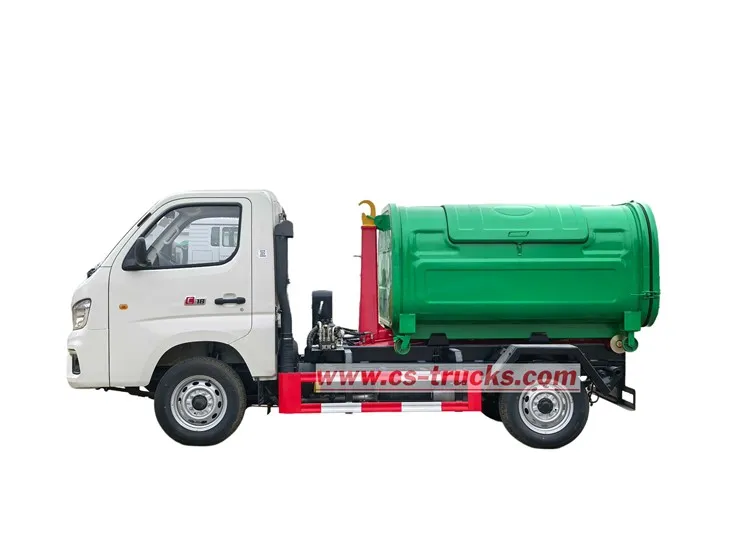

Right View of FOTON 4x2 Hooklift Dumpster for Sale

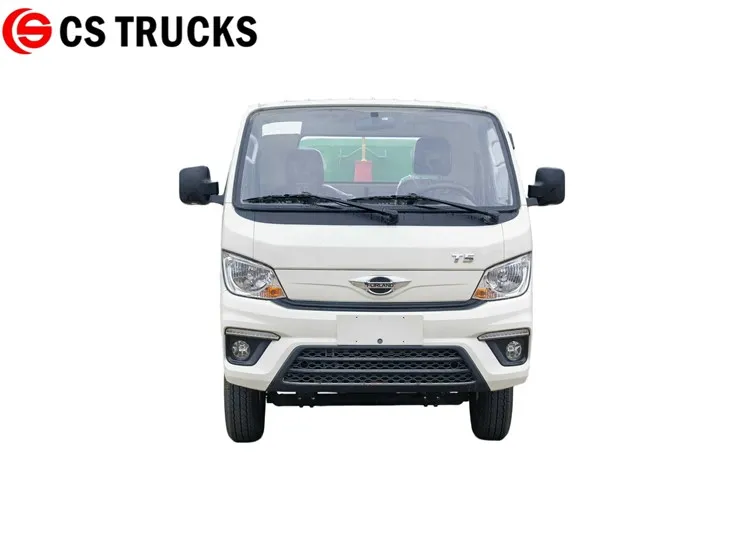

Front View of FOTON 4x2 Hook Loader Container Truck

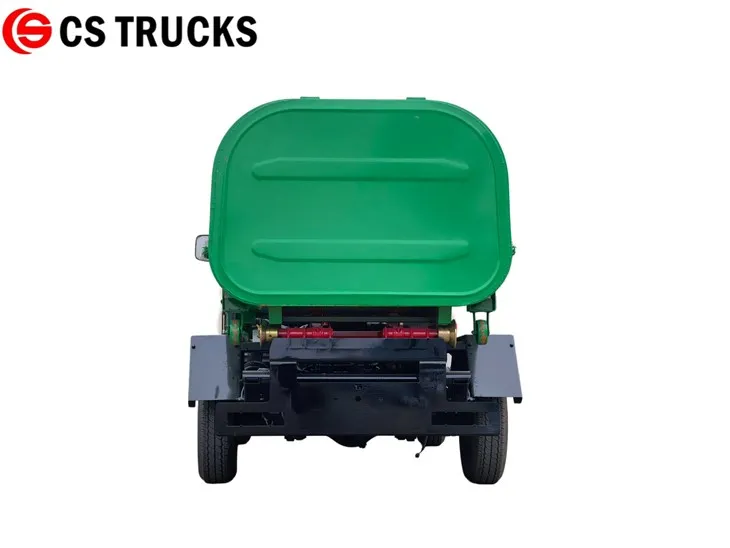

Rear View of FOTON 102HP Hook Lift Truck for Sale
VII.Discharge Operation Demonstration
