HOWO 4x4 drive skip loader garbage truck (also known as swing arm garbage truck, or off road skip loader garbage truck) is engineered for waste handling including urban collection, construction cleanup, and industrial logistics. With 8CBM capacity and 220HP power, its 4×4 chassis delivers stable performance across varied terrains, providing reliable waste solutions for modern municipal and industrial needs.
The effective capacity of the skip container is 8 cubic meters, utilizing Q235 carbon steel as the primary construction material. The container structure employs steel plates with optimized structural design. The HOWO skip truck is equipped with professionally engineered skip lifting systems, control mechanisms, and transfer equipment.
*HOWO 4x4 Drive Skip Refuse Truck For Nigeria*
-----------------------------------------------------------------
CS factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» I.Product Defination and Introduction:
Manufacturer: CS TRUCKS
Features:
▶Chassis: Based on HOWO 4×4 heavy-duty chassis, with 220HP diesel engine
▶ Container Volume: Skip container capacity 8 cubic meters
▶ Container construction: Container made of Q235 carbon steel
▶Lifting System: Installed at front of the vehicle, with hydraulic power
▶ Operation Scope: Suitable for urban collection, construction cleanup, and off-road waste operations
» II. Product Parameters for HOWO 4x4 Drive Skip Loader Garbage Truck
| Product Name | HOWO 4x4 Drive Skip Refuse Truck For Nigeria | ||
| Overall | Vehicle Model | CSC5180BLC | |
| Drive Type | 4x4 | ||
| Gross Vehicle Weight | 18500 kg | ||
| Curb Weight | 13000 kg | ||
| Maximum Speed | 105 km/h | ||
| Overall Dimensions L*W*H | 7900*2500*3350 mm | ||
| Engine | Engine Model | YC6J220-33 | |
| Fuel Type | Diesel | ||
| Power | 220 HP(162KW) | ||
| Emission Standard | Euro 3 | ||
| Displacement | 6494 ml | ||
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | HOWO | |
| Tire No. | 6+1 | ||
| Tire Specification | 10.00R20 | ||
| Wheelbase | 4600 mm | ||
| Gear Box | FAST 8JS85TE,8-speed forwards and 2 reverse | ||
| Front Axle | 6000 | ||
| Rear Axle | 13000 | ||
| Steering Wheel | Left hand drive | ||
| Brake | Air brake | ||
| Radiator | Suitable for tropical climate | ||
| Cabin | Type | One row cab, forward control type, all welded steel cab of tilt type, rear mechanical cab suspension, adjustable driver seat | |
| No of Seats | 2 persons and a sleeper bed, with safety belts | ||
| Number of Doors | 2 | ||
| Air Conditional | With air conditional | ||
| Electric System | 24V | ||
| Audio System | FM/AM radio, CD/USB player | ||
| Fuel System | Fuel Tank Capacity | 300 L | |
| Material | Steel fuel tank | ||
| Filler Cap | Lockable | ||
| Fuel Gauge | Pointer dial type | ||
| Fuel Filter | With water separator device | ||
| Audio System | FM/AM radio, CD/USB player | ||
| Superstructure | Tank Capacity | 8 CBM | |
| Material | Carbon steel Q235 | ||
| Body Floor | 3 mm | ||
| Side Plate | 3 mm | ||
| Optional | ** Container material could be stainless steel. ** A sealed cover for the container. ** A truck with several containers. |
||
» III. Products Description:
1.Chassis Configuration:
♦ Equipped with heavy-duty 6000kg front axle and 13000kg rear axle, reinforced frame structure ensures stability during skip loading and transport operations.
♦ Air brake system with tropical climate radiator provides reliable stopping performance under continuous working cycles in demanding environments.
2.Powertrain System
♦ YC6J220-33 inline 6-cylinder turbocharged diesel engine delivers 220HP peak power, meeting Euro 3 emission standards with 6494ml displacement.
♦ FAST 8JS85TE 8-speed transmission with 4x4 all-wheel drive system and 4600mm wheelbase chassis configuration provides stable power transmission for skip truck operations under varied terrain conditions.
3.Hydraulic Control System:
♦ Precise and efficient hydraulic system: Chusheng brand hydraulic system supports synchronous operation of stabilizing jack and lifting arm, with low noise, fast response and improved operator comfort.
♦ Cab configuration: equipped with air conditioning, adjustable seat, 24V power supply and multimedia system to improve the driving experience of long-term operation.
4.Tank Body:
♦ Subframe-free structure: By eliminating the dedicated subframe, the dead weight is reduced, the payload is increased, and the transportation economy is significantly optimized.
♦ High-strength material: The garbage hopper is made of Q235 carbon steel (optional stainless steel), which takes into account both lightweight and corrosion resistance and extends the service life.
» IV. All Drive Skip Loader Truck Operating Principle:
♦ Off Road System: Equipped with 4x4 all drive and a reinforced chassis, it boasts exceptional passability and stability on steep slopes, muddy roads, potholes, and other unpaved surfaces in mining areas, reducing the risk of getting stuck and ensuring continuous transportation.
♦ Environmental Adaptability: The vehicle body structure and key components (such as the hydraulic system and suspension) are reinforced for mining environments with dust, high and low temperatures, and corrosion, ensuring reliable operation under extreme conditions.
Product Details
» V. HOWO Swing Arm Truck Solutions:
HOWO All Drive Skip Garbage Truck For Mining Sites
» VI. HOWO 8CBM Skip Loader Truck Exterior Views:
Front Right View of HOWO 4x4 Drive Skip Refuse Truck For Nigeria
Front Left View of HOWO 4x4 Drive Skip Loader Swing Arm Truck
Left View of HOWO 8CBM Truck With Loader

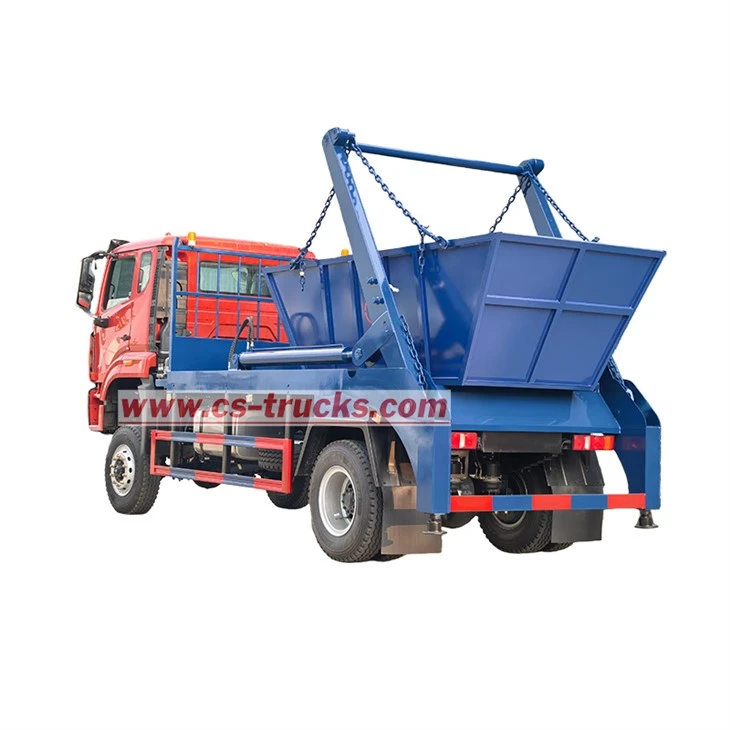

Rear Right View of HOWO 4X4 Skip Loader For Sale
Rear Left View of HOWO 4X4 Swing Arm Garbage Truck
Front View of HOWO 4X4 8CBM Skip Loader Truck
Rear View of HOWO All Drive Skip Loader Truck
» VII. Practical Operation Demonstration
♦ Swing-Arm Self-Loading and Unloading Design: Utilizing a hydraulic swing-arm mechanism, it can autonomously grab, lift, dump, and reset standard mining waste containers without the need for additional lifting equipment, significantly reducing labor and time costs.
♦ High Turnover Capacity: Suitable for waste collection at dispersed mining sites, enabling a closed-loop operation of "collection-transportation-dumping" with a single machine, improving the efficiency of solid waste treatment in mining areas and reducing transportation interruption time.
Products--100% china HOWO factory trucks!
Shipping --100% fast, Convenience, Efficient!
Guarantee--7days + 24hours Safetify Service!
1. HOWO 4x4 Skip Refuse Truck Chassis: Configured with WD615.47 diesel engine rated at 370HP + SINOTRUK HOWO HW19710 manual 10-speed transmission system, optimized for operational efficiency in municipal service applications.
2. Container Structure:Manufactured from Q235 high-strength carbon steel, featuring 5mm wall thickness construction with internal reinforcement baffles, finished with specialized anti-corrosion protective coating.
3. Lifting System: Custom-configured high-capacity water pump assembly designed for municipal operations, engineered to achieve effective water distribution and pressurized spraying performance.
4. Operational Equipment: Standardized front and rear spraying configurations, with optional auxiliary systems including extended-range spray nozzles, hose management reels, and precision flow control mechanisms for enhanced operational versatility.
