The HOWO 4x4 tipper garbage truck is equipped with a 220 horsepower Yuchai engine, offering powerful performance and excellent off road capabilities, making it ideal for muddy terrains such as urban areas, mountainous regions, and construction sites. Its 8CBM hopper efficiently collects garbage, while the four wheel drive system ensures stability on steep slopes and under heavy loads. This makes it a highly adaptable solution for transporting rural sanitation and construction waste under various complex conditions.
The HOWO 8CBM skip bin loader truck is built on a 4×4 all wheel drive chassis, powered by a 220HP Yuchai turbocharged diesel engine mated to a Fast 8-speed manual transmission. The body is equipped with a fully automatic hydraulic swing arm lifting system, complemented by an 8CBM thickened carbon steel waste container. Thanks to its rugged four wheel drive configuration, the vehicle delivers exceptional off road mobility, ensuring reliable operation in demanding terrain and remote disposal sites.
The hydraulic swing arm system enables fully automatic loading, transport, and unloading of the waste container. Its sealed design effectively prevents spillage and leakage during transit, while the large capacity fuel tank ensures ample range for long-distance collection routes. Overall, the vehicle achieves an optimal balance of power, off road agility, and loading efficiency that make it a dependable solution for demanding waste management operations.
Product Features
✔️Powerful Performance: Equipped with a 220HP Yuchai engine, providing ample power to easily handle complex road conditions.
✔️All Terrain Capability: 4x4 all wheel drive ensures stable passage on muddy mountain roads and steep construction site slopes.
✔️Large Capacity Loading: 8CBM garbage bin ensures high single collection efficiency and reduces the frequency of trips.
✔️Multiple Bins per Vehicle: Can be used with multiple garbage bins in a cyclical operation, maximizing vehicle utilization and reducing operating costs.
Technical parameters
Tahiti HOWO 4X4 8Ton Skip Loaders Factory
Overall
Vehicle Model
CSC5180BLC
Drive Type
4×4
Gross Vehicle Weight
18500 kg
Curb Weight
13000 kg
Maximum Speed
105 km/h
Overall Dimensions L*W*H
7900×2500×3350 mm
Engine
Engine Model
YC6J220-33
Fuel Type
Diesel
Power
220HP/162KW
Emission Standard
Euro 3
Displacement
6494 ml
Engine Type
6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling
Chassis
Chassis Brand
SINOTRUK
Tire No.
6+1
Tire Specification
10.00R20
Wheelbase
4600 mm
Gear Box
FAST 8JS85TE,8-speed forwards and 2 reverse
Front Axle
6000 kg
Rear Axle
13000 kg
Steering Wheel
Left hand drive
Brake
Air brake
Fuel System
Fuel Tank Capacity
300 L
Material
Steel fuel tank
Filler Cap
Lockable
Fuel Gauge
Pointer dial type
Fuel Filter
With water separator device
Audio System
FM/AM radio, CD/USB player
Superstructure
Tank Capacity
8CBM
Material
Carbon steel
Body Floor
3 mm
Side Plate
3 mm
Product Description
01
Powertrain and chassis
✔️Engine: Equipped with a Yuchai 220HP inline six-cylinder turbocharged diesel engine, meeting Euro 3 emission standards, offering strong power, economy, and durability.
✔️Transmission: Fast 8JS85TE manual transmission, 8 forward gears + 2 reverse gears, providing smooth shifting and adaptability to various road conditions.
✔️Chassis: HOWO 4×4 all-wheel drive chassis, with a 4600 mm wheelbase, moderate size, strong load-bearing capacity, and excellent off road capability.
02
swing arm hydraulic system
✔️Fully Automatic Hydraulic System: A single operator can complete lifting and unloading with the push of a button, making operation effortless.
✔️Safety Support: Lifting chains + rear outriggers ensure the machine does not tilt forward or tip over when lifting a full container.
✔️Wear Resistant Piping: Corrosion resistant hydraulic lines prevent oil leaks even during high intensity operations.
03
trash can body
✔️Reinforced Body: Thick walled carbon steel trash bins designed to withstand impacts and accommodate both household and construction waste.
✔️Sealed and Eco-Friendly: Closed system transport prevents waste spillage and odor leakage.
✔️Multi-Bin Cycle: The bins are detachable, allowing a single truck to be equipped with multiple bins, thereby reducing the number of trips and improving efficiency.
Driver's Cab of HOWO skip loader truck
This vehicle is equipped with a forward tilting, all steel welded single row cab, rear mechanical suspension, and adjustable seats. It features a two door design with seating for two, including a sleeper berth and seat belts. Powered by a 24V electrical system, it comes standard with air conditioning and a radio/CD/USB audio video system, ensuring a comfortable ride for both driver and passengers during long-distance waste collection.
Driver's Cab
Gear Box
Control Box
Product Details
Hydraulic Oil Tank
Multi-way Valve
Fuel Tank
Spare Tire
Rear Drive Axle
Side Reflective Contour Light
Application Scenarios
This HOWO 8CBM arm swing refuse ruck boasts flexible loading and outstanding off road performance, capable of handling various solid waste collection and transportation conditions. It covers diverse operating environments in municipal, engineering, factory, and overseas settings, with a wide range of applications:
📌Urban and Rural Sanitation: Collection of domestic waste in villages and towns, and transfer at suburban transfer stations. ⚙️Engineering and Mining Areas: Collection of construction waste and mine slag.
💪Industrial Parks: Fixed point circular transfer of production waste and daily garbage from factories.
🌿Overseas Projects: Sanitation in mountainous villages and towns, and scenic areas.
Exterior Views

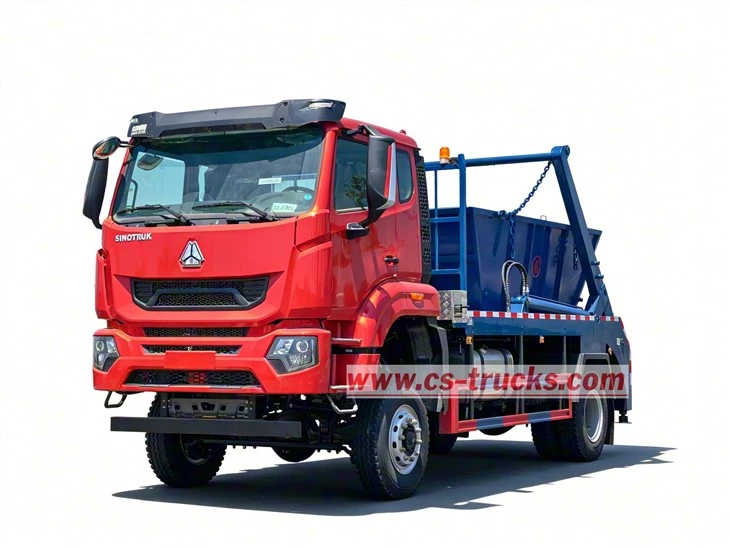

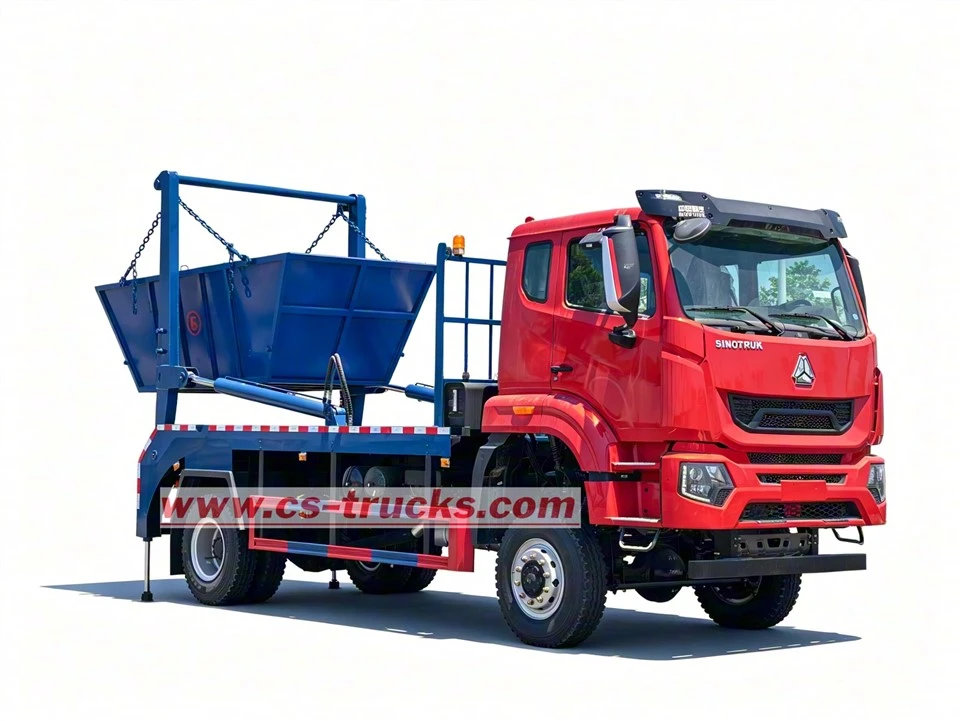

Front Right View of HOWO 220HP Skip Bin Loader Truck for Sale

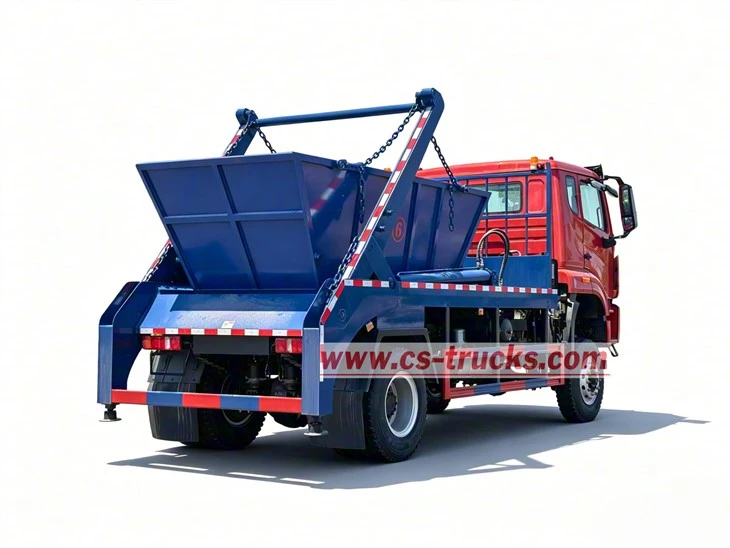

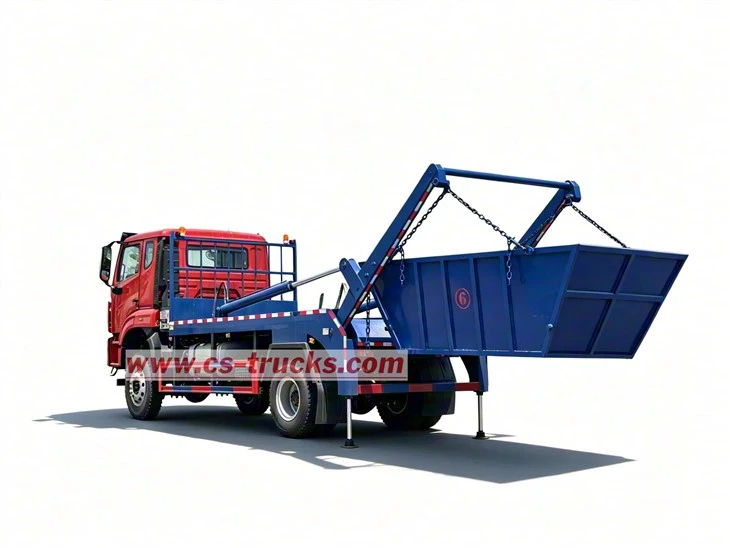

Rear Left View of HOWO 8CBM Arm Swing Refuse Truck
Rear Right View of HOWO 8CBM Skip Loader Truck

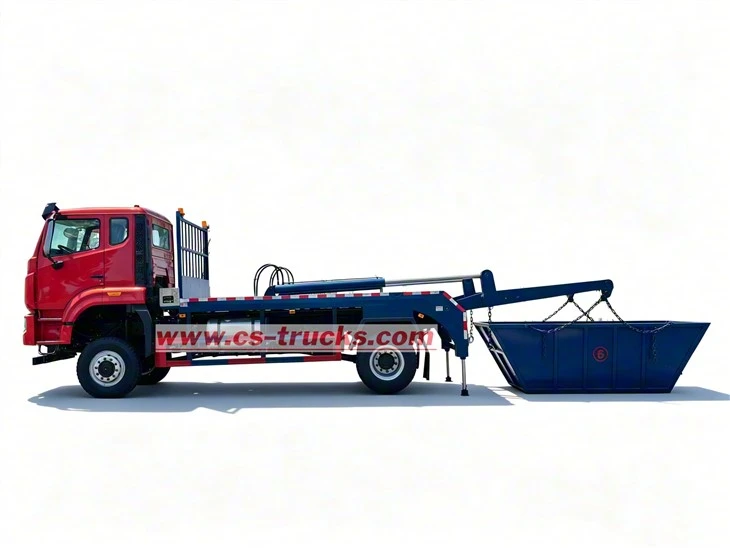

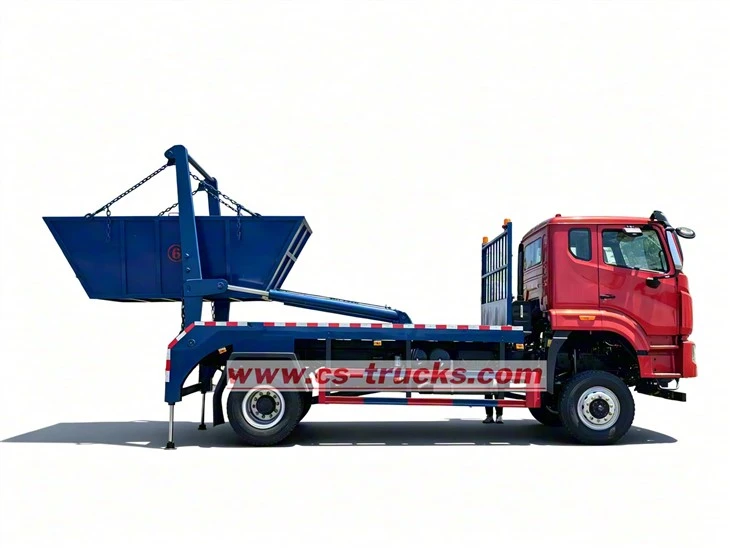

Right View of HOWO All Drive Skip Garbage Truck

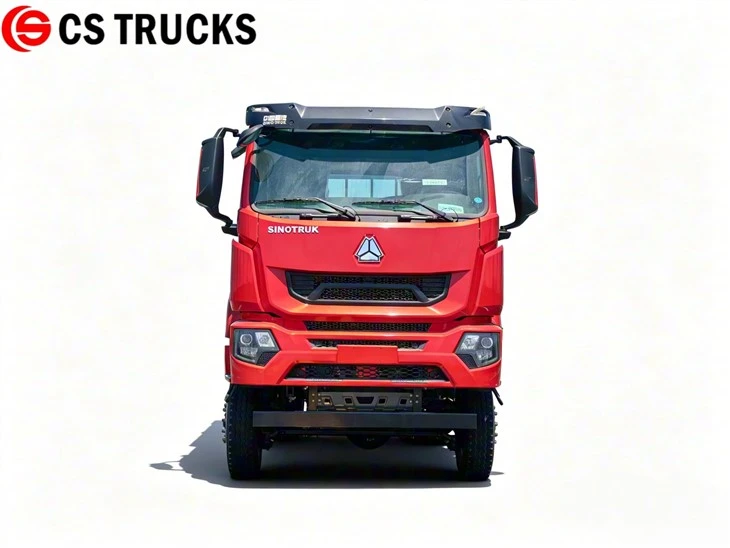

Front View of HOWO Light Duty Skip Loader Garbage Truck

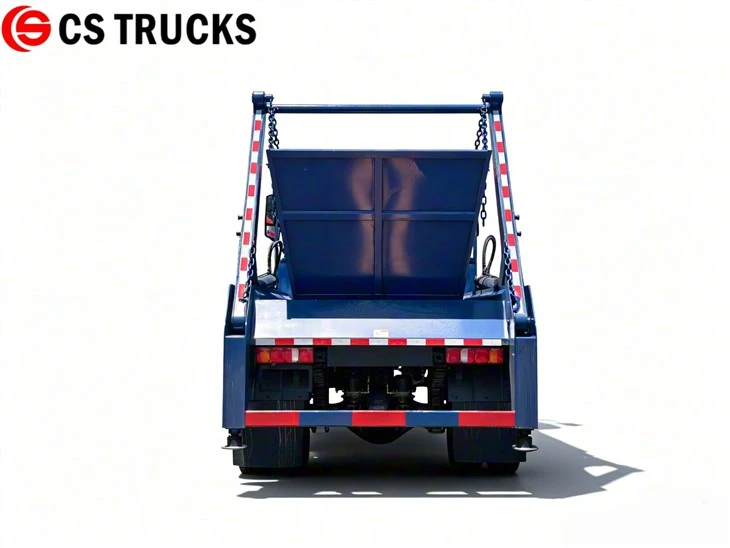

Rear View of HOWO Off Road Skip Loader Truck
Advantages of swing-arm vs. hook-arm garbage trucks
Comparison Dimensions
Skip Loader Garbage Truck
Hook Lift Garbage Truck
Operating Methods
The double swing arm and chain connection requires manual chain attachment, which is slow.
Single hook arm rigid connection, one-button operation by the driver, fast loading and unloading (approximately 80-120s).
Sealing
Most of them have an open design, making them prone to spillage and odor during transportation.
The fully sealed enclosure prevents spillage and odors, making it more environmentally friendly.
Cost and Site
Ground-mounted layouts are cheaper, while pit-mounted layouts require higher civil engineering costs.
It only requires paved surfaces, has low construction costs, and allows for flexible layout.
Space and Volume
The vehicle is wide, but has poor maneuverability in narrow sections of road; its effective loading volume is relatively small.
Multiple size options, compact structure, and larger effective loading volume.
In short:
Swing Arm Type Advantages: Low initial investment when installed on the ground, suitable for scenarios with limited budgets and low environmental requirements.
Hook Arm Type Advantages: Higher efficiency, better sealing, and larger capacity; it is the current mainstream trend in the market.
