5000 Gallons Industrial Super Sucker Vacuum Truck HOWO
HOWO 6×4 Drive Truck Vacuum Cleaner
This HOWO 5000 Gallons septic tank vacuum truck is equipped with a WD615.47 engine, producing 371 horsepower, and features a 6×4 drive configuration, offering strong power and excellent off road capability. The large 20CBM tank effectively improves single operation efficiency and reduces the frequency of trips. The vehicle balances load capacity and maneuverability, specifically designed for heavy duty conditions such as sewer dredging and construction site mud extraction, meeting the needs of high intensity, continuous operations.
Model: CSC5250GXW
Capacity: 20CBM
Drive: 6×4
Engine Power: 371HP
Engine Type: WD615.47
Send Inquiry
Description
Product Introduction
This HOWO 371HP septic tank delivery truck for sale is equipped with a turbocharged intercooled engine and a reinforced 6×4 chassis, providing ample power and excellent adaptability to various road conditions. Its large 20CBM tank, combined with a 2BE-204S vacuum pump, achieves a pumping speed of 20.5m³/min and a working pressure of 8000Pa, ensuring rapid suction and efficient loading and unloading.
The truck features a compact structure and reliable braking, making it suitable for heavy duty suction operations such as municipal dredging, factory wastewater treatment, and mining mud removal. It is a reliable piece of equipment for large scale sanitation and emergency rescue operations.
01
High Quality
02
Advanced Equipment
03
Professional Team
04
Custom Service
HOWO vacuum pump tanker Key Features
Manufacture: CS TRUCKS
Features:
💠Large Capacity Operation: 20CBM tank capacity allows for a large single loading volume, significantly reducing the number of repositioning trips and making it suitable for long-distance or continuous operations.
💠Powerful Powertrain: Equipped with a WD615.47 engine and 6×4 drive system, it provides ample power reserves, strong starting under heavy loads, and excellent handling in complex road conditions.
💠Dedicated Chassis Load Bearing: Utilizes a 6×4 dual rear axle load bearing structure, resulting in a low center of gravity and stable support, ensuring driving safety under full load and maximizing tank lifespan.
💠High Adaptability: The power and drive combination is suitable for both highway transportation and unpaved road operations, making it applicable to various harsh conditions such as municipal sewage disposal, construction site mud, and factory wastewater treatment.
HOWO septic pumper Technical parameters
5000 Gallons Industrial Super Sucker Vacuum Truck HOWO
Vehicle Model
CSC5250GXW
Drive Type
6×4
Gross Vehicle Weight
25000 Kg
Capacity
20CBM
Maximum Speed
100 km/h
Overall Dimensions
7000×1950×3400 mm
Engine
Engine Model
WD615.47
Fuel Type
Diesel
Power
371HP/273kW
Emission Standard
Euro 2
Displacement
9726 ml
Engine Type
Inline 6 cylinder, water cooled, four stroke, turbocharged + intercooled
Chassis
Chassis Brand
SINOTRUK
Tire No.
10+1
Tire Specification
12.00R20
Wheelbase (mm)
4650+1350 mm
Gear Box
Manual 10F+2R
Steering Wheel
RHD
Brake
Air
Vacuum Pump
Model
2BE-204S
Pressure
8000pa
Pumping Rate
20.5 m³/min
Rotational Speed
980 r/min
Performance and advantages
01 Powerful Engine and Chassis
➤High Power Engine: Equipped with a WD615.47 turbocharged intercooled diesel engine, delivering 371HP of power, providing strong acceleration and hill climbing capabilities under heavy loads.
➤Heavy Duty Chassis: A Sinotruk 6×4 dual rear axle chassis with a gross vehicle weight of 25 tons, suitable for high load operations.
➤Long Wheelbase Design: 4650+1350mm wheelbase ensures good driving stability and a more rational tank layout.
02 Large Capacity Tank
➤ Large Capacity Tank: The vehicle is equipped with a large capacity 20CBM tank, which allows for a large single loading capacity, reduces the number of unloading trips, and improves efficiency.
➤ Compact Vehicle Size: With dimensions of 7000×1950×3400mm, it ensures both volume and accessibility in urban areas.
➤ Sealed Transport: The fully sealed pressure tank structure ensures no sewage leakage or odor leakage during transport, meeting municipal and industrial environmental protection standards and avoiding secondary pollution along the way.
03 Vacuum Suction System
➤ High Flow Rate Suction: The 2BE-204S vacuum pump achieves a pumping speed of up to 20.5 m³/min, rapidly filling the tank.
➤ High Vacuum: Pressure up to 8000 Pa, capable of sucking up deep sludge and high viscosity media.
➤ Continuous Operation Capability: Pump speed of 980 r/min, matched with the engine's economical speed, optimizing energy consumption.
working principle of a vacuum pump
A vacuum pump uses mechanical motion to periodically change the volume of a sealed cavity, drawing in air when it expands and expelling air when it contracts, continuously extracting gas from the tank to create negative pressure, thereby achieving the suction operation.
Features of Vacuum Pump:
Advantages: Simple structure and high reliability; low pump body temperature due to the cooling effect of the water ring, suitable for pumping flammable, explosive, or dusty gases; smooth operation and low noise.
Disadvantages: Requires continuous water supply; the generated wastewater may contain pollutants that need to be treated; relatively low ultimate vacuum; and pumping efficiency is greatly affected by water temperature.
Product Details
Multi-way Valve
Hydraulic Lifting Cylinder
Suction Port
Liquid Level Observation Window
Hydraulic Oil Tank
Tire
Application scenarios
HOWO 6×4 Drive Truck Vacuum Cleaner for Sewer Cleaning
HOWO 5000 Gallons Septic Tank Vacuum Truck for Factory Wastewater Treatment
HOWO 371HP Sewage Tanker Services Near Me for River Silt Removal
Exterior Views

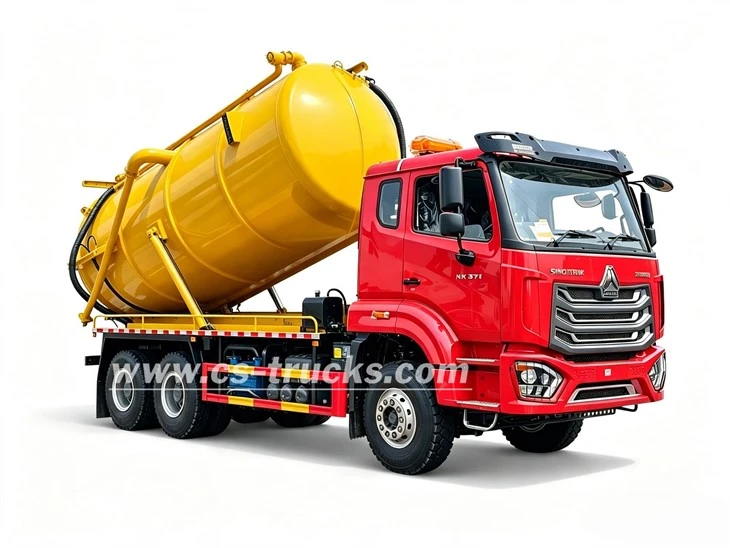

Front Right View of HOWO 371HP Septic Tank Delivery Truck for Sale

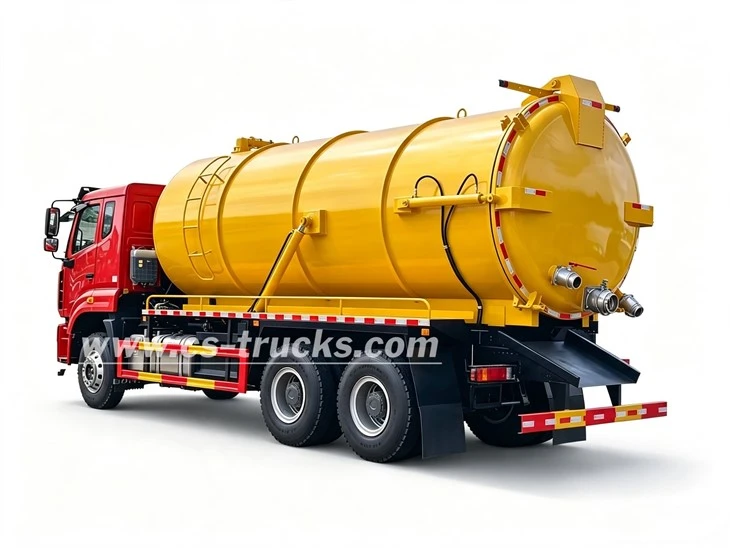

Rear Left View of HOWO 20CBM Septic Vacuum Tanks for Sale

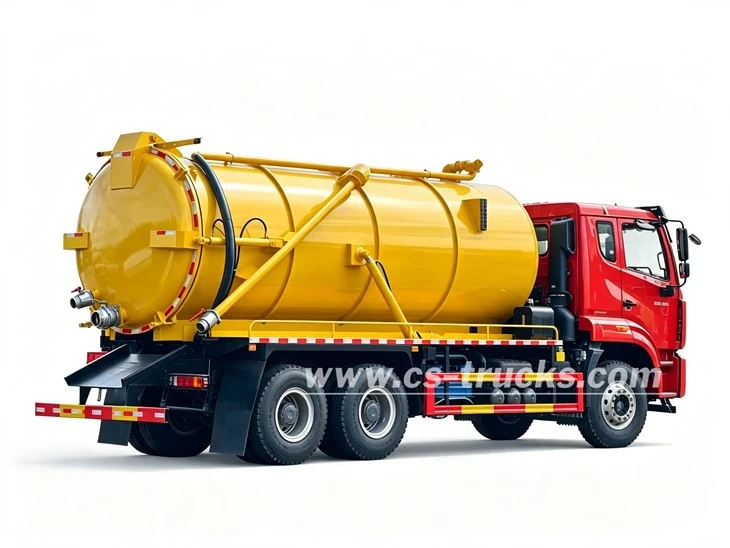

Rear Right View of HOWO 5000 Gallons Sewage Vacuum Pump Truck

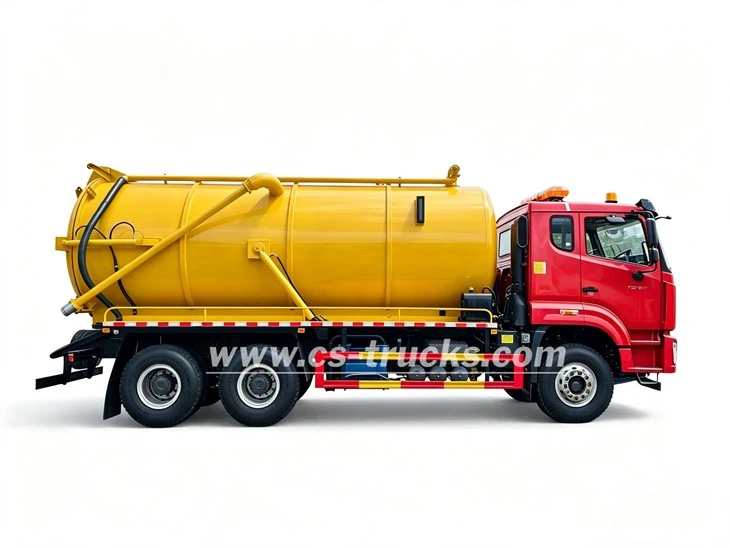

Right View of HOWO 6×4 Drive Septic Tank Truck Price

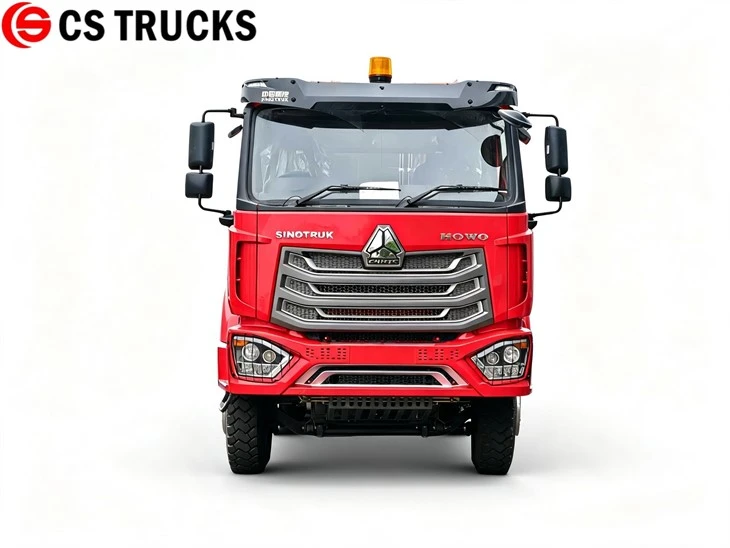

Front View of HOWO 5000 Gallons Sewage Vacuum Pump Truck

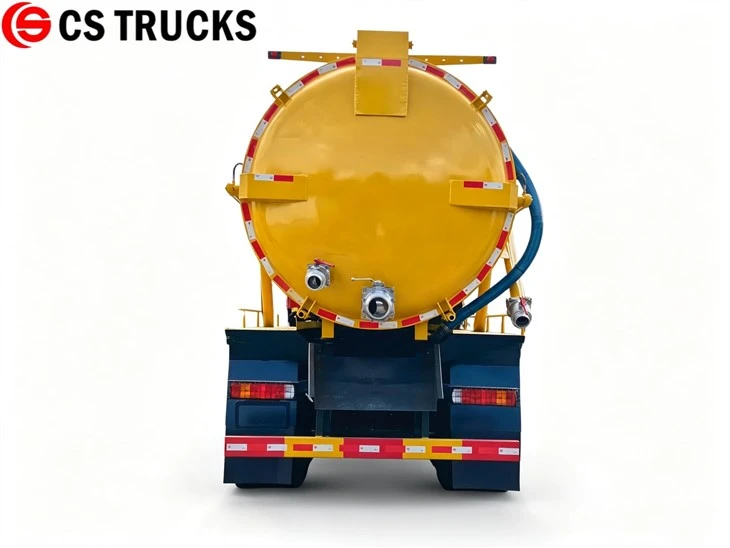

Rear View of HOWO 20CBM Septic Truck for Sale Near Me
product comparison
Comparison Dimensions
Our Vehicle
Common 4×2 Sewage truck
Other brands in the same class
Power
371HP, dual rear axles, stable under heavy loads, and highly adaptable to various road conditions
Low horsepower, single axle, prone to overloading, weak load bearing capacity
Insufficient power reserves and reduced load bearing capacity
Tank
20m³ thickened anti-corrosion tank, self-unloading cleanly with no residue
Small volume and thin walls make it easy for contaminants to adhere during unloading
The volume was falsely advertised, and the anti-corrosion process was rudimentary
suction performance
High flow water ring pump, strong suction, continuous operation, and resistant to silt
Small pumps have weak suction, are susceptible to impurities, and cannot operate for extended periods
The pump body is too small, resulting in average suction efficiency
Efficiency Cost
Large single load capacity, few round trips, low failure rate, and high residual value
High frequency of operation, not suitable for large scale project
Consumable repair costs are relatively high
Export compliance
High emissions, can be converted to right hand drive, universal aftermarket service
Poor compatibility with export markets, lacks right hand drive configuration
Customization costs are high, and overseas maintenance is difficult
1.we can do the designs accordingto the your requirement .
2.we can offer you the high quality & reasionalble price.
3.we can offer your a reliable after-sale service.
4.we have skilled professinal design team.
5.promptly delivery. any order is welcome.
We CS also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
