ISUZU MEC6500 septic tank pumper (also called sewage suction truck, sludge suction vehicle, or vacuum sewage truck) is designed for waste collection and disposal tasks. Jobs include emptying septic tanks, cleaning municipal sewer lines, or removing sludge from industrial facilities.
With a 10000L carbon steel tank and 205 HP Euro 6 engine, this ISUZU vacuum pumper truck handles narrow city streets and rural unpaved roads alike. It delivers reliable service for septic service companies, municipal sanitation departments, and industrial waste contractors.
*ISUZU 205HP 10000L 4x2 Vacuum Sewage Suction Truck*
-----------------------------------------------------------------
CS Factory is a professional manufacturer in the truck area.
Guarantee all products are brand new and High-Quality.
» I. Product Definition and Introduction:
Manufacturer: CS TRUCKS
Features:
▶ Chassis: ISUZU 4×2 chassis with 205 HP 4HK1-TCG60 Euro 6 diesel engine
▶ Vacuum Tank: 10000L capacity, 6mm carbon steel, cylindrical shape for heavy duty waste hauling
▶ Vacuum Pump: Battioni Pagani MEC 6500, 7000 L/min max flow, -0.94 bar ultimate vacuum, PTO-driven
▶ Suction Hose: 10m DN100 hose with quick-connect coupling for septic tank access
▶ Operation Scope: eptic tank cleaning, municipal sewage extraction, industrial sludge collection, grease trap pumping
» II. Product Parameters for ISUZU 10 CBM Sludge Removal Suction Truck:
| Product Name | ISUZU MEC6500 Septic Tank Pumper Trucks | ||
| Overall | Vehicle Model | CS5100XW | |
| Drive Type | 4*2 | ||
| Gross Vehicle Weight | 10550 kg | ||
| Curb Weight | 3400 kg | ||
| Front Axle | 4 t | ||
| Rear Axle | 7 t | ||
| Maximum Speed | 90 km/h | ||
| Overall Dimensions L*W*H(mm) | 5995*2105*800 mm | ||
| Engine | Engine Model | 4HK1-TCG60 | |
| Fuel Type | Diesel | ||
| Power | 205 HP(151KW) | ||
| Emission Standard | Euro 6 | ||
| Displacement | 5193 ml | ||
| Engine Type | 4 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | ISUZU MLD 6-speed transmission | |
| Tire No. | 6+1 | ||
| Tire Specification | 235/75R17.5 | ||
| Wheelbase (mm) | 4175 mm | ||
| Gear Box | Isuzu MLD 6-speed transmission | ||
| Steering Wheel | Left hand drive | ||
| Brake | Air brake | ||
| Radiator | Suitable for tropical climate | ||
| Clutch | Reinforced diaphragm clutch | ||
| Cab | Single cabin with sleeper, with Air conditioner. | ||
| Vacuum Tank | Volume (L) | 10000 liters | |
| Tank shape | Cylindrical | ||
| Tank Material | 6mm thick carbon steel | ||
| Suction Hose | 10 meters, DN100 | ||
| Discharge valve | DN100 | ||
| Vacuum Pump | Brand | Battioni Pagani | |
| Model | MEC 6500 P LF DX D60 STD | ||
| Lifting angle | 45° | ||
» III. Product Description:
ISUZU MEC6500 Vacuum Spetic Tanker Chassis
▶ Cabin：ISUZU 4×2 standard cab, single cabin with sleeper, A/C and power steering
▶ Engine：4HK1-TCG60, 205 HP, inline 4-cylinder, 5.193 L displacement, Euro VI
▶Transmission: ISUZU MLD 6-speed, 6 forward and 1 reverse
▶ Front Axle Load：4 ton
▶ Rear Axle Load：7 ton
▶ Tires: 235/75R17.5, 6 wheels plus 1 spare
▶Wheelbase：4175 mm
ISUZU 10 CBM Vacuum Tanker – Tank & Pump System
▶ Vacuum Tank: 10000L capacity, 6mm carbon steel, cylindrical shape for septic and sewage waste collection.
▶ Vacuum Pump: Battioni Pagani MEC 6500, 7000 L/min max flow, -0.94 bar ultimate vacuum, PTO-driven for reliable suction.
▶ Suction Hose: 10m DN100 hose with quick-connect coupling for reaching septic tanks and manholes.
▶ Hydraulic Lifting: 45° tank tilt angle with smooth and controlled hydraulic operation for efficient dumping.
» IV. ISUZU Septic Vacuum Pump Truck Operating Principle :
Product Details
Isuzu septic truck clean water flushing tank with drain tap
Isuzu septic truck DN100 discharge vacuum ball valve
Isuzu septic pumper wear-resistant sewage suction hose
Isuzu sewage suction truck rear sludge discharge outlet pipe
Isuzu waste fluid suction truck cyclone solid-liquid separator
Isuzu septic hydraulic oil tank with liquid level gauge
» Ⅴ. ISUZU 4x2 205HP Fecal Sludge Suction Lorry Solutions:
ISUZU 205HP 10000L 4x2 Residential Septic System Service Pumper
ISUZU 205HP 10000L 4x2 Sewage Suction Truck for Municipal Streets
ISUZU 205HP 10000L 4x2 Industrial Plant Sludge Disposal Truck
ISUZU 205HP 10000L 4x2 Euro 6 Septic Pumper for Construction Sites

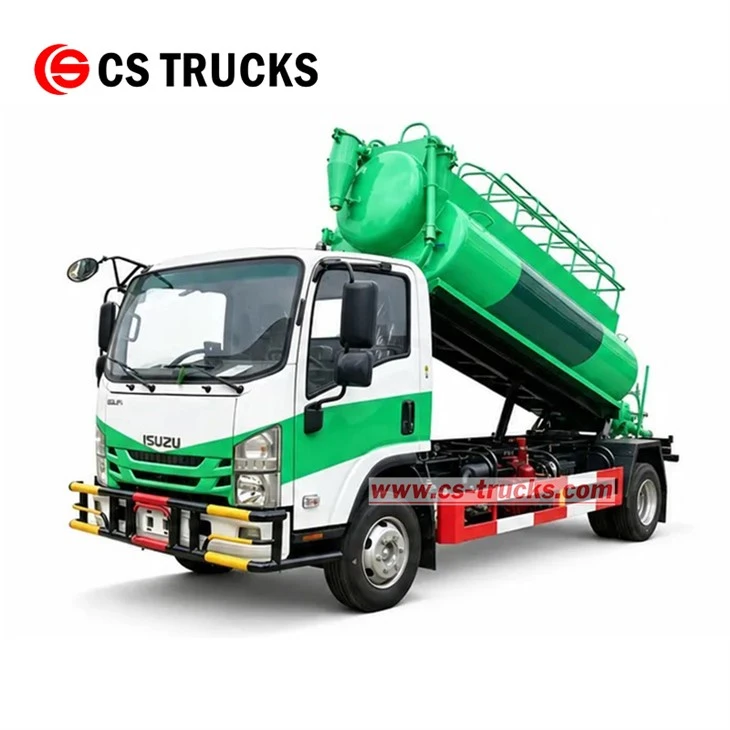

Ⅵ. isuzu 205hp 10 CBM Septic Truck Hydraulic Tilt Operation
Ⅶ. Isuzu 4X2 10000L Septic Tanker Views:

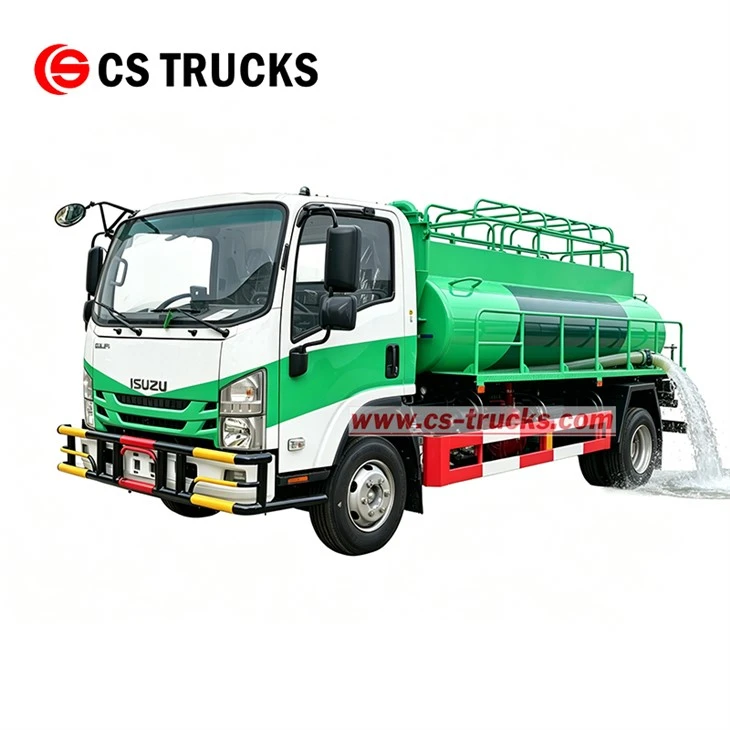

Front right view of Isuzu 205HP 10000L 4x2 waste vacuum tanker

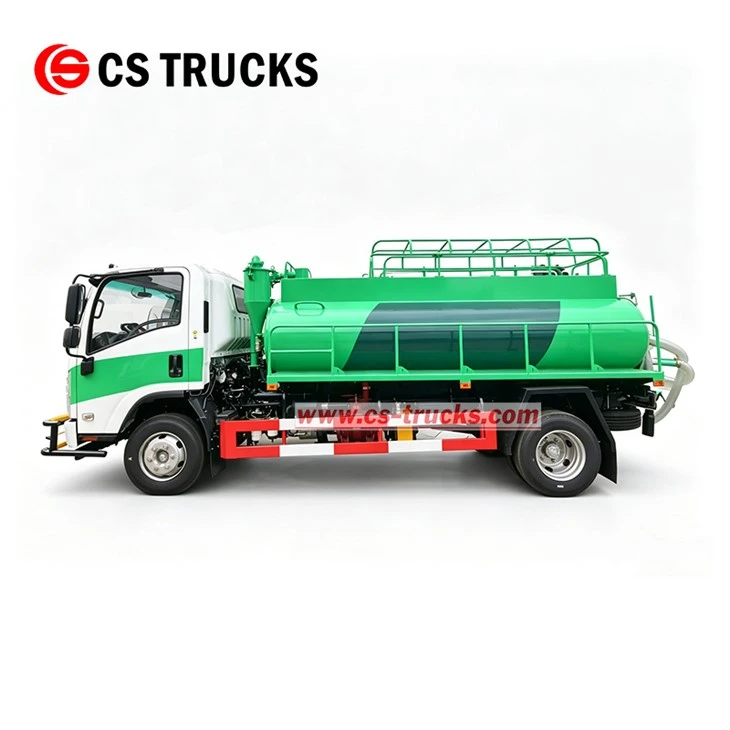

Right view of Isuzu 205HP 10000L 4x2 sludge removal suction truck

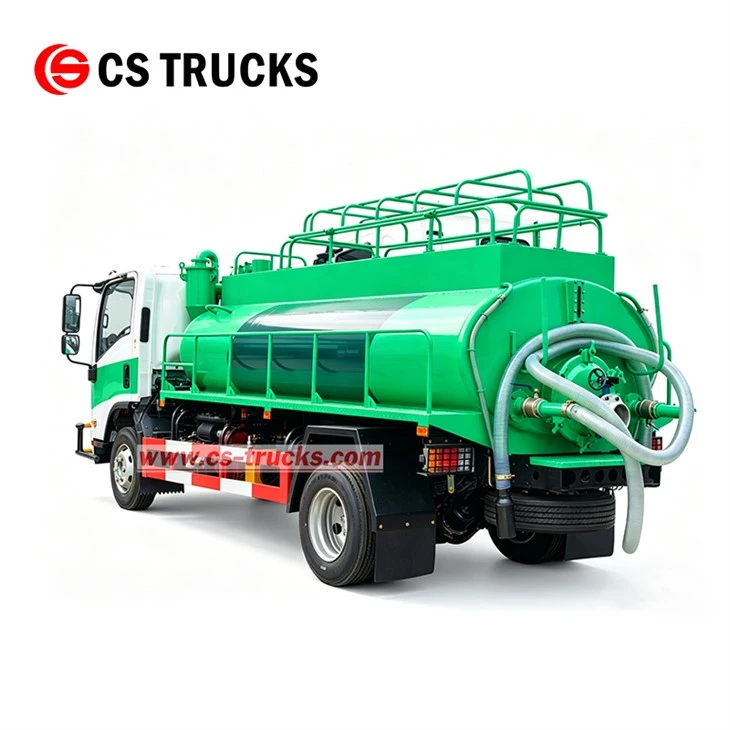

Rear Right view of Isuzu 205HP 10000L 4x2 sewage collection tanker

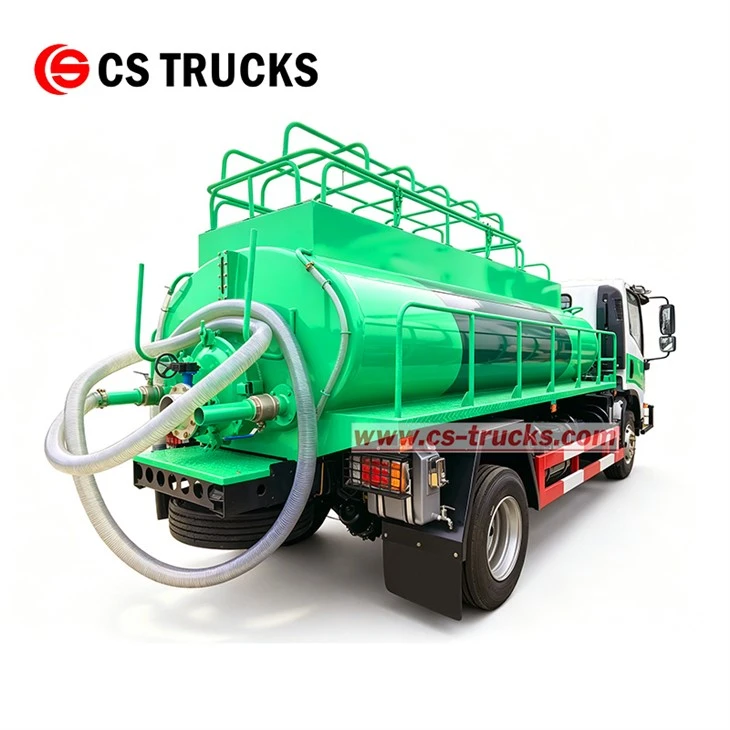

Rear left view of Isuzu 205HP 10000L 4x2 municipal cleaning vacuum truck

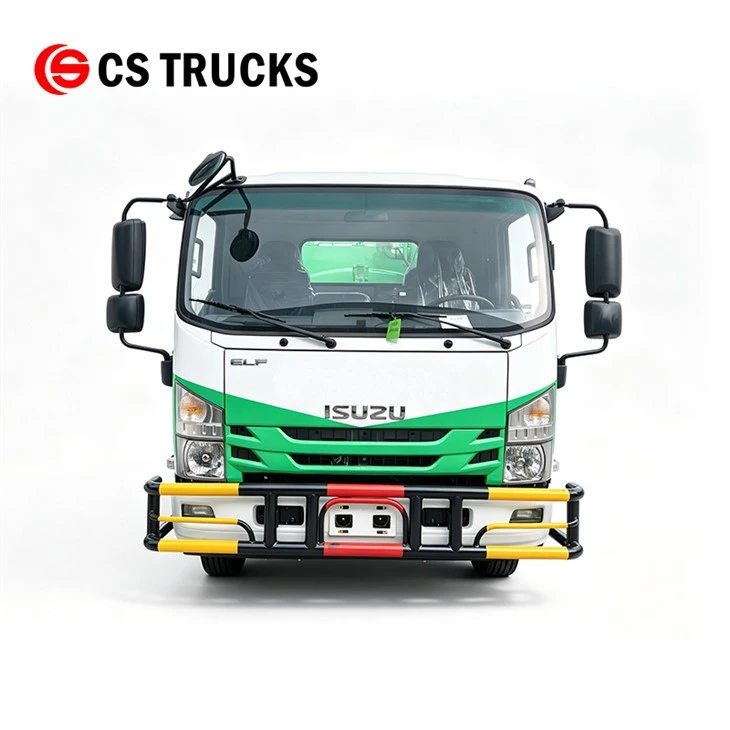

Front view of Isuzu 205HP 10000L 4x2 Fecal Sludge Suction Lorry

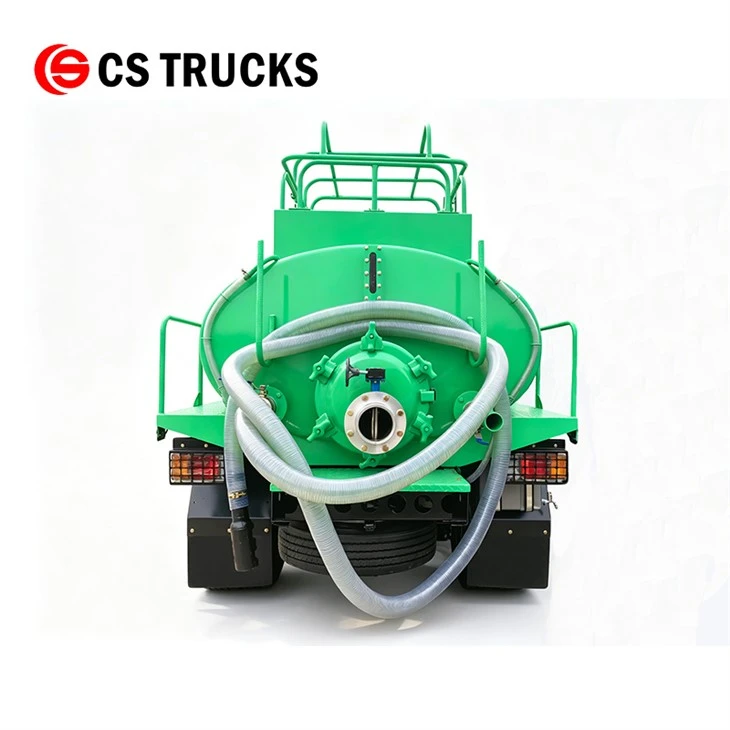

Rear view of Isuzu with battioni pagani 205HP 10000L 4x2 sewage suction truck
FAQ
Lorem ipsum dolor sit amet consectetur adipisicing elit.
Q:1. What is the capacity of the Isuzu septic tank vacuum truck?
A:The vacuum tank has a capacity of 10,000 liters (10 CBM). It is constructed from 6mm thick carbon steel with a cylindrical shape for durability and efficient waste collection.
Q:2. What type of vacuum pump does this suction sucker truck use?
A:This truck is equipped with an Italian Battioni Pagani MEC 6500 vacuum pump. It delivers a maximum flow rate of 7,000 L/min with an ultimate vacuum of -0.94 bar, ensuring fast and powerful suction for septic and sewage waste.
Q:3. How does the sewage suction truck discharge waste?
A:The tank features a 45° hydraulic tipping system. With a simple hydraulic operation, the tank lifts and tilts to discharge waste completely through the DN100 discharge valve, leaving no residue inside.
Q:4. What is the suction hose length and diameter on this vacuum septic pumper truck?
A:The truck comes with a 10-meter DN100 suction hose. The quick-connect coupling allows easy attachment to septic tanks, manholes, and industrial waste collection points.
Q:5. Is the septic tank cleaning truck suitable for narrow streets and rural areas?
A:Yes. The ISUZU septic tank cleaning truck with a 4175 mm wheelbase and 235/75R17.5 tires offers good maneuverability. It handles both narrow city streets and unpaved rural roads with ease.
Q:6. What engine and emission standard does this cesspit emptier truck meet?
A:This cesspit emptier truck is powered by a 205 HP 4HK1-TCG60 diesel engine, meeting Euro 6 emission standards. It delivers reliable performance for daily operations while keeping emissions low.
Products - 100% China Isuzu factory trucks!
Shipping - 100% fast, Convenient, Efficient!
Guarantee - 7 days + 24 hours Safety Service!
1. ISUZU MEC6500 Vacuum Tanker Chassis: Built on ISUZU 4×2 platform with 4HK1-TCG60 diesel engine delivering 205 HP + ISUZU MLD 6-speed manual transmission, designed for septic tank cleaning, municipal sewage extraction, and industrial sludge collection across urban and rural areas.
2. High-Strength Vacuum Tank: Manufactured from 6mm carbon steel, featuring 10000L capacity with cylindrical construction, equipped with DN100 suction hose (10m) and DN100 discharge valve, finished with durable coating for long service life.
3. Battioni Pagani Vacuum Pump & Hydraulic System: Equipped with MEC 6500 vacuum pump (7000 L/min max flow, -0.94 bar ultimate vacuum), PTO-driven, plus 45° hydraulic tank tipping for complete waste evacuation.
4. Safety & Urban Features: 4×2 drive with 235/75R17.5 tires, air brake system, 4175 mm wheelbase for stable handling. Cab with A/C, power steering, and sleeper, plus reinforced clutch and tropical climate radiator for demanding daily operations.
