The HOWO 400HP septic tank lorry is equipped with a 400HP WP12.400E201 engine, providing ample power and reliable load bearing capacity. It is primarily designed for municipal pipeline dredging, septic tank cleaning, and sewage and sludge suction from factories, suitable for various scenarios including urban and rural sanitation, environmental engineering, and property maintenance. The large 20CBM tank enhances single trip efficiency, making it a primary vehicle for efficient sewage discharge and transportation in large and medium sized sanitation projects.
Model: CSC5250GXW
Capacity: 20 CBM
Drive: 6×4
Engine Power: 400 HP
Engine Type: WP12.400E201
Send Inquiry
Description
This HOWO 6X4 vacuum pump for septic truck is based on a Sinotruk 6×4 special chassis and is equipped with a high power diesel engine, providing ample power. The tank is made of Q235 carbon steel, and its large capacity, sealed compartment is used to collect sewage, sludge, and industrial wastewater.
This vehicle utilizes a vacuum negative pressure system for suction operations, offering excellent suction depth and long distance suction performance. Its tank can be lifted for selfunloading, integrating sewage suction, storage, and unloading into one unit while ensuring sealed operation to prevent leakage, making it widely used for municipal dredging and factory wastewater removal.
Product features
Manufacturer:CS TRUCKS
Main Features:
● Large Capacity Tank: 20CBM large capacity, large single loading volume, and high transfer efficiency ● Powerful Engine: 400 horsepower WP12 engine, strong starting performance under heavy load ● 6×4 Drive Chassis: Strong load bearing capacity, excellent performance on rough roads and construction sites ● Multi-scenario Adaptability: Can be used for septic tanks, municipal pipe networks, and factory sewage suction operations
Technical parameters of HOWO vactor sewage truck
Product Name
HOWO NX Truck Mounted Industrial Vacuum Loader
Vehicle Model
CSC5250GXW
Drive Type
6×4
Gross Vehicle Weight
25000kg
Capacity
20CBM
Maximum Speed
90km/h
Overall Dimensions
9500×2500×3750mm
Engine Model
WP12.400E201
Fuel Type
Diesel
Power
400HP(294kW)
Emission Standard
Euro II
Displacement
9726ml
Engine Type
6 cylinder in line with water cooling, turbo charging and inter cooling
Chassis Brand
SINOTRUK
Tire No.
10+1
Tire Specification
12R22.5
Wheelbase
4350+1350mm
Gear Box
HW19710, 10 Fronts & 2 Reverses
Steering Wheel
Left hand drive
Brake
Air brake
Material
Q235 standard carbon steel
Vacuum Level
≤-0.093MPa
Maximum Pumping Speed
15m³/min
Rotation Speed
960r/min
Vertical Suction Depth
≥9m
Horizontal Suction Distance
≥50m
Description of HOWO sewage pump truck
Chassis and Powertrain
✦ Heavy Duty Chassis: Utilizes a Sinotruk 6×4 dual axle chassis, paired with a 10 speed gearbox and pneumatic brakes, offering excellent load bearing capacity and strong stability in complex road conditions, meeting the requirements for long distance transport under full load.
✦ High Power Engine: The vehicle is equipped with a 400 horsepower water cooled turbocharged diesel engine, providing ample power to ensure stable driving speeds and provide stable power output for the vacuum pump.
Tank
✦ Tank Material: The tank is made of Q235 carbon steel, which is corrosion resistant and wear resistant, it can hold sewage, sludge, and industrial wastewater. The sealed structure prevents leakage during transportation.
✦ Large Capacity Design: This tank has a volume of 20CBM and is equipped with a hydraulic lifting structure. During unloading, the tank tilts and unloads itself, eliminating the need for manual cleaning and improving transfer efficiency.
Vacuum Suction System
✦ High Efficiency Suction: With the help of a pressure difference created by a vacuum negative pressure of up to 93%, the vehicle can quickly extract solid liquid mixtures such as sludge; at the same time, its vacuum pump works stably and has a good suction capacity for various viscous sludge.
✦ Operating Capacity: The vehicle's vertical suction lift exceeds 9 meters and its horizontal suction lift reaches 50 meters, with powerful suction capable of meeting the high efficiency pumping needs of deep wells and remote locations.
Product details
Tail End Self Flow Outlet
Lifting Cylinder
Hydraulic Oil Tank
Vacuum Anti Overflow Valve
Tire of Sewage Truck
Multi-way Valve
Working principle of HOWO vacuum tanker truck
▶ Vacuum Generation: A rotary vane pump or liquid ring pump extracts air from the sealed tank. ▶ Pressure Differential: The pressure inside the tank is lower than the atmospheric pressure outside. ▶ Material collection: External pressure forces waste into the tank through a suction pipe. ▶ Safety System: Float and shut-off valves prevent overflow and protect the pump. ▶ Discharge: Material is discharged from the tank by gravity or pressurization.
Application scenarios
Applicable Operating Scenarios:
Municipal Sanitation: Pumping and removing sludge and waste from urban sewers, septic tanks, and rainwater wells. Residential Property Management: Regular cleaning of septic tanks and grease traps in residential areas. Industrial and Mining Areas: Transfer of wastewater from factory wastewater ponds, sedimentation tanks, and mud/waste liquid. Construction Sites: Cleaning of construction mud, water accumulation in foundation pits, and sludge.
exterior views

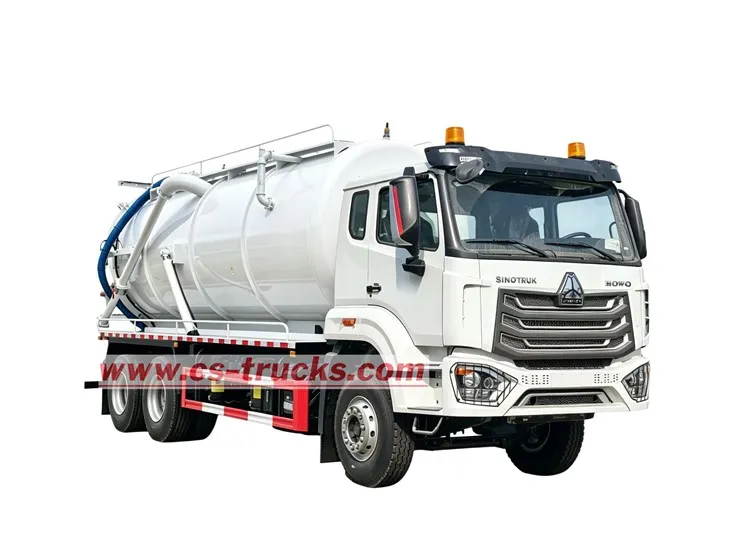

Front Right View of HOWO 6X4 Septic Tank Trucks for Sale

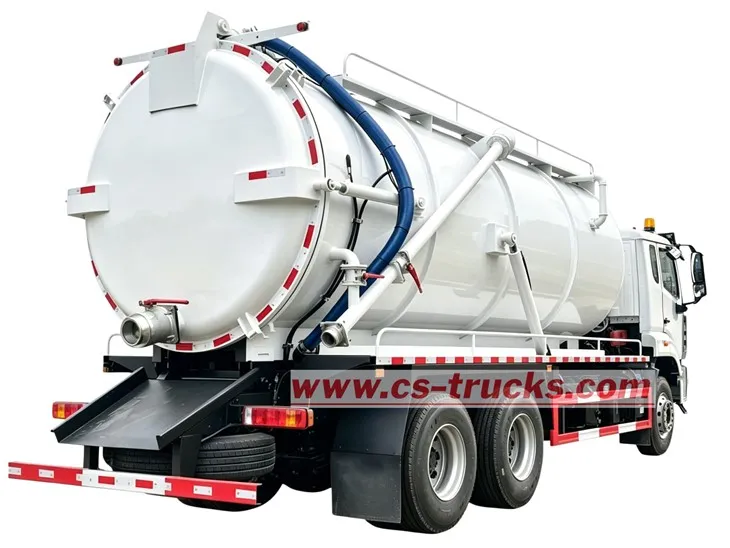

Rear Right View of HOWO 20CBM Sewage Vacuum Pump Truck

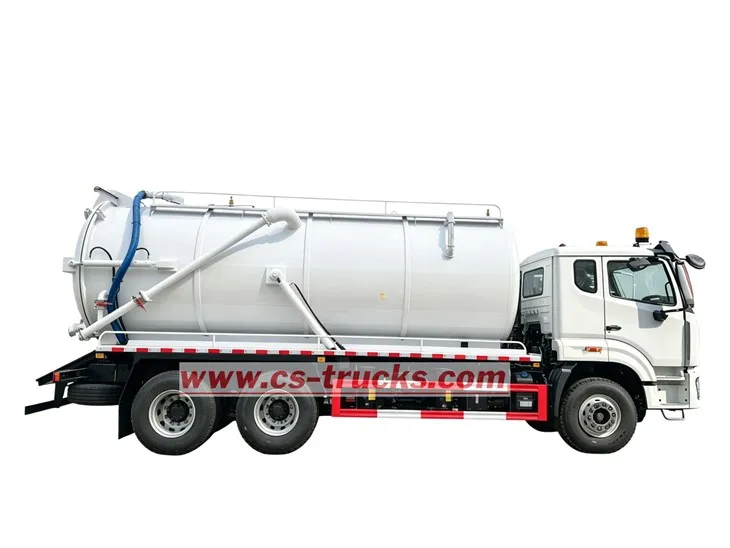

Right View of HOWO 400HP Vacuum Tank Trailer for Sale

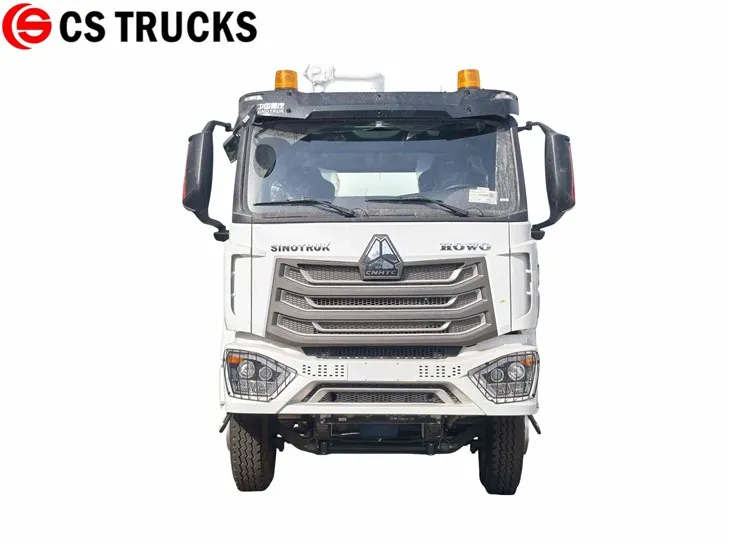

Front View of HOWO 6X4 Vacuum Pump for Septic Truck

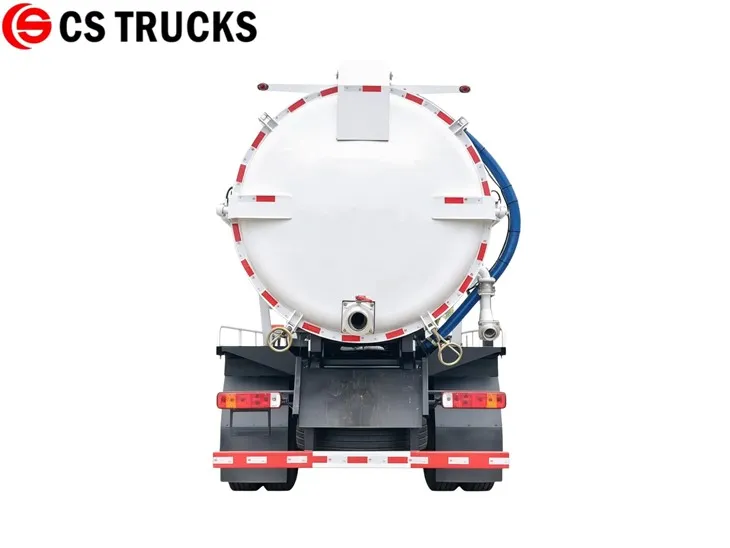

Rear View of HOWO 20CBM Vacuum Septic Tank
FAQ
Q: Why can't the vacuum truck suck up the sludge?
A: ① Air leakage in the pipeline, damage to the suction hose, or negative pressure leakage; ② Water accumulation in the water air separator or blockage of the antioverflow valve; ③ Insufficient oil or wear in the vacuum pump. Repairing the pipeline seals and cleaning the filter element will solve the problem.
Q: How to maintain a vacuum pump on a daily basis?
A: Regularly change the special lubricating oil for vacuum pumps; drain the water accumulated in the separator after each operation; prevent sewage from flowing back into the pump body, and greatly extend the service life of the pump.
Q: Is it okay to work outdoors in the rain?
A: Yes, the entire vehicle's electronic control system and pump body are waterproofed, but it is strictly forbidden to immerse the suction pipe in deep water and to prevent rainwater from flowing back into the tank.
Q: Do hot/rainy tropical regions require special modifications?
A: For tropical regions, optional features include a high temperature resistant vacuum pump, a thickened cooling system, and waterproofing of all vehicle wiring. For cold regions, low temperature engine oil and a preheating device are provide.
