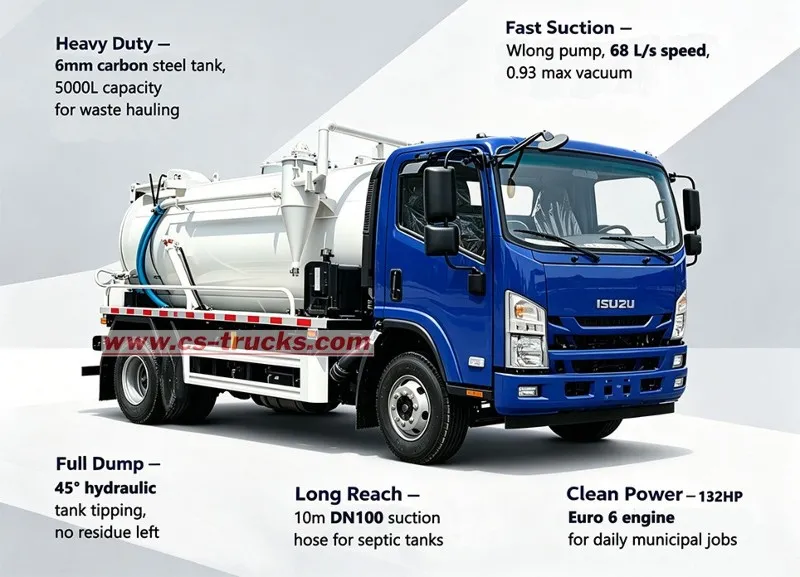

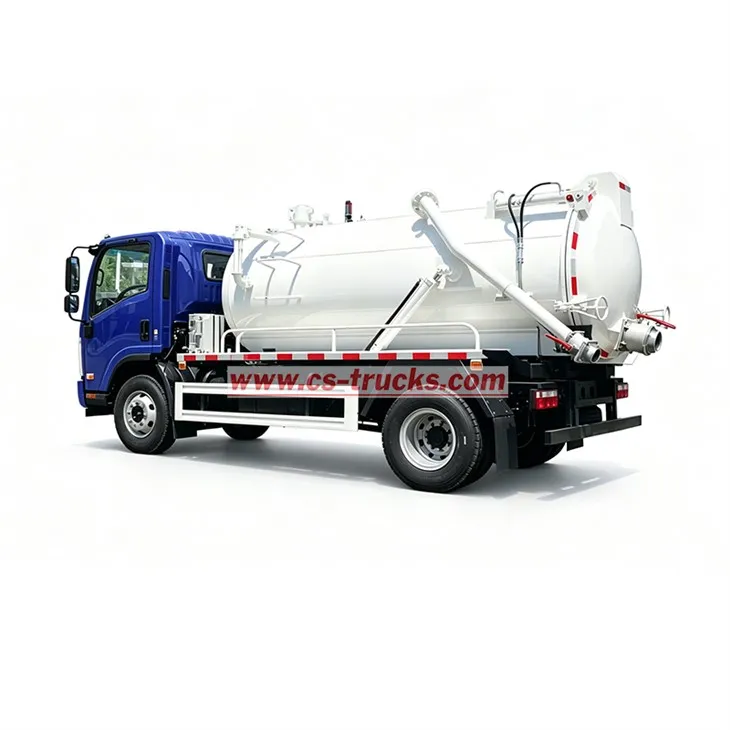

The ISUZU 5000L cesspit emptier tanker (also called septic pump truck, honey sucker truck, or sewage suction truck) is designed for waste collection and disposal tasks. Uses include emptying septic tanks, cleaning municipal sewage lines, or removing sludge from industrial facilities.
With a 5000L vacuum tank and 132 HP Euro 6 engine, this ISUZU 4x2 sewage suction truck handles narrow city streets and rural unpaved roads alike. It delivers reliable service for septic service companies, municipal sanitation departments, and industrial waste contractors.
*ISUZU 5 CBM Sludge Vacuum Super Sucker Truck*
-----------------------------------------------------------------
CS Factory is a professional manufacturer in the truck area.
guarantee all products Brand-New and High-Quality.
» I.Product Defination and Introduction:
Manufacturer: CS TRUCKS
Features:
▶ Chassis: Based on ISUZU 4×2 chassis, with 132 HP diesel engine
▶ Tank Volume: 5000 liters vacuum tank, cylindrical carbon steel construction
▶ Tank Build: 6mm thick carbon steel, corrosion resistant for long service life
▶ Vacuum Pump: Rear mounted Wlong 68/7000 pump, PTO driven, 68 L/s suction speed
▶ Operation Scope: Septic tank emptying, municipal sewer suction, industrial sludge hauling
» II. Product Parameters for ISUZU 5 CBM Sludge Sucker Pumper Truck
| Product Name | ISUZU 5000 Liters Cesspit Emptier Tanker Truck | ||
| Overall | Vehicle Model | CS5160GXW | |
| Drive Type | 4*2 | ||
| Gross Vehicle Weight | 15795 kg | ||
| Curb Weight | 6460 kg | ||
| Front Axle Weight | 3 Tons | ||
| Rear Axle Weight | 5 Tons | ||
| Maximum Speed | 100 km/h | ||
| Overall Dimensions L*W*H | 8230×2550×3150 mm | ||
| Engine | Engine Model | 4KH1CN6HB | |
| Engine Brand | WEICHAI | ||
| Fuel Type | Diesel | ||
| Power | 132 HP(97KW) | ||
| Emission Standard | Euro 6 | ||
| Displacement | 2999 ml | ||
| Engine Type | 4 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | ISUZU | |
| Tire No. | 6 tires and 1 spare tire | ||
| Tire Specification | 7.00R16 | ||
| Wheelbase (mm) | 3365 mm | ||
| Gear Box | Manual 6-speed forwards and 1 reverse | ||
| Steering Wheel | Left hand drive | ||
| Brake | Air brake | ||
| Radiator | Suitable for a tropical climate | ||
| Clutch | Reinforced diaphragm clutch | ||
| Vacuum Tank | Volume (L) | 5000 liters | |
| Tank shape | Cylindrical | ||
| Tank Material | 6mm thick carbon steel | ||
| Suction Hose | 10 meters, DN100 | ||
| Discharge valve | DN100 | ||
| Vacuum Pump | Lifting angle | 45° | |
| Brand | Wlong (China's famous brand) | ||
| Model | 68/7000 | ||
| Ultimate pressure | 7000 pa | ||
| Pumping speed | 68 L/s | ||
| Maximum vacuum | 0.93 | ||
| Rotation speed | 800 rpm | ||
» III. Product Description:
1. ISUZU 5000L Vacuum Tanker Chassis:
♦ Cabin: ISUZU 4×2 standard cab, with A/C and power steering
♦ Engine: 4KH1CN6HB, 132 HP, inline 4 cylinder, 2.999 L displacement, Euro VI
♦ Transmission: Manual 6-speed forward and 1-speed reverse
♦ Front Axle Load: 3 ton
♦ Rear Axle Load: 5 ton
♦ Tires: 7.00R16, 6 wheels plus 1 spare
2. ISUZU 5000L Vacuum Tank & Hydraulic Syste
♦ Vacuum Tank Volume: 5000 L, cylindrical carbon steel, 6mm thickness
♦ Hydraulic Lifting: 45° hydraulic tank tipping for complete residue-free discharge
♦ Vacuum Pump Performance: Wlong 68/7000 pump, 68 L/s suction speed, 0.93 max vacuum for fast waste extraction
♦ Suction Hose: 10 meters, DN100
♦ Discharge Valve: DN100 discharge valve for quick and clean waste evacuation
» IV. ISUZU Suction Truck Operating Principle:
♦ Core Power System: Equipped with Wlong 68/7000 vacuum pump (68 L/s pumping speed) as the central suction unit, driven by engine PTO and powered by 132HP 4KH1CN6HB engine for reliable high‑vacuum performance.
♦ Suction Performance: Achieves fast suction with 10m DN100 suction hose, efficiently handles sludge, sewage, and septic waste-reduces secondary contamination during operation.
♦ System Integration: Key component of the 5000L 6mm carbon steel tank, designed for daily municipal sewage work and industrial sludge collection.
♦ Operational Coverage: Meets suction requirements for septic tank cleaning, municipal wastewater extraction, and industrial waste handling across urban and rural job sites.

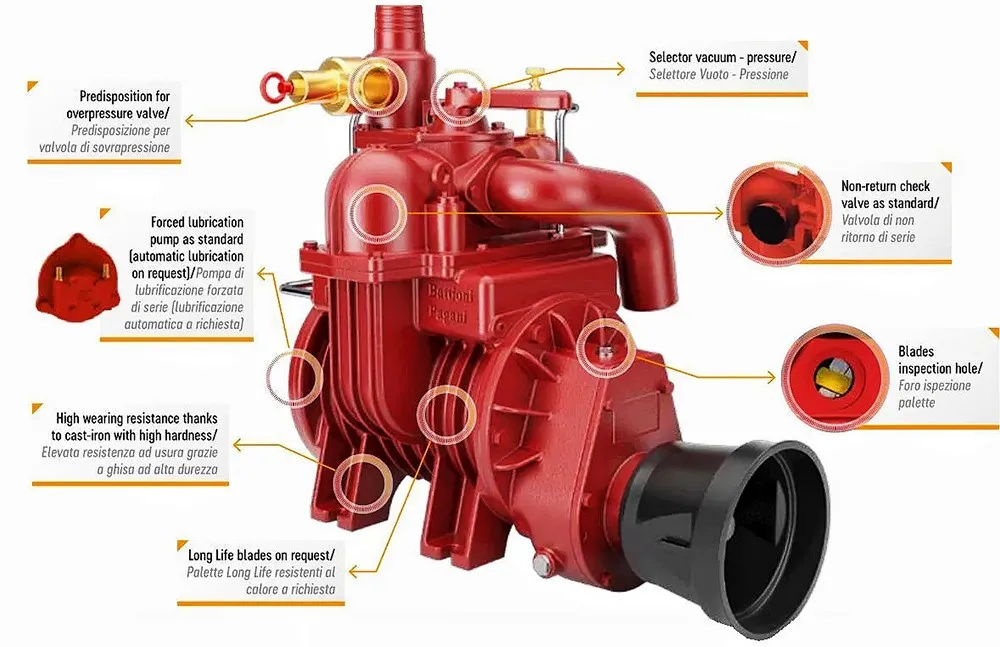

Sewage suction truck vacuum pump parameters:
| Product | Geometrical capacity | Max rpm | Max abs | Max | Max | Power | Weight kg | ||||||||||
| pressure | vacuum % | continuous | at max | ||||||||||||||
| Bar (PSI) | (inHg) | vacuum % | vacuum kW | ||||||||||||||
| m³/h | l/min | cfm | M | P | D | H | HM | (inHg) | (HP) | M | P | D | H | HM | |||
| MEC 1000 | 75,6 | 1260 | 45 | 600 | 1400 | - | 1400 | - | 2,5 (36) | 89% (26,3") | 60% (18") | 3,5 (4,7) | 40 | 34 | - | 48 | - |
| MEC 1600 | 118,8 | 1980 | 70 | 600 | 1400 | - | 1400 | - | 2,5 (36) | 89% (26,3") | 60% (18") | 4,5 (6) | 48 | 42 | - | 56 | - |
| MEC 2000 | 165 | 2750 | 97 | 600 | 1400 | 1400 | 1400 | 1400 | 2,5 (36) | 91% (27,0") | 60% (18") | 5,5 (7,3) | 75 | 65 | 65 | 81 | 77 |
| MEC 3000 | 216 | 3600 | 127 | 600 | 1400 | 1400 | 1400 | 1400 | 2,5 (36) | 92% (27,2") | 60% (18") | 7 (9,4) | 86 | 75 | 77 | 92 | 89 |
| MEC 4000 | 261 | 4350 | 154 | 600 | 1400 | 1400 | 1400 | 1400 | 2,5 (36) | 94% (28,0") | 60% (18") | 9 (12,6) | 97 | 85 | 90 | 116 | 102 |
| MEC 5000 | 369 | 6150 | 217 | 600 | 1400 | 1400 | 1400 | 1400 | 2,5 (36) | 94% (28,0") | 60% (18") | 11 (14,7) | 127 | 120 | 121 | 136 | 132 |
| MEC 6500 | 420 | 7000 | 247 | 600 | 1400 | 1400 | 1400 | 1400 | 2,5 (36) | 94% (28,0") | 60% (18") | 12,5 (16,7) | 142 | 129 | 130 | 154 | 150 |
| MEC 8000 | 486 | 8100 | 286 | 600 | 1400 | 1400 | 1400 | 1400 | 2,5 (36) | 94% (28,0") | 60% (18") | 16 (21,4) | 157 | 140 | 141 | 174 | 162 |
» V.ISUZU Sewage Suction Tanker Truck Solutions:

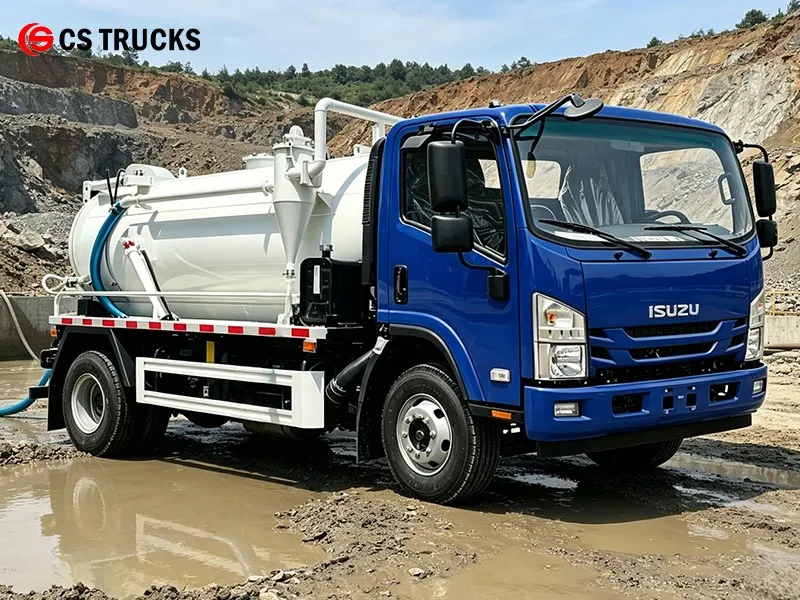

ISUZU Cesspit Vacuum Sucker Truck For Mining Sites

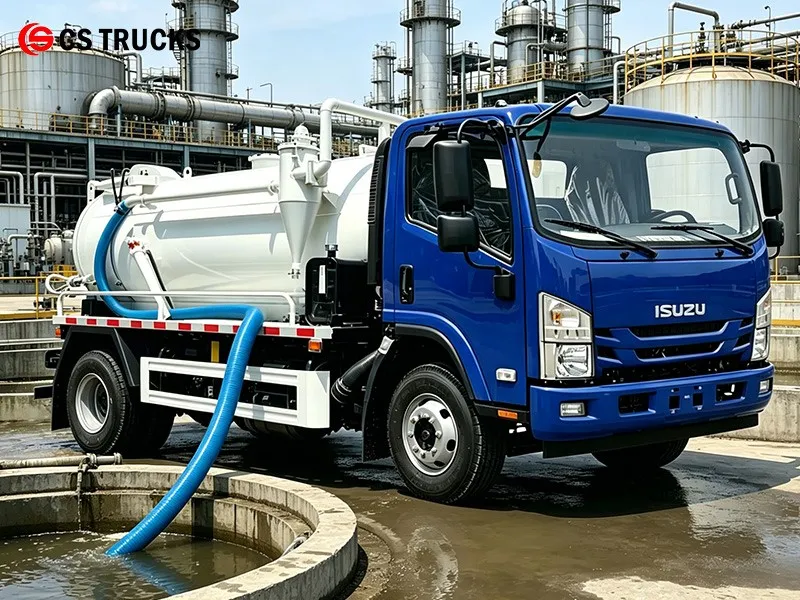

ISUZU Septic Tank Cleaning Truck For Industrial Parks

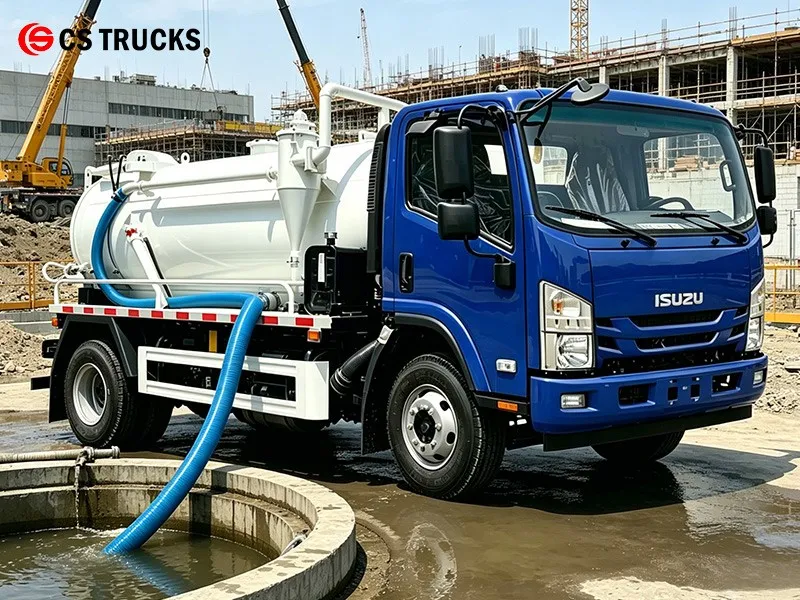

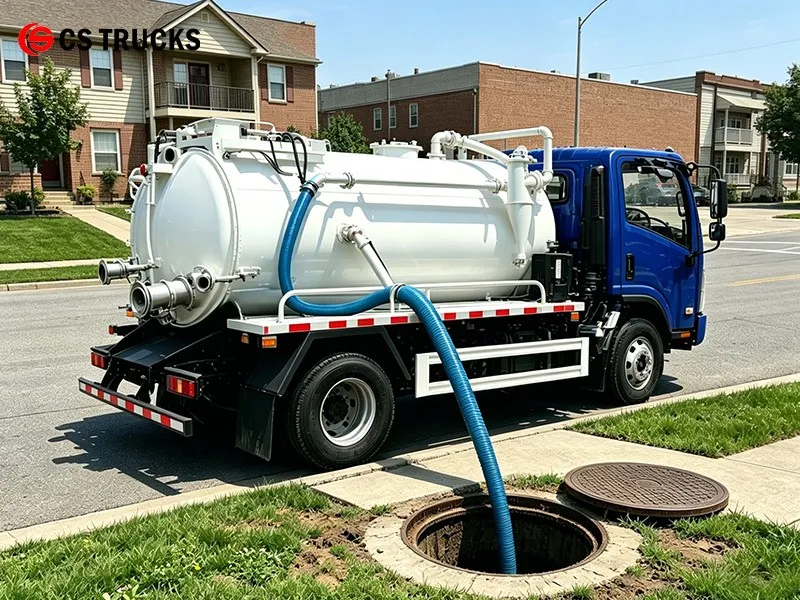

ISUZU Super Sucker Vacuum Truck For Construction Sites
ISUZU Cesspool Truck For Municipal Streets
» VI. ISUZU Sewer Vacuum Truck Exterior Views:

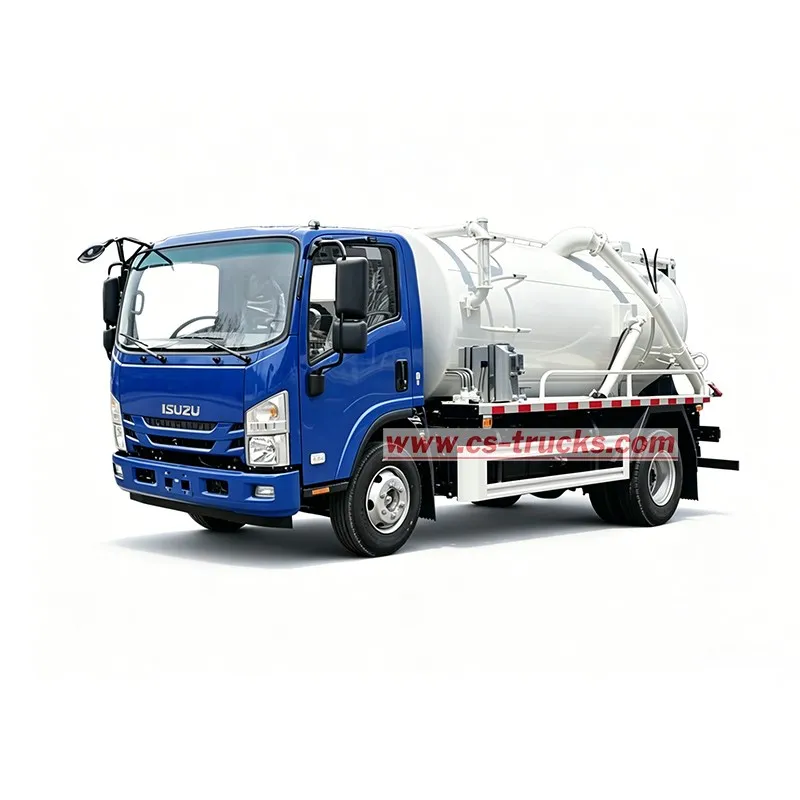

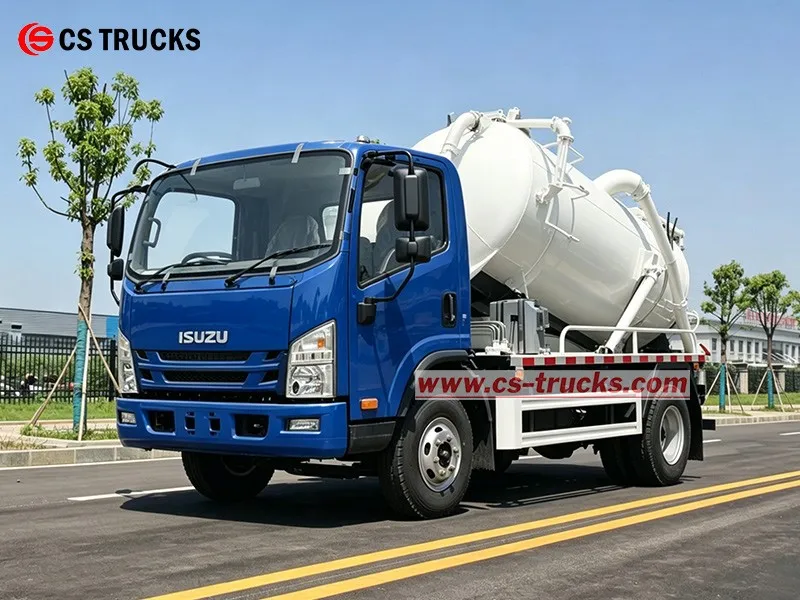

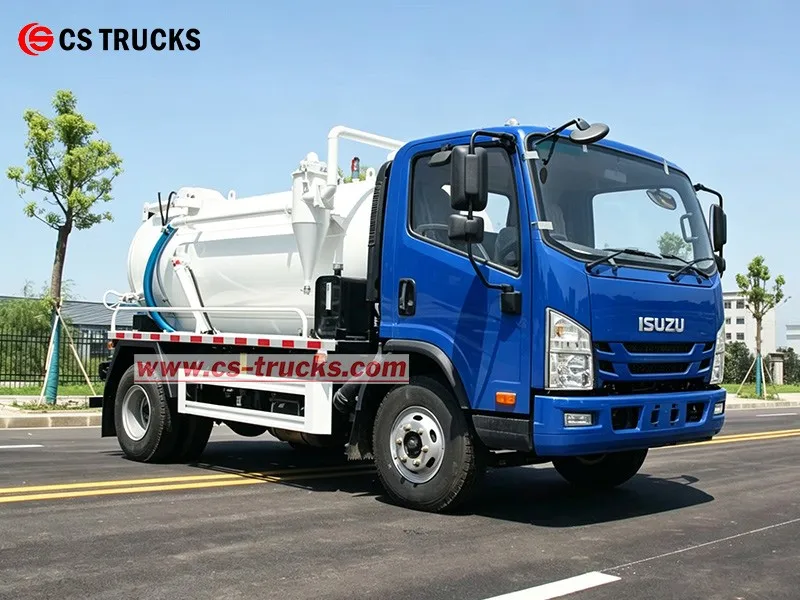

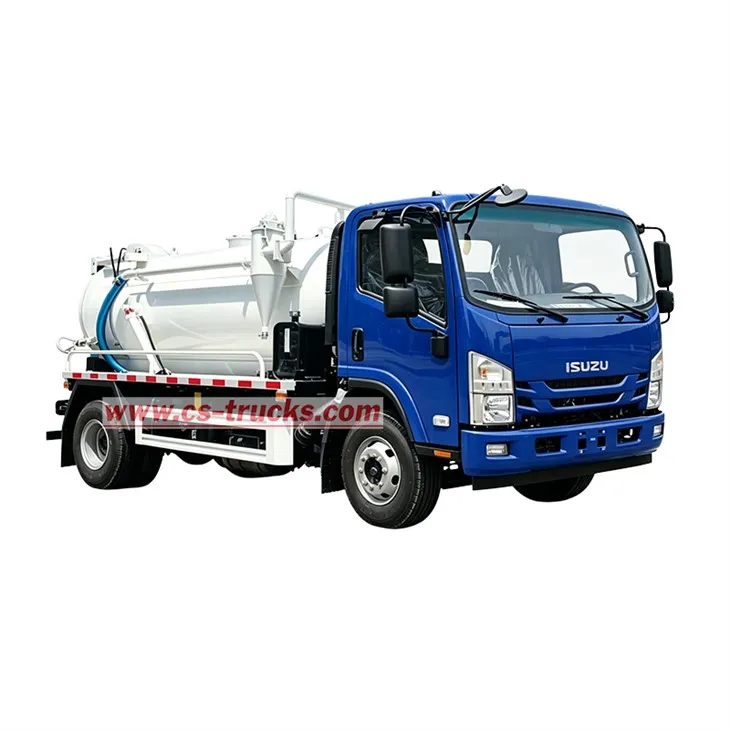

Front Left View of ISUZU 5 CBM Cesspit Vacuum Sucker Truck

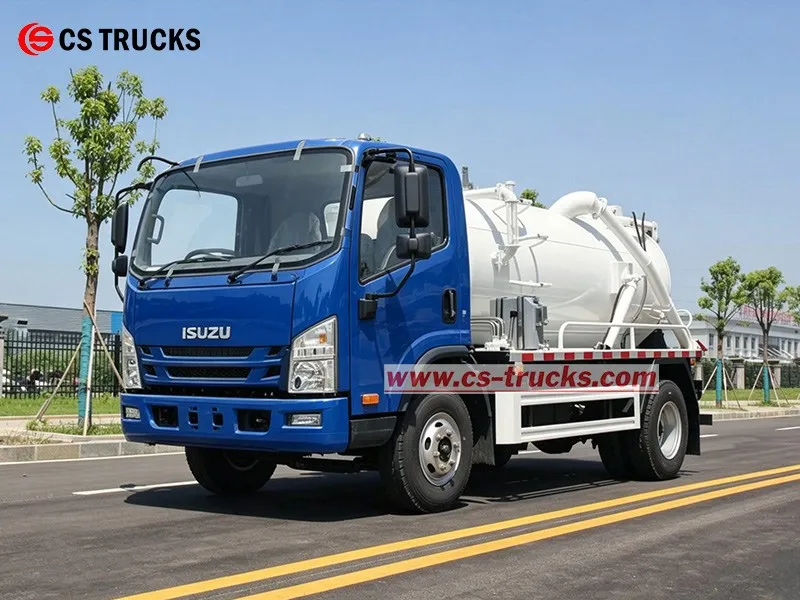

Front Right View of ISUZU 5 CBM Cesspool Truck For Sale

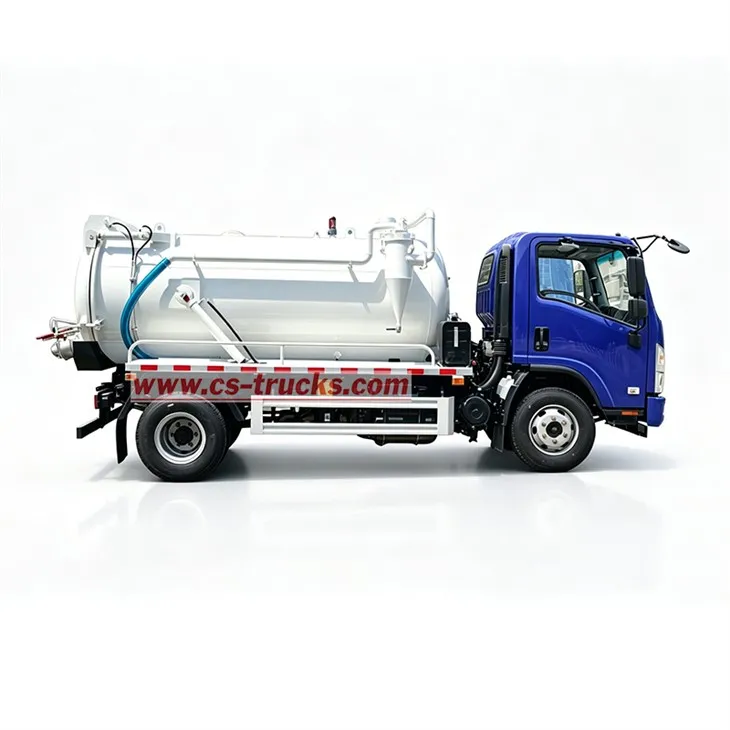

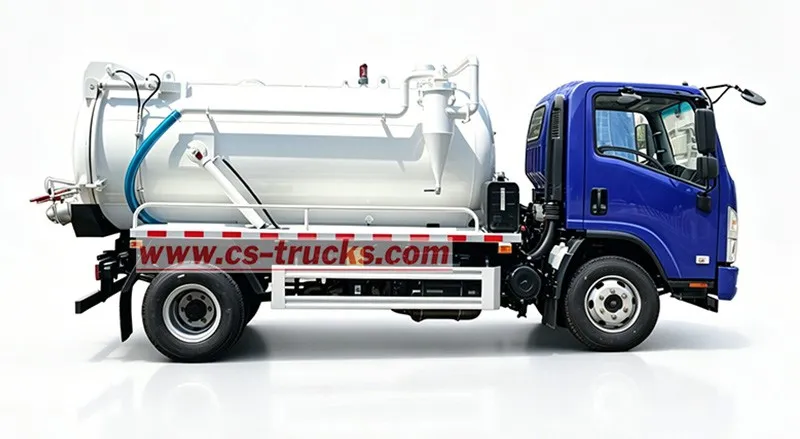

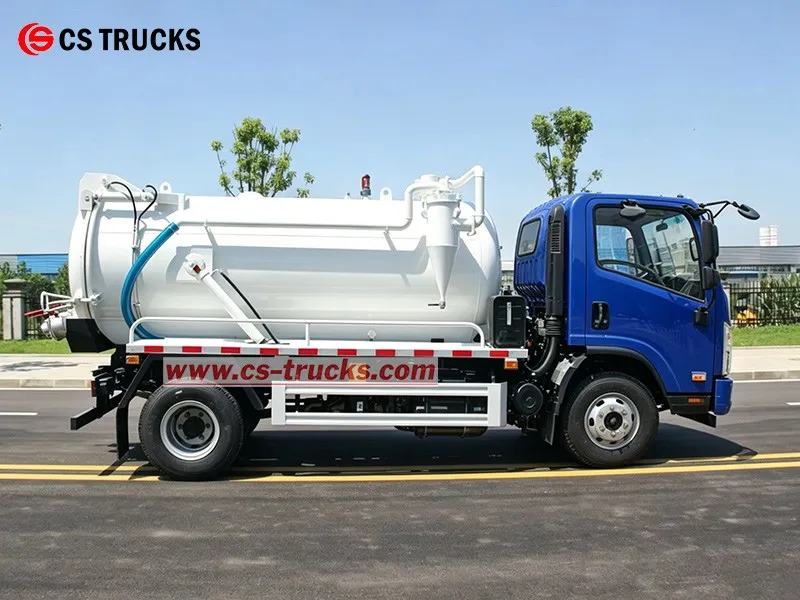

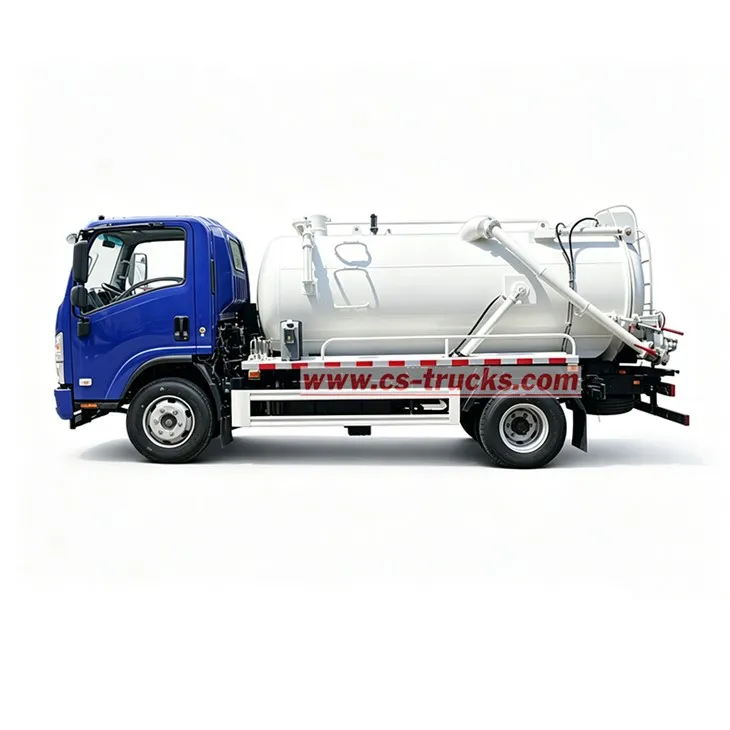

Right View of ISUZU 5 CBM Sewage Disposal Trucks For Sale

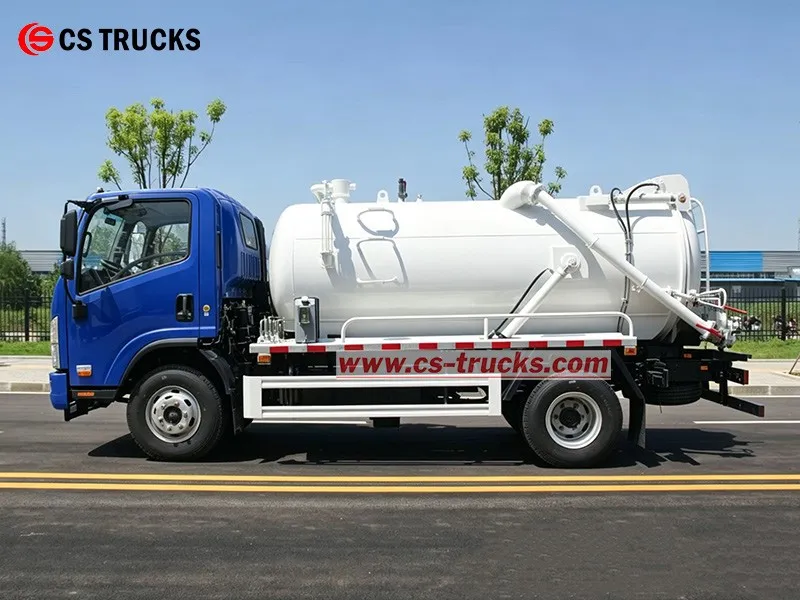

Left View of ISUZU 5 CBM Sewage Vacuum Tanker

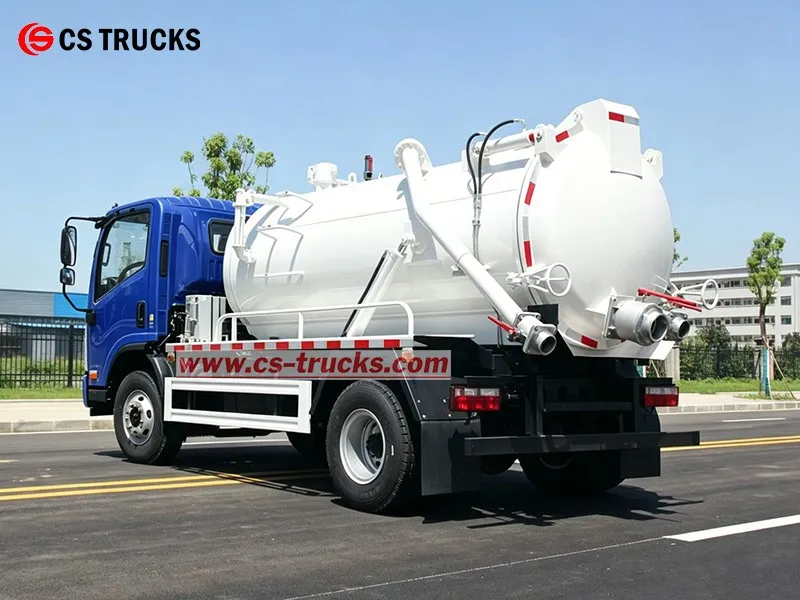

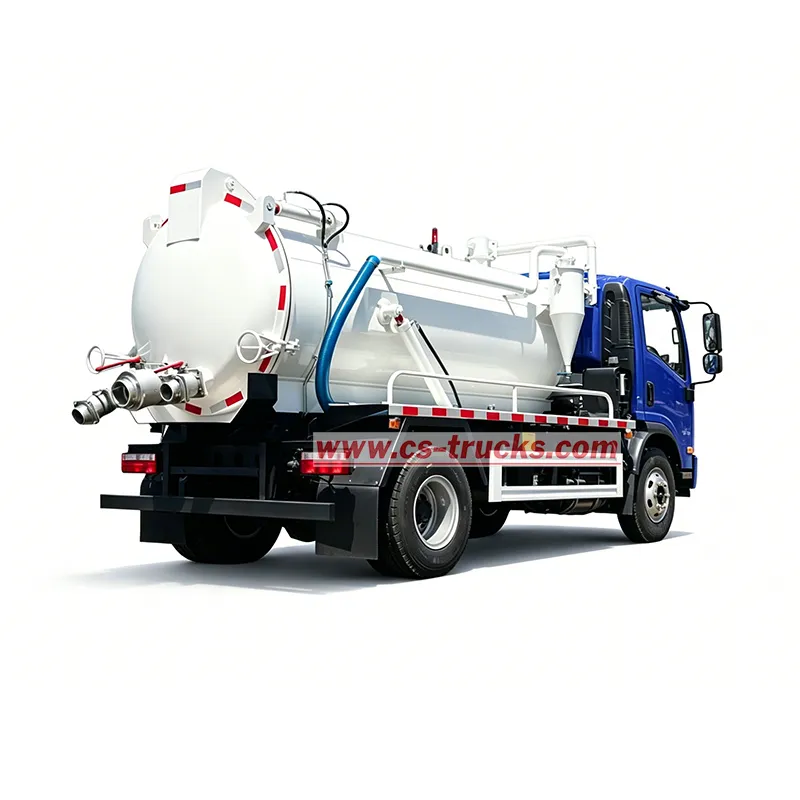

Rear Left View of ISUZU Sewer Jetter Cleaning Truck

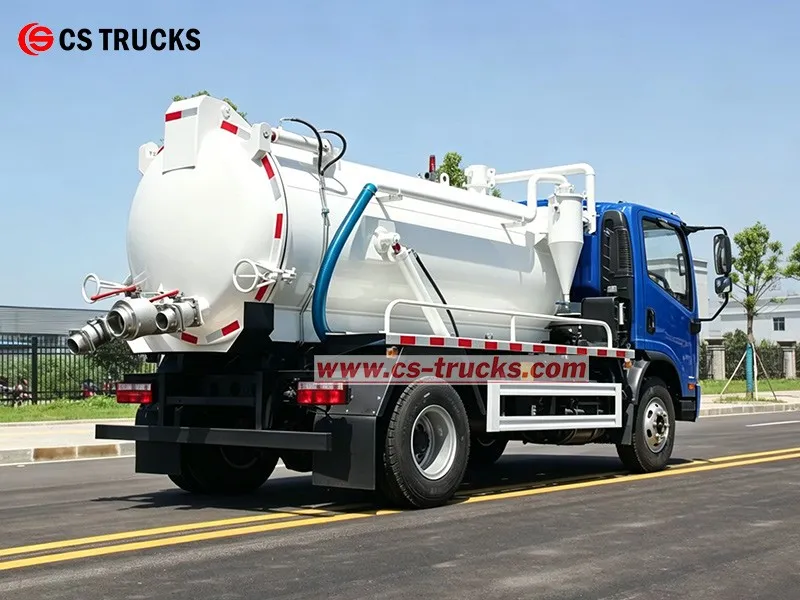

Rear Right View of ISUZU 5000L Sewage Suction Truck

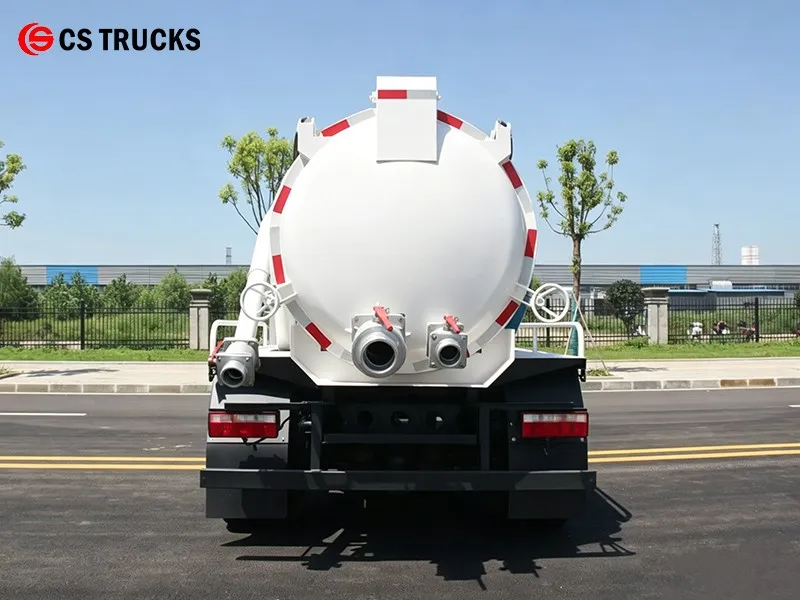

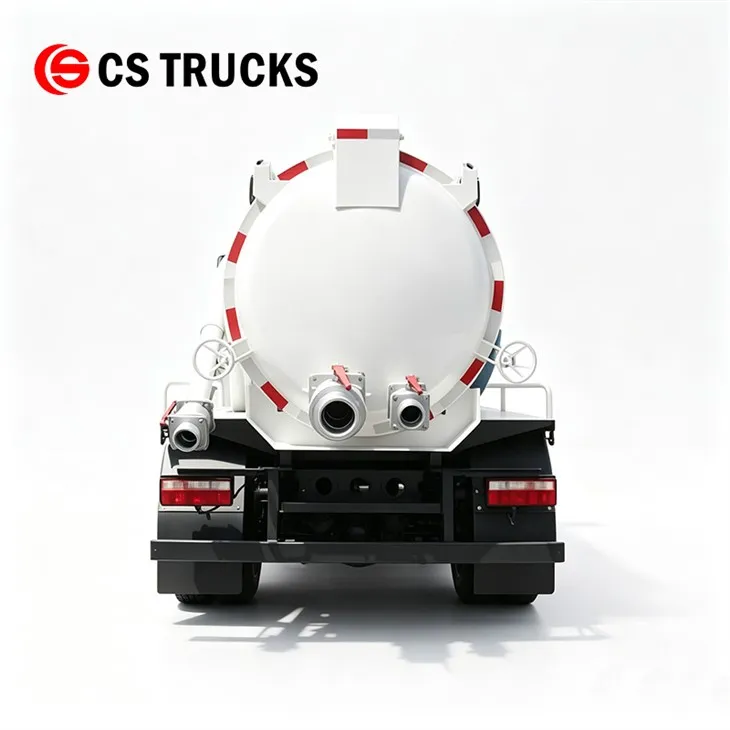

Rear View of ISUZU 5000L Sewage Suction Truck

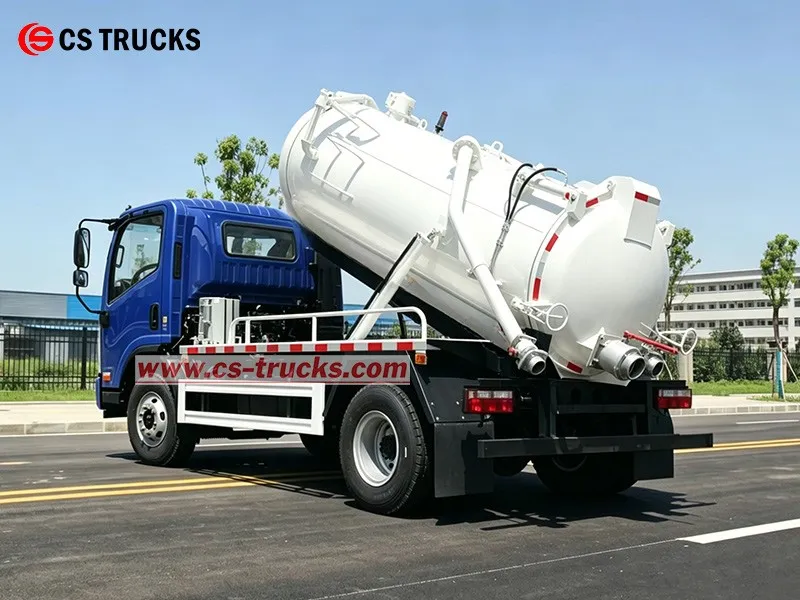

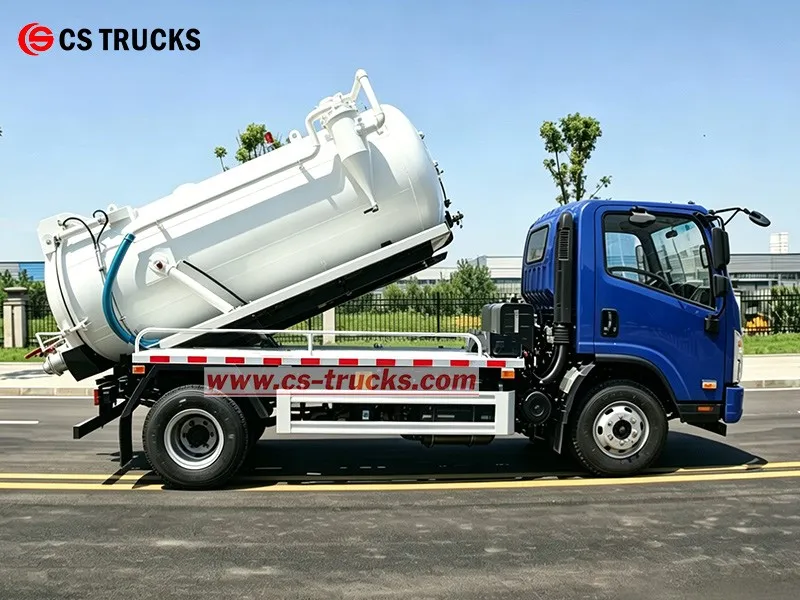

» VII. ISUZU Sewer Vacuum Truck Hydraulic Lifting Operation:
Products--100% China ISUZU factory trucks!
Shipping - 100% fast, Convenient, Efficient!
Guarantee - 7 days + 24 hours Safety Service!
1. ISUZU 5000L Vacuum Truck Chassis: Built on ISUZU 4×2 platform with 4KH1CN6HB diesel engine delivering 132HP + manual 6-speed transmission, designed for efficient sewage collection and transport in urban and rural environments.
2. High-Strength Vacuum Tank: Manufactured from 6mm carbon steel plate, featuring cylindrical construction with 5000L capacity, equipped with DN100 suction hose (10m) and DN100 discharge valve, finished with anti-corrosion coating for extended service life.
3. Core Suction & Discharge System: Integrated Wlong 68/7000 vacuum pump (68 L/s pumping speed, 7000 Pa ultimate pressure) with PTO-driven hydraulic system, engineered to achieve 45° hydraulic tank tipping for complete waste evacuation.
4. Operational & Safety Features: Standardized hydraulic control, supported by tropical climate radiator, air brake system, and reinforced diaphragm clutch, designed for reliable daily performance in demanding sanitation operations.
