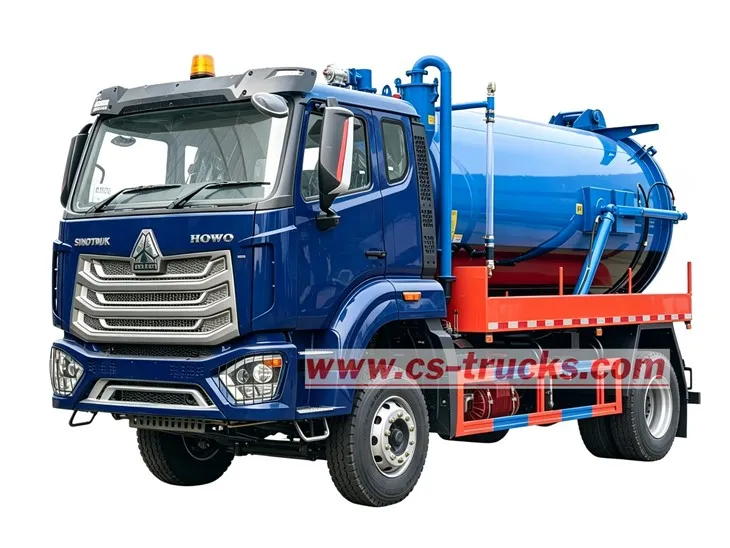

HOWO Liquid Waste Suction Truck Near Me

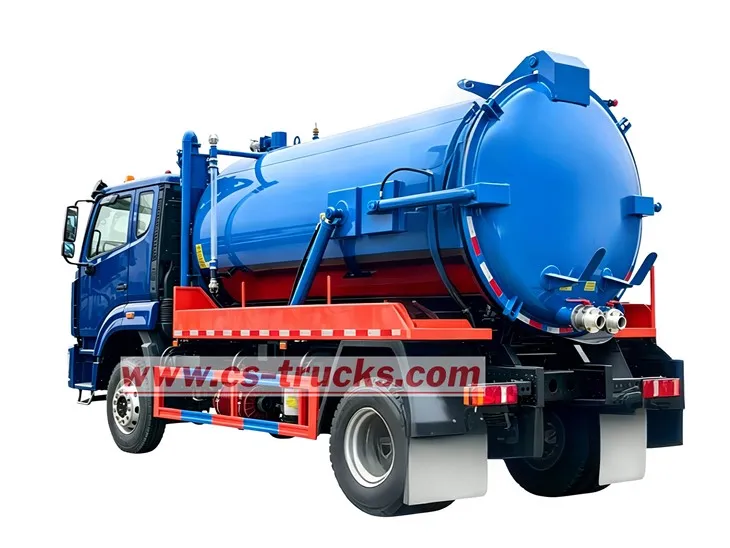

HOWO 371HP Vacuum Pump for Septic Truck

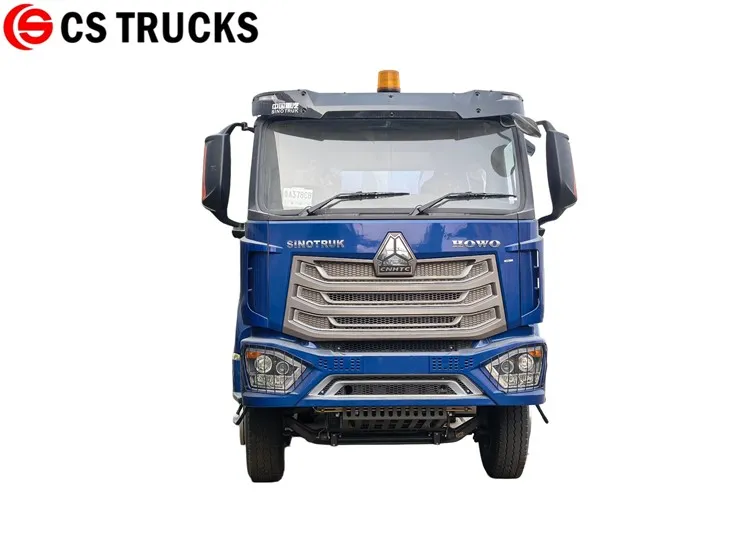

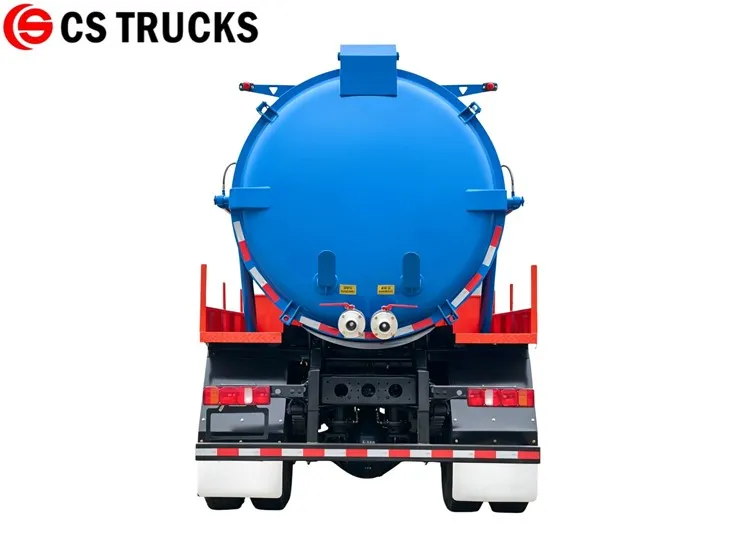

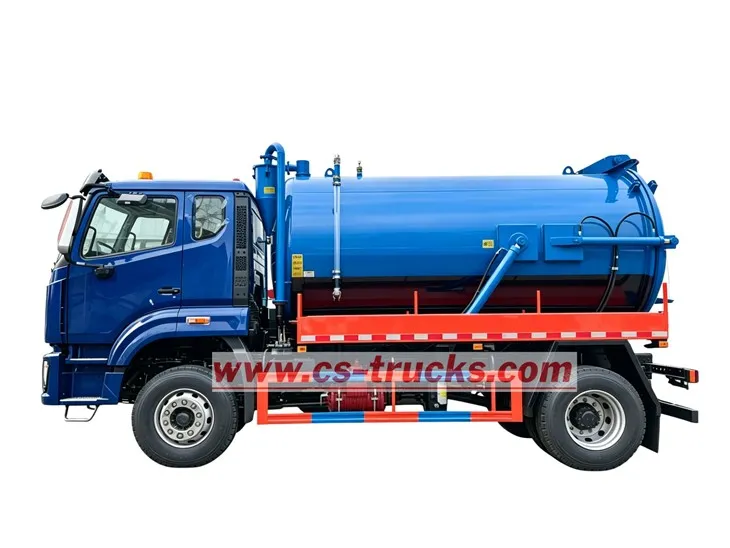

The HOWO 4X2 vacuum tanker trailer features a 4×2 single axle drive configuration and is powered by a 371HP WD615.47 high output engine, delivering ample power. The standard 10CBM tank capacity balances loading capacity with maneuverability, making it suitable for a wide range of applications, including urban sewer cleaning, industrial wastewater tank cleaning, and rural septic tank maintenance. Combining efficiency with practicality, it is the preferred choice for small to medium sized heavy duty vacuum truck operations.

Model: CSC5180GXW

Capacity: 10 CBM

Drive: 4×2

Engine Power: 371 HP

Engine Type: WD615.47

Send Inquiry

Description

Product Introduction

The HOWO 10CBM super sucker vacuum truck is built on a Sinotruk chassis, featuring a 4×2 drive configuration and right hand drive layout to meet the operational requirements of overseas markets. It is powered by a WD615.47 diesel engine, which delivers ample power and meets Euro Il emission standard, paired with a 10 speed manual transmission for stable and reliable power delivery.

The vehicle is equipped with a 10CBM working tank and a carbon steel vacuum pump, offering a vertical suction depth of ≥4 meters and a horizontal suction distance of ≥22 meters, ensuring high suction and discharge efficiency. It is capable of efficiently performing environmental sanitation tasks such as municipal sewage treatment, septic tank cleaning, and industrial waste liquid suction, making it highly practical.

Technical Specifications of HOWO vacuum tanker trailer

Product Name	HOWO Liquid Waste Suction Truck Near Me	Engine Model	WD615.47
Vehicle Model	CSC5180GXW	Engine Model	WD615.47
Drive Type	4×2	Fuel Type	Diesel
Gross Vehicle Weight	18500 kg	Power	371HP/276kW
Capacity	10CBM	Emission Standard	Euro Il
Maximum Speed	90 km/h	Displacement	9726 ml
Overall Dimensions	7360×2350×3080 mm	Engine Type	Inline 6 cylinder, four stroke, water cooled, turbocharged + intercooled
Chassis Brand	SINOTRUK	Vacuum Pump Material	Carbon Steel
Tire No.	6	Vacuum Level	93%
Tire Specification	295/80R22.5	Maximum Pumping Speed	910 m³/h
Wheelbase	4160 mm	Rotation Speed	1150 rpm/min
Gear Box	HW19710 10 Speed Manual Transmission(10 Forward Gears + 2 Reverse Gears)	Vertical Suction Depth	≥4 m
Steering Wheel	RHD	Horizontal Suction Distance	≥22 m
Brake	Air brake	Horizontal Suction Distance	≥22 m

HOWO 10CBM vacuum tanker hire

Performance and advantages of HOWO waste tanker for sale

Vehicle Configuration

✦ Tank Capacity: The 10CBM standard tank offers a moderate capacity that balances load capacity with vehicle maneuverability, ensuring efficient transportation and outstanding cost effectiveness for daily sanitation operations.

✦ Safe and Wide Range of Applications: Equipped with a pneumatic braking system for responsive and safe braking; the right hand drive configuration is suitable for overseas markets, making it widely applicable for waste removal tasks in municipal sanitation and industrial facilities.

Suction System

✦ Vacuum Pump Performance: Equipped with a carbon steel vacuum pump, it achieves a vacuum level of up to 93%. With fast suction and discharge speeds and consistent, stable suction power, it can quickly remove sludge, oil, sewage, and other materials, significantly improving operational efficiency.

✦ Wide Operational Coverage: With a vertical suction depth of ≥4 meters and a horizontal suction distance of ≥22 meters, it can handle deep pits and long distance sewage discharge scenarios, which is suitable for a variety of conditions, including septic tanks, sewage pits, and river silt, making it extremely practical.

Powertrain and Chassis

✦ Powerful Powertrain: Equipped with a 371HP diesel engine, it offers ample power reserves and excellent hill climbing capability, delivering stable power output on challenging construction sites and rural roads to handle heavy duty tasks with ease.

✦ Reliable Transmission System: Paired with a 10 speed manual transmission, it ensures smooth shifting and high transmission efficiency. Featuring a 4×2 drivetrain, it offers robust overall load bearing capacity and a low failure rate, providing peace of mind for long term use.
