SINOTRUK HOWO NX300 Vacuum Sucker Truck for Municipal
SINOTRUCK HOWO NX300 Sewage Suction Truck
The SINOTRUCK HOWO 4×2 vacuum septic tank is equipped with a Weichai WP10.300E22 engine, delivering 300HP of robust power, making it ideal for heavy duty waste removal operations. The vehicle combines a large capacity tank with excellent maneuverability, making it ideal for municipal pipeline desilting, septic tank cleaning, and construction site sludge transport. It boasts advantages such as strong suction, thorough unloading, and durability, making it a highly efficient mainstay vehicle for medium to large scale sanitation and engineering sewage operations.
Model: CSC5180GXW
Capacity: 12 CBM
Drive: 4×2
Engine Power: 300 HP
Engine Type: WP10.300E22
Send Inquiry
Description
■ Product Introduction ■
This SINOTRUCK HOWO NX300 septic vacuum pump is equipped with a Weichai WP10.300E22 high displacement diesel engine, providing ample power reserves. The vehicle features strong load carrying capacity, safe and stable braking, and a mature, reliable transmission and drivetrain system, making it suitable for driving on urban and rural roads as well as complex construction site conditions.
The upper body features a 12CBM high capacity vacuum tank equipped with a water circulating vacuum pump, delivering high vacuum levels and rapid suction speeds. The vehicle boasts a robust and durable structure with stable operational performance, it is designed for daily sanitation cleaning, sludge removal, and industrial wastewater suction, offering high practicality, easy maintenance, and lower long term operating costs.
Technical parameters of HOWO septic tank lorry
product
SINOTRUK HOWO NX300 Vacuum Sucker Truck for Municipal
Vehicle Model
CSC5180GXW
Drive Type
4×2
Gross Vehicle Weight
18000kg
curb weight
16000kg
Capacity
12CBM
Maximum Speed
89km/h
Overall Dimensions
8150×2550×3610mm
Engine model
WP10.300E22
Fuel Type
diesel
Power
300HP(221kW)
Emission Standard
Euro VI
Displacement
9726ml
Engine Type
Inline six cylinder, water cooled, four stroke, turbocharged intercooled diesel engine
Chassis Brand
SINOTRUK
Tire No.
6+1
Tire Specification
315/80R22.5
Wheelbase
4500mm
Front Axle Load
6.5 tons
Rear Axle Load
11.5 tons
Gear Box
10-speed manual
Steering Wheel
left hand drive
Brake
Air
Material
carbon steel
Vacuum Level
92%
Maximum Pumping Speed
11000 l/min
Rotation Speed
1300rpm/min
Vertical Suction Depth
≥8m
Time to fill the tank
≤4min
Performance of HOWO sewage suction truck
01.
Vehicle structure
◆Efficient Work: With a 12CBM large capacity thickened carbon steel tank and a high performance water circulation vacuum pump, the vehicle features strong vacuum suction and fast suction speed. It is capable of efficiently processing sludge, sewage and mixed debris, offering a large transport capacity per operation.
◆ Safe and Controllable: Equipped with an anti overflow valve, a water air separator, and a rear cover locking mechanism, along with hydraulic lifting limit protection, it prevents backflow and spillage, ensuring safe and controlled unloading.
02.
Powertrain and chassis
◆ Powerful Performance: The vehicle is equipped with a Weichai WP10.300E22 engine, it delivers 300HP of high displacement output, providing ample power reserves and stable performance during hill climbs and heavy load hauling operations.
◆ Sturdy Chassis: Equipped with 315/80R22.5 heavy duty tires and featuring air over exhaust braking, it offers excellent load carrying capacity, responsive braking, and superior maneuverability on challenging terrain.
Vacuum pump system
The PN106D vacuum pump features a cast iron housing and carbon vanes, making it ideal for heavy duty applications. It is capable of handling materials containing large solid particles such as sludge, mud, gravel, and bricks, and is well suited for harsh operating environments such as municipal sewer cleaning.
Vacuum Pump Technical Parameters
Model
Jurop PN106D
Flow
11000 L/min
Suction Depth
≥8 m
Time to fill the tank
≤4 min
Rated Speed
1300 rpm
Vacuum Level
92%
Type
Rotary Vane
Cooling Method
Air-cooled
Precautions for Vacuum Pump：
◉ Safety Precautions: This device must be used in conjunction with the tank's overflow valve and check valve; otherwise, contaminants may be sucked back into the pump under high vacuum conditions, causing damage.
◉ Maintenance Requirements: Regularly inspect the blades for wear and ensure the lubricant level is adequate to maintain optimal pumping efficiency.
Product details
Hydraulic Oil Tank
Sewage Tank
Suction Inlet
Water-air Separator
Pressure Gauge
Multi-way Valve
Driver's Cab
Gear Box
Advantages of HOWO septic vacuum pump
1
Increase productivity
Streamline waste collection and transportation to save time and reduce labor costs.
2
Multifunctionality
It is suitable for a wide range of materials and applications, making it invaluable across various industries.
3
Environmental responsibility
Promote proper waste management practices to help businesses meet environmental and legal compliance standards.
4
Durability
Designed specifically for harsh environments to ensure long term reliability and performance.
Application scenarios
SINOTRUCK HOWO 4×2 Vacuum Septic Tank for Industrial Wastewater Treatment
SINOTRUCK HOWO 12CBM Septic Tank Lorry for Cleaning of Sediment in the River
SINOTRUCK HOWO NX300 Septic Vacuum Pump for Storm Drain Cleaning
exterior views

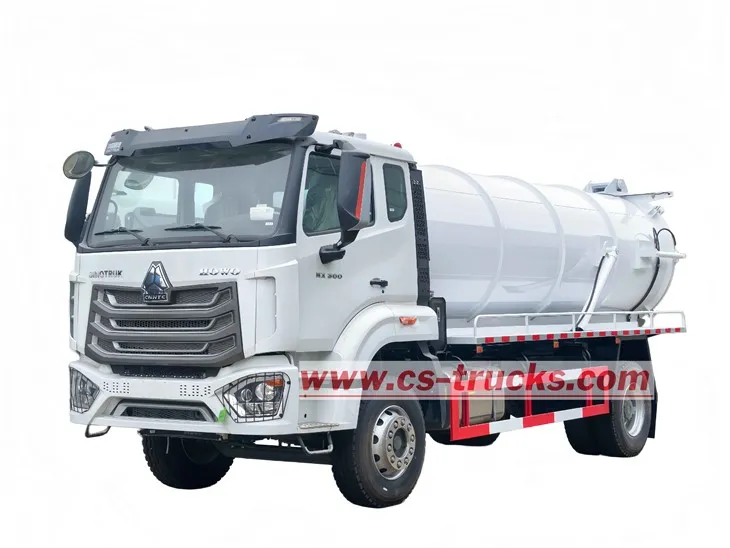

Front Left View of SINOTRUCK HOWO NX300 Sewage Suction Truck

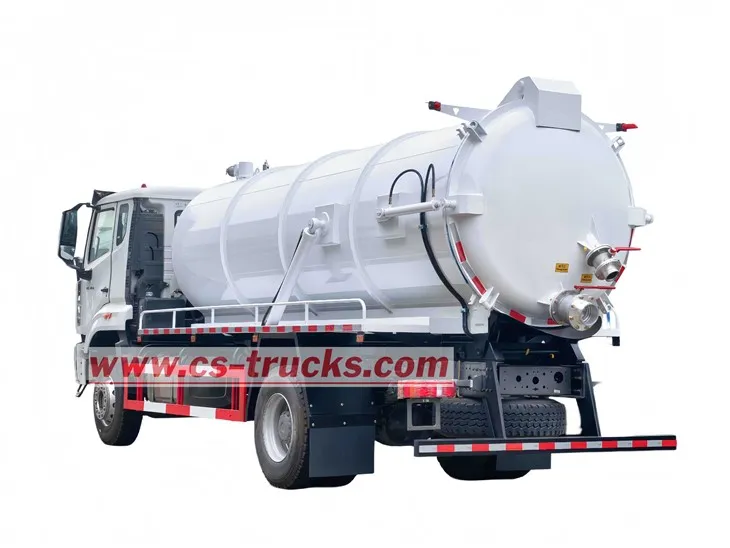

Rear Left View of SINOTRUCK HOWO NX300 Septic Vacuum Pump

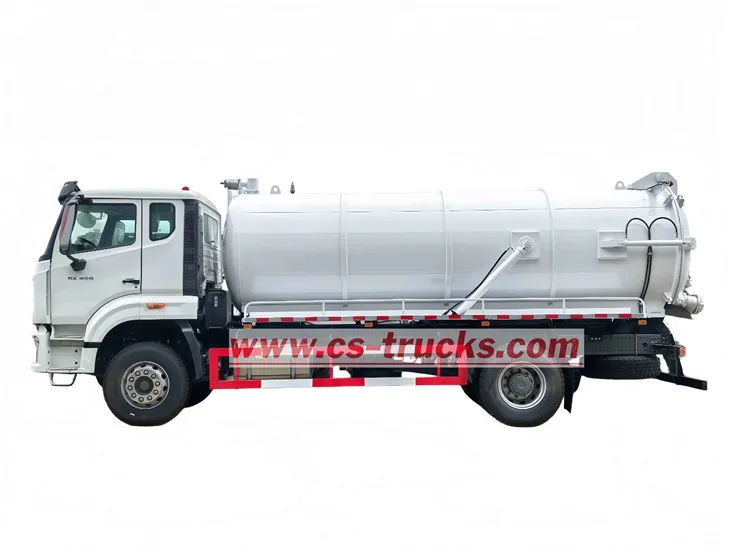

Left View of SINOTRUCK HOWO 4×2 Sewage Tanker Price

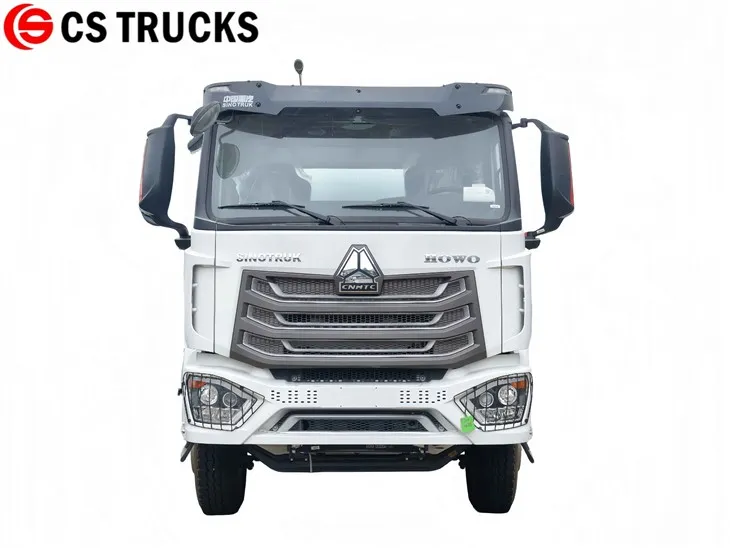

Front View of SINOTRUCK HOWO 4×2 Vacuum Septic Tank

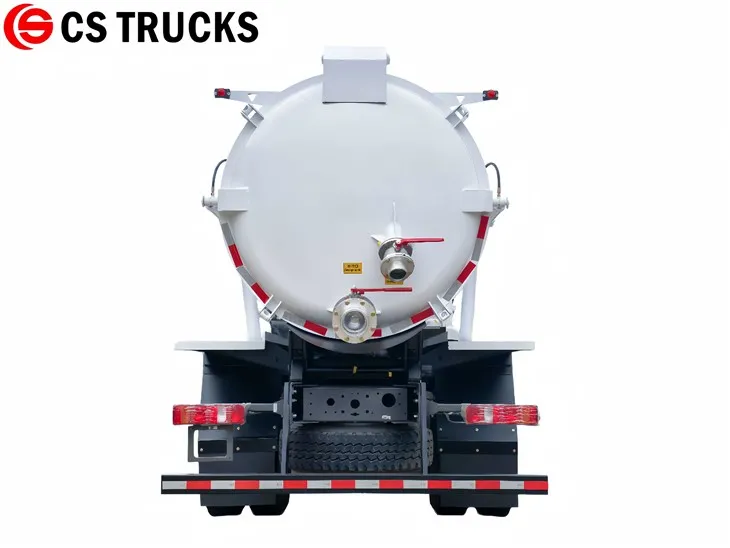

Rear View of SINOTRUCK HOWO 12CBM Septic Tank Cleaning Truck
