SINOTRUK road sweepers are special vehicles developed to clean up garbage on the road. As one of the sanitation equipment, the road sweeper is a new type of efficient cleaning equipment that integrates road cleaning, garbage recycling and transportation. It can be widely used for road cleaning on trunk roads, municipal and airport pavements, urban residential areas, parks and other roads. The road sweeper can not only clean up garbage, but also remove dust and purify the air medium on the road, which not only ensures the beauty of the road, maintains the sanitation of the environment, but also maintains the good working condition of the road surface.

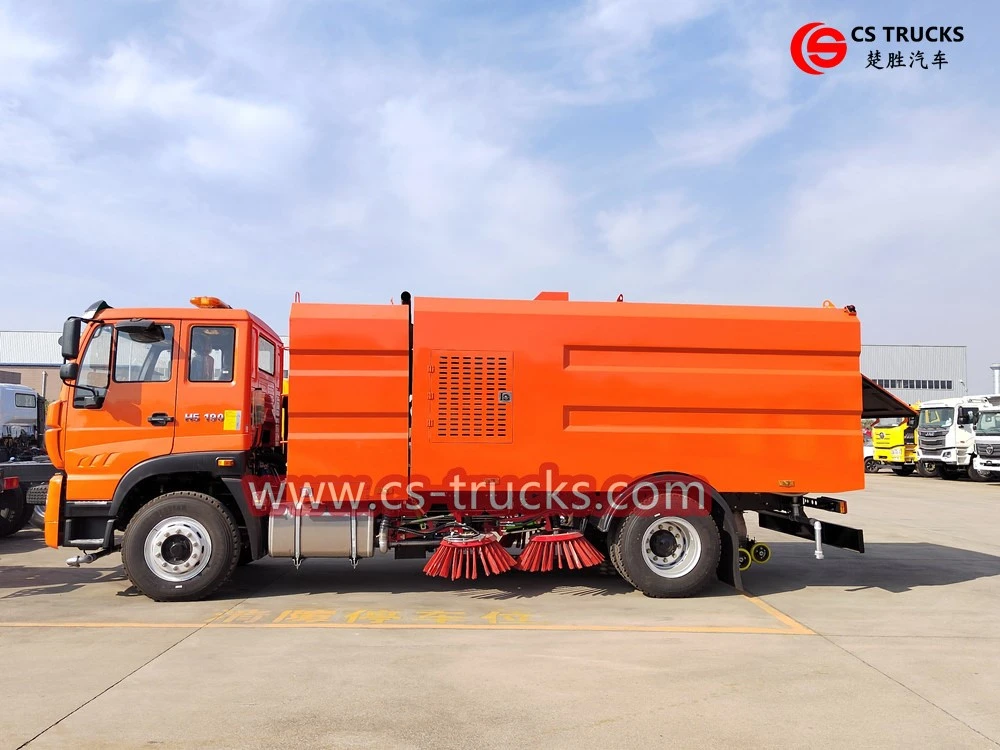

The SINOTRUK right hand drive street sweeper truck is a specialized vehicle designed for cleaning streets and highways. It is equipped with a sweeping mechanism that collects debris, dust, and dirt from the road surface into a storage container.
The truck features a right-hand drive configuration, which indicates that the driver sits on the right side of the vehicle. The 190hp engine provides sufficient power to operate the sweeping equipment and drive the truck. It ensures smooth operation and efficient cleaning of the streets.
SINOTRUK road sweeper adopts the principle of negative pressure pure suction and consists of a dust collection system, a primary dust collection box, a secondary dust collection box, a dust recovery system, a hydraulic system, an electronic control system and a traveling system. It has a wide dust collection range. , high suction rate, no secondary dust at the suction port, no dust emission at the air outlet, and high work efficiency. It is the preferred product for environmental sanitation cleaning and material recycling. It is suitable for industrial and mining enterprises with high dust content, high concentration and high density that are prone to dust pollution; rapid cleaning and cleaning of urban viaducts, expressways and bridges and tunnels; cleaning and cleaning of urban main roads, high-grade highways and expressways.
In order to avoid operating errors, the control valve of the road sweeper is mainly divided into a main valve and an auxiliary valve. The power of the main valve comes from the chassis of the road sweeper, and the power of the auxiliary valve comes from the auxiliary engine of the special functional part. The auxiliary engine of a road sweeper has different power depending on the engine brand, but the general speed is around 1500-1800 rpm.
When a certain hydraulic part of the SINOTRUK road sweeper is not working properly, follow the steps to check the oil circuit first and then the circuit.
(1) Possible reasons for the abnormality of the circuit part include: disconnection of the fuse, loose connection of the line and breakage of the line.
(2) Possible reasons for the abnormality of the oil circuit include: failure of the oil pump, rupture of the oil pipe or oil leakage from the joint of the oil circuit, and failure of the solenoid valve.
