The Isuzu FTR rescue lighting truck is a special vehicle designed for fire rescue scenes. It adopts the chassis platform of the Isuzu FTR series, which has strong power and excellent passability. The body is painted in bright red for fire trucks and is equipped with multiple storage compartments that can store various rescue equipment.

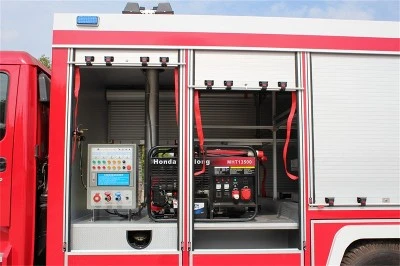

The roof is equipped with a powerful lighting system that can rotate 360 degrees, and can be raised and lowered to adjust the height and angle. The lighting range is wide and the brightness is high, which can fully meet the needs of different operations. The rear of the vehicle is also equipped with a generator that can provide independent power supply for lighting systems and other electrical equipment. The internal operation room is reasonably designed and equipped with advanced communication and command equipment to facilitate rescue personnel to perform tasks.
The Isuzu FTR fire rescue lighting vehicle integrates multiple functions. It is a flexible and practical fire-fighting special vehicle that can provide strong equipment support for fire rescue work. It has strong power, reliable performance, professional and efficient lighting system, and is ideal for night construction.Ideal for other fields.
Products Description
|
Drive Model |
4X2 |
|
|
Vehicle Main Dimensions |
Dimensions(L x W x H)mm |
8250*2480*3310 |
|
Wheel base (mm) |
4500 |
|
|
Overhang (front/rear) (mm) |
1430/2070 |
|
|
Wheel track (front/rear) (mm) |
1880/1860 |
|
|
Approach/Departure angle(°) |
20/13 |
|
|
Weight in KGS |
GVW. |
15550 |
|
Curb Weight |
8100 |
|
|
Max. driving speed(km/h) |
90 |
|
|
Allowable passengers in cab |
2+3 |
|
|
Engine |
Model |
Isuzu 4HK1 |
|
Type |
4-stroke direct injection , 6cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Horse Power(HP) |
205 |
|
|
Emission standard |
Euro 5 |
|
|
Gearbox |
6 forwards & 1 reverse |
|
|
Fuel tank (L) |
200L |
|
|
Tire |
295/80R22.5 6pieces+1 spare tire |
|
|
Operation control system |
Electrically hydraulic control |
|
As a high-performance emergency lighting truck, Isuzu FTR has a wide range of application scenarios.
1. Night road construction: During night maintenance and construction of highways, bridges and other infrastructure, Isuzu FTR can provide bright and extensive lighting to create a safe and efficient working environment for construction workers and ensure project progress.
2. Emergency rescue: When serious traffic accidents, geological disasters and other emergencies occur, Isuzu FTR can quickly rush to the scene and use its powerful lighting system to assist in search and rescue, first aid and other work, improving rescue efficiency and reducing casualties.
3. Large-scale outdoor activities: When holding large-scale parties, music festivals and other outdoor activities, Isuzu FTR can be used as a mobile lighting vehicle and can be flexibly deployed to meet the lighting needs of different areas such as stages and audience areas, creating good visual effects and atmosphere.
4. Electric power emergency repair: When a power grid failure occurs and emergency repair is required at night, Isuzu FTR can provide sufficient lighting for maintenance personnel to facilitate troubleshooting and equipment maintenance, restore power supply as soon as possible, and reduce economic losses.
5. Firefighting support: In major fire accidents, Isuzu FTR can provide lighting support for firefighting vehicles and firefighters, assisting fire extinguishing, evacuation and other tasks. At the same time, its power generation system can also be used to power firefighting equipment to enhance fire rescue capabilities.
It is precisely by virtue of its excellent performance and comprehensive functions that the Isuzu FTR lighting truck shows its talents in night operations, emergency rescue and other fields, providing strong equipment support for related industries and becoming an indispensable and important force.
