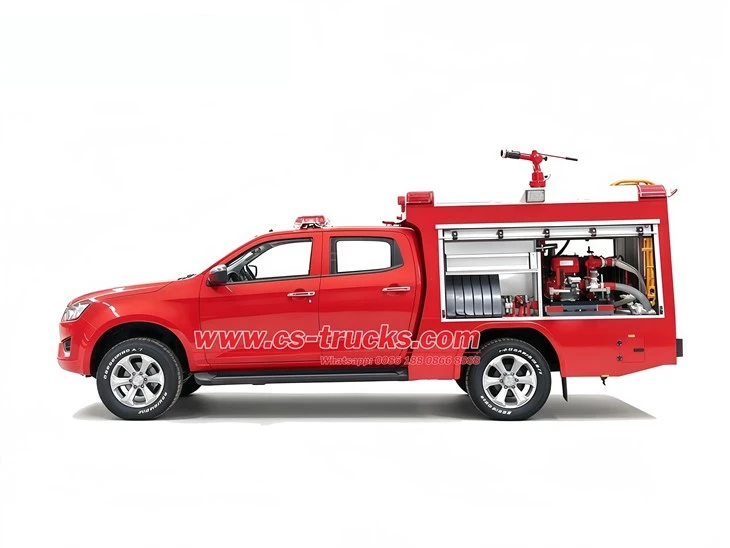

This ISUZU 4×4 wildland fire truck for sale is equipped with a 143 horsepower 4KH1CT6H1 engine and 4×4 drive, making it highly maneuverable and capable of off-road driving, allowing it to quickly reach narrow streets and mountain fire sites. Its 800 liters tank is specifically designed for initial fire suppression, making it an ideal supplementary equipment for grassroots fire stations to achieve the goal of "early detection and early firefighting."
Model: CSC5030XF Capacity: 800 L Drive: 4×4 Engine power: 143 HP Engine type: 4KH1CT6H1
Send Inquiry
Description
This ISUZU 4x4 pickup fire truck is equipped with a Euro VI standard 4KH1CT6H1 diesel turbocharged engine, a four wheel drive chassis, and a manual transmission. It has outstanding off road mobility and can flexibly traverse complex scenarios such as forest areas, factory areas, and rural streets that are difficult for large fire trucks to reach. It is also equipped with an ABS+EBD+ESC safety braking system to ensure reliability when driving on complex road conditions.
The vehicle is equipped with a 600L water tank and a 200L foam tank, along with a JBQ5.5/10 fire pump and a PS8/20W water foam dual purpose fire cannon. It has a 7m selfpriming capability, a water range of ≥42m, and a foam range of ≥55m. The fire cannon can rotate 360° and has a wide angle elevation and depression range. The vehicle is equipped with a complete set of firefighting equipment, capable of extinguishing initial fires involving solids and flammable liquids, meeting the needs of forest fire prevention, rapid emergency rescue in industrial parks and rural areas.
ISUZU Pickup Brush truck Key Features
High mobility
Equipped with a 143HP 4KH1CT6H1 engine, providing ample power for rapid response and efficient deployment.
Good off road capability
Utilizes 4x4 all wheel drive, adapting to complex terrain and capable of traversing narrow streets, old residential areas, and forest fire zones.
Moderate liquid capacity
800 liters water tank capacity, specifically designed for initial fire suppression, meeting the rapid firefighting needs of "early detection and early suppression."
Wide scenario adaptability
The compact and flexible vehicle type is an ideal supplementary equipment for grassroots fire stations in towns, communities, and enterprises to achieve rapid initial fire control.
Technical parameters
4x4 Wildland Fire Pumper ISUZU Pickup
Overall
Vehicle Model
CSC5030XF
Drive Type
4×4
Capacity
600L water+200L Foam
Gross Vehicle Weight
3460 kg
Curb Weight
2000 kg
Overall Dimensions L*W*H
5860×1900×2500 mm
Maximum Speed
140 km/h
Engine
Engine Model
4KH1CT6H1
Fuel Type
Diesel
Power
143HP/105kW
Emission Standard
Euro 6
Displacement
2999 ml
Engine Type
4-cylinder inline, water-cooled, turbocharged diesel engine with intercooler
Chassis
Wheelbase
3025 mm
Tire Specification
265/60R18
Tire No.
6+1
Gear Box
5-shift speed levers with 1 reverse
Steering Wheel
LHD
Brake
ABS+EBD+ESC
Fire Pump
Model
JBQ 5.5/10
Flow Rate
10.0 L/s
Pressure
0.55 MPa
Max Working Pressure
0.75 MPa
Max Suction Height
7 m
Rated Speed
3600±50 r/min
Water Diversion Method
Vacuum Pump
Fire Monitor
Model
PL8/24
Flow
24 L/s
Rated Working Pressure
0.8 MPa
Max Working Pressure
1.6 MPa
Range
Water
≥42 m
Foam
≥55 m
Pitch Rotation
- 35～+70°
Horizontal Rotation
0～360°
Standard Configuration
All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual……
Performance and advantages
Chassis and Powertrain
✅Powerful Performance: Equipped with a Euro VI standard 143HP turbocharged diesel engine, providing ample power output.
✅Four Wheel Drive Off Road: 4x4 four wheel drive configuration, capable of traversing complex terrains such as forests, factories, and rural areas.
✅Driving Safety: Equipped with ABS+EBD+ESC braking system, ensuring stability in complex road conditions.
Tank
✅Dual Tank Design: 600L water tank + 200L foam tank, water and foam extinguishing agent are stored separately.
✅Multi-hazard Adaptability: Supports both water and foam extinguishing methods, capable of handling fires involving solids and flammable liquids.
✅Compact Layout: Tank body is compatible with pickup truck platforms, without compromising the vehicle's off road capabilities.
ISUZU Off road Fire Truck Driver's cab
This pickup truck fire truck features a double cab design, accommodating five personnel, its high seating position provides excellent visibility and is suitable for navigating complex off road conditions. The cab retains the original pickup truck's safety and shock absorption features and can be equipped with warning lights and alarm control components to operate rear firefighting equipment.
Firefighting Operation System
Fire Pump
This vehicle is equipped with a JBQ5.5/10 fire pump with a rated flow of 10L/s and a maximum selfpriming height of 7m. It uses a vacuum pump for water priming and has a maximum working pressure of 0.75MPa, which can provide sufficient water pressure for the vehicle's fire monitor and pipelines, supporting on site water intake operations in the field.
Model
Type
Power
Maximum Flow
Rated Pressure
Maximum Head
Deep Suction
Inlet Diameter
Outlet Diameter
JBQ5.5/10
Air cooled, four stroke, single cylinder
8.2KW
55T/h
≥0.55Mpa
70m
7m
65mm
65mm
Fire Monitor
This vehicle is equipped with a PS8/20W water and foam dual purpose fire monitor with a flow rate of 20L/s, a rated working pressure of 0.8MPa, a maximum working pressure of 1.0MPa, a water range of ≥42m, and a foam range of ≥55m. It can achieve 360° horizontal rotation and a pitch angle of -35° to +70°, providing multi angle and wide range spraying.
Proportion Mixer
The PH64 foam proportioning system has a mixing ratio of 6%, a rated flow rate of 24L/s, and an operating flow rate range of 16-64L/s. It can automatically complete the intake, mixing, and output of foam liquid, and supports rapid switching between water and foam modes to supply qualified foam mixture to fire extinguishing cannons.
Model
Mixing Ratio
Rated Flow Rate
Flow Range
PH64
6%
24 L/s
16~64 L/s
Equipment Room
The equipment compartment of the pickup fire truck is located on both sides of the cargo box, which adopts an open door layout and has a neat interior space. It can store a full set of rescue accessories such as water hoses, water filters, fire guns, and connecting tools. It is integrated with the rear pump and foam pipeline, making it convenient to access equipment and suitable for rapid emergency response in the field.
Application scenarios
ISUZU 4×4 wildland Fire Truck for Roadside Assistance
ISUZU 800L Off Road Fire Truck for Forest Fire
ISUZU 143HP Brush Fire Truck for Sale for Narrow Streets
Exterior Views
Front Right View of ISUZU 4×4 Used Wildland Fire Truck for Sale
Right View of ISUZU 143HP Grass fire Truck for Sale
Left View of ISUZU 800L Off Road Fire Truck for Sale
Rear Right View of ISUZU Brush fire Truck for Sale
Rear Left View of ISUZU 4×4 Pickup Wildland Fire Pumper
Front View of ISUZU 143HP Foam Fire Pickup for Airport Fire Fighting
Rear View of ISUZU 4x4 Emergency Fire Truck Pickup
