This ISUZU 5000L mobile fueling truck is equipped with an 4KH1N6HD engine, delivering a powerful 147 horsepower; its 4x2 drive system ensures high maneuverability and allows for rapid deployment in logistics parks, factories, mines, and construction sites. Its 5000 liters tank capacity is precisely matched to the daily refueling needs of urban logistics vehicles and construction machinery, effectively solving the "last mile" fuel supply problem, which is a professional fuel transport equipment that improves fleet operating efficiency and reduces empty run costs.
Model: CS5080GYY
Capacity: 5000 L
Drive: 4×2
Engine Power: 147 HP
Engine Type: 4KH1N6HD
Send Inquiry
Description
Product Introduction
This ISUZU 5000L fuel distribution tanker truckis equipped with a 147HP diesel engine, meeting Euro V emission standards, offering powerful performance and environmental friendliness. Its 4x2 drive system, combined with air brakes, ensures agile and safe handling. The 5000L carbon steel tank is suitable for transporting gasoline and diesel fuel, and is available in stainless steel or aluminum alloy.
It features a well known brand fuel pump with a flow rate of 30 m³/h and can be equipped with flow meters, fuel dispensers, hose reels, and other equipment to meet diverse operational needs. The compact design makes it widely applicable to logistics parks, construction sites, mining areas, and other locations without fixed refueling stations, providing efficient and convenient mobile refueling services.
High quality
advanced equipment
professional team
one-stop solution
Key Features
Manufacture:CS TRUCKS
Features:
✅Optimal Tank Capacity: A 5000 liters tank capacity precisely matches the daily energy replenishment needs of urban logistics vehicles and construction machinery, avoiding wasted transport capacity.
✅Powerful Engine: Equipped with an 4KH1N6HD engine, delivering 147 horsepower, ensuring ample power for starting fully loaded, climbing hills, and handling complex road conditions.
✅Flexible and Maneuverable: A 4×2 drive configuration with a compact body size facilitates operation in logistics parks, construction sites, and narrow roads.
✅Compliant Chassis: Based on a specialized hazardous materials chassis, it complies with national regulations and is equipped with safety devices such as speed limits and front disc brakes, ensuring safe operation on public roads.
Technical parameters
Mobile Fuel Express Refueling Truck 5000L ISUZU
Overall
Vehicle
CS5080GYY
Drive Type
4×2
Gross Vehicle Weight
8280 kg
Curb Weight
2560 kg
Overall Dimensions L*W*H
6200×2300×2400 mm
Maximum Speed
100 km/h
Engine
Engine Model
4KH1N6HD
Fuel Type
Diesel
Power
147HP/108kW
Emission Standard
Euro 5
Displacement
2999 ml
Engine Type
Inline four-cylinder, turbocharged and intercooled, electronically controlled high pressure common rail
Chassis
Wheelbase
3360 mm
Tire Specifications
7.50R16
Tire No.
6+1
Gear Box
5 Forwards &1 Reverse , manual operated
Steering Wheel
LHD
Brake
Air
Air Conditioner
A/C
Cabin
3 Passengers,single row
Fuel Tank
Capacity
5000 L
Material
Q235-B carbon steel
Transport Medium
Gasoline, Fuel, Diesel or others
Fuel Pump
Brand
China famous brand
Flow
30 m³/h
Speed
970 r/min
Pressure
0.4 Mpa
Optional
Tank material could be carbon steel, stainless steel, aluminum (Aluminum tanker).
It can be divided into many compartments.
Imported American pump as optional.
Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge, etc
Heat preservation & heating system could be added.
Bottom loading system can be equipped.
Product Description
Chassis and Powertrain
✔️Reliable Power: Equipped with an ISUZU 4KH1N6HD diesel engine, delivering a maximum power of 108kW, providing ample power to meet daily transportation needs.
✔️Easy Handling: Features a 5-speed manual transmission, left-hand drive, a 3360mm wheelbase, and 7.50R16 tires, offering agile steering and adaptability to various work environments.
✔️Safety and Comfort: Equipped with an air braking system for rapid braking response; the cab seats 3 people and comes standard with air conditioning, balancing operational safety and passenger comfort.
Tank
✔️Large Capacity: The tank has a volume of up to 5000L and is made of Q235-B carbon steel, suitable for storing and transporting various fuels such as gasoline and diesel.
✔️Complete Configuration: Standard configuration includes a pumping system for rapid loading and unloading, meeting daily refueling needs.
✔️Flexible Function Expansion: Optional accessories such as compartments, bottom valves, bottom loading systems, and flow meters can be added to customize the system and improve metering accuracy and operational efficiency.
fuel dispenser of ISUZU fuel tanker
This fuel dispenser is powered by a truck and can be moved along with the truck to meet mobile refueling needs in both urban and rural areas. It features a compact design and is easy to operate, with the following characteristics:
24V truck power supply
Digital screen display with keypad
Real time tracking of liters, price, and total sales
Heavy duty automatic retractable reel
High flow auto shutoff nozzle with protective boot
Side mounted weatherproof lockable steel cabinet
Safety handrails and anti-slip walkway for tank access
Professional grade with green protective boot, ergonomic design
All dispensing components enclosed in lockable steel compartment against tampering and weather damage
Product Details
Pump Outlet
Flow Meter
Explosion-Proof Junction Box
Driver's Cab
Fire Extinguisher
Gear Box
Application scenarios
This mobile fuel truck can be used in a variety of scenarios:
Logistics Parks and Fleets: Provide on site refueling services for freight fleets, reducing empty runs and detours while improving operational efficiency.
Factories, Mines, and Construction Sites: Provide on site refueling for construction machinery such as excavators and cranes to ensure continuous project operations and avoid downtime due to fuel shortages.
Farms and Agricultural/Forestry Operations: During peak farming seasons, we go deep into the fields to provide convenient fuel refueling for agricultural machinery such as tractors and harvesters.
Ports and Docks: We supply fuel to docked vessels, port vehicles, and loading/unloading equipment to ensure the efficient operation of ports.
ISUZU 5000L Fuel Distribution Tanker Truck for Airport
ISUZU 4×2 Drive Diesel Transfer Tank for Ports and Docks
ISUZU 147HP Mobile Diesel Refueling Bowser for Industrial and Mining
Exterior Views
Front Left View of ISUZU 5000L Fuel Tanker with Dispensing Pump

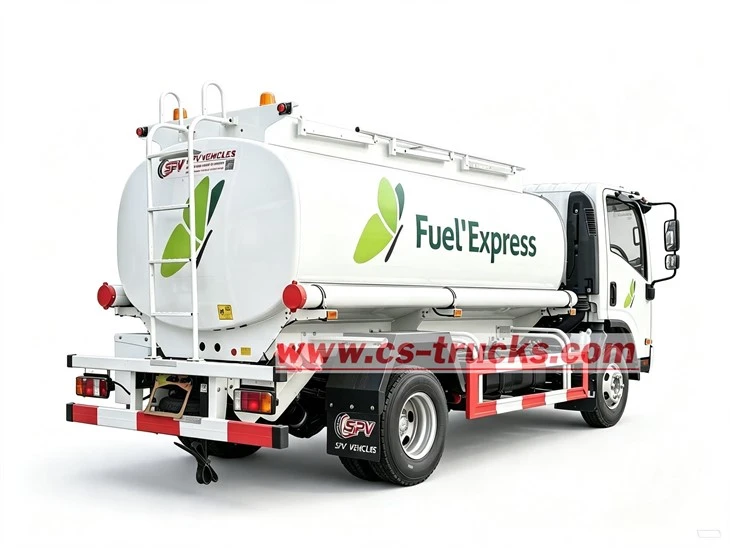

Rear Right View of ISUZU 4×2 Drive Mobile Fuel Bowser

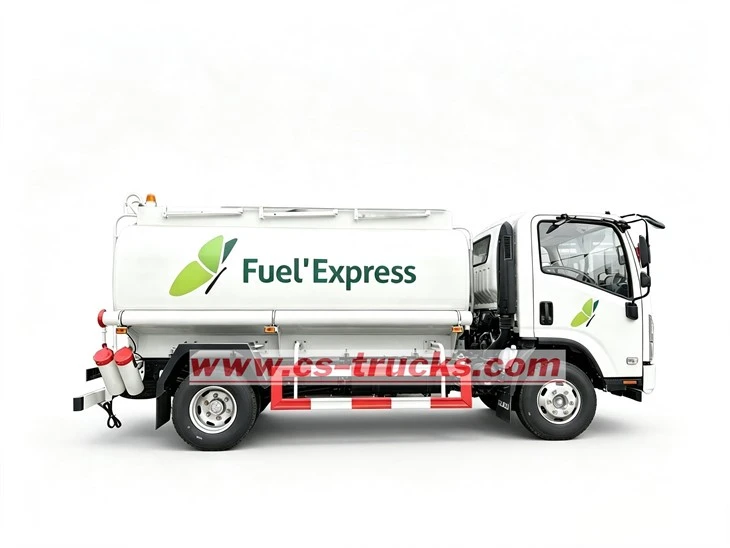

Left View of ISUZU 147HP Mobile Diesel Refueling Bowser
Right View of ISUZU 5000L Fuel Distribution Tanker Truck
Front View of ISUZU 4×2 Drive Diesel Transfer Tank
Rear View of ISUZU 147HP Towable Fuel Bowser Fuel Transfer Tank
Frequently Asked Questions
Q: What types of fuel can be transported?
A: Gasoline and diesel; mixing different types of fuel is strictly prohibited.
Q: How often should the tank be cleaned?
A: Drain out any sediment and impurities every 3 months, and be sure to clean the tank before replacing the media.
Q: Where is the oil pump located?
A: It is built into the toolbox on the side of the vehicle, driven by a power take-off (PTO), and equipped with a metered fuel dispenser.
Q: What precautions should be taken in winter?
A: For diesel vehicles, switch to low pour point motor oil and drain the fuel lines to prevent freezing.
Q: What Services Do We Offer?
A: We offer 24/7 after-sales support, 100% comprehensive vehicle customization, and safe, convenient, and efficient global shipping services.
