Products Description
CS TRUCKS Group Limited manufactures high quality LPG Tank Semi Trailers from China to all over the world. We can use flow meter and pump for discharging in our LPG Tank Semi Trailer according to customer preference and we use ST52 (P355GH or P355NH) material on body of tank for 10 to 14 mm thickness and 12 to 16 mm for front head and deshed end. According to request we can change the size and technical details. And we can manufacture LPG Tanker Trailer between 20 Cbm to 75 Cbm with hydrostatic test and welding certificates. We can also provide ADR Certificates for our LPG Tanker Semi Trailers
We manufactures LPG Transport Tanker Trailer for distribution and/or transport coupled with the latest technology systems. Our semi-trailers are certified acoording ADR Standards and European Transport Equipment Directives (TPED) and can be customized to meet local requirements, regulations & standards of the customer. Our systems beside storage and transport, also include state-of-the-art measuring and dispensing equipment. We cooperate with world leading manufacturers of LPG technologies in order to extend our offer to the most complete and efficient technology solutions for LPG.
LPG transport tanker trailer
3 axle LPG road tanker semi trailer
Technical Parameters for LPG tankers Trailer
|
Name |
58.5m3 LPG transport tanker trailer |
|
Type |
Cylindrical Type Half Chassis LPG |
|
GVW |
40.000 Kg |
|
Fifth Wheel laod |
11.500 Kg |
|
Max axle Load |
36.000 Kg |
|
Tare Weight |
15.000 Kg |
|
Payload |
25.000 Kg |
|
Height |
3900 mm |
|
Width |
2550 mm |
|
Fifth Wheel Height |
1250 mm(for single truck) will be arrange accordign to truck |
|
Total Lenght |
12.300 mm |
|
Design Pressure |
17,5 bar |
|
Test Pressure |
26,5 bar |
|
Design Temprature |
min -20 °c, max +70 °c |
|
Dished Ends Type |
Ellipsoidal |
|
Tank Body |
Cylindrical lime Truck made of 11 mm Special LPG steel plate. |
|
Equipment Tanks Over |
Block Flange DN 50 _ 2 units |
|
Block Flange DN 80 _ 1 unit |
|
|
Hydraulic Operator _1 unit |
|
|
3 “Ball Valves _3 units _ |
|
|
2 “Safety Valve_2 units _ |
|
|
Vapor Discharge Valve 2” |
|
|
¾” Check valve_ 2 units_ |
|
|
Rotogauge (Rotary Level Indicator) _ 1 |
|
|
Glycerine pressure gauge (0-25 bar), Ø 63 1 unit |
|
|
Thermometer (-30 / 60 ' C) Ø63 1 unit |
|
|
Acme Filler Cap 3 units |
|
|
Manhole_ 1 unit 16” 400 mm |
|
|
Filter_ 1 Unit |
|
|
2 fixed out gauges 80 % and 85 %. |
|
|
Pressure gauge 0 – 30 Kg/cm² completewith valves |
|
Control (Inspection and Tests) |
* Control Costs NOVA ‘to belong to a hydrostatic tank to be tested |
|
* Hydrostatic pressure test • Size Control Control and Certification of Materials |
|
|
* Radiographic control |
|
|
* Inspection Certificate from TUV or SGS (design, calculations, material, visual, dimensional, plates, head control, heat treatment report, penetration dye test) |
|
|
Chassis |
Half Chassis Has been produced in welding constructions with gas metal arc welding as “I” crossing from high resistant ST 52 considering overloads |
|
Axles |
* FUWA Type 3 x 12 Ton axles with air spring suspensions / Drum brakes. There are brake shoes and heavy brake levers suitable for TSE norms |
|
Brake |
* Wabco ABS brake system will be used |
|
* Dual circuit brake hardware, 24” Service brake bellows fitted to axle 3 24×30” Emergency brake fitted to axle 1 and axle 2 Load balancing distribution valve, Automatic brake adjusters |
|
|
Electric Installation |
* 2×7 pin sockets – 24V, lights accord to standard in SAE rear stop lamps, side marker lamps, brake safety warning lamps and signal light fitted at the rear |
|
* 2 tail & stop combined lamps (red) |
|
|
* 2 turn signal combined lamps (orange) |
|
|
* 1 license lamp (white) |
|
|
Tires and Rims |
* 6 pieces 385/65R/22.5” Petlas brand Wheel rims Jantsa or Jantas brand. Dimensions of the tires are determined considering the nearest load index values to technical criteria.. |
|
Parking Leg |
* OMS or GOS (Certificated Turkish Brand) Jost Type Two speed, telescopic, mechanical conveyor legs, with the |
|
King Pin |
* OMS (Certificated Turkish Brand) Jost Type Steel king-pin which is 3,5” suitable for 4×2 or 6×4 tractor unit produced 42 CRMO4 according to DIN 74083 |
|
Kin pin Height will be arrange according to your truck. |
|
|
Blasting and Painting |
* SA2.5 the quality of the exterior of the tank shot blasted, epoxy primer after sanding the surfaces with shopprimer is to be implemented and the boat will be painted with white acrylic finish. The customer wants to be pasted on top of the tank other hazardous substances and other |
|
Accessories |
1 pc Steel Bumper cover |
|
1 pc Spare wheel carrier |
|
|
2 pcs Food and Tool box |
|
|
2 pcs fire extinguisher |
|
|
1 pc Side Protection Bar |
|
|
1 pc Water Tank |
|
|
2 pcs Wheel chocks |
Why choose CS TRUCKS LPG semitrailer
The design pressure of LPG Transport Tanker Trailer is high, the safety is good, and it is equipped with a self-pressurized unloading device. It has the characteristics of maneuverability, convenient operation, safety and reliability. It is suitable for use in areas with narrow roads and large site conditions:
1. Light weight, large volume, large loading quality, short cold tank time, low operating cost
2. The process flow is reasonable, the use is safe and reliable, the operation and maintenance are convenient, and the heat insulation effect is good
3. Excellent vacuum insulation performance, low static evaporation rate, and minimal BOG emissions
4. Sufficient protective space at the rear of the vehicle, a lower center of gravity of the vehicle, and better anti-rollover ability
5. Set up a pneumatic emergency cut-off device to ensure the safety of the tanker in the event of an accident
6. Small size, strong power, and good road passability
7. Integrated pressurized carburetor, with convenient and quick loading and unloading characteristics
8. The tank body has high design pressure, super long storage time and safety performance
Volume: 15m3-70m3
Medium: LOX LNG LAr LCO2 LH2 LNG LPG LN2 LHe etc.Liquid carbon dioxide, liquid oxygen, liquid argon, liquid nitrogen, liquid helium, liquid hydrogen, liquid natural gas, liquid ammonia, liquid chlorine, liquefied petroleum gas, liquid propane, liquid ethylene, liquid ethane, propylene, methane, methanol, gas, liquid nitrous oxide, etc
Working Pressure: 0.3MPa-2.3MPa
Note: Products can be also custom-made according to special requirements.

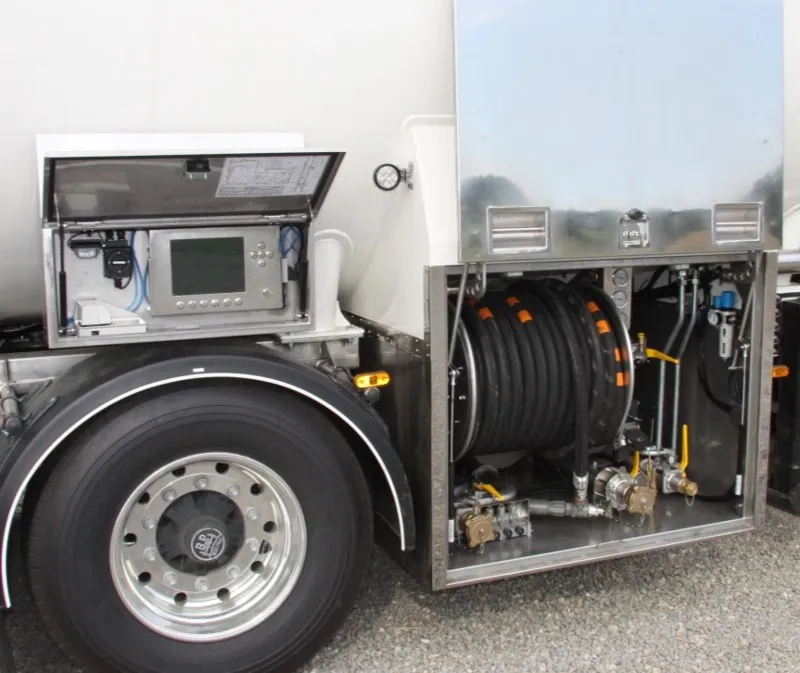

Pipelines for Distribution
Manhole DN500 in the rear bottom of the tank;
CORKEN hydraulic pump type ZH2000 / 3200 / 4200
Measuring devices: dual-mass flow meters EMERSON or
ENDRESS+HAUSER: density measurement, dispensing precision
0.2%!, differential valve and separator SAMPI (Liquid Controls);
Hose reel HAAR HPSI 3A-F1 ¼ 600 600 405 R AIRSTAR Pm
PSB with grounding cable D2,5mm Cu, with a grounding terminal;
Liquid phase hose: hose length 40m, DN32, with pneumatic
actuator and filling connection;
Cabinet made of stainless steel with lights in 2x Ex-execution,
with valves and connections;
Bottom valves FISCHER/REGO/CAVAGNA;
Connections, valves, ball valves;
Temperature and pressure measurement in the pipes, tubular
level gauge and filling control valves 8 pcs;
Side level gauge in the tank;
Pneumatic distribution for control of the bottom valves;
Hydraulic distribution for the pump drive;
Roof cover of polished stainless steel;
LPG piping of stainless steel.
Pipeline Valves for Pump In and Pump Out
Manhole DN500 in the rear bottom of the tank;
Cabinet made of carbon and stainless steel with valves and connections;
Bottom valves FISCHER/REGO/CAVAGNA;
Connections, valves, ball valves;
Temperature and pressure measurement in the pipes, tubular level gauge;
Level gauge side installation;
Hose reel HAAR with grounding cable;
Pneumatic distribution for control of the bottom valves;
Roof cover of polished stainless steel;
LPG piping of stainless steel.
