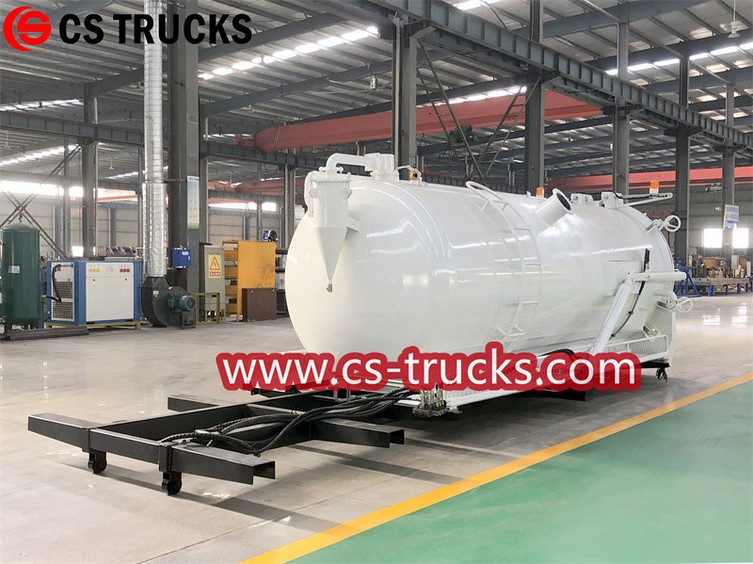

10,000L Vacuum Truck Tanker Body Kit

The upper part of the 10-cubic-meter sewage suction truck integrates an efficient sewage suction and discharge system, mainly including a corrosion-resistant tank with a capacity of 10 cubic meters, which is divided into sewage and clean water areas and is designed with reasonable wave-breaking plates to enhance stability. The core of the upper part is a powerful vacuum pump, which drives the sewage suction pipe deep into sewers and other places to effectively absorb silt, mud and other impurities. At the same time, the water vapor separator ensures that no water vapor will be generated during the sewage suction process to damage the vacuum pump. There is a sewage outlet at the tail of the tank, which can easily discharge sewage with the rear cover self-unloading device. In addition, the upper part is also equipped with auxiliary facilities such as ladders to improve the convenience and safety of operation. The entire upper system is reasonably designed and easy to operate. It can meet the sewage suction needs under various complex working conditions. It is an indispensable professional equipment in the fields of urban sanitation, municipal construction, etc.

The main function of the oil-gas separator is to separate the oil-gas mixture in the vacuum pump to ensure that the vacuum pump can work continuously and stably. During the sewage suction operation, the vacuum pump will produce a large amount of oil-gas mixture. If these mixtures are not separated, they will have a negative impact on the performance and life of the vacuum pump.

The working principle of the oil-gas separator is to separate the oil and gas in the oil-gas mixture through certain physical and chemical methods. Specifically, after the oil-gas mixture enters the oil-gas separator, it passes through a series of separation devices, such as sieve plates, mist collectors, etc., to capture oil droplets from the gas, and the gas is discharged through the exhaust port. The separated oil is returned to the vacuum pump through the return oil pipe for reuse.

The main function of the water-vapor separator is to separate the water in steam or compressed air to ensure the quality and stability of the gas. In the sewage suction truck, the water vapor separator is usually used to treat the gas discharged from the sewage suction tank to prevent the water from causing adverse effects on subsequent equipment or the environment.

The working principle of the water vapor separator is to separate the water droplets in the gas due to inertia, gravity and other effects by changing the flow direction, speed and other parameters of the gas. Specifically, after the gas enters the water vapor separator, it passes through a series of baffles, baffles and other devices, on which the water droplets accumulate and eventually fall to the bottom of the separator, while the gas is discharged through the outlet.

● High-pressure flushing system:

Function: Before and after the sewage suction operation, the sewage suction port and pipeline are high-pressure flushed to remove residual dirt and impurities and keep the equipment clean and unobstructed. The high-pressure flushing system is usually equipped with a high-pressure water pump and a flushing nozzle, and the flushing pressure and flow rate can be adjusted as needed.

● Drain valve and discharge system:

Function: Control the discharge of sewage in the tank. The drain valve is made of corrosion-resistant materials and has good sealing and high-pressure resistance. The discharge system includes a sewage pipe and a discharge port, which can discharge sewage safely and quickly to a designated location.

● Hoses and Connections

The kit includes a set of hoses and connections that allow the vacuum truck to connect to the waste source. These hoses are made of durable materials that can withstand the corrosive nature of liquid waste.

The hoses are equipped with quick-disconnect connectors, which makes it easy for operators to connect and disconnect the hoses quickly and efficiently. They are also designed to be flexible and easy to operate, allowing operators to reach narrow and difficult-to-access areas.

● Pressure Gauge

The pressure gauge is used to monitor the pressure changes in the hydraulic system of the sewage suction truck in real time. It is an important basis for the driver to understand the working status of the hydraulic system, and can help the driver to detect and deal with potential faults in time. During the sewage suction operation, the pressure gauge can accurately display the pressure value of the hydraulic system, thereby ensuring that the driver can adjust the operation according to the pressure changes and avoid damage to the hydraulic system due to excessive pressure.

● Hydraulic Oil Tank

The hydraulic oil tank is one of the key components in the hydraulic system of the sewage suction truck. It is mainly used to store hydraulic oil and provide the necessary cooling, heat dissipation, purification and other functions for the hydraulic system. The design and capacity selection of the hydraulic oil tank are crucial to the performance and stability of the hydraulic system.
