HOWO 6×6 offroad 4000 Gallon fuel truck (also called fuel transfer tank, mobile fuel bowser, or wildland fuel tender) is built for hauling diesel and gasoline to hard to reach places. This HOWO 6x6 offroad fuel bowser comes with a carbon steel tank and a 400HP engine. Its chassis fitted with 14.00R20 tires, keeps the truck moving on muddy tracks, rocky trails, and remote work sites. This wildland fuel delivery truck delivers fuel where regular trucks cannot go, serving mining camps, oil fields, and firefighting support operations.
*HOWO 6x6 Wildland 4000 Gallon Fuel Distribution Truck*
-----------------------------------------------------------------
CS Factory is a professional manufacturer in the truck area.
guaranteeing all products are Brand-New and High-Quality.
» I.Product Defination and Introduction:
Manufacturer: CS TRUCKS
Features:
▶ Chassis: HOWO 6×6 offroad chassis with 400HP WEICHAI WP12S400E201 diesel engine
▶ Tank Capacity: 4,000 gallons
▶ Tank construction: 5mm Q235 carbon steel plate, anti-corrosion coating inside and out, baffles welded inside to reduce liquid surge on rough trails
▶ Fuel Transfer Setup: PTO driven pump (optional fuel dispenser or flow meter), can add hose reel and nozzle for easy refueling at remote sites
▶ Offroad & Military Mobile Refueling: 6×6 drive with 14.00R20 tires handles mud, sand, rocks, and steep slopes with no road restrictions. Works as a tactical fuel truck for military operations, moving with troops to refuel vehicles, generators, and aircraft on site.
» II. Product Parameters for HOWO 6X6 Mobile Fuel Tanker:
| Product Name | HOWO 6x6 Wildland 4000 Gallon Fuel Distribution Truck | ||
| Overall | Vehicle Model | CS5250GYY | |
| Drive Type | 6*6 | ||
| Gross Vehicle Weight | 25000 kg | ||
| Curb Weight | 11940 kg | ||
| Maximum Speed | 95 km/h | ||
| Overall Dimensions L*W*H(mm) | 11300*2580*3250 mm | ||
| Front Axle | 7.5T | ||
| Rear Axle | 13T*2 | ||
| Engine | Engine Model | WP12S400E201 | |
| Engine Brand | WEICHAI | ||
| Fuel Type | Diesel | ||
| Power | 400 HP(294KW) | ||
| Emission Standard | Euro II | ||
| Displacement | 11596 ml | ||
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | SINOTRUK HOWO | |
| Tire No. | 10+1 | ||
| Tire Specification | 14.00R20 | ||
| Wheelbase (mm) | 4600+1350 mm | ||
| Transmission | HW19710 manual 10F and 2R | ||
| Steering Wheel | Left hand drive | ||
| Brake | Air brake | ||
| Radiator | Suitable for tropical climate | ||
| Fuel tank | Capacity | 4000 gallons | |
| Tank material | Carbon steel Q235 5mm | ||
| Transport medium | Gasoline, Fuel, Diesel, or others | ||
| Optional | **Tank material could be carbon steel, stainless steel, or aluminum (Aluminum tanker). ** It can be divided into many compartments. ** Imported American pump as optional. **Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge, etc **Heat preservation & heating system could be added. **Bottom loading system can be equipped. |
||
» III. Product Description:
1. Chassis Configuration:
♦ HOWO 6×6 offroad chassis with reinforced frame, GVW 25,000 kg and curb weight 11,940 kg. Built to carry 4,000 gallons of fuel across rough terrain without straining the structure.
♦ Front axle rated at 7.5T, rear axles at 13T each. 6×6 drive keeps the truck moving on muddy trails, rocky slopes, and sandy ground. Air brake system and tropical radiator come standard.
2. Powertrain System
♦ WP12S400E201 inline 6-cylinder turbocharged inter-cooled diesel engine, 400 HP (294 kW), Euro III emission, displacement 11,596 ml. Strong torque at low rpm for pulling heavy loads uphill on dirt tracks.
♦ HW19710 10-speed manual gearbox (10F+2R), 6×6 drive, wheelbase 4,600+1,350 mm. Power delivery stays steady whether the truck is climbing rocky slopes or cruising on paved roads for fuel delivery and refueling jobs.
» III. HOWO 6X6 Diesel Transfer Tank Product Details:
HOWO Oil Dispensing Nozzle & Hose Reel
HOWO Fuel Transfer Tank Flow Meter & Pump Outlet Valve
HOWO Diesel Bowser Equipment Compartment
HOWO 6X6 All Drive Axle
HOWO Portable Fuel Bowser 65CF8 Pump Outlet Ball Valve
HOWO Oil Transport Tanker Discharge Coupling Port
» IV.HOWO Fuel Transfer Tank Solutions:
Howo 6x6 Fuel Distribution Tanker Truck For Wildland Fire Refueling Support
HOWO 6X6 Petrol Bowser For Field Vehicle Refueling Deployment
HOWO 6X6 Mobile Fuel Bowser For Military Aircraft Aviation Refueling
HOWO 6X6 Diesel Transfer Tank For Desert Off road Mobile Refueling
» V.HOWO Oil Tanker Truck Exterior Views:

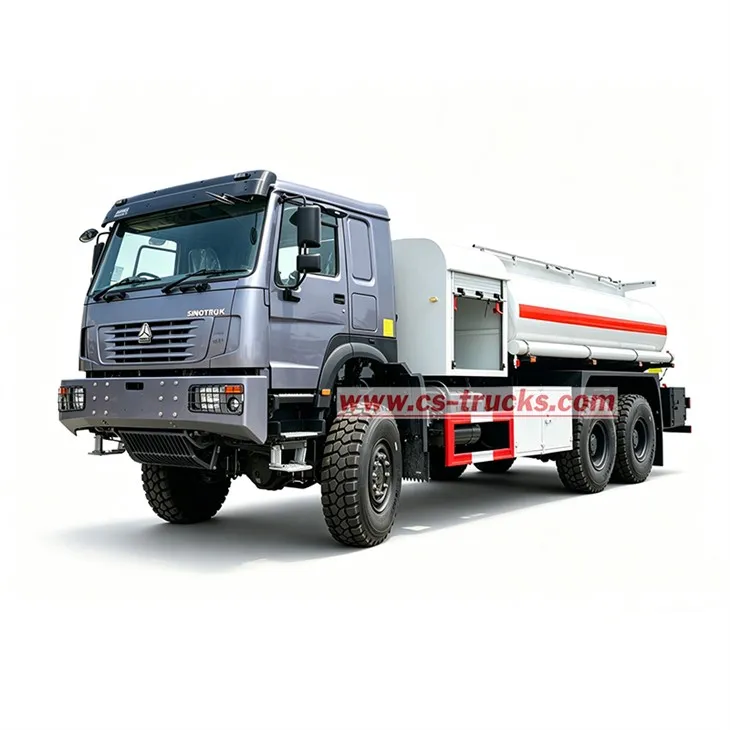

Front Right View of HOWO 6x6 Wildland 4000 Gallon Fuel Distribution Truck

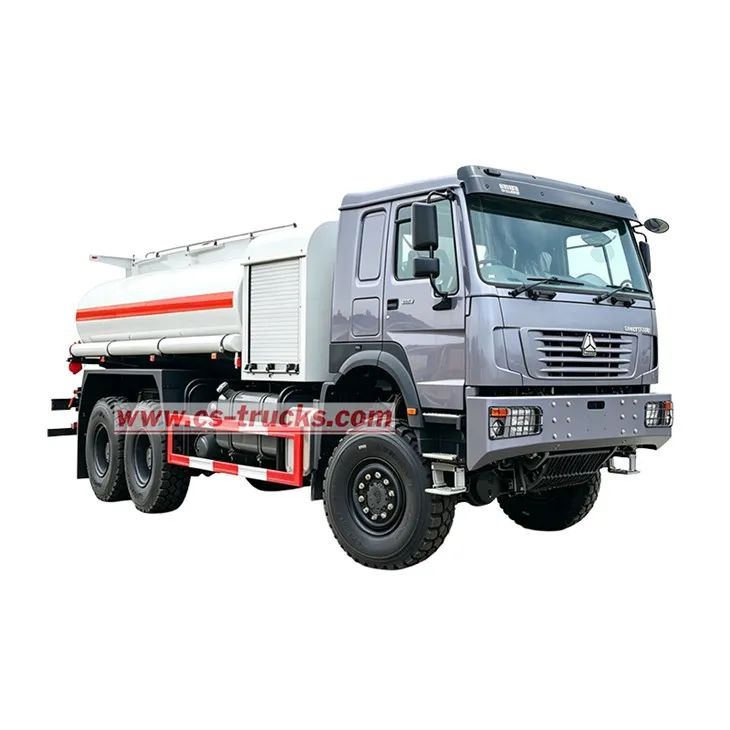

Front Left View of HOWO 6X6 Mobile Bowser with Pump

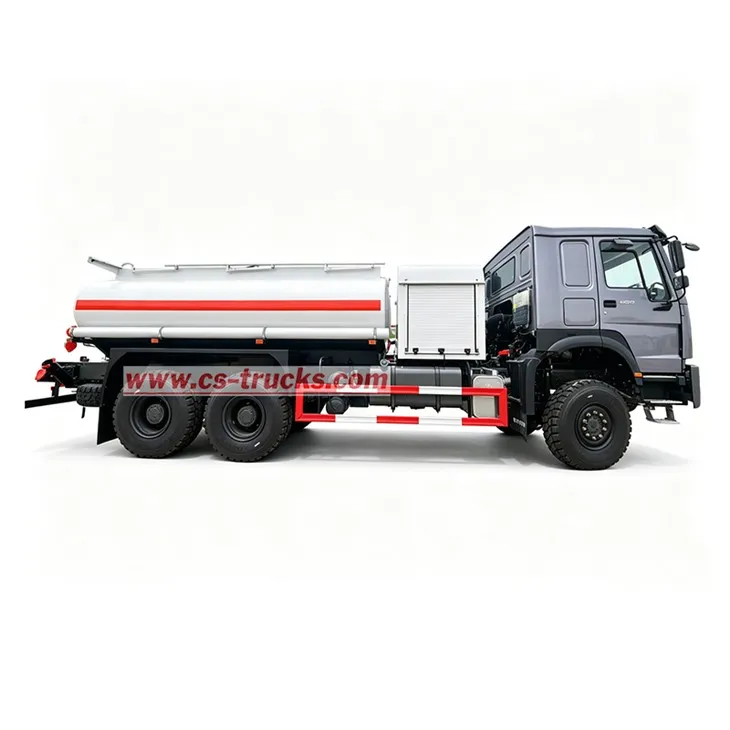

Right View of HOWO 6X6 Military Fuel Tanker

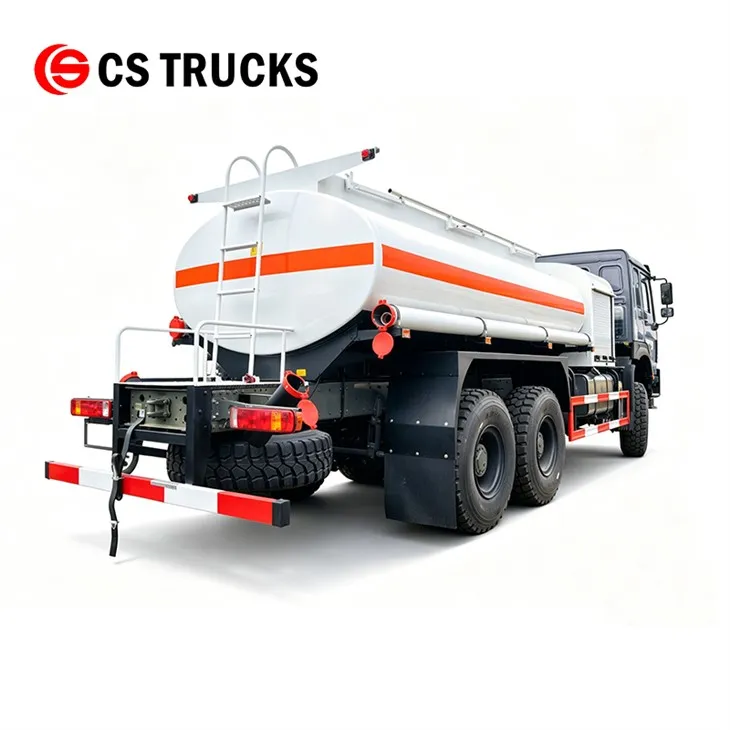

Rear Right View of HOWO 6X6 Military Fuel Bowser

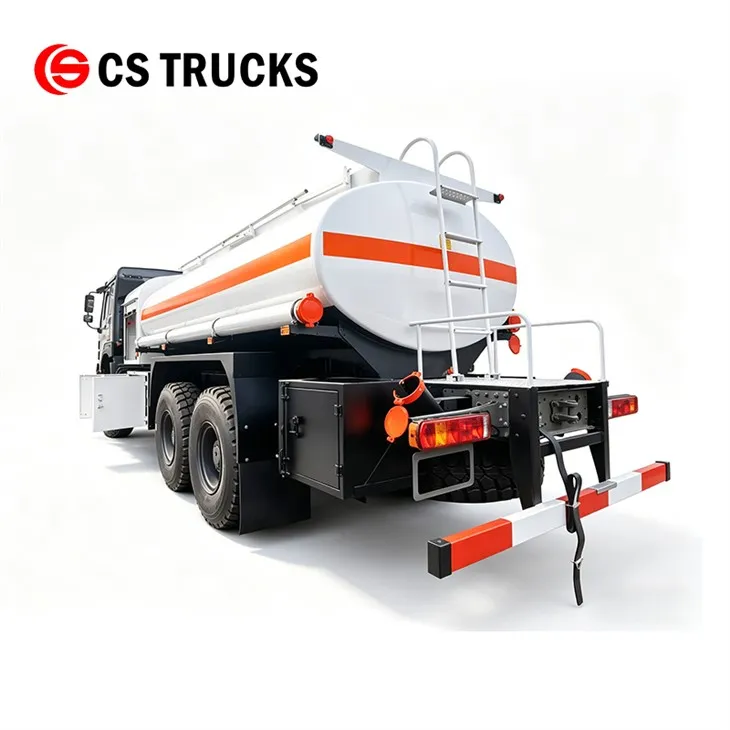

Rear Left View of HOWO 6X6 Mobile Diesel Refueling Bowser

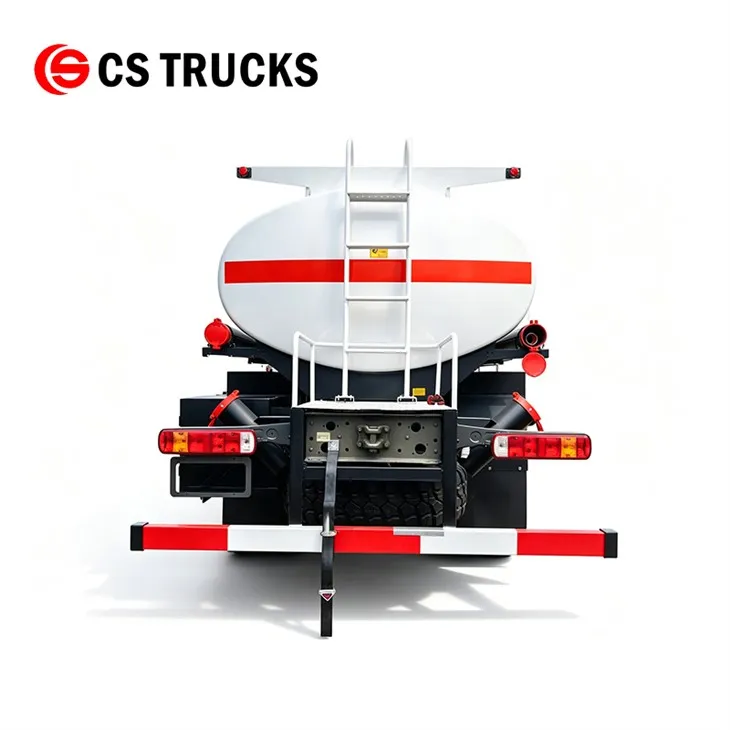

Rear View of HOWO 6x6 Towable Fuel Bowser Fuel Transfer Tank
» VI.HOWO Oil Tanker Truck Optional Accessories:
Products--100% China HOWO factory trucks!
Shipping--100% fast, Convenient, Efficient!
Guarantee--7 days + 24 hours Safety Service!
1. HOWO 6×6 Offroad 4,000 Gallon Fuel Truck: Built on HOWO 6×6 platform with WP12S400E201 diesel engine rated at 400 HP plus HW19710 10-speed manual transmission. Made for fuel delivery and on-site refueling in rough terrain and remote locations.
2. Tank Construction: Made from 5mm Q235 carbon steel plate with 4,000 gallon capacity. Anti-corrosion coating applied inside and out. Internal baffles welded in to keep fuel from sloshing hard when driving over bumpy trails.
3. Fuel Transfer Equipment: Comes with a PTO driven pump. Optional fuel dispenser or flow meter can be added. 20m hose reel with nozzle available for easy refueling at remote work sites.
4. Safety & Operational Features: Centralized controls for pump operation. Equipped with emergency shutoff valve, anti-static grounding, overflow protection, and fire extinguishers. Built to handle fuel safely in temperatures from -40℃ to +70℃.
