HOWO 6500L mobile fueling truck (also called fuel bowser, mobile refueler, or diesel delivery truck) is designed for on-site fuel delivery and dispensing tasks. Jobs include refueling construction equipment at job sites, supplying diesel to mining trucks, or delivering fuel to agricultural machinery in the field.
With a 6500L Q235 carbon steel tank and 160 HP Euro 3 engine, this HOWO mobile fuel tanker with digital dispenser handles remote job sites and rugged terrain alike. It delivers reliable service for construction companies, mining operators, and agricultural contractors.
*HOWO 6500L Mobile Fueling Bowser *
-----------------------------------------------------------------
CS Factory is a professional manufacturer in the truck area.
Guarantee all products are brand new and High-Quality.
» I. Product Definition and Introduction:
Manufacturer: CS TRUCKS
Features:
▶ Chassis: SINOTRUK HOWO 4×2 chassis with 160 HP YC4E160-33 Euro 3 diesel engine
▶ Fuel Tank: 6500L capacity, Q235 carbon steel for diesel, gasoline, and fuel oil transport
▶ Fuel Pump: 80YHCB-60 pump, 60 m³/h flow, 0.6 MPa pressure, PTO-driven
▶ Dispensing System: Dual-fuel tank system with digital dispenser, LCD display, real-time tracking of liters
▶ Operation Scope: Dual-fuel tank system with digital dispenser, LCD display, real-time tracking of liters
» II. Product Parameters for HOWO 6.5 CBM Mobile Petrol Bowser:
| Product Name | HOWO 6500L ON SITE MOBILE FUELING TRUCK | ||
| Overall | Vehicle Model | CS5190GYY | |
| Drive Type | 4*2 | ||
| Gross Vehicle Weight | 19000 kg | ||
| Curb Weight | 10300 kg | ||
| Maximum Speed | 100 km/h | ||
| Overall Dimensions L*W*H(mm) | 9100*2200*3250 mm | ||
| Engine | Engine Model | YC4E160-33 | |
| Engine Brand | WEICHAI | ||
| Fuel Type | Diesel | ||
| Power | 160 HP (118KW) | ||
| Emission Standard | Euro III | ||
| Displacement | 4260 ml | ||
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | SINOTRUK HOWO | |
| Tire No. | 6 tires and 1 spare tire | ||
| Tire Specification | 8.25R16 | ||
| Wheelbase (mm) | 4800 mm | ||
| Gear Box | FAST 9JS150A, 6 forward and 1 reverse | ||
| Steering Wheel | Left hand drive | ||
| Brake | Air brake | ||
| Radiator | Suitable for tropical climate | ||
| Clutch | Reinforced diaphragm clutch | ||
| Cab | Single cabin with sleeper, with Air conditioner. | ||
| Fuel tank | Capacity | 6500 liters | |
| Tank material | Carbon steel Q235 | ||
| Transport medium | Gasoline, Fuel, Diesel or others | ||
| Fuel pump | Brand | China famous brand | |
| Model | 80YHCB-60 | ||
| Flow | 60 m3/h | ||
| Speed | 960 rpm | ||
| Pressure | 0.6 Mpa | ||
» III. Product Description:
HOWO 6500L Mobile Fueling Truck Chassis
■ Cabin：SINOTRUK HOWO 4×2 standard cab, single cabin with sleeper, A/C and power steering
■ Engine：YC4E160-33, 160 HP, inline 6-cylinder, 4.260 L displacement, Euro III
■ Transmission:FAST 9JS150A, 6 forward and 1 reverse
■ Front Axle Load：6.5 ton
■ Rear Axle Load：13 ton
■Tires: 8.25R16, 6 wheels plus 1 spare
■Wheelbase：4800 mm
HOWO 6.5CBM Fueling Truck Tank & Pump System
■ Dual Tank Dispensing System: Digital fuel dispenser with LCD display, real-time tracking of liters
■ Fuel Tank:6500L capacity, Q235 carbon steel, suitable for diesel, gasoline, and fuel oil transport.
■ Fuel Pump: 80YHCB-60, 60 m³/h flow, 0.6 MPa pressure, PTO-driven for reliable fuel transfer.
■ Hose Reel & Nozzle:Heavy-duty automatic retractable reel with high-flow auto-shutoff nozzle for safe and efficient refueling.
■Control Cabinet: Side-mounted weatherproof lockable steel enclosure for all dispensing components.
» IV.HOWO Mobile Fuel Tanker Operating Principle :
| Superstructure | ||

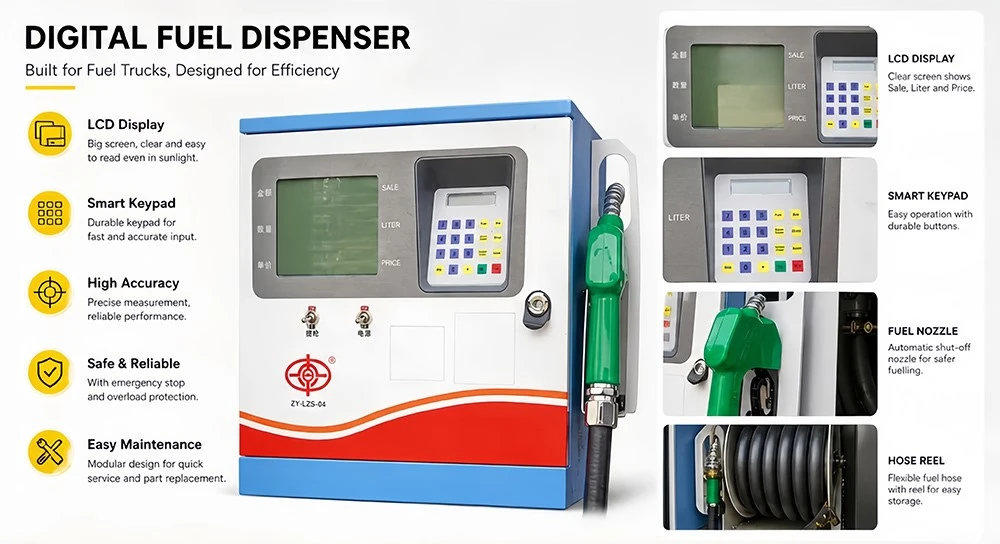

| Dispenser Type | Digital electronic fuel dispenser with LCD display | |
| Display Function | Real-time tracking of liters, price, and total sales | |
| Hose Reel | Heavy-duty automatic retractable reel | |
| Fuel Nozzle | High-flow auto-shutoff nozzle with protective boot | |
| Control Box | Side-mounted weatherproof lockable steel cabinet | |
| Safety Guard | Side impact protection with high-visibility yellow/black safety stripes | |
| Top Access | Safety handrails and anti-slip walkway for tank access | |
| Fuel Gun | Professional grade with green protective boot, ergonomic design | |
| Security Housing | All dispensing components enclosed in lockable steel compartment against tampering and weather damage | |
Product Details
HOWO Fueling Truck Oil Outlet Pipeline Ball Valve
HOWO 6.5CBM Diesel Truck Oil Inlet Pipeline Ball Valve
HOWO Petrol Tanker DN65 Bottom Valve
HOWO Petrol Tanker Static Grounding Reel
HOWO Fuel Bowser Emergency Undersea Valve Air Control Switch
HOWO Oil Tanker Truck Tire with Custom Yellow Wheel Hub
» Ⅴ.HOWO 4x2 Diesel Tanker Solutions:
HOWO 6500L Airport Refueler Truck For Aircraft Refueling
HOWO 6500L Mining Fuel Truck for Mining Truck Refueling
HOWO 4X2 Agriculture Diesel Tanker For Factory Fuel Supply
HOWO 6500L 4X2 Mobile Fuel Bowser With Pump
» Ⅵ. HOWO 4X2 6500L Petrol BowserViews:

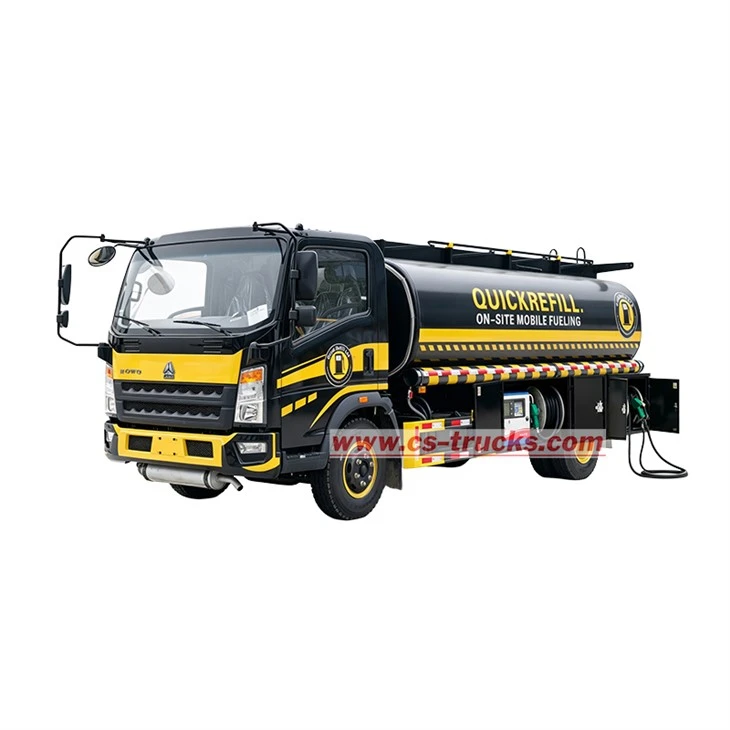

Front right view of HOWO 6500L mobile fuel bowser

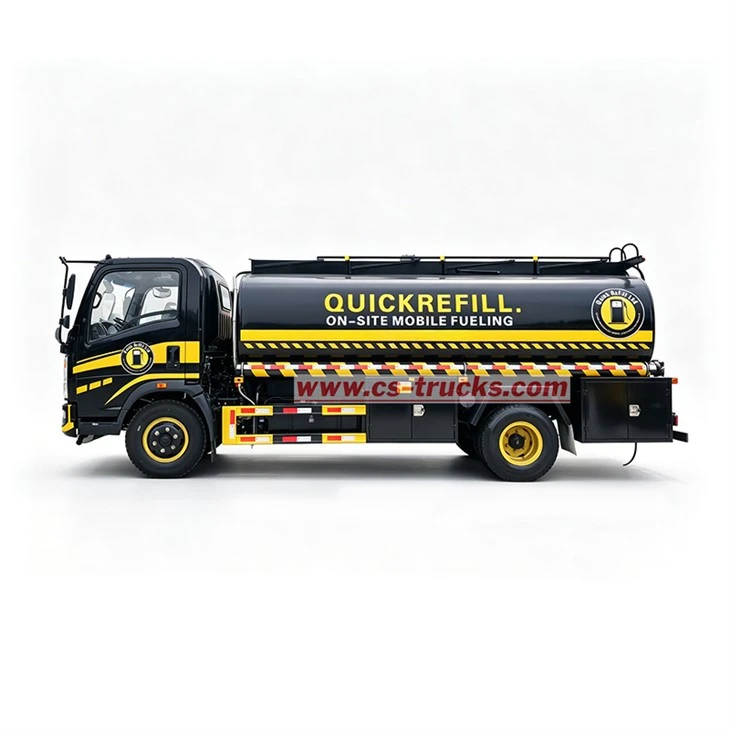

Left view of HOWO 6500L 4X2 fuel delivery truck

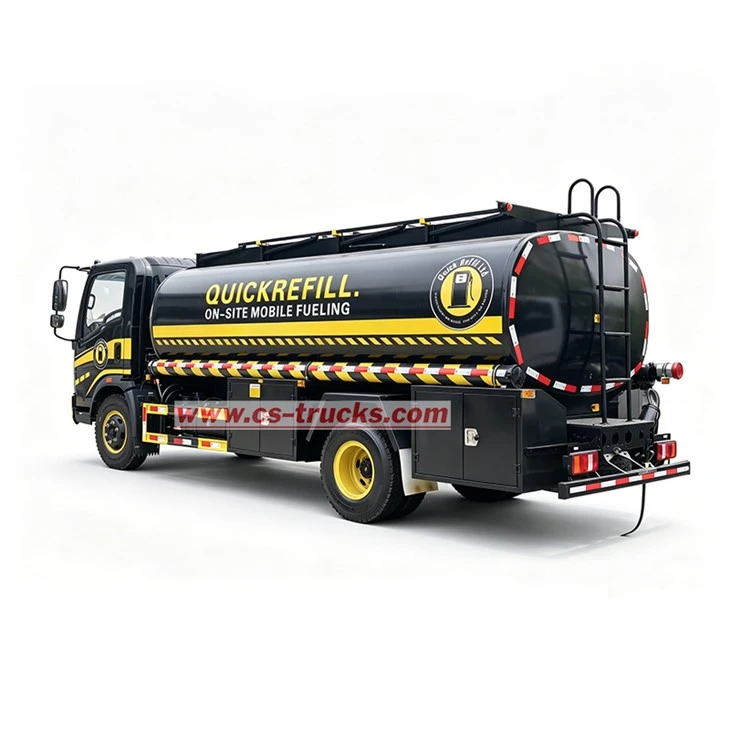

Rear left view of HOWO 6500L 4X2 diesel transfer tank with pump

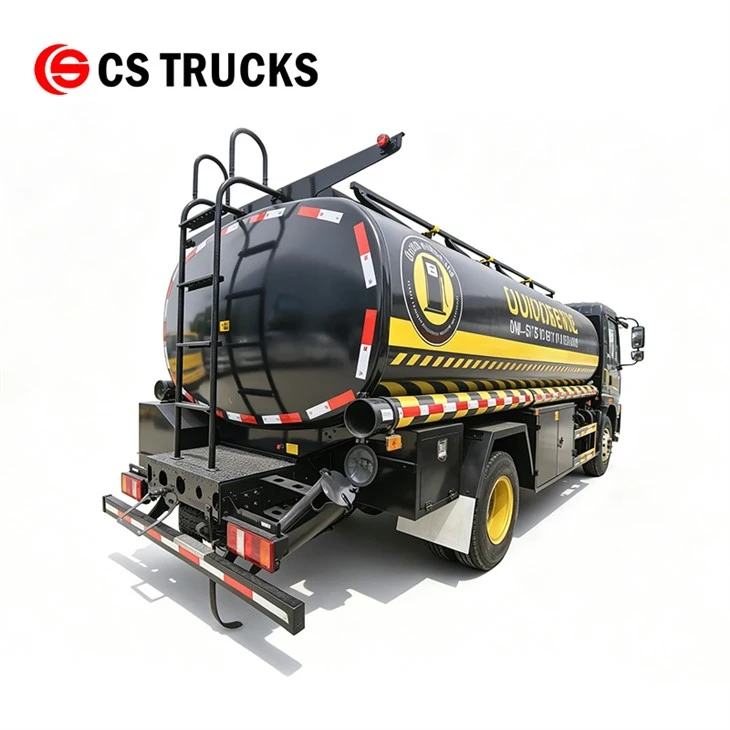

Rear right view of HOWO 6500L truck mounted fuel tank

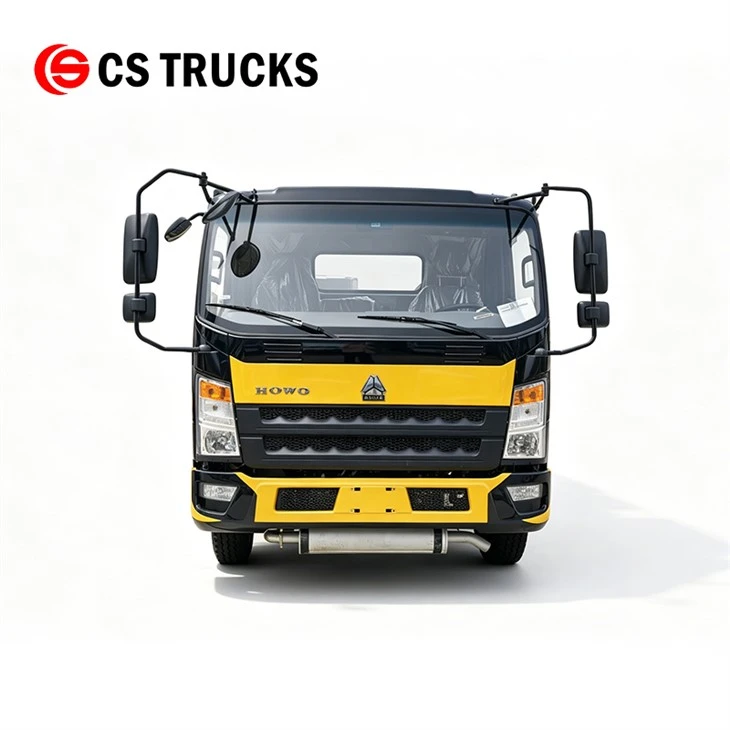

Front view of HOWO 6500L 4X2 diesel fuel tanker

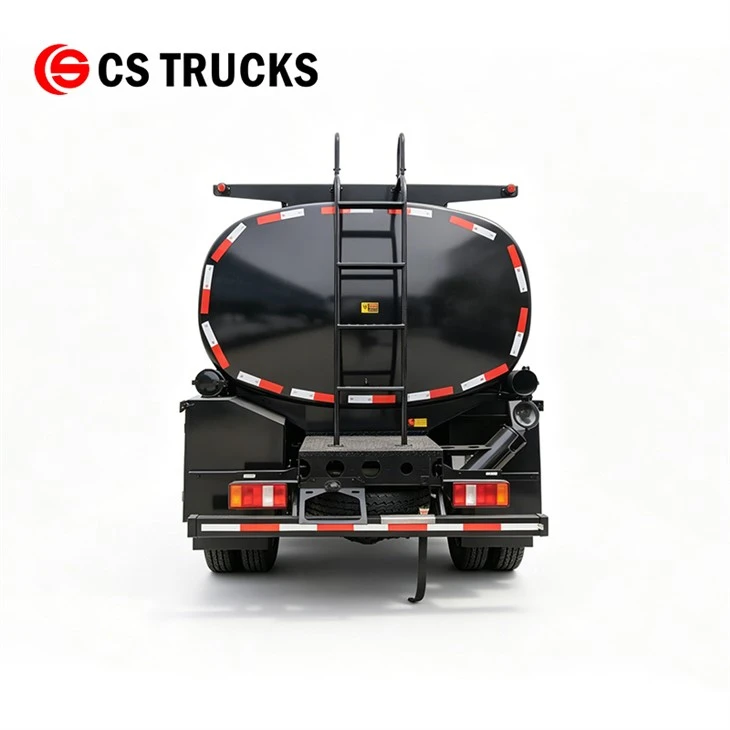

Rear view of HOWO 6500L 4X2 diesel transport tank
Products - 100% China HOWO factory trucks!
Shipping - 100% fast, Convenient, Efficient!
Guarantee - 7 days + 24 hours Safety Service!
1. HOWO 6500L Mobile Fueling Chassis:Built on SINOTRUK HOWO 4×2 platform with YC4E160-33 diesel engine delivering 160 HP + FAST 9JS150A 6-speed manual transmission, designed for on-site refueling, fuel delivery, and mobile fuel supply across construction sites, mining operations, and agricultural fields.
2. Q235 Carbon Steel Fuel Tank: Manufactured from Q235 carbon steel, featuring 6500L capacity with durable construction for diesel, gasoline, and fuel oil transport in demanding conditions.
3. Fuel Pump & Dispensing System: Equipped with 80YHCB-60 fuel pump (60 m³/h flow, 0.6 MPa pressure), PTO-driven, plus digital fuel dispenser with LCD display for real-time tracking of liters, price, and total sales.
4. Safety & Job Site Features: 4×2 drive with 8.25R16 tires, air brake system, 4800 mm wheelbase for stable handling. Cab with A/C and power steering, plus side impact protection with high-visibility yellow/black stripes, top safety handrails, and anti-slip walkway for safe operations.
