HOWO 25 CBM Oil Transport Tanker Truck (also known as fuel transfer tank, petrol bowser, or portable fuel bowser) is engineered for comprehensive oil and fuel handling tasks, including petroleum product transportation, fuel station distribution, and industrial oil logistics. With 25 CBM tank capacity and 371HP power, its 6×4 heavy-duty chassis ensures stable performance across highway and off-road environments, delivering efficient transport solutions for modern energy and industrial applications.
*HOWO 25 CBM Oil Transport Tanker Truck*
-----------------------------------------------------------------
CS Factory is a professional manufacturer in the truck area.
guaranteeing all products are Brand-New and High-Quality.
» I.Product Defination and Introduction:
Manufacturer: CS TRUCKS
Features:
▶ Chassis: SINOTRUK 6×4 heavy-duty chassis powered by 371HP WEICHAI diesel engine
▶ Tank Capacity: 25 CBM single-compartment or multi-compartment design (customizable up to 6 compartments)
▶ Tank construction: 5mm Q235 carbon steel plate with anti-corrosion coating, reinforced with internal baffles for surge suppression
▶ Pumping & Dispensing System: China's famous brand pump with PTO drive, complete with fuel dispenser and pipeline system
▶ Operation Scope: Designed for gasoline, diesel, and fuel oil transportation, fuel station distribution, and industrial fuel logistics
» II. Product Parameters for HOWO 25 CBM Mobile Fuel Tanker:
| Product Name | HOWO 25 CBM Oil Transport Tanker Truck | ||
| Overall | Vehicle Model | CS5250GYY | |
| Drive Type | 6*4 | ||
| Gross Vehicle Weight | 25000 kg | ||
| Curb Weight | 12250 kg | ||
| Front Axle Weight | 14500 kg | ||
| Rear Axle Weight | 32000 kg | ||
| Maximum Speed | 95 km/h | ||
| Overall Dimensions L*W*H(mm) | 11300*2350*2950 mm | ||
| Engine | Engine Model | WD615.47 | |
| Engine Brand | WEICHAI | ||
| Fuel Type | Diesel | ||
| Power | 371 HP(273KW) | ||
| Emission Standard | Euro II | ||
| Displacement | 9726 ml | ||
| Engine Type | 6 cylinders in line,4-stroke direct injection, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Chassis Brand | SINOTRUK | |
| Tire No. | 10 tires and 1 spare tire | ||
| Tire Specification | 12.00R20 | ||
| Wheelbase (mm) | 4600+1370 mm | ||
| Gear Box | HW19710 + HW70 (PTO) 10 forward & 2 reverse Manual |
||
| Steering Wheel | Left hand drive | ||
| Brake | Air brake | ||
| Radiator | Suitable for a tropical climate | ||
| Clutch | Reinforced diaphragm clutch | ||
| Cab | Single cabin with a sleeper, with an air conditioner. | ||
| Fuel tank | Capacity | 25 CBM | |
| Tank material | Carbon steel Q235(5 mm) | ||
| Compartment | 2 | ||
| Transport medium | Gasoline, Fuel, Diesel, or others | ||
| Equipment | 1. Equipped with China's famous brand pump, valves, and pipes, a set of Fuel Dispenser 2. Equipped with a ladder on the tank 3.It can be designed to have several compartments according to your requirements 4. Equipped with a speed limiter. The speed limit is 95 km/h |
||
» III. Product Description:
1. Chassis Configuration:
♦ Engineered with a reinforced frame structure, this chassis supports a gross vehicle weight of 25,000 kg, delivering reliable load capacity for oil transportation and pumping operations.
♦ The optimized suspension system and balanced axle load distribution ensure excellent driving stability during high-speed travel, complex road conditions, and fuel loading/unloading processes.
2. Powertrain System
♦ The WD615.47 inline 6-cylinder turbocharged inter-cooled diesel engine delivers 371 HP (273 kW) output, meets Euro II emission standards, and features a displacement of 9,726 ml.
♦ HW19710 10-speed manual transmission with HW70 PTO, paired with a 6×4 drive system and 4,600+1,370 mm wheelbase, ensures reliable power delivery for heavy-duty oil transport and pumping across diverse road conditions.
3. Bottom Loading Control Box
♦ Precision Multi-Compartment Control: Standard 2 compartments (customizable up to 6) enable simultaneous loading of different fuel grades without cross-contamination.
♦ Integrated Flowmeter & Quick Couplings: Real-time volume measurement combined with rapid hose connection significantly reduces turnaround time and ensures accurate fuel accounting.
4. Bottom Valve Pneumatic Control Box
♦ Independent Compartment Control: Panel-mounted switches operate each tank compartment's bottom valve separately, enabling precise emergency shutoff and safe multi-grade fuel loading.
♦ Reliable Pneumatic System: Integrated air treatment unit (filter + regulator + pressure gauge) ensures stable, contaminant-free air supply for consistent valve response during high-volume transfer operations.
» IV. HOWO 6X4 Diesel Transfer Tank Operating Principle:
♦ Fuel Pump Drive System: Driven by the engine through PTO and driveshaft, delivers reliable and continuous power for 25 CBM oil transfer and dispensing operations.
♦ Pump Mounting Configuration: Securely mounted to the SINOTRUK chassis via a dedicated pump bracket, ensuring stable performance during highway transport and loading/unloading cycles.
♦ Fuel Pump Drive System: Driven by the engine through PTO and driveshaft, delivers reliable and continuous power for 25 CBM oil transfer and dispensing operations.
♦ Pump Mounting Configuration: Securely mounted to the SINOTRUK chassis via a dedicated pump bracket, ensuring stable performance during highway transport and loading/unloading cycles.
| Circular Arc Gear Oil Pump | |
| Model | 80YHCB-60 |
| Pressure | 0.6 MPa |
| Flow | 60 m³/h |
| Power Supplied | 11 KW |
| Rotational Speed | 970 r/min |
Product Details
HOWO Oil Tanker Bottom Loading Coupler
HOWO Fuel Transfer Tank Flow Meter
HOWO Diesel Bowser Bottom Loading Valve
HOWO Mobile Fuel Bowser Manhole Ladder
HOWO Portable Fuel Bowser Vapor Return Line

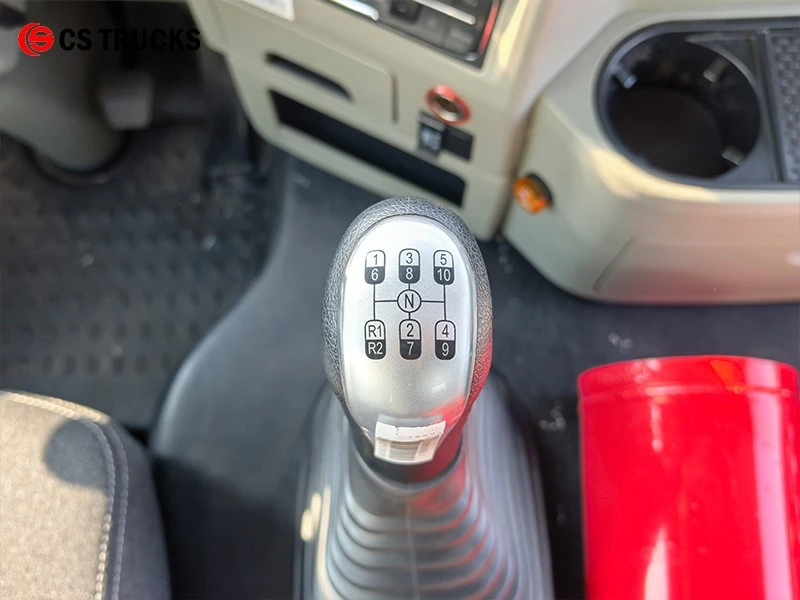

HOWO Oil Transport Tanker Dual H-Pattern Shifter
» V.HOWO Fuel Transfer Tank Solutions:
HOWO Oil Transport Tanker Truck For Gas Stations
HOWO Petrol Bowser For Mining Sites
HOWO Mobile Bowser With Pump For Aircraft Refueling
HOWO Diesel Transfer Tank For Factory Fuel Supply
» VI.HOWO Oil Tanker Truck Exterior Views:

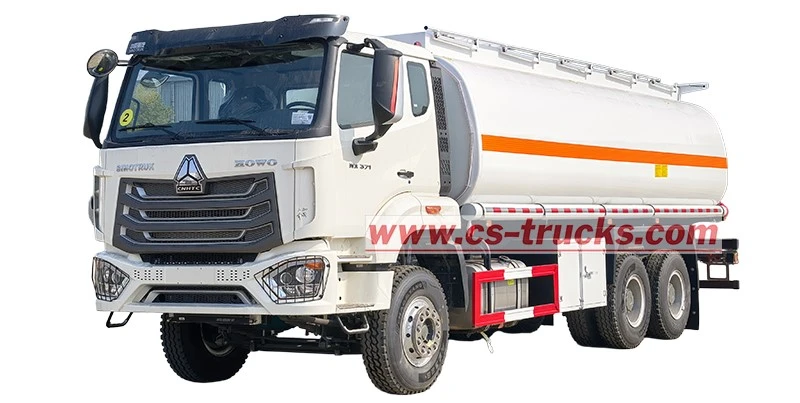

Front Right View of HOWO Fuel Tanker Truck
Front Left View of HOWO Gasoline Distribution Truck
Right View of HOWO 6x4 Fuel Transfer Tank With Pump
Left View of HOWO 6x4 Petrol Bowser For Sale
Rear Right View of HOWO 6x4 Mobile Fuel Bowser
Rear Left View of HOWO Mobile Diesel Bowser
Front View of HOWO Aviation Fuel Bowser For Sale
Rear View of HOWO 6x4 Aircraft Fuel Bowser
» More HOWO oil tanker trucks
Products--100% China HOWO factory trucks!
Shipping - 100% fast, Convenient, Efficient!
Guarantee - 7 days + 24 hours Safety Service!
1. HOWO 25 CBM Oil Transport Tanker Truck: Built on SINOTRUK 6×4 platform with WD615.47 diesel engine delivering 371 HP + HW19710 10-speed manual transmission (with HW70 PTO), engineered for efficient petroleum product transportation and fuel distribution operations.
2. Multi-Compartment Tank Structure: Constructed using 5mm Q235 carbon steel plate (optional 6mm high-quality steel, aluminum alloy, or stainless steel), featuring optimized compartment design with 25 CBM total capacity (standard 2 compartments, customizable up to 6 compartments), finished with anti-corrosion coating.
3. Core Pumping & Dispensing System: Integrated a famous brand pump (options include centrifugal, gear, stainless steel, or polymer nylon pump) and a complete fuel dispenser set, designed for reliable oil transfer, achieving efficient loading/unloading with controlled flow performance.
4 . Operational & Safety System: Standardized PTO-driven pump operation with manual control, supported by safety features including anti-static grounding tape, copper grounding terminals, vent valve for pressure protection, fire extinguishers, and speed limiter (95 km/h) for secure and adaptable fuel transport operations.
