This FAW 16CBM water tanker vehicle features a 16CBM tank, balancing operational range with urban road passability; its 6×4 drive configuration ensures stability under full load and adaptability to complex road conditions. Powered by a 320HP CA6DL1-32E5 engine, it boasts mature and reliable power and good fuel economy, making it suitable for high frequency, short to medium distance operations such as dust suppression on urban main roads, green space irrigation, and construction site watering. It is a practical choice balancing load capacity, maneuverability, and operating costs.
Model: CS5250GSS
Capacity: 16CBM
Drive: 6×4
Engine Power: 320HP
Engine Type: CA6DL1-32E5
Send Inquiry
Description
This FAW 6×4 potable water truck for sale features left hand drive and is equipped with a CA6DL1-32E5 Euro V diesel engine, providing stable and ample power for heavy duty water transport and spraying operations. The vehicle features a 16CBM carbon steel tank, a robust chassis structure, and strong load bearing capacity, allowing for continuous operation under complex conditions.
The truck is equipped with a selfpriming centrifugal water pump and a complete multifunctional water spraying system, enabling front flushing, rear spraying, side spraying, and a 360° rotating greening water cannon, providing wide coverage and long range. The tank has built in baffles and is treated with anticorrosion measures, ensuring durability and suitability for road sweeping, dust suppression, and greening irrigation in urban and construction site environments.
FAW Water Tanker Key Features
chassis
The 6×4 drive configuration offers strong load bearing capacity and is suitable for heavy duty operations.
Tank
A 16CBM large capacity water tank meets the needs of large volume water delivery and spraying operations.
Powertrain
Equipped with a CA6DL1-32E5 engine, producing 320 horsepower, meeting Euro V emission standards, and offering stable and reliable power.
Functions and Applications
Multifunctional sprinkler system, suitable for road sprinkling, dust suppression, greening irrigation, and emergency water supply.
Technical Parameters
Mali Custom FAW Water Sprinkler Truck
Vehicle Model
CS5250GSS
Drive Type
6×4
Gross Vehicle Weight
25000 Kg
Curb Weight
10810 kg
Capacity
16 CBM
Maximum Speed
90 km/h
Overall Dimensions
4800×2450×1600 mm
Engine
Engine Type
CA6DL1-32E5
Fuel Type
Diesel
Power
320HP/238kW
Maximum Torque
1250 N·m @1300~1700 rpm
Emission Standard
Euro V
Displacement
7700 ml
Engine Type
Inline 6 cylinder, four stroke, water cooled, turbocharged, intercooled, electronically controlled common rail diesel engine
Chassis
Tire No.
10+1
Tire Specification
12R22.5
Wheelbase (mm)
4350+1350 mm
Front Overhang / Rear Overhang
1400mm/2910mm
Approach Angle / Departure Angle
≥18° / ≥10°
Gear Box
FAW 9-speed manual transmission
Steering Wheel
LHD
Brake
Air
Superstructure
Material
Q235B carbon steel
Structure
Built in multiple wave damping baffles, CNC plate rolling, double sided automatic welding
Internal Corrosion Protection
Sandblasting for rust removal + epoxy anti-corrosion primer + topcoat
Manhole
Φ500mm pressurized sealed manhole with liquid level observation port
Pipeline
Galvanized high pressure water pipe, manually controlled by ball valve
Sprinkler System
Sprinkler Pump
Selfpriming centrifugal pump
Flow Rate
≥60 m³/h
Water Pump Head
≥90 m
Standard Spraying Function
Front spray, rear spray, dual side spray, and rear platform greening cannon
Sprinkling Operation Width
≥14 m
Greening Cannon Range
≥28 m, 360° rotation
Maximum Selfpriming Depth
≥6 m
Performance And Advantages
Vehicle configuration
⚙️Large Capacity Tank: 6×4 rear dual axle drive, gross vehicle weight 25000 kg, tank volume 16CBM, large water carrying capacity, wide coverage area in a single operation.
⚙️Stable Passage: Wheelbase 4350+1350mm, equipped with 12R22.5 tires, ensuring stable passability and suitable for long distance outdoor operations.
⚙️Efficient Relocation: Maximum speed 90km/h, high transport efficiency, allowing for rapid relocation between construction sites and urban roads.
Powertrain
⚙️Powerful Performance: Equipped with a CA6DL1-32E5 engine, delivering 320HP, ample power reserves, and stable output under heavy load conditions.
⚙️Reliable Emissions: Meets Euro V emission standards, offering good fuel economy, low failure rate, and suitability for long term continuous operation overseas.
⚙️Mature Powertrain: Paired with a 9-speed manual transmission, ensuring stable torque transmission and adaptability to complex road conditions.
FAW Water Tanker Water Sprinkler System
Sprinkler Pump:
This vehicle is equipped with a selfpriming centrifugal pump with a flow rate ≥60m³/h, a head ≥90m, and a maximum selfpriming depth ≥6 meters, making water intake convenient.
Spraying Function:
This vehicle is equipped with front spray nozzles, rear sprayers, side sprayers, and a rotating greening water cannon, driven by a selfpriming centrifugal pump, to meet the needs of various scenarios for watering and rinsing operations.
Front Spray Nozzle
Side Spray Nozzle
Rear Spray Nozzle
Greening Cannon
Working Principle:
The water truck uses a selfpriming centrifugal pump to draw water from the tank and delivers it to each set of nozzles through pipelines; it can switch between front spray, rear spray, side spray, water cannon and other water output modes to achieve road washing, dust suppression and greening irrigation.
Application Scenarios
FAW 16CBM Water Tanker Vehicle for Road Cleaning
High pressure washing of the road surface removes mud, oil, and stubborn stains; it works in conjunction with a road sweeper to perform "washing and sweeping" operations.
FAW 6×4 Potable Water Truck for Sale for Construction Site Dust Control
Spraying water mist at demolition, earthwork construction, and material transportation sites helps suppress dust.
FAW 320HP Potable Water Truck for Sale for Green Irrigation
Water the green belts on both sides of the road, the lawns in the park, and the trees, especially during the maintenance period of newly planted seedlings.
Exterior Views

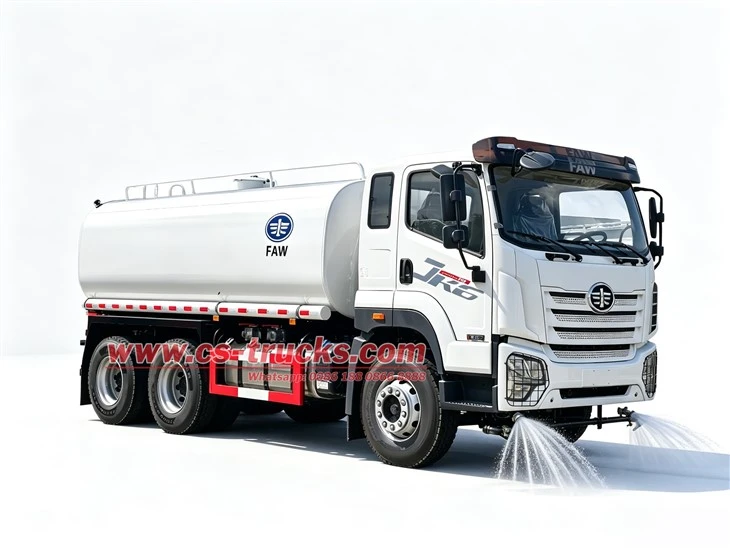

Front Right View of FAW 6×4 Water Truck Delivery Cost Near Me

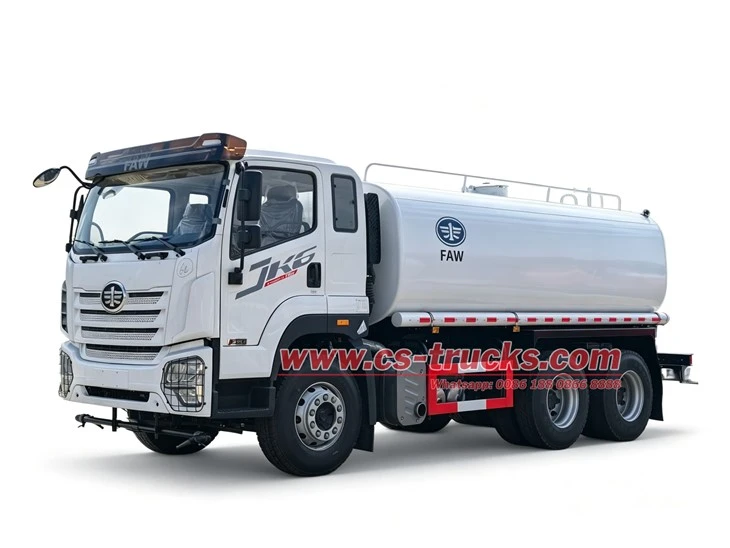

Front Left View of FAW 6×4 Potable Water Truck for Sale

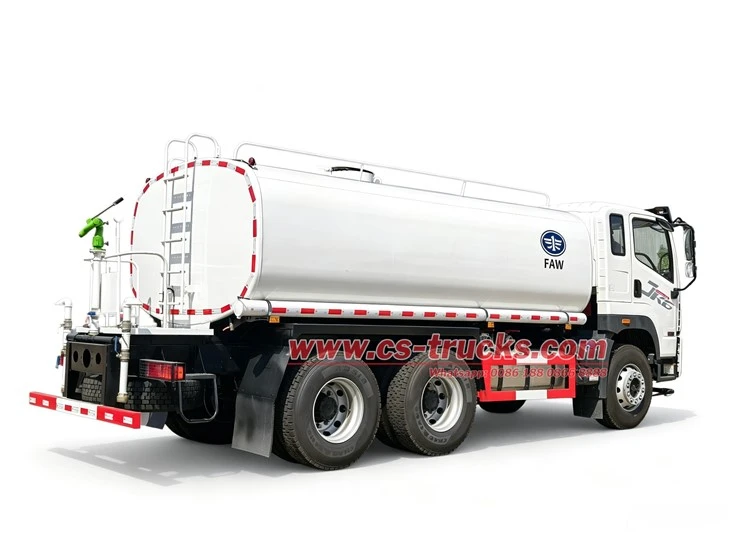

Rear Right View of FAW 16CBM Water Tanker Delivery Price
Rear Left View of FAW 16CBM Water Tanker Vehicle

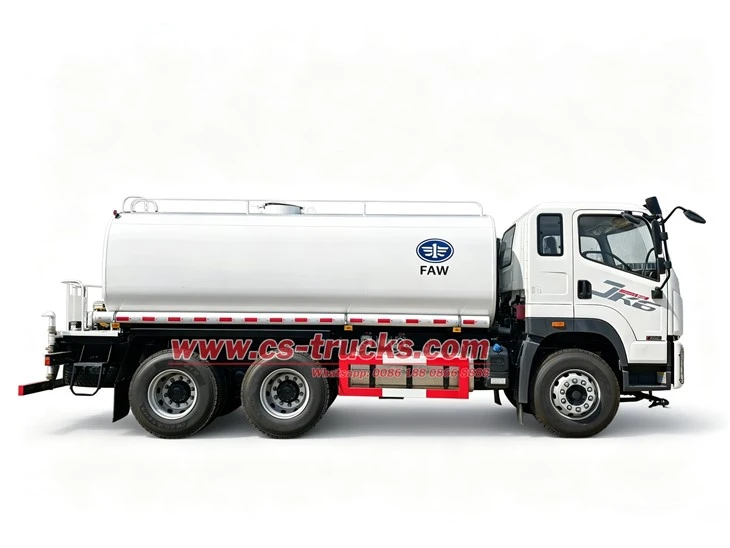

Right View of FAW 320HP Potable Water Truck for Sale

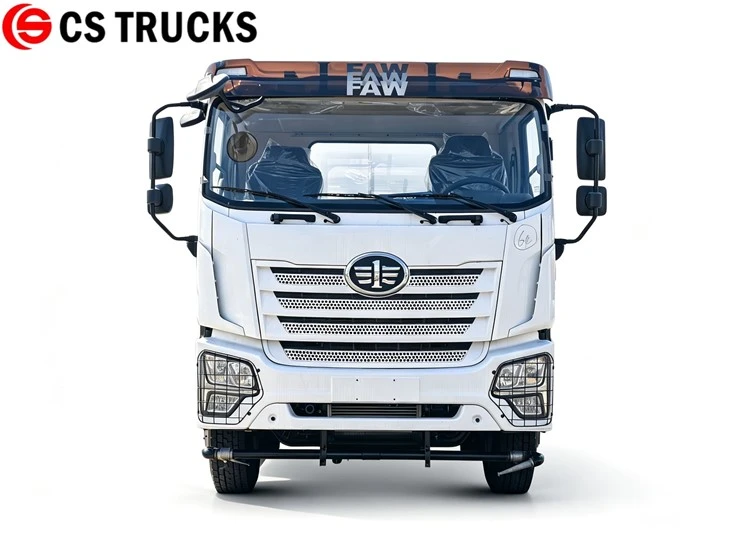

Front View of FAW 320HP Water Truck for Sale By Owner

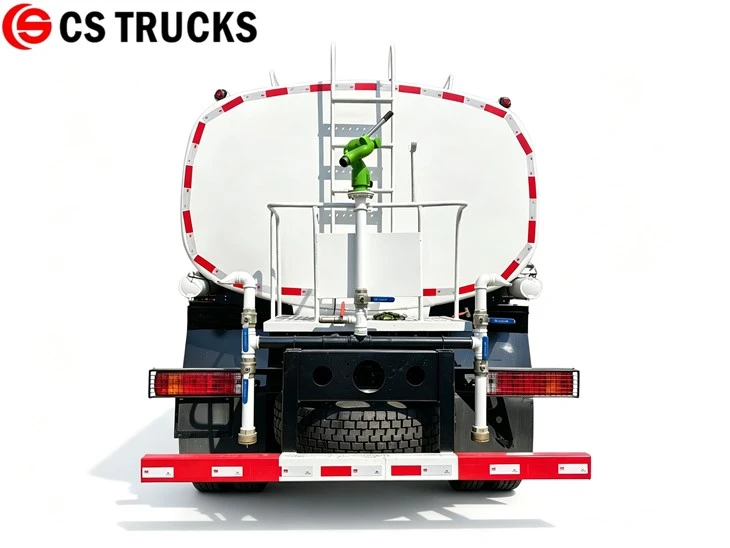

Rear View of FAW 16CBM Water International Trucks
