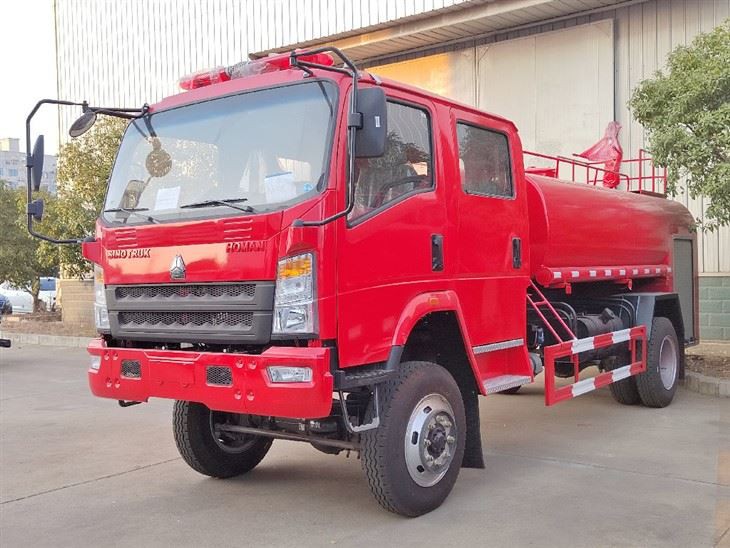

HOWO 4x4 Tanker Fire Truck

Wildland fire engine is also named as HOWO 4x4 tanker fire truck, which is a specialized fire engine that can negotiate difficult terrain for wildfire suppression. A wildland fire engine HOWO is smaller than standard fire trucks and has a higher ground clearance based on its 4x4 truck chassis. They may also respond to emergencies in rough terrain where other vehicles cannot respond. Many wildland engines feature four-wheel drive capability to improve hill climbing and rough terrain capability. Some wildland apparatus can pump water while driving (compared to some traditional engines which must be stationary to pump water), allowing "mobile attacks" on vegetation fires to minimize the rate of spread.

Fire departments that serve areas along the wildland–urban interface have to be able to tackle traditional urban fires as well as wildland fires. Departments in these areas often use a wildland-urban interface engine, which combine features of a standard fire engine with that of a wildland fire engine. Choose CS TRUCKS and calling us today for more details.

The HOWO 4x4 tanker fire truck mainly used for water spraying and fire extinguisher. So the water tender is a specialist fire appliance with the primary purpose of transporting large amounts of water to the fire area to make it available for extinguishing operations. These are especially useful in rural areas where fire hydrants are not readily available and natural water resources are insufficient or difficult to exploit. Most tankers have an on-board pumping system. This pump is often not of sufficient power to fight fires (as it is designed to be attached to a fire engine), but is more often used to draw water into the tender from hydrants or other water sources. Many tankers are equipped with fast-drain valves on the sides and back of the truck. This allows firefighters to empty thousands of gallons of water into a portable water tank in just a few seconds.

Most Sinotruk HOWO fire rescue water tenders are designed to carry loads of 5,000–12,000 litres (1,100–2,600 imp gal).

Note: 1.The vehicle height includes Top Fire Monitor.

2. We keep the right to revise the parameters on the list above.

Water Tanker basic parameter list





HOWO 4x4 Tanker Fire Truck key technologies

01.

HOWO 4x4 offroad 4WD truck chassis

A 4×4 truck or car, likewise known as four-wheel drive (4WD) or 4-by-4, means a system in which a vehicle's engine powers all four wheels evenly. Usually speaking, when it involves trucks and cars, there are only 4 options: 4-wheel drive, all-wheel drive, front-wheel drive, rear-wheel drive.

HOWO 4x4 offroad water tanker frire truck is mounted on 4x4 truck chassis, which have super power and higher clearance, which can cover different kinds of terrian and rough road conditions.

02.

6000L water tanker and Fire Pump system

High strength carbon steel material water tanker with 6000liters capacity, on top with DN500 manhole for water inlet and regular maintenance. Rear equipped with fire pump room and mounted with CB10/40 fire pump, on top equipped with PS30 water fire monitor. all kinds of fire fighting equipment as standard: fire gun, hose reel, pipeline hose, fire extinguisher, rope, fire axe, etc.

Customzied red painting for fire rescue warning and fire fighting job succeed.

CB10/40 fier pump

Techncial drawing for CB10/40 fire pump

2. Why choose XIONGZHEN FIRE PUMP

XIONGZHEN brand CB10/40-XZ model fire pump is specially designed fire pump, which is an idea pump widely used in light duty, middle duty and heavy duty water tanker fire trucks, foam fire trucks, water-foam fire trucks, water-foam-powder fire trucks, and more excellent than Similar Products.

3. How to operate and maintenance XIONGZHEN FIRE PUMP

1) Before operating the XIONGZHEN CB10/40-XZ model fire pump, below thing need to be done firstly:

• Turn off all water outlet valves on the fire pump
• Foam fire truck should turn off foam ball valve and foam proportioner
• Turn on the water inlet valve on the fire pump
• Turn off the water injection valve
• Fire pump rotation with no water may damage the pump (Safe Rotation Time ≤1 min)

2) After using the fire pump, below thing need to be done:

• Turn on all water outlet valves on the fire pump and pipeline, discharging all the water inside the truck, then turn off all the valves
• Checking the bearing shaft oil level, suggest to change shaft oil every two years.

3) While using fire pump, there are may be some unpredicted malfunction, following diagram help you better know the possible reason and solution:
