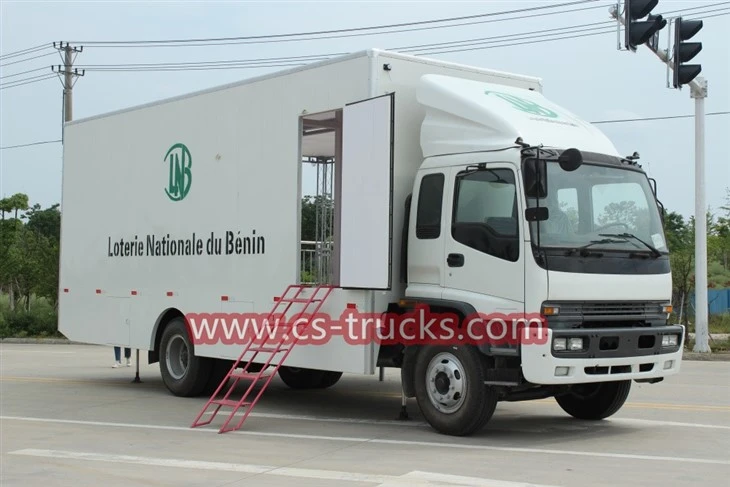

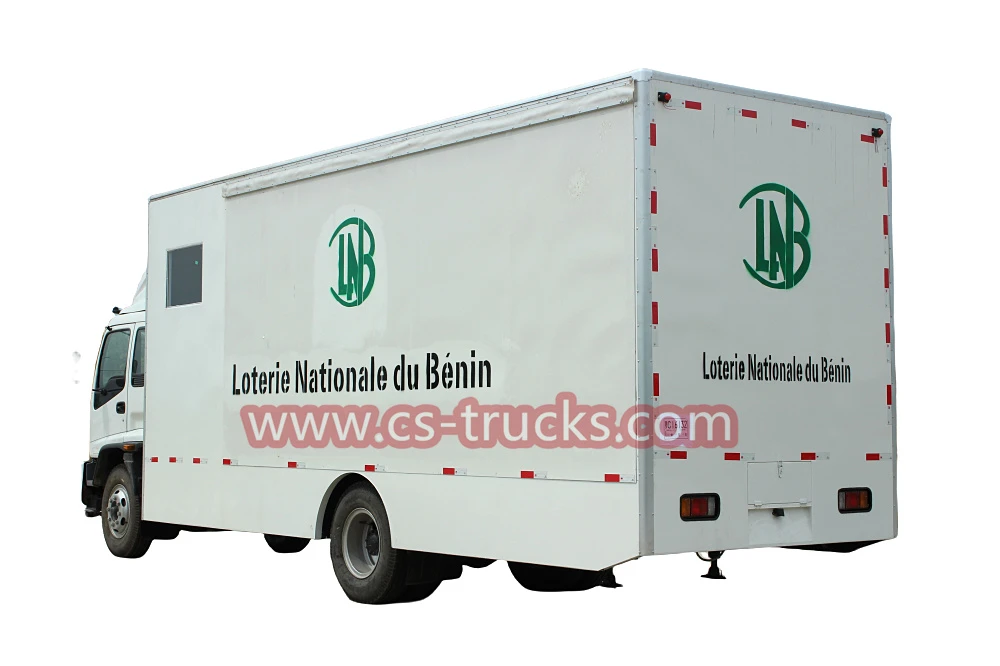

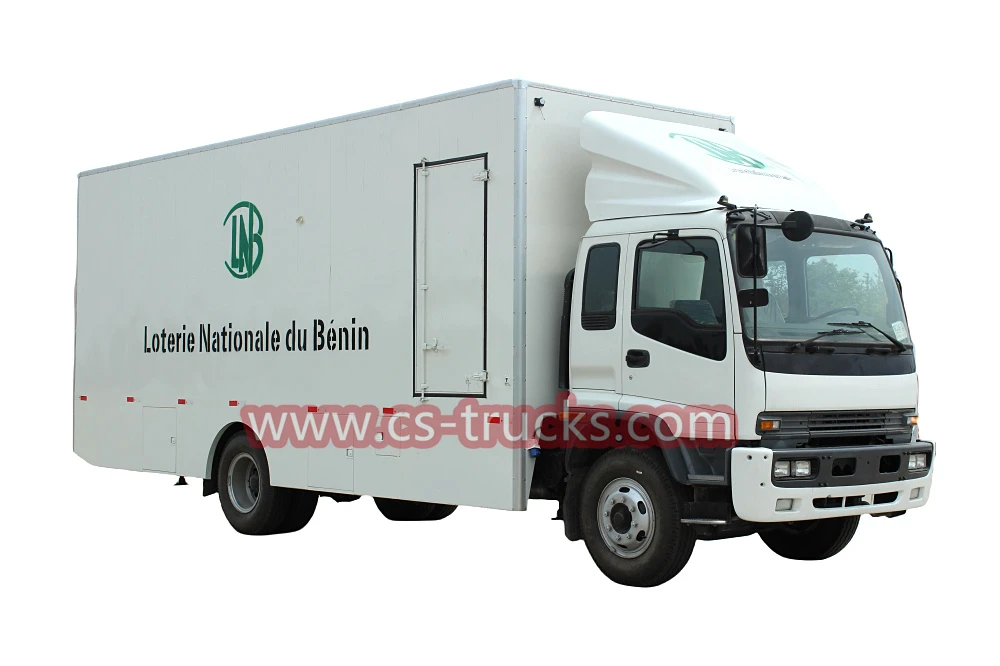

Isuzu mobile Stage service truck (also called Isuzu mobile show truck , outdoor show truck Isuzu, Isuzu mobile hydraulic stage vehicle , multimedia truck , mobile advertising truck , mobile show vehicle , mobile concert truck , mobile LED stage truck , etc. ) is designed for providing instant stage solutions for corporate events , product demonstrations , festival , concerts , fashion parades , schools , Parties ,etc.
There are variety stage design options : one side stage hydraulically open , both sides hydraulically open , three sides stage hydraulic open , van roof hydraulically raised with stage open , etc. The stage floor is using special anti-slip board which could guard safety well .
Isuzu Mobile stage truck generally equips with sound , Light truss , stepladder , etc. Other function or devices , such as van body lifted as awning , LED billboard , lamp , extra extension stage , etc. Could also be customized.
Technical Specification
-
Our Isuzu Mobile stage service trucks have trussed roofs with lighting and electrical outlets. You can easily hang and set up your lighting system and stage top atmosphere decorations.
-
Mobile stage truck Isuzu is equipped with pull-out guide rails on both sides of the wings, which serve as the sound suspension support frame. Two support trusses are arranged at the top of the two side wings of the stage entrance to enhance the safety and stability of the suspension system. Rigging capacity varies from 500 kg to 1000 kg depending on the choice of line array hanging brackets or trusses.
-
For added stage viewing and ambience, an Led screen background with a movable base can also be set on the stage. You can easily move the large screen on the truck and trailer stage. The led screen is optional.
STRUCTURAL PARAMETERS OF ISUZU Mobile Stage Service Truck
| product name | Isuzu mobile stage truck | Model | CS5180 | Brand | CS TRUCKS | |||||||||
| Overall dimension(mm) | 12000×2250×3995 | stage size(mm) | 8600×9400 | Curb weight(tons) | 16500 | |||||||||
| Exterior plate material | Honeycomb composite board | stage area | 81-125㎡ | Floor materials | Composite wood floor | |||||||||
| Mesa height(mm) | 1500-1750 | floor loading | 400Kg/㎡ | Lighting truss | Transverse7 longitudinal 4 | |||||||||
| framework material | steel structure | Set-up | 2×1.5 hours | Light truss load bearing | 450 kg / 1 | |||||||||
CHASSIS PARAMETERS
| brand | ISUZU | Chassis models | FTR | Emission standards | Euro 5 | |||||||||
| Fuel | diesel | Engine type | 4HK1 | Power （kw） | 150 | |||||||||
| Displacement (ml) | 5200 | Tire size | 10.00R20 | Axial distance (mm) | 5500 | |||||||||
LED SCREEN PARAMETERS(Optional)
| specifications | P4 | P5 | P6 | P8 | P10 | |||||||||
| Size (mm) | 6400×3200 | 6400×3200 | 6336×3264 | 6400×3200 | 6400×3200 | |||||||||
| Area (㎡) | 20.48 | 20.48 | 20.68 | 20.48 | 20.48 | |||||||||
| Module Specification (mm) | 320*160 | 320*160 | 192*192 | 320*160 | 320*160 | |||||||||
| Screen brightness（cd/m2） | ≥6000 | ≥6000 | ≥5000 | ≥5000 | ≥5000 | |||||||||
| Working voltage（V） | 5 | 5 | 5 | 5 | 5 | |||||||||
| Refresh rate（Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | |||||||||
| Service life（hours） | ≥50000 | ≥50000 | ≥10000 | ≥50000 | ≥50000 | |||||||||
Detail pictures
As a professional outdoor stage truck manufacturer in China, our outdoor stage truck have more advantages than other outdoor stage truck supplier. Also, the stage can be expanded by manual, hydraulic. The stage platform can be one side expanded, two sides expanded, three sides expanded. The largest stage area is 80 square meters. The outdoor stage truck can be equipped LED screen for advertising.
Media optimization,better performance
Combined full color outdoor LED, monochrome screen, roller box, high-power stereo equipment, and other media show together, strengthen the system optimization makes the activity more convenient operation, the equipment running more stable, media show more outstanding.
Our Mobile Stage Trucks are designed and built by musicians, event coordinators, engineers and logistics specialists. The result is mobile stages that are practical, reliable and comfortable, producing great sound for both the audience and musicians.
The trucks come fully equipped with sound, light and power, are totally mobile, and can be operational in as little as 45 minutes, when required.
We are the only trucks of this kind in Australia and our service is second to none.
Our Mobile Stage Trucks are totally cost effective as the stage, all sound equipment, lighting, generator and engineer are provided as a package. (A dry hire option is also available)
Our price packages save time, money and stress and our crew will go above and beyond the call of duty every time.
The Mobile Stage Truck provides instant stage solutions for corporate events, festivals, concerts, fashion parades, schools, or even street parties.
