Products Description

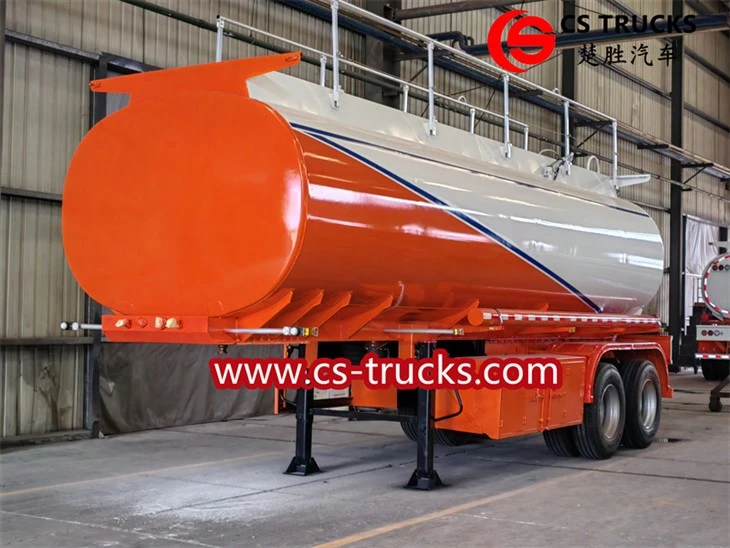

The oil semitrailer, also can be named as lorry truck mounted crane, fuel tanker semitrailer, diesel transfer tanker semitrailer, gasoline transfer tanker semitrailer. Which is a specialized vehicle designed for transporting large quantities of liquid fuel, such as gasoline, diesel, and aviation fuel. It is built with high-quality materials to ensure the safe and efficient transportation of flammable liquids. The semitrailer consists of a tanker body, axles, suspension system, braking system, and other essential components.
The Fuel Bowser Semi-trailer is primarily used in the fuel transportation industry to deliver fuel from refineries to distribution centers, gas stations, and other fuel-consuming industries. It is also utilized for supplying fuel to remote areas, mining sites, construction sites, and airports.
Key Features
----►2 axles customzied with BPW brand
----►26000L tanker capacity
----►Tanker thickness 6mm, durable quality
----►Efficient transportation
----►Cost-effective with largo quantities of fuel in one trip
----►12 months after sale service, long guarantee assurance.
Technical Specification
The customized 2 axles fuel tanker semitrailer, 3 axles oil bowser semitrailer, 4 axles gasoline fuel semitrailer, which is primarily used in the fuel transportation industry to deliver fuel from refineries to distribution centers, gas stations, and other fuel-consuming industries. It is also utilized for supplying fuel to remote areas, mining sites, construction sites, and airports.
Semitrailer specification |
|||
| Volume of tank | 26 m3 | ||
| Dimension | 10200x2500x3300 mm | ||
| Color | Painted in the corporation's colours with logo on both front doors as specified by the client | ||
| Tank Body | 5mm Carbon steel | ||
| Front and Rear end plate | 4mm Carbon steel | ||
| Swash Plate | 4mm Carbon steel | ||
| Wave-proof Plate | 5mm Carbon steel | ||
| Compartment | 2 compartment as required | ||
| Manhole Cover | DN500 aluminum EURO standard manhole cover | ||
| Discharge Valve | Diameter 4 inch; aluminum discharge valve | ||
| Cat Walk | With non-slip walkway at top of the tank | ||
| Axle | World top BPW brand, 13 tons capacity, 2 axles | ||
| Suspension | Mechanical suspension | ||
| ABS | With 4S/2M KEMI brand | ||
| Tyre | 315/80R22.5, 8 units | ||
| Wheel Rim | 9.0-22.5, 8 units | ||
| Kingpin | 3.5" bolt-in kingpin JOST brand | ||
| Landing Gear | 28T Two-speed, manual operating, heavy duty landing gear JOST Brand | ||
| Braking system | WABCO RE6 Relay Emergency Valve. T30/30 spring brake chamber. 40L air tanks | ||
| Electrical | Voltage 24V, Receptacle 7 ways (7 wire harness), Side marker lamp LED type 24V | ||
| Wax spray | Wax spray | ||
| Painting | Complete chassis sand blasting to clean rust ,2coat of anticorrosive prime,2coats of final paint | ||
| Accessories | One tool box, Two spare tire carrier，two fire extinguisher （2x8kg) | ||
Fuel Tank Semitrailer detail
jet Oil Tanker Semi-trailer knowledge
Have you seen fuel tank trailers on the road and wondered how their components function? Are you planning to buy a tank trailer for your business but need help in choosing the right model?
Are you an engineer who needs to increase his or her know on the structure of tank trailers. In this book, you will learn everything you need to know about tank trailers.
We CS-TRUCKS will introduce to the heavy load fuel tank semitrailer, which is also called a tank truck trailer or semi tank trailer. The guide does not focus on the small or home tank trailer. We will cover the small trailers in another guidebook.
Tank truck trailers are used to transport liquids and gas in large volumes. The trailers come in different models because of the wide variety of liquefied loads.
The internal structure also varies depending on the type of liquid or gas that the trailers are designed to transport. The tanks may be pressure or non-pressurized and insulated or non-insulated.
The internal structure also varies depending on the type of liquid or gas that the trailers are designed to transport. The tanks may be pressure or non-pressurized and insulated or non-insulated.
What is Fuel Tanker Semitrailer?
One of the common types of oil tank trailer you will find on the road is the fuel tank trailer. The trailer is used to transport gasoline, diesel oil, and benzene. It is also used to transport some types of inflammable and plosive liquid.
Gasoline and diesel fuels are used for standard cars and other types of vehicles. Hence, most fuel trailers have more than one compartment. Why do fuel tank trailers have several compartments?
Gasoline and diesel fuels are used for standard cars and other types of vehicles. Hence, most fuel trailers have more than one compartment. Why do fuel tank trailers have several compartments?
The manhole cover is simply the cover on the trailer’s manhole as illustrated in the picture below. The cover has important components that you should know about, which keep the tank safe.
One of the important components of the manhole cover is the breathe valve as above showing, which is also known as a relief valve. The function of the valve is to adjust the pressure inside tank automatically. This helps to keep the pressure within a certain range. The relief valve protects the tank and reduces the volatilization loss of volatile oil. The body of the respiratory valve is made of stainless steel with nickel cadmium. All other parts are made of stainless acid-resistant steel to prevent rust. A small and medium tank has one breather valve for all the compartments. A large tank, on the other hand, has breathing valves for each compartment.
Factory production
Step one: Cutting and bending the carbon steel plate
Step two: Welding the fuel tanker and frame
Step three: Shot blasting cleaning
Step four: Final stoving painting
Customize your own Fuel Tanker Semitrailer
B:Advantages
Efficient Transportation: The fuel tanker semitrailer reduces the cost and time associated with fuel transportation by maximizing fuel carrying capacity and delivering it to desired locations.
Versatile Application: It is suitable for transporting fuel to gas stations, remote fuel storage facilities, airports, and other locations where fuel supply is required.
Cost-effective: With the ability to transport large quantities of fuel in one trip, the semitrailer minimizes transportation costs and reduces fuel wastage.
Regulatory Compliance: The fuel tanker semitrailer complies with international standards and regulations for the safe transportation of flammable liquids, ensuring legal compliance and peace of mind for customers.
