Products Description

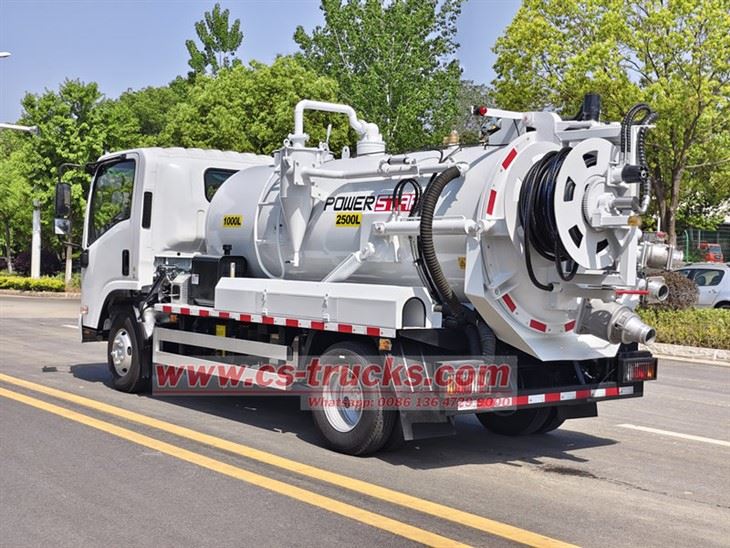

In municipal sanitation, industrial wastewater management, and community cleaning operations, a vehicle combining high-pressure jetting and vacuum suction capabilities is essential for maintaining hygiene. The ISUZU NKR truck mounted sewer jetter stands out with its compact design, professional configuration, and powerful performance, making it the optimal solution for underground pipeline dredging, septic tank cleaning, and road surface washing.
Built on reliable ISUZU light-duty chassis, this ISUZU light sewer jetting truck is powered by a 4KH1CN6LB turbocharged 4-cylinder diesel engine, delivering 120HP (88kW) and 290Nm of torque. Paired with an MSB 5-speed manual transmission, it achieves a top speed of 90 km/h. Its short 3,360mm wheelbase ensures exceptional agility, with a minimum turning radius of just 6.5 meters, allowing easy navigation through narrow alleys and older residential areas.
This ISUZU light sewer flusher truck employs a dual-chamber configuration, segregating wastewater and fresh water storage. Its 2,000L waste tank utilizes 6mm Q235 carbon steel, coupled with a vacuum system reaching 93% efficiency. Operating at 800rpm, it achieves 45L/s flow with 7,000Pa pressure, efficiently handling sludge and viscous debris. The matching 1,500L water tank incorporates a German PINFL pump producing 122L/min at 16MPa. A 60m×φ19mm hose reel with 10 multi-jet nozzles ensures thorough pipe cleaning. Both tanks are equipped with baffle plates and level gauges, and hydraulic cylinders enable a ≥45° tilting angle for quick emptying and maintenance.
Products Specifications
|
Chassis Specifications |
|
|
Model |
ISUZU KV100 |
|
Driving type |
4×2, left hand drive |
|
Wheelbase |
3360 mm |
|
Overall dimensions |
5900×2200×2550mm |
|
Front/Rear Tread (mm) |
1504/1425mm |
|
Front/Rear suspension (mm) |
1160/1375mm |
|
Front/Rear axle load |
2580/4720 kg |
|
Number of leaf springs |
8/6+5 |
|
Tires |
7.00R16LT 8PR |
|
Tire number |
6+1 (one spare tyre) |
|
Cabin |
ISUZU 3X wide cabin, single row, 3 seats, with air condition |
|
Transmissions |
ISUZU MSB, 5 speed forward 1 reverse. |
|
Max speed (km/h) |
90 |
|
Engine Specifications |
|
|
Manufacturer |
ISUZU |
|
Model |
4KH1CN6LB |
|
Rated Power |
120HP/88KW |
|
Engine type |
4 cylinders, in-line, turbocharged, inter-cooling |
|
Fuel type |
Diesel |
|
Emission standard |
Euro 6 |
|
Displacement |
2999 ml |
|
Rated speed |
2900 rpm |
|
Max. torqued |
290 N.m |
|
Tanker Specifications |
|
|
Sewage tank volume |
2,000 liters |
|
Sewage tank material |
Carbon steel Q235 |
|
Sewage tank thickness |
6 mm |
|
Water tank volume |
1,500 liters |
|
Water tank material |
Carbon steel Q235 |
|
Water tank thickness |
6 mm |
|
Water Jetting System Specifications |
|
|
Water pump brand |
PINFL (German brand) |
|
Model |
PF36 |
|
Flow rate |
122 L/min |
|
Rated pressure |
16 Mpa |
|
Speed |
800 r/min |
|
Power |
50kw |
|
Hose reel |
Rear-mounted hose reel with 60m φ19 high pressure hose |
|
Jetting spraying nozzles |
10 pcs carbon steel spraying nozzles |
|
Vacuum pump Specifications |
|
|
Model |
45/7000 |
|
RPM |
800 r/min |
|
Flow |
45 L/s |
|
Working pressure |
7000Pa |
|
Vacuum degree |
93% |
|
Power |
5kw |
|
Other configurations |
|
|
Tank lifting type |
Lifting by hydraulic cylinders |
|
Tank lifting angle |
≥45° |
|
Sewage suction hose |
7m wire reinforced hose |
|
Control way |
Manual control |
|
Gear pump |
Chinese famous brand |
|

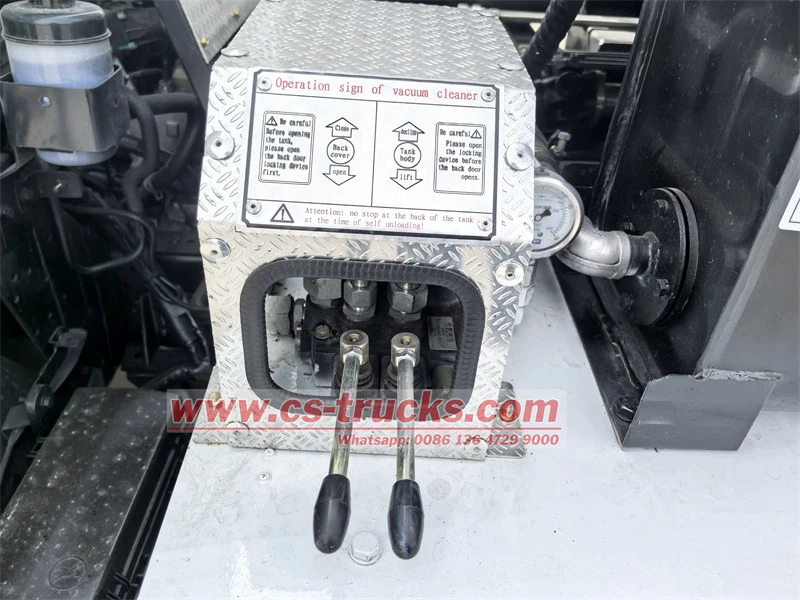

Multi valve |
Chinese famous brand |
|
Hydraulic cylinder |
Chinese famous brand |
Products Details
Be used in a wide range of industries.
